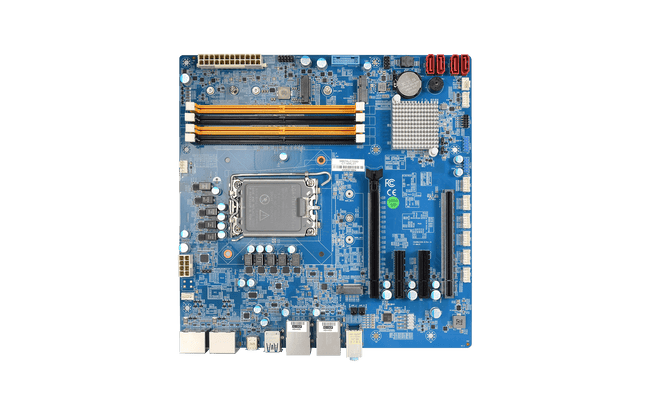

CT-MRL01 MicroATX Industrial Motherboard with LGA 1700 Socket supporting 12/13/14th Gen Intel® Core™ i3/i5/i7/i9 Processor, Q670E

  • Support 12/13/14th Gen. Intel® Alder lake-S / Raptor Lake-S Processor
  • Intel® Q670E chipset
  • 4x 288-pin DDR4 DIMM. Max. up to 128GB
  • 1x 1GbE, 1x 2.5GbE (Support Wake-on-LAN and PXE)
  • 4 independent display supported DP++
  • 1x PCIe x16 (Gen 5), 2x PCIe x4 (Gen4, Gen3),1x PCIe x16 (Gen 4)
  • 2x M.2 (M Key, NVMe PCIe x4, SATA, 2242/2260/2280); 1x M.2 (E Key, PCIe x2, USB 2.0, 2230)
  • 6x RS-232/422/485, 2x USB 3.0 Gen 1, 4x USB 2.0 Internal header, 6x USB 3.1
  • 4x SATA 6.0Gb/s
  • TPM 2.0

Certifications:

Intel Partner

Edge Workload Ready: 13th Gen Intel® Hybrid P/E Cores Processors

The CT-MRL01 motherboard supports 13th Gen Intel® Core™ Processors with an LGA 1700 socket and a Q670E Chipset PCH featuring a hybrid Intel® P&E Cores technology.

  • Intel® Thread Director: Optimizes OS workload to cores distribution
  • Up to 24 Cores: 8 Performance-cores, 16 Efficient-cores
  • Up to 32 Threads: P-cores up to 5.8 GHz
  • Increased L2 & L3 Cache: compared to the previous generation

High-Capacity DDR4 Memory

DDR4 memory provides access to higher module densities and lower voltage requirements, coupled with higher transfer rates.

  • 4x DDR4 2133/2400/2666MHz DIMM. 128 GB Max

Blazing-Fast PCIe Gen 5 for Performance Boost

Leveraging the latest PCIe Gen 5 technology with PCIe x16 slots. PCIe Gen 5 provides higher data transfer rates, lower power consumption, and increased bandwidth, critical in enhancing data processing in AI and Machine Learning applications.

  • Up to 32 GT/s of data transfer & 4GB/s of bandwidth per lane
  • PCIe Gen 5 is backward compatible with previous generations
  • 2x PCIe 4.0 x4 Slot open-ended design

Dual-GPU Configuration for Powerful Edge AI Computer Vision

CT-MRL01 provides double PCIe x 16 slots supporting dual GPU, making it a powerful tool for industrial edge AI applications such as automated quality inspection, real-time analytics in manufacturing, and AI-driven process control in various industrial sectors.

  • 2x PCIe x16 Expansion slots for dual hardware acceleration card
  • Parallel Processing Power
  • Image Processing and Object Detection
  • Train Deep Learning and Neural Networks
  • Real-Time Performance for instant decision making
  • Efficient Data Transfer with minimal data bottlenecks

Next-level Connectivity: USB-C at 20Gbps

CT-MRL01 offers rich I/O options with 6 x USB 3.1 Gen 2 and a USB 3.2 Gen 2x2 Type C. The USB-C port has a transfer rate of 20 Gbps with a more compact size and better performance.

  • Enhanced Data Transfer & User-Friendly Interface: doubled the rate of USB 3.2 Gen 2
  • Next-Gen Power Delivery: up to 100 W for faster charge times
  • Alternate Mode: unify independent cables into one input
  • Improved Security & Protection

High-Speed NVMe On-board

The CT-MRL01 has versatile M.2 slots with two M.2 M-Key expansion slots engineered with PCIe Gen 4 speed. The two M.2 M-Key can support high-speed NVMe and scalable SATA storage options, ensuring real-time data processing and reliable storage redundancy.

  • 1x M.2 M Key NVMe PCIe x4 Gen 4/ 2242, 2260, 2280
  • 1x M.2 M Key NVMe PCIe x4 Gen 4/ SATA / 2242, 2260, 2280

Multiple True 4K Independent Displays

Simultaneously display up to four true 4K independent displays for ultimate data visualization with the available 4 DP++ ports on-board.

  • Powered by Intel® UHD Graphics on Xe Architecture
  • Deliver up to four true-4K HDR video

Built Rugged. Built Ready.

Built to withstand the rigors of demanding environments, this motherboard is rigorously tested and validated to ensure continuous performance where it matters most.

  • Standard Micro-ATX Form Factor (244mm x 244mm)
  • Extended Operating Temperature: 0 °C to 60 °C
  • Relative Humidity: 10% ~ 90% relative humidity, non-condensing
  • CE and FCC Certified
* Barebone Pricing Only; Sales team to review component configuration and price
Regular price $332.00
*Starting At: $332.00

Specification

System
Processor Support 12/13/14th Gen Intel® Core™ i9/i7/i5/i3 Alder lake-S, Raptor Lake-S Processor (LGA 1700, 65W Max TDP)
System Chipset Intel® Q670E PCH
LAN Chipset GbE1: Intel® I219LM, 1GbE (Support Wake-on-LAN and PXE)

GbE2: Intel® I225-V, 2.5GbE (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S HD Audio Codec, support 5.1 channel
System Memory 4x DDR4 2133/2400/2666MHz DIMM. 128 GB Max
Graphics Intel® Integrated Iris Xe Graphic (CPU Dependent)
BIOS AMI uEFI 256MB SPI flash
Watchdog Software Programmable Supports 1~255 sec.
System Reset
iAMT Intel® AMT 12.0 supported
TPM TPM 2.0
Display
Display Port 4x DP++ (4096 x 2304)
Multiple Display Quad Display
Storage
M.2 1x M.2 M / NVMe PCIe x4 Gen 4/ 2242, 2260, 2280

1x M.2 M / NVMe PCIe x4 Gen 4/ SATA / 2242, 2260, 2280

1x M.2 E / PCIe x2 Gen 3/ USB 2.0 / 2230
SATA 4x SATA
Expansion
PCIe 1x PCIe x16 Slot (Gen 5)
1x PCIe x16 Slot (Gen 4, 4-Lane)
1x PCIe x4 Slot (Gen 4, Open End)
1x PCIe x4 Slot (Gen 3, Open End)
I/O
Audio 1x Mic-in, 1x Line-in, 1x Line-out
USB 6x USB 3.1 Gen 2 (10 Gbps)
1x USB 3.2 Gen 2x2 (20 Gbps) Type C
Internal I/O
Audio 1x Front panel audio
COM 6x RS-232
DIO 1x 8-bit DIO (4-in/4-out)
SATA 4 x SATA Gen 3, support RAID 0/1/5/10)
USB 2x USB 3.0 Gen 1
4x USB 2.0
Others 1x SPI header

1x Front panel

1x CPU fan

2x System fan
Operating System
Windows Windows 10/11
Linux Linux Kernel 5.X
Power
Power Management ACPI 5.0 compliant
Power Mode ATX Power
Power Connector 2x12-pin and 2x2-pin power connector
Mechanical & Environment
Form Factor MicroATX
Operating Temperature 0 °C to 60 °C
Storage Temperature -40 °C to 85 °C
Relative Humidity 10% ~ 90% relative humidity, non-condensing
Certification CE, FCC Class B
Dimensions (W x H x D) 244mm x 244mm

Resources

Data Sheet DS_CT-MRL01_Premio.pdf
Product Brief PB_CT-MRL01.pdf
User's Manual UM_CT-MRL01.pdf
