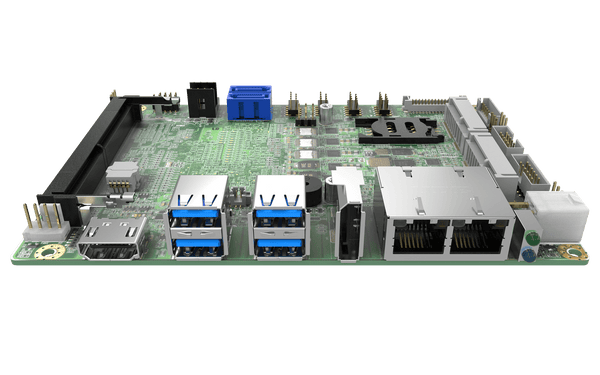

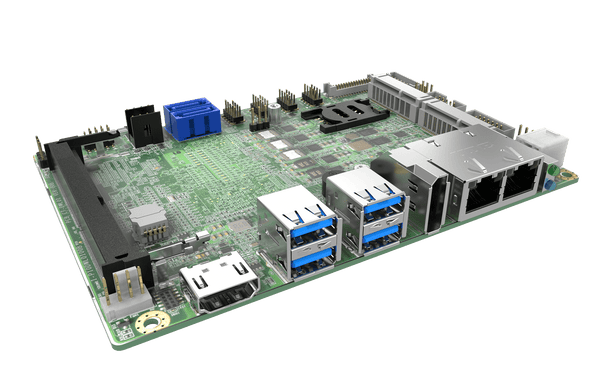

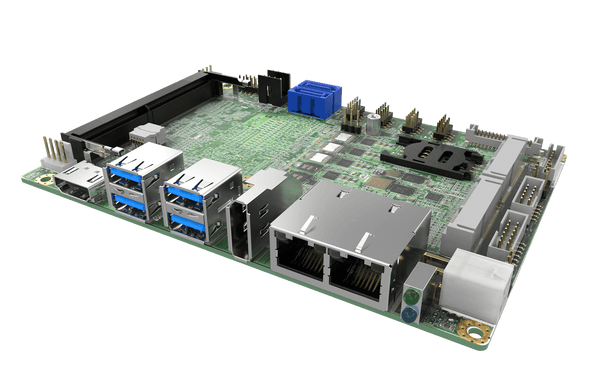

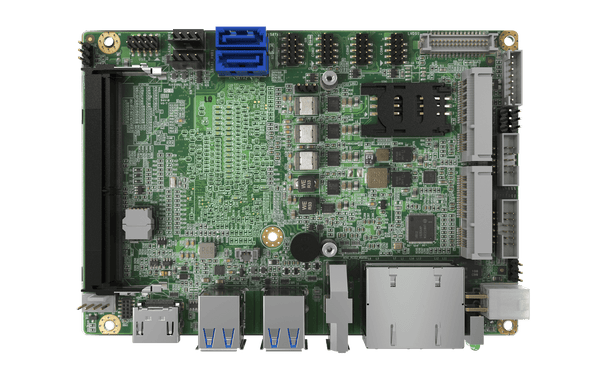

CT-DWL01 3.5" SBC Industrial Motherboard with 8th Gen. Intel® Core™ Processor

  • Support 8th Gen. Intel® Core™ Mobile U Processor & Intel® Celeron® Processor
  • 1x 260-pin DDR4 2400 SO-DIMM. Max. up to 32GB
  • 2x Intel® GbE (Support Wake-on-LAN and PXE)
  • Triple independent display supported
  • 1x HDMI (Optional) support resolution 1920 x 1200,
  • 1x DisplayPort support resolution 4096 x 1200,
  • 1x Dual-channel, up to 24-bit LVDS optional 1x eDP via internal connector
  • 1x Front Panel with Audio support by internal header
  • 2x 4bit GPIO header
  • 2x Mini PCI-e (Gen3) w/ SIM slot support
  • 4x USB 3.2 Gen 2 (10Gbps), 4x RS-232/422/485 internal headers, 2x USB 2.0 internal header
  • 2x SATA 6.0Gb/s
  • Watchdog timer 1~225sec. system reset
  • TPM 2.0 Supported

Certifications:

Intel Partner

This model is built-to-order only with a minimum order quantity

* Estimated Total Only; Sales team to review component configuration and price
Regular price $0.00
Starting At: $0.00

*All specifications are subject to change without notice. Please contact us for exact offers. Products may not be available in all markets.

Specification

System
Processor

  • Support 8th Gen. Intel® WL-UE Processor (15W TDP)

  • Intel® Core™ i7-8665UE Processor 8M Cache, up to 4.40 GHz

  • Intel® Core™ i5-8365UE Processor 6M Cache, up to 4.10 GHz

  • Intel® Core™ i3-8145UE Processor 4M Cache, up to 3.90 GHz

  • Intel® Celeron® Processor 4305UE 2M Cache, 2.00 GHz

System ChipsetSoC
LAN ChipsetGbE1: Intel® I219LM (Support Wake-on-LAN and PXE)

GbE2: Intel® I210-IT (Support Wake-on-LAN and PXE)
Audio CodecRealtek ALC888S HD Audio Codec
System Memory1x 260-Pin DDR4 2400MHz SO-DIMM slot, Max 32GB
GraphicsIntel® UHD Graphics 620 for Core series

Intel® UHD Graphics 610 for Celeron series
BIOSAMI uEFI 256MB SPI flash
WatchdogSoftware Programmable Supports 1~255 sec. System Reset
TPMTPM 2.0
Display
Display Port1x DP support resolution 4096 x 1200
HDMI1x HDMI (Optional) support resolution 1920x 1200
LVDS1x LVDS & 1x EDP Internal Connector
Multiple DisplayTriple Display
Expansion
Mini PCIe2x Mini PCie x1 (Gen 3)

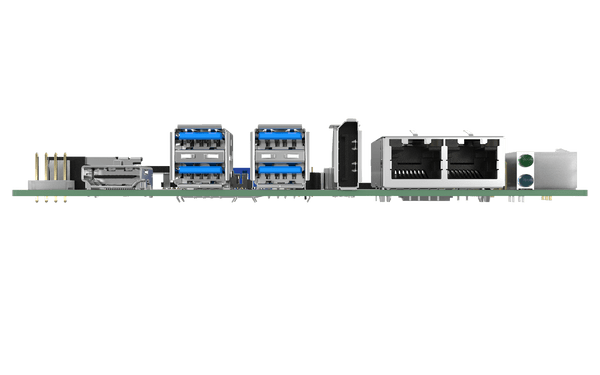

Rear I/O
LAN2x RJ45
USB4x USB 3.2 Gen 2 (10Gbps)
Others1x Power LED, 1x HDD LED
Internal I/O
Audio1x Front panel audio
COM4x RS-232-/422/485 Internal 2.0PH headers
DIO2x 4-bit DIO (4-in/4-out) via a PH2.0 2x 10 pin header, (PIN1_VCC, PIN2_GND)
SATA2x SATA Gen3, with 2x 4pin SATA power connector
USB2x USB 2.0 Internal 2.0PH Headers
Others1x Front panel
1x 4-pin PWM smart fan
1x Debug port
1x RTC battery by cable
Operating System
WindowsMicrosoft® Windows® 10 64-bit (RS5 or above)
LinuxLinux Kernel 5.x (Fedora 30 or above / Ubuntu 19.04 or above)
Power
Power ManagementACPI
Power ModeAT/ATX 12V DC Input
Power Connector4-pin CPU P4 connector
Mechanical Environment
Form Factor3.5" Embedded SBC
Operating Temperature-40°C ~ 70°C, 95% (non-condensing)
Storage Temperature-40°C ~ 85°C, 95% (non-condensing), Non-operating
CertificationCE, FCC Class A
Dimensions (W x H x D)146 x 102mm

Resources

Data Sheet DS_CT-DWL01_Premio.pdf
User's Manual UM_CT-DWL01_Generic.pdf
