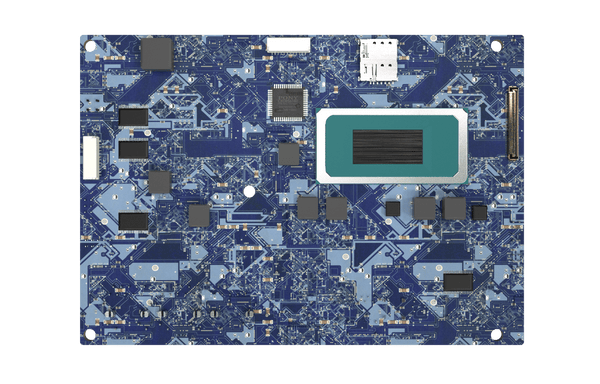

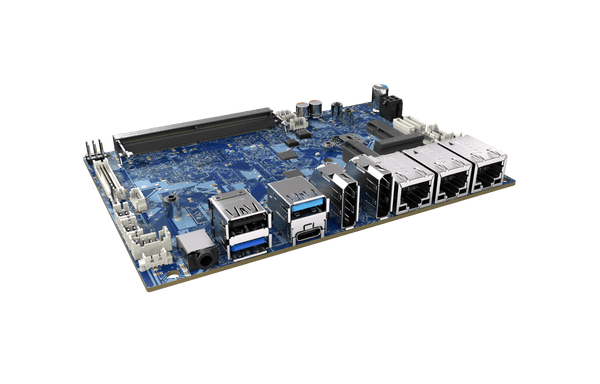

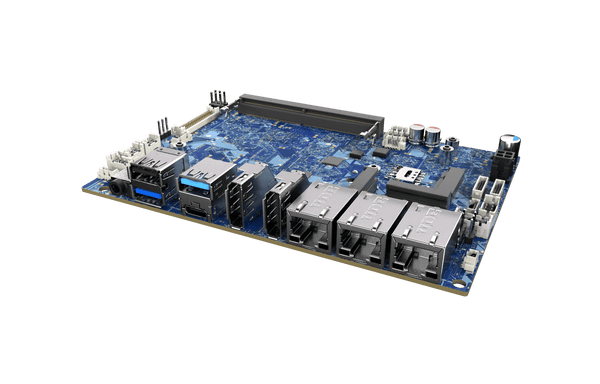

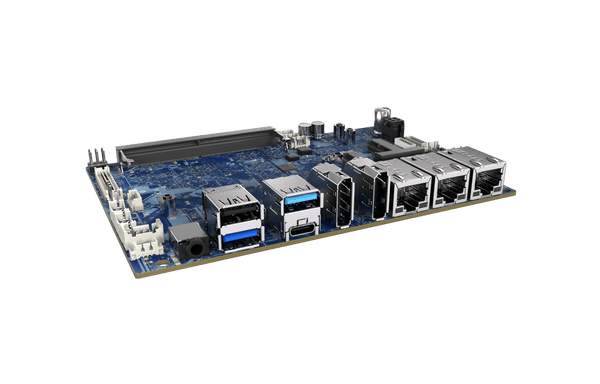

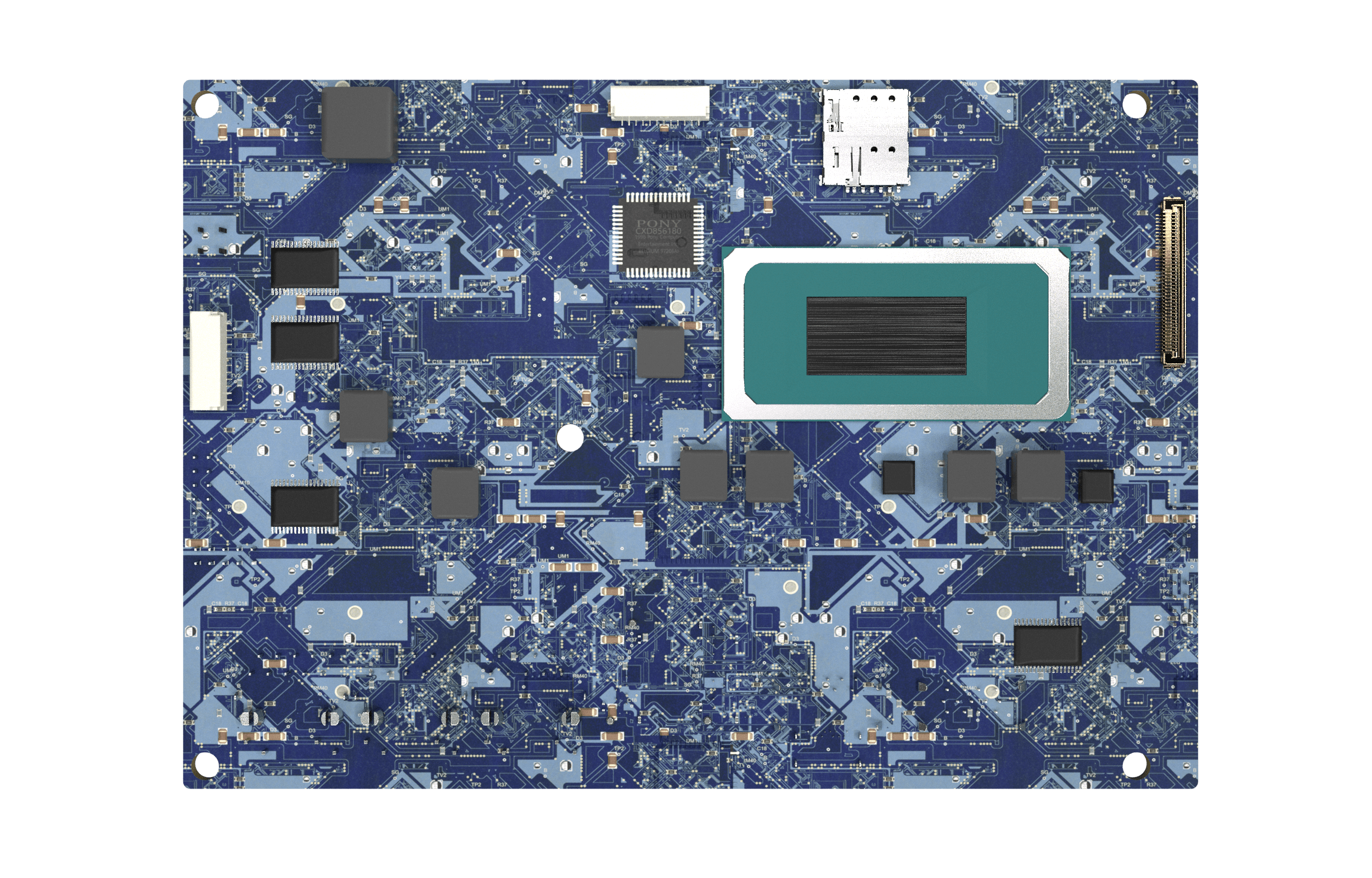

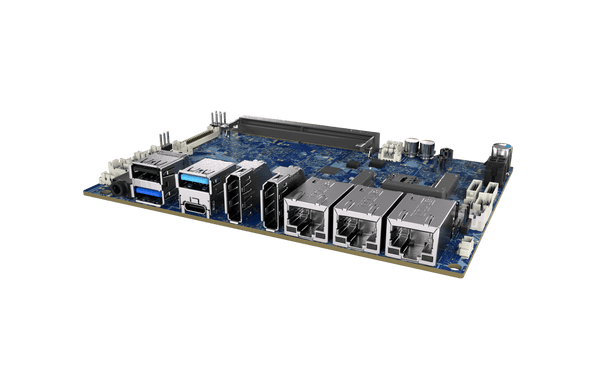

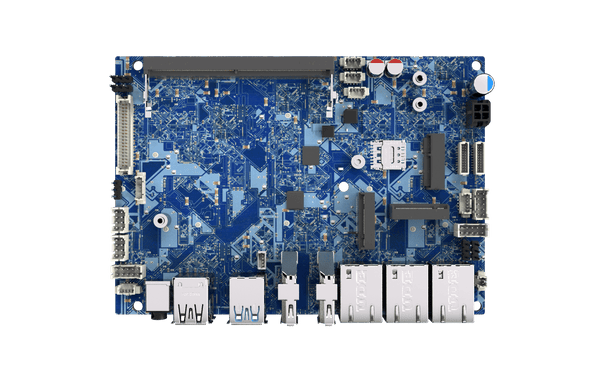

CT-DML01 3.5" SBC Industrial Motherboard With Intel® Core™ Ultra Series 1 Processors, Meteor Lake-U

  • Supports Intel® Core™ Ultra Processors, Meteor Lake-U, TDP 15W
  • 1x 262-pin DDR5 5600 SO-DIMM. Max. up to 32GB
  • 3x Intel® 2.5 GbE
  • Quad simultaneous display: 2x DP, LVDS, eDP
  • 1x M.2 M Key for NVMe/ SATA, Auto detect
  • 1x M.2 B Key for 4G/5G support, 1x M.2 E Key for Wifi/Bluetooth
  • 2x SIM Nano Socket
  • 1x USB Type-C Gen 1, 2x USB 3.2 Gen 1, 1x USB 2.0
  • 4x Internal COM, 1x 8-bit GPIO
  • Watchdog timer 1~255sec. system reset
  • dTPM 2.0 Supported
  • Wide Voltage DC IN 12~24V
See Datasheet

Certifications:

Intel Partner


14th Gen Intel Processors

Quad Independent Display

DDR5 RAM

Diverse I/O Modules

Industrial Grade Reliability

TPM 2.0

Next-Generation Multi-Tile Architecture with Intel Meteor Lake

Powered by Intel’s cutting-edge Meteor Lake CPUs, the CT-DML01 leverages a modular multi-tile architecture to efficiently handle demanding workloads and next-generation applications. With an integrated Neural Processing Unit (NPU), it accelerates generative AI tasks without overloading the CPU or GPU cores, optimizing performance for AI-driven workloads.

  • Intel® Core™ Ultra 5 Processor 125U 12M Cache, up to 4.30 GHz (2+8+2 core)
  • Intel® Core™ Ultra 7 Processor 155U 12M Cache, up to 4.80 GHz (2+8+2 core)

DDR5 Memory Support

With DDR5 memory support, the CT-DML01 offers high bandwidth, efficient data handling, and responsive performance for heavy workloads.

  • 1x 262-Pin DDR5 5200MHz SO-DIMM slot (262-pin), Max 32GB

Quad Independent Displays Support

CT-DML01 elevates visual capabilities with support up to four independent displays, accommodating a variety of visual requirements:

  • 2x DP++: Handles ultra-high resolutions up to 3040 x 2160 @60Hz
  • eDP: Up to 3840 x 1260 @60Hz, ideal for high-quality embedded displays.
  • 1x LVDS up to 1920x1200 @60Hz, dual channel for clear, sharp imagery.

Extensive M.2 Expansion Capabilities

The CT-DML01 supports multiple M.2 expansion slots to meet a wide range of application needs:

  • M.2 M Key (2280): PCIe x4 Gen 4 and SATA support, offering auto-detection for NVMe and SATA SSDs.
  • M.2 B Key (3042/3052): Enables 4G/5G connectivity with PCIe x2, USB 3.0, and USB 2.0 support.
  • M.2 E Key (2230): Provides wireless connectivity options including Wi-Fi and Bluetooth modules.

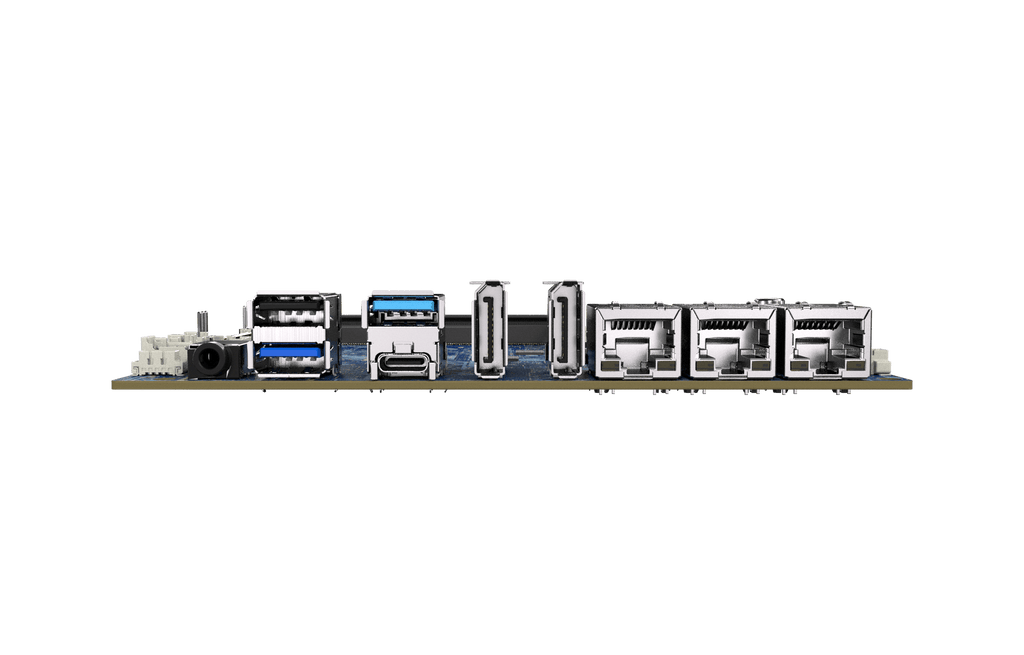

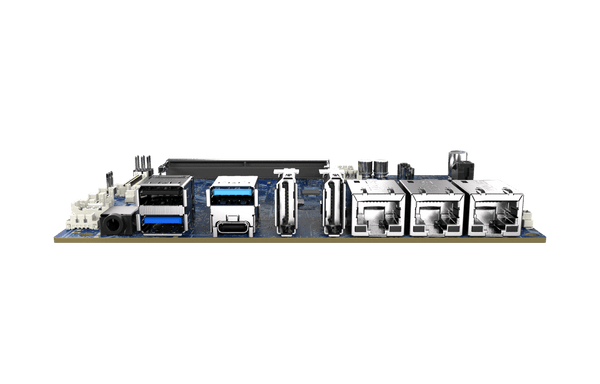

Comprehensive I/O Configuration

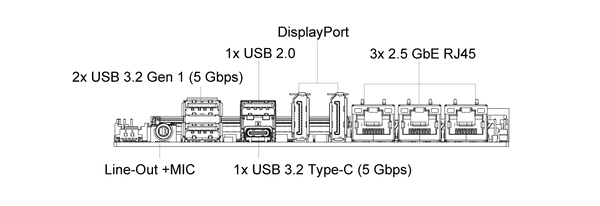

Designed to meet the complex connectivity needs of modern computing environments, the CT-DML01 offers an extensive array of I/O ports for maximum flexibility

  • 3x 2.5GbE RJ45
  • 1x USB 3.2 Type-C (5 Gbps)
  • 2x USB 3.2 Gen 1 (5 Gbps), 1x USB 2.0
  • 4x RS-232-/422/485(internal)
  • 1x GPIO 8-pin header (4 In/4 Out, non-isolated)
  • 2x SIM Nano Socket
* Barebone Pricing Only; Sales team to review component configuration and price
*Starting At: $0.00

Specification

System
Processor • Intel® Core™ Ultra 5 Processor 125U 12M Cache, up to 4.30 GHz (2+8+2 core)
• Intel® Core™ Ultra 7 Processor 155U 12M Cache, up to 4.80 GHz (2+8+2 core)
System Chipset SoC
LAN Chipset GbE1: Intel i226-LM 2.5GbE LAN PXE iAMT Support
GbE2: Intel i226-V 2.5GbE LAN PXE iAMT Support
GbE3: Intel i226-V 2.5GbE LAN PXE iAMT Support
Audio Codec Realtek® ALC897 CODEC
System Memory 1x 262-Pin DDR5 5600MHz SO-DIMM. Max. up to 32GB (Non-ECC)
Watchdog Software Programmable Supports 1~255 sec. System Reset
TPM dTPM2.0, fTPM2.0
Display
Display Port 2x DP++ 1.4 up to 3040x2160 @60Hz
eDP 1x eDP 1.4b, max 3840x2160 @60Hz
LVDS 1x LVDS up to 1920x1200 @60Hz, dual channel
Multiple Display Quad simultaneous display
Storage
M.2 1x M.2 M Key (2280, PCIe x4 Gen 4/SATA) support for NVMe/ SATA SSD, Auto Detect
Expansion
M.2 1 x M.2 B Key (3042/3052, PCIe x2+USB 3.0+USB 2.0) support for 4G/5G
1 x M.2 E Key (2230, PCIe+USB 2.0) for Wifi/Bluetooth
I/O
Audio 1x Line-Out +MIC
Display Port 2x DisplayPort
LAN 3x 2.5GbE RJ45
SIM 2x SIM Nano Socket
USB 1x USB 3.2 Type-C (5 Gbps)
2x USB 3.2 Gen 1 (5 Gbps)
1x USB 2.0
Internal I/O
COM 4x COM (Internal)
COM1: RS232/422/485
COM2~COM4: RS232
GPIO 1x GPIO 8-pin header (4 In/4 Out, non-isolated)
USB 4x USB 2.0 Internal 2.0PH Headers
Operating System
Windows Microsoft® Windows® 10
Windows 11
Linux Linux Ubuntu 22.04
Power
Power Adapter Optional AC/DC 20V/7.5A, 150W (Optional)
Power Mode AT, ATX
Power Supply Voltage DC IN 12~24V
Power Connector Micro fit pitch 3.0 2x2 pin
Power Protection OVP (Over Voltage Protection)
OCP (Over Current Protection)
Reverse Protection
Surge Protection
Environment
Form Factor 3.5" Embedded SBC
Operating Temperature 0°C to 60°C
Storage Temperature -20°C to 75°C
Relative Humidity 10% to 95% (non-condensing)
Certification CE, FCC Class A, ICES-003, UKCA
Physical
Dimension 146 x 102mm

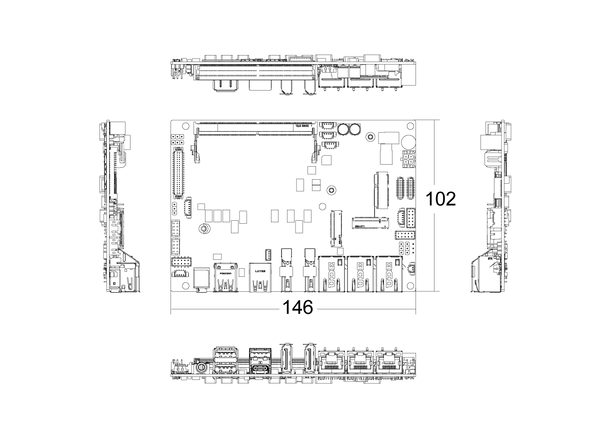

Mechanical Layout

Product Dimension

Unit:mm

Resources

Datasheet DS_CT-DML01_Premio.pdf
Product Brief PB_CT-DML01.pdf
User's Manual UM_CT-DML01_Premio.pdf

AI Benchmarks

Intel® Edge Software Device Qualification (ESDQ)

Type
Use Case
Link
Metro AI Suite is an application framework with libraries, tools, and reference implement ations to build AI solutions in the Video Safety and Security, Transportation, and Government Edge markets.
Go To Compare
