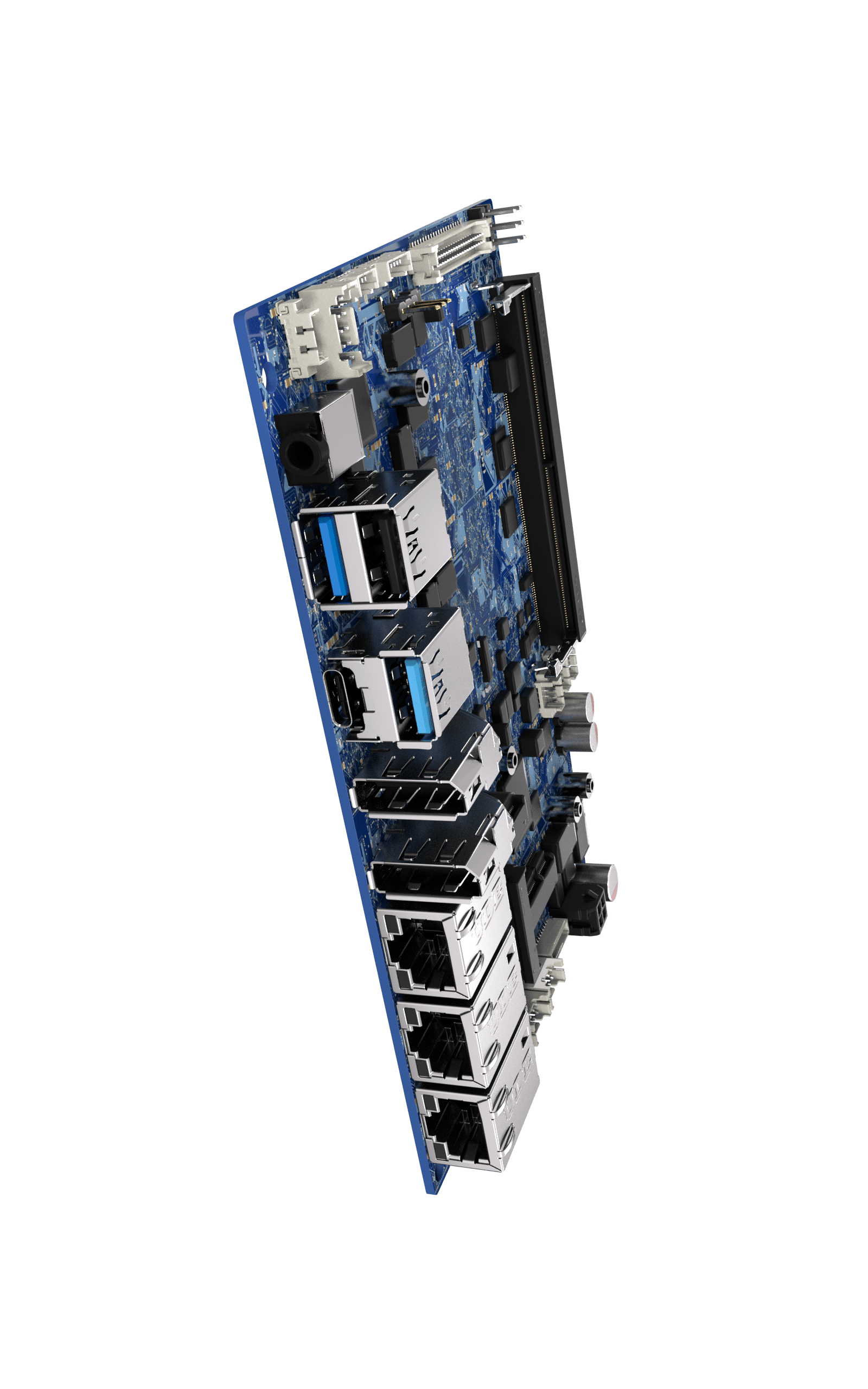

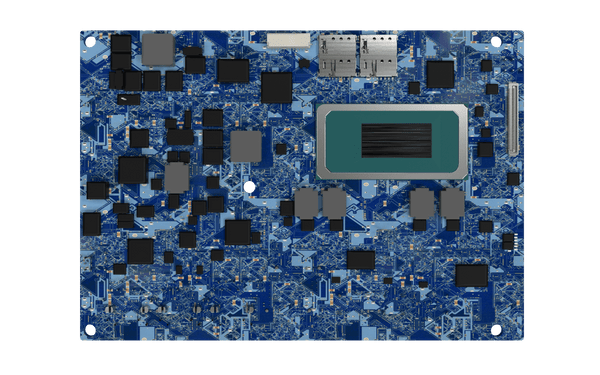

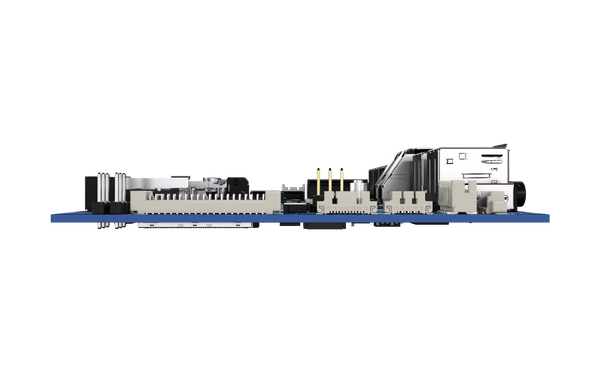

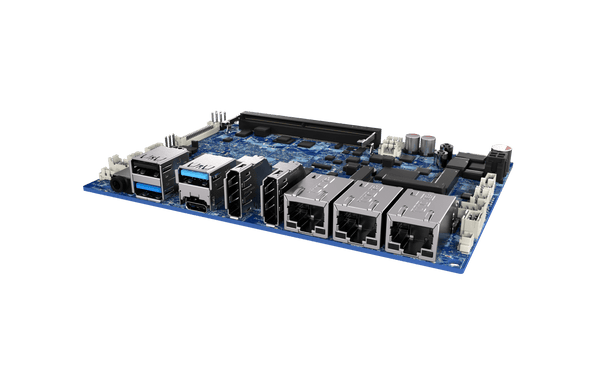

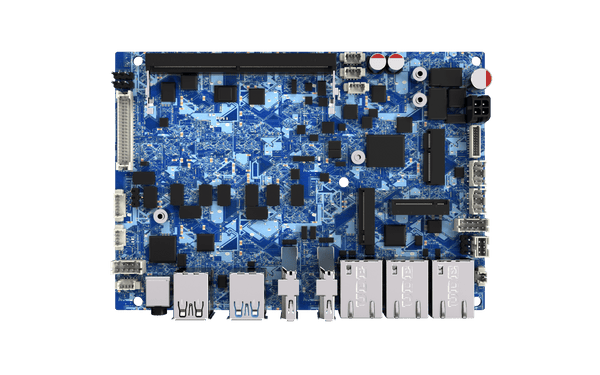

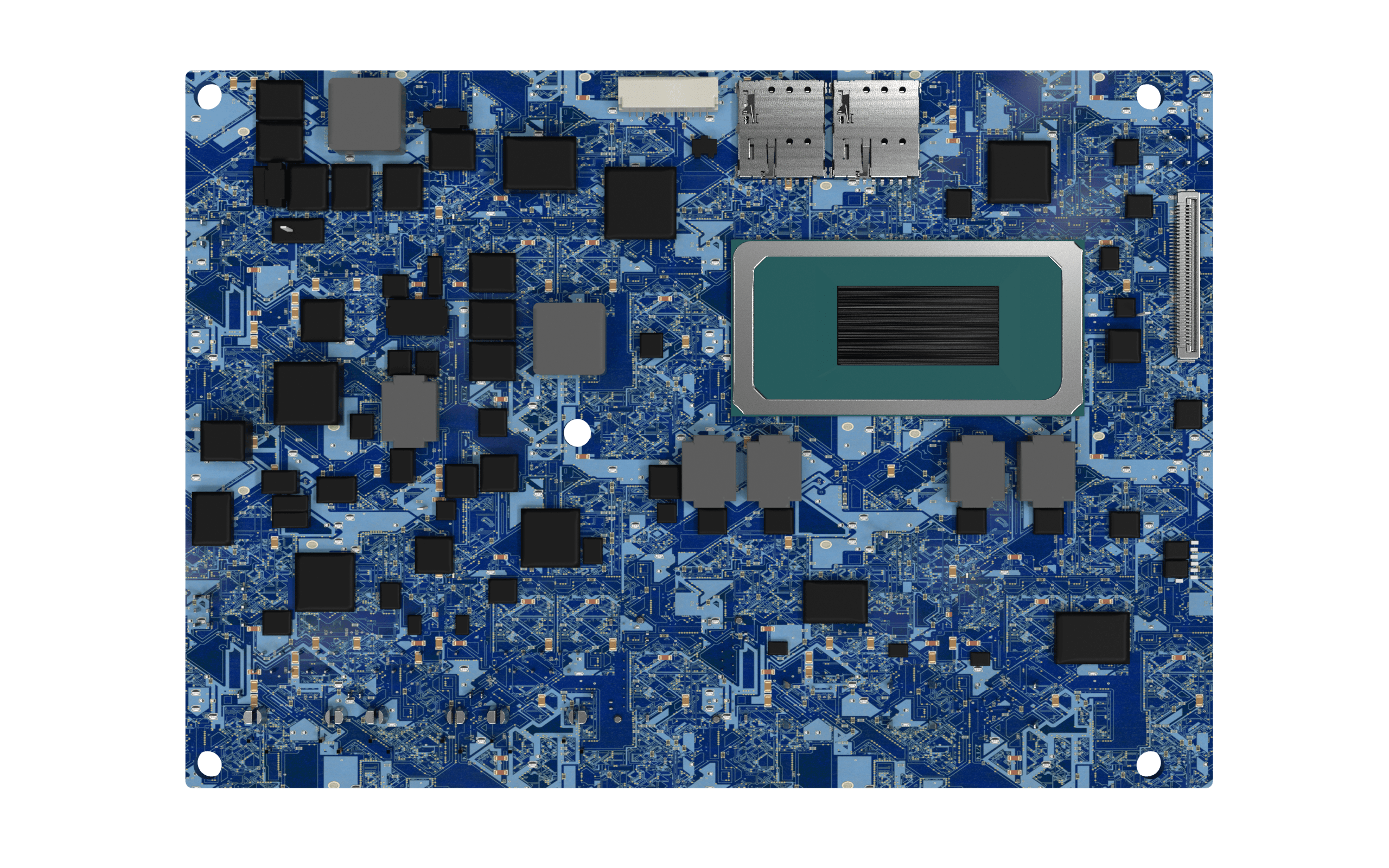

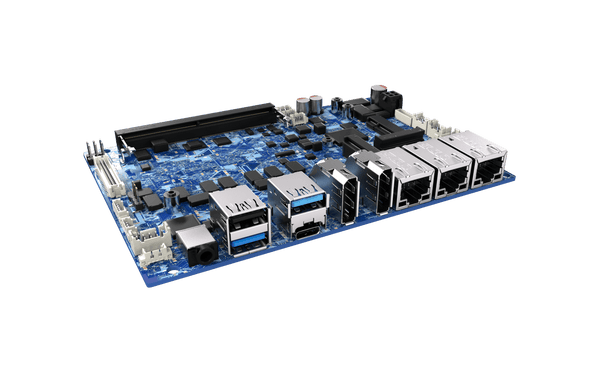

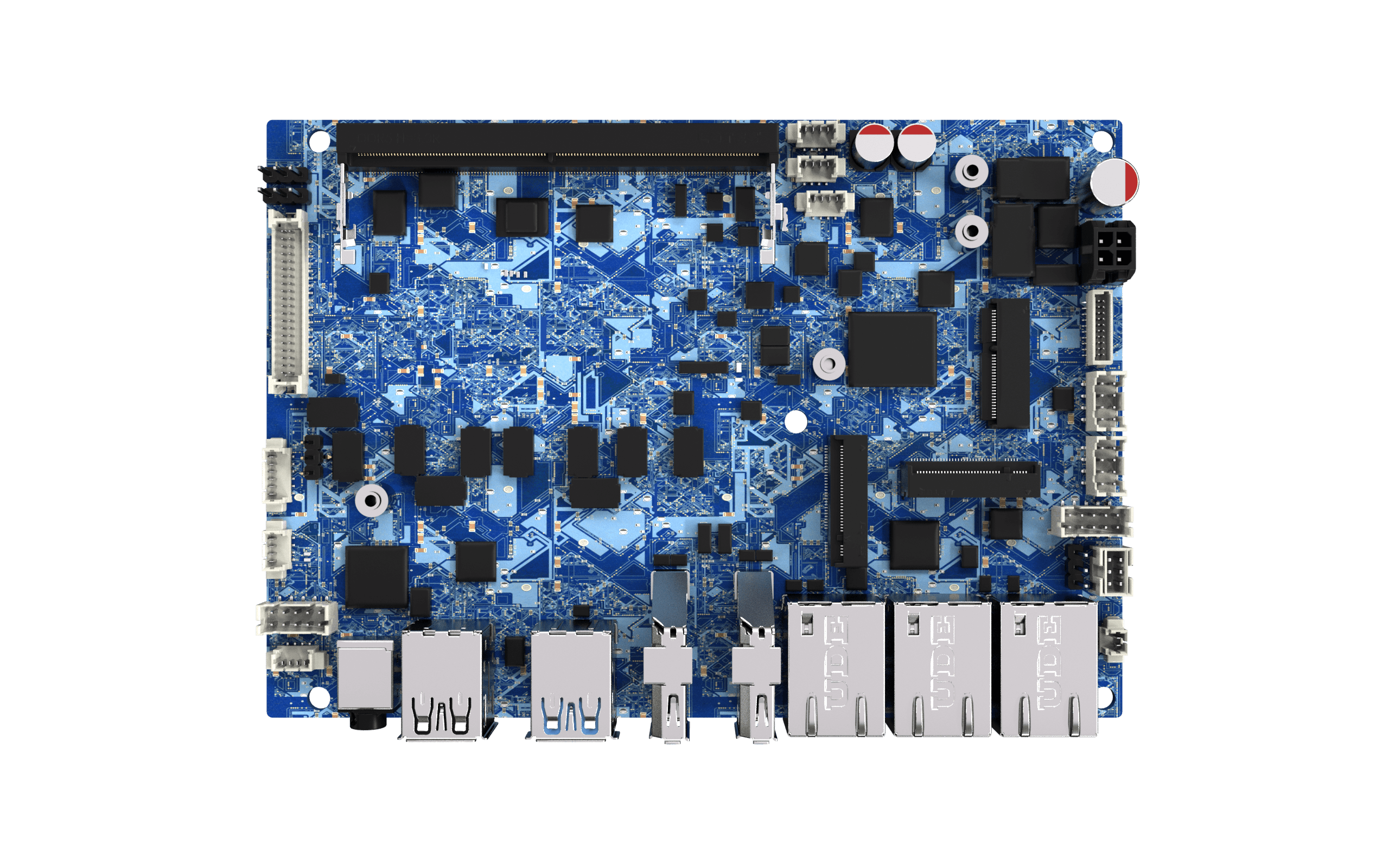

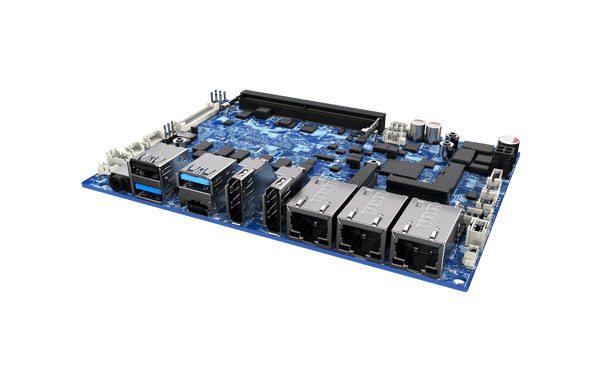

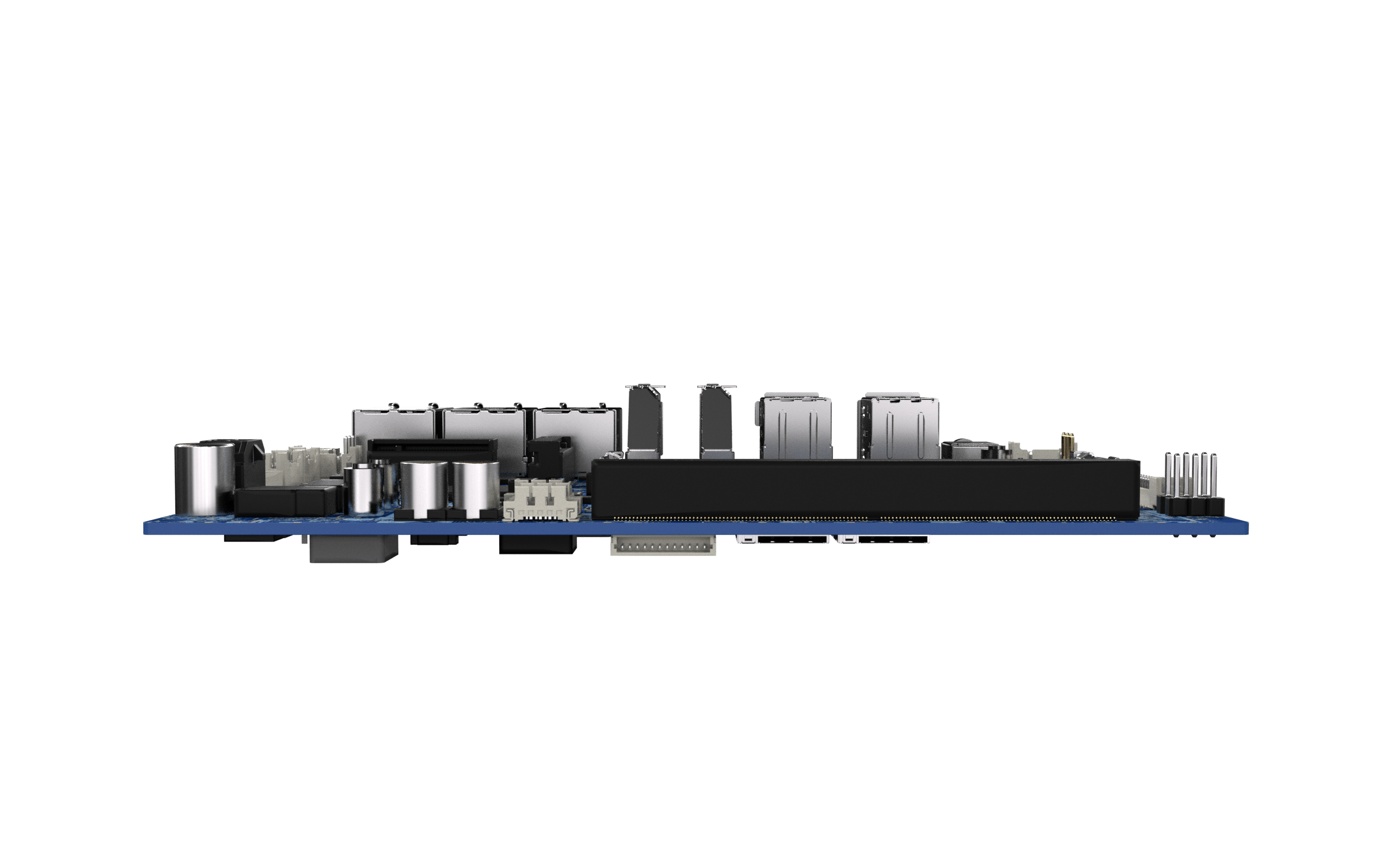

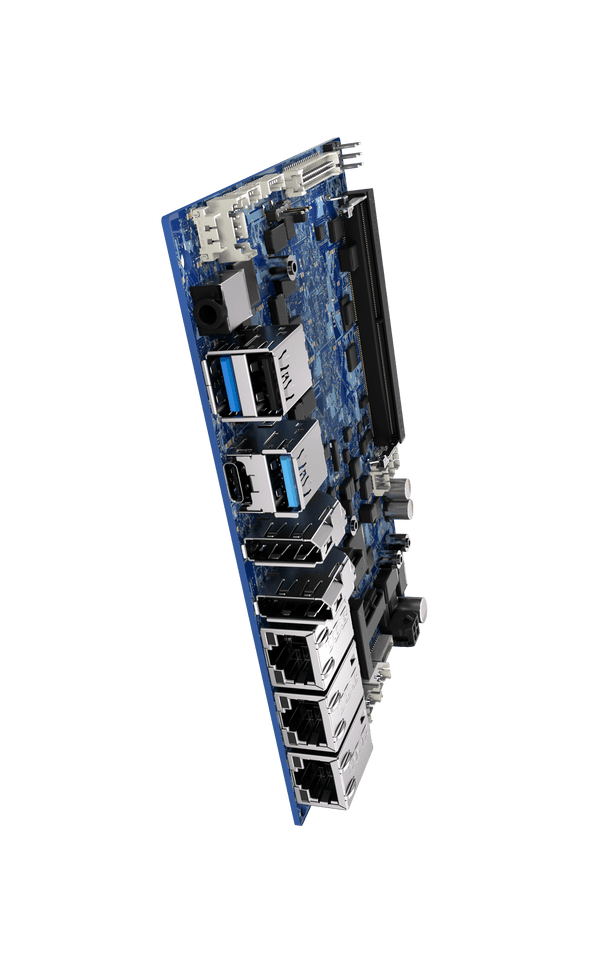

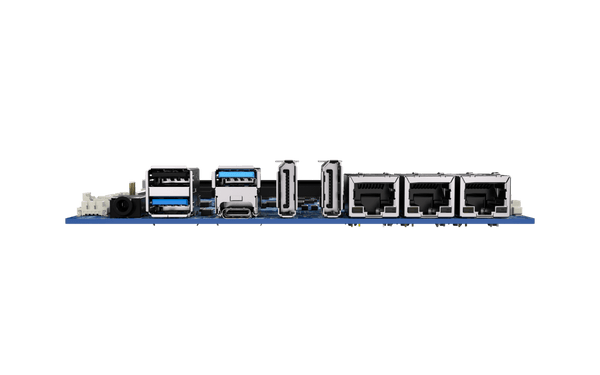

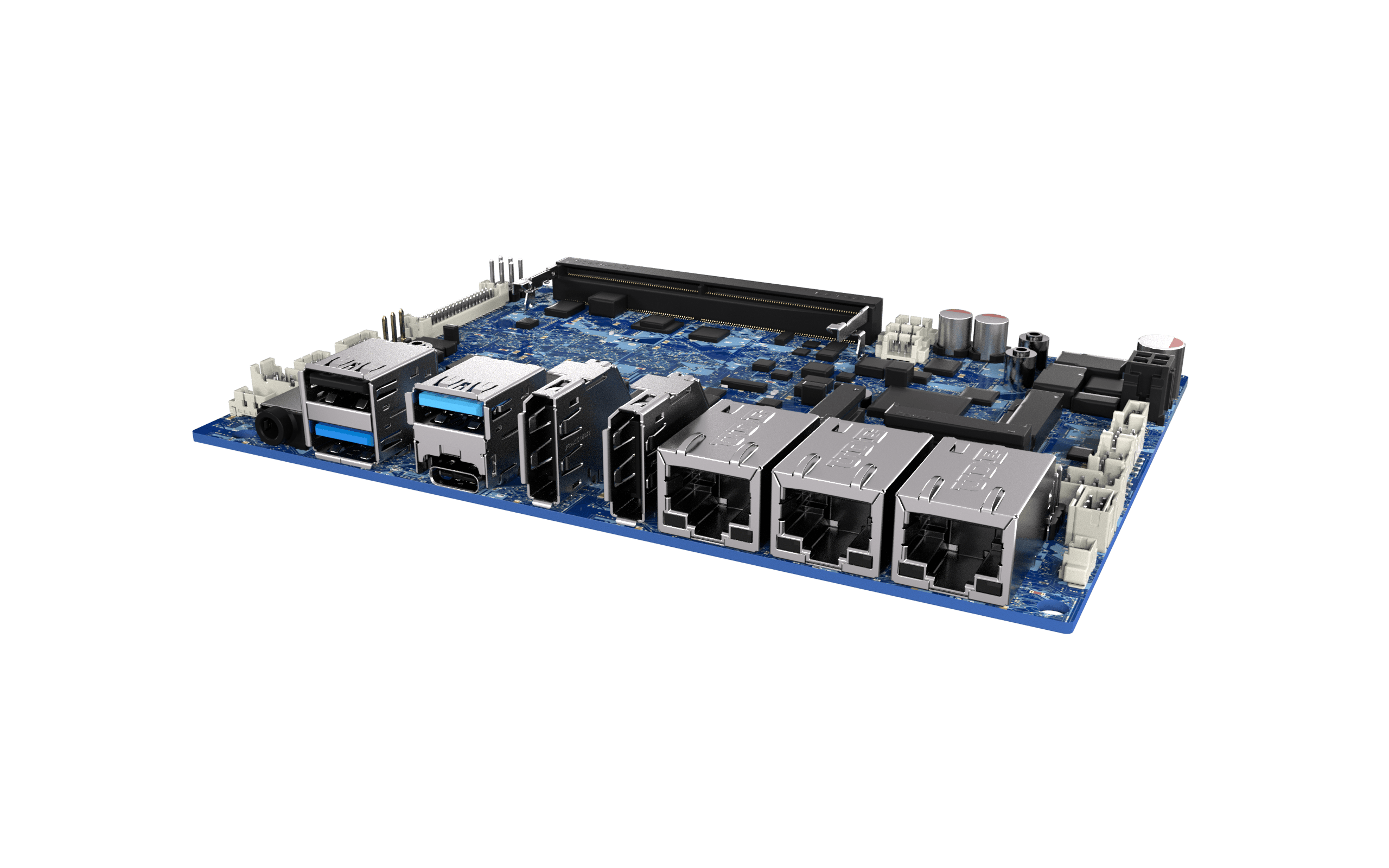

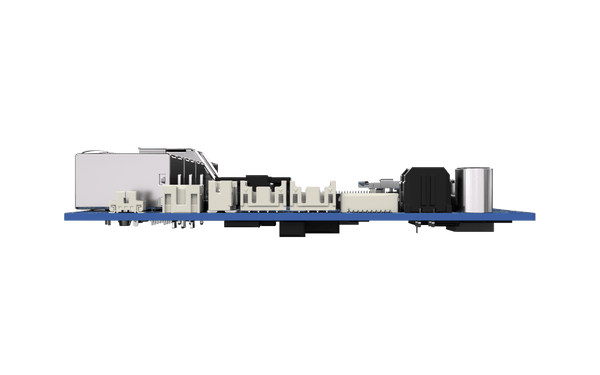

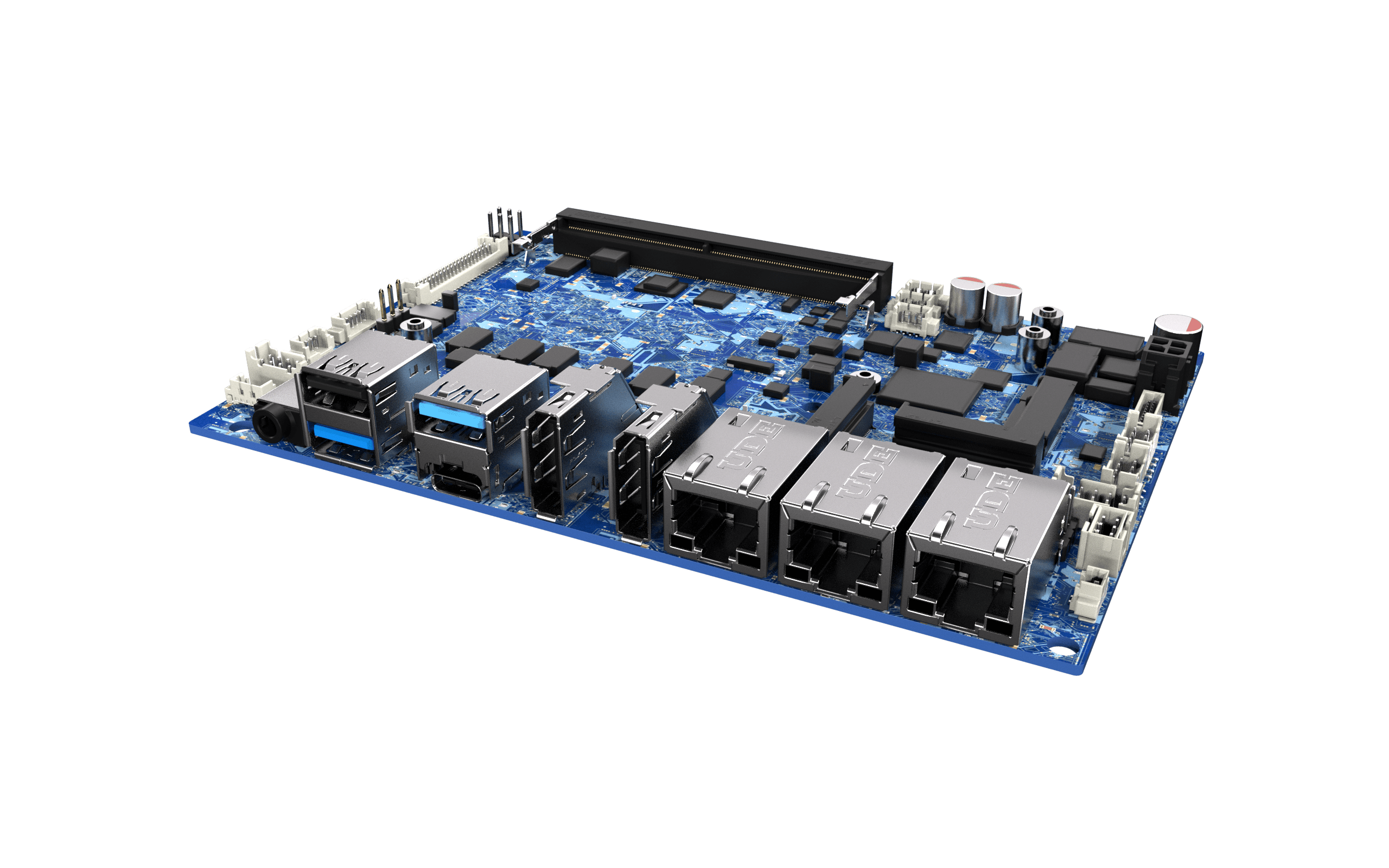

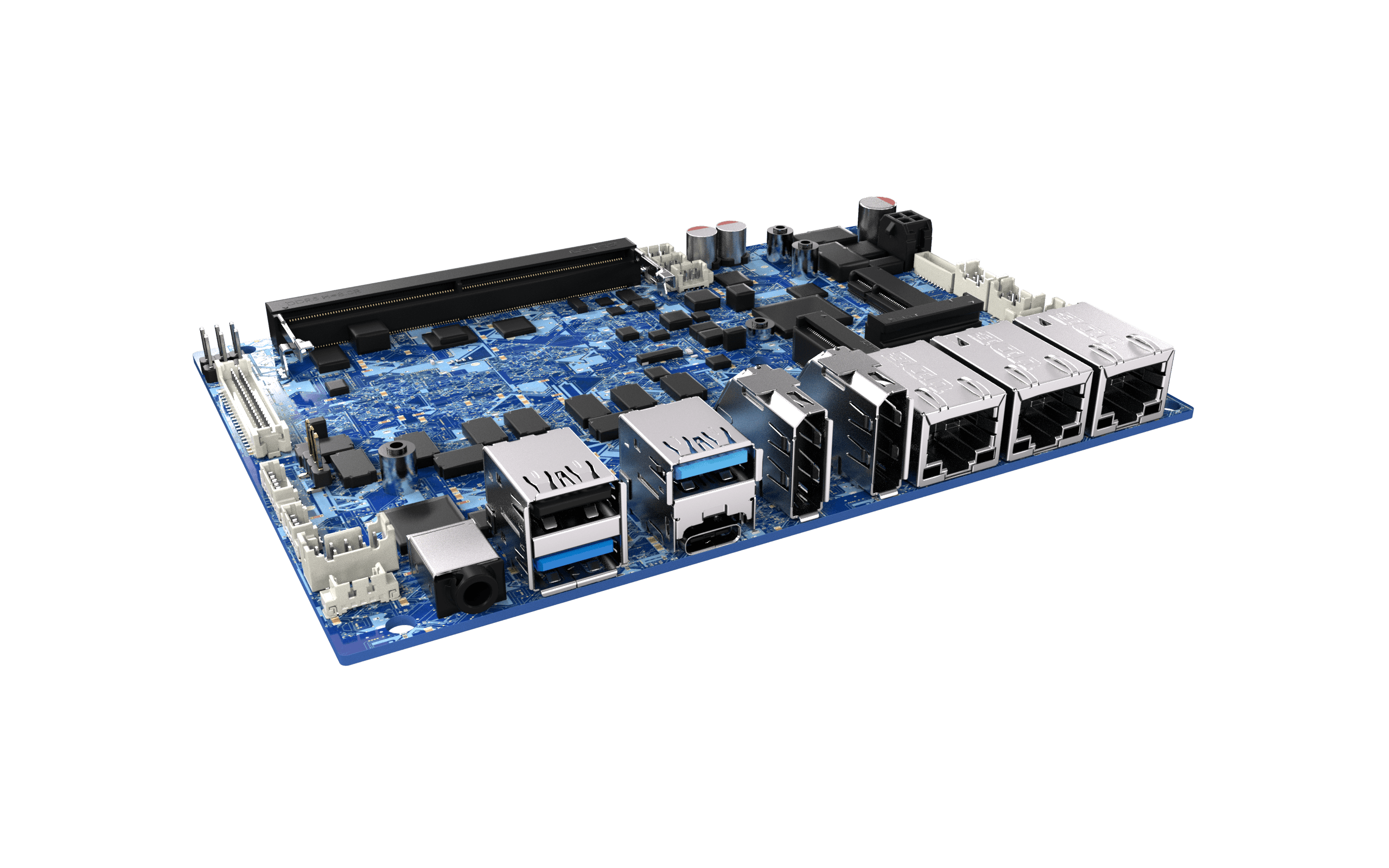

CT-DPL01 3.5" SBC Industrial Motherboard With Intel® Core™ Ultra Series 3 Processors, Panther Lake
- Supports Intel® Core™ Ultra 5 336HRE / 336H and Ultra 7 366HRE processor options with 25W TDP
- 1 x SO-DIMM / DDR5 7200 MT/s up to 48GB
- 3x Intel® i226IT 2.5GbE LAN ports
- 2x DP 1.4, 1x USB-C with DP Alt Mode, LVDS/eDP, and 8x USB ports
- 1x M.2 B-Key (3042/3052) for 4G/5G, 1x M.2 E-Key (2230) for WiFi/Bluetooth support
- 2x SIM Nano Socket
- 1x USB 3.2 Type-C, 2x USB 3.0 Type-A, 1x USB 2.0 Type-A
- 4x COM and 1x 8-bit GPIO
- dTPM 2.0 Supported
- Wide Voltage DC IN 12~24V
Certifications:
Specifications
| System | |
|---|---|
| Processor | • Intel® Core™ Ultra 5 336HRE / 336H, 4P+4E+4LPE, 18M cache, 4Xe, 25W TDP • Intel® Core™ Ultra 7 366HRE, 4P+8E+4LPE, 18M cache, 4Xe, 25W TDP |
| System Chipset | SoC |
| LAN Chipset | GbE1: Intel® i226IT 2.5GbE LAN, supports PXE/RPL Boot and Wake-on-LAN GbE2: Intel® i226IT 2.5GbE LAN, supports PXE/RPL Boot and Wake-on-LAN GbE3: Intel® i226IT 2.5GbE LAN, supports PXE/RPL Boot and Wake-on-LAN |
| Audio Codec | Realtek® ALC897 CODEC |
| System Memory | • 1x SO-DIMM, DDR5 7200 MT/s, up to 48GB |
| Watchdog | 1–255 sec./min. programmable via Super I/O |
| TPM | dTPM2.0 |
| Display | |
| Display Port | 2x DP1.4, max resolution 3840*2160@60Hz |
| eDP | 1x eDP 1.4b, max 3840*2160@60Hz |
| LVDS | 1x LVDS, max 1920*1200@60Hz |
| Multiple Display | Dual Display |
| Storage | |
| M.2 | 1x M.2 M-Key 2280, PCIe x4 Gen4 / SATA3 |
| Expansion | |
| M.2 | 1x M.2 E-Key 2230, PCIe+ USB2.0, Support WiFi+ Bluetooth 1x M.2 B-Key 3042/3052, PCIE+USB3.0+ USB2.0, Support 5G/4G |

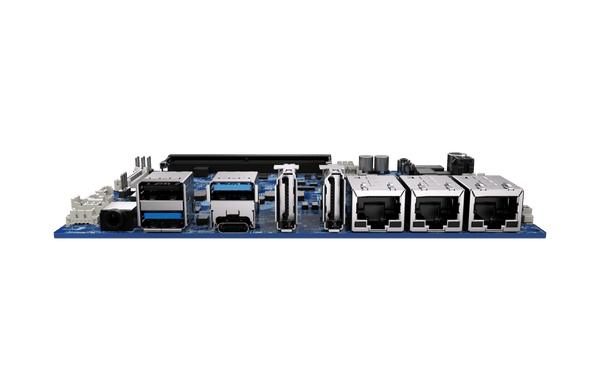

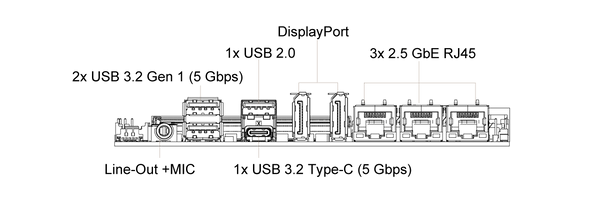

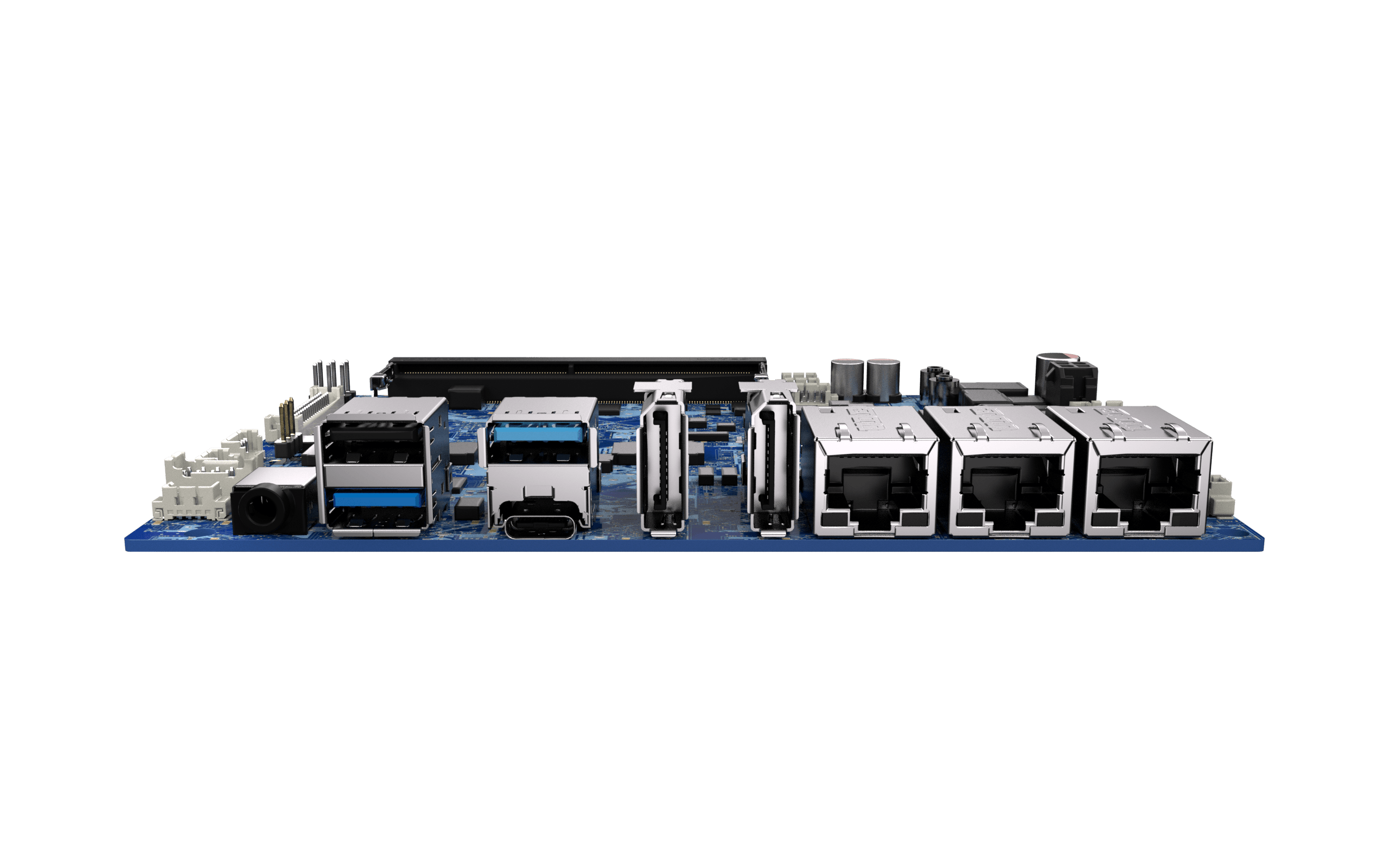

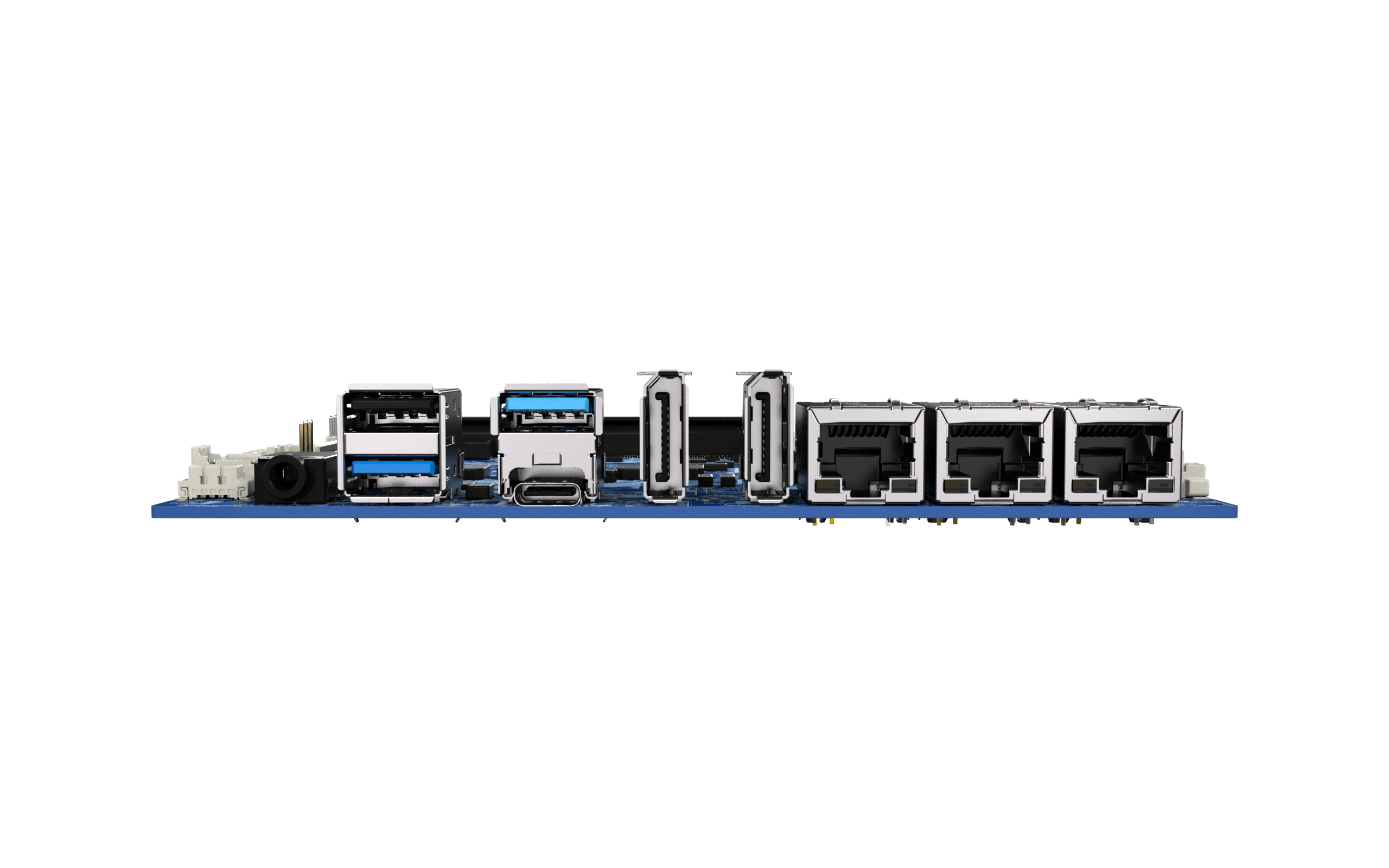

| I/O | |
| Audio | Line-out, Mic-in, Line-in, and L/R amplifier via wafer connectors |
| Display Port | 2x DisplayPort |
| LAN | 3x 2.5GbE RJ45 |
| SIM | 2x SIM Nano Socket |
| USB | 1x USB 3.2 Type-C with PD, 2x USB 3.2, 5x USB 2.0 |
| Internal I/O | |
| COM | • Internal I/O: 4x COM ports via wafer connectors (COM1–COM4) |
| GPIO | 1x 8-bit GPIO via wafer connector |
| USB | 4x USB 2.0 via wafer connectors |
| Operating System | |
| Windows | Microsoft® Windows 11 |
| Linux | Ubuntu 24.04 LTS Linux 6.x |
| Power | |
| Power Adapter | Optional AC/DC 20V/7.5A, 150W |
| Power Mode | AT, ATX |
| Power Supply Voltage | DC IN 12~24V |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection Surge Protection |
| Environment | |
| Form Factor | 3.5" Embedded SBC |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | CE, FCC Class A, ICES-003, UKCA |
| Physical | |

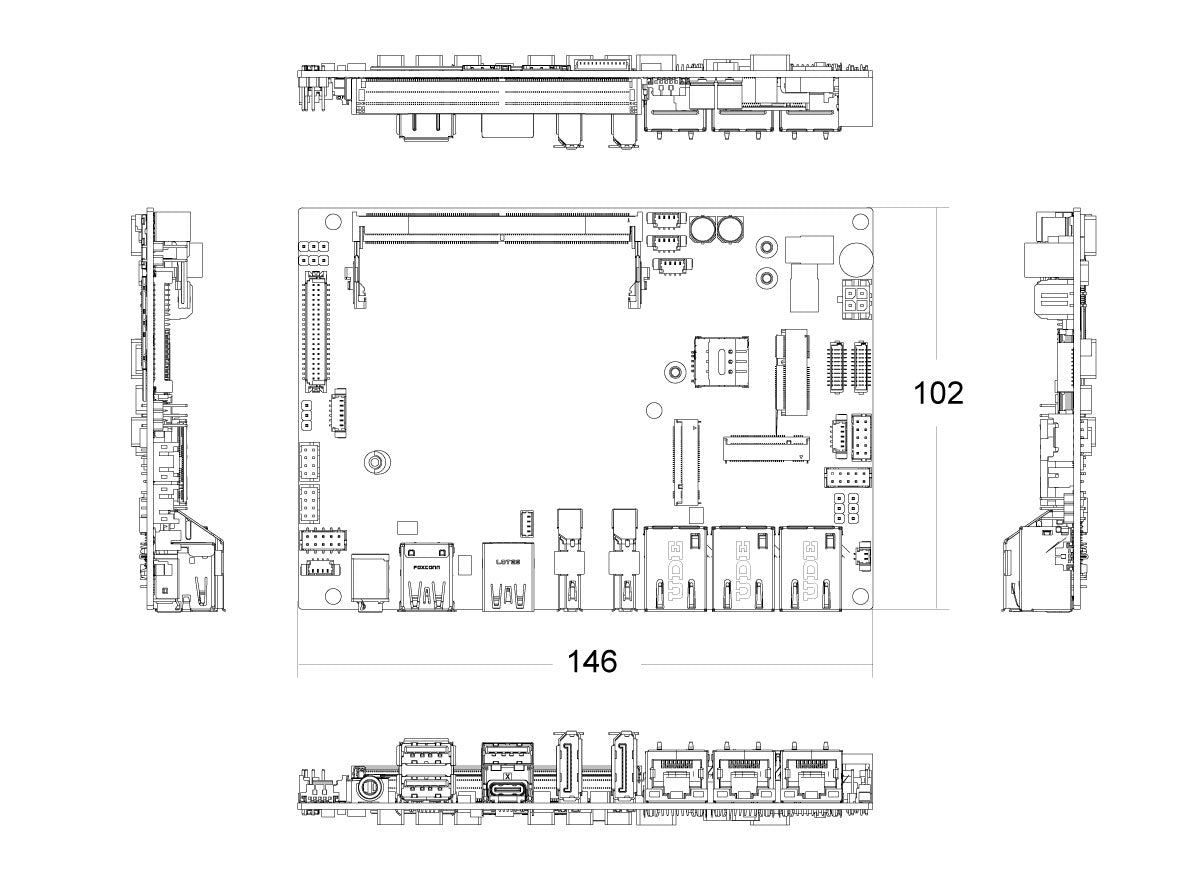

| Dimensions | 146 x 102mm |
