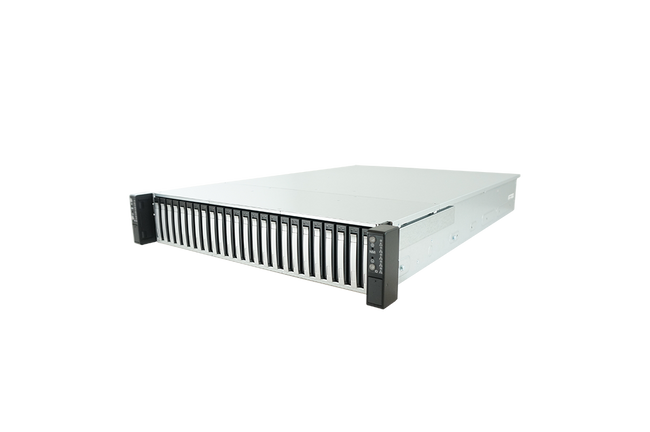

DSS224S-UN 2U 24 BAYS 2.5" 12G SAS REDUNDANT NODE SINGLE EPYC 1200W HRP

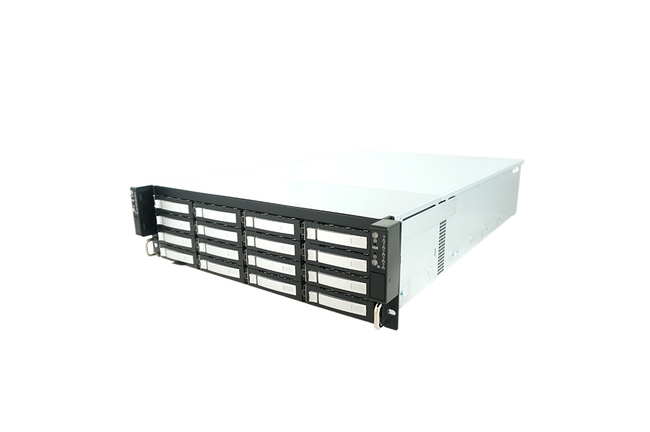

DSS316S-UN 3U 16 BAYS 3.5" HDD 12G SAS REDUNDANT NODE SINGLE EPYC 1200W HRP

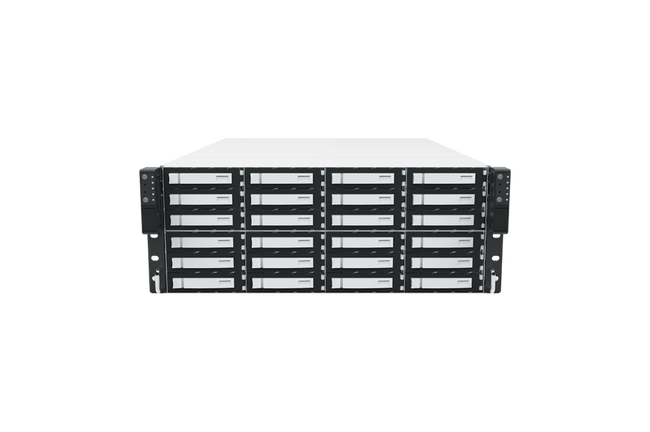

DSS424S-UN 4U 24 BAYS 3.5" HDD 12G SAS REDUNDANT NODE SINGLE EPYC 1200W HRP

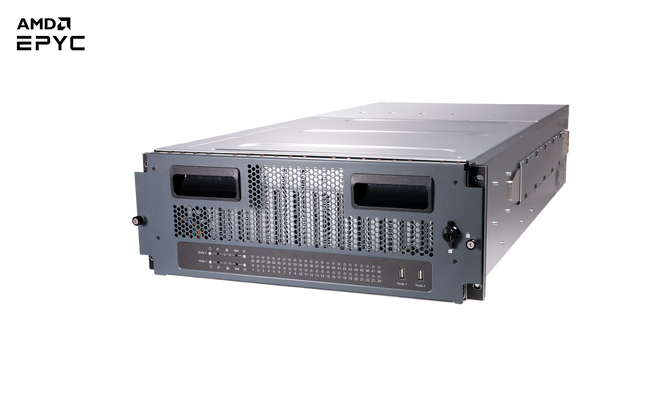

DSS448S-UM 4U48 SAS AMD EPYC MILAN HA Redundant Server
DSS448S-UR 4U 48 Bays SAS AMD EPYC

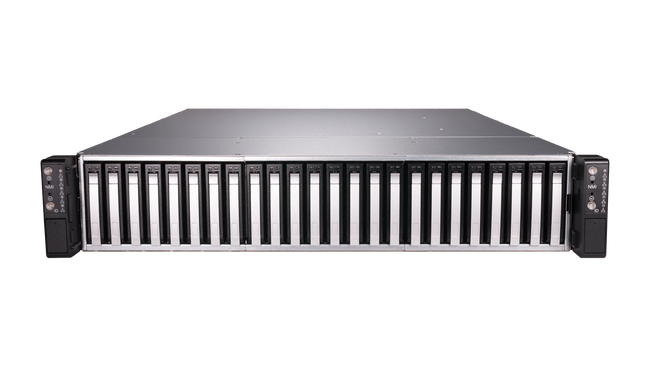

DSS224N-UN 2U 24 BAYS NVMe REDUNDANT NODE SINGLE EPYC 1200W HRP

Key Features

  • Storage server supports single AMD EPYC™ up to 1TB DDR4
  • 2U Redundant High Availability dual systems (nodes)
  • Support high density 24 hot-swappable 2.5”-15mm NVMe U.2 SSD bays
  • Support redundancy heartbeat through optional GbE and PCIe x 16 NTB
See Datasheet

Certifications:

Specification

System
Processor Each Node: Supports single socket AMD EPYC™ up to 180W TDP socket SP3
System Memory Each Node: Supports up to 16x DIMMs DDR4 RDIMM/L 2400
Network Each Node: 2x GbE ports, 1x GbE dedicated for IPMI
Driver Bays 24x 2.5” 15mm hot-swap U.2 NVMe drive bays
each node has 2x internal 7mm SATA drives for OS
Supported OS Windows 2012 R2
Windows 2016 Server
RHEL 7.4
SLES 12 SP2
Ubuntu 17.04
For other OS, please contact us
Cooling Each node: 5x 40mm fans
Other Features Dedicated GbE for IPMI 2.0
Front I/O Power On/Off switch & LED
Locate switch & LED
Reset switch
System warning LED
4x LAN LED
Power 1+1 1200W AC/DC or -48VDC/DC high efficiency 80plus Platinum redundant power supplies
Environment
Operating Temperature 0°C ~ 35°C
Storage Temperature -20°C ~ 70°C
Relative Humidity 5% ~ 95% relative humidity, non-condensing
HTS Code 8473 30 5100
ECCN 4A994
Compliance CE, FCC Class A, RoHS 6/6 compliant
Physical
Dimension System: 30”x19”x3.5” (LxWxH)
Packaging: 37”x 25”x12”(LxWxH)
Weights Net Weight: 55lbs w/o Hard Drives
Gross Weight: 77lbs

Resources

Data Sheet DS-DSS224N-UN.pdf
