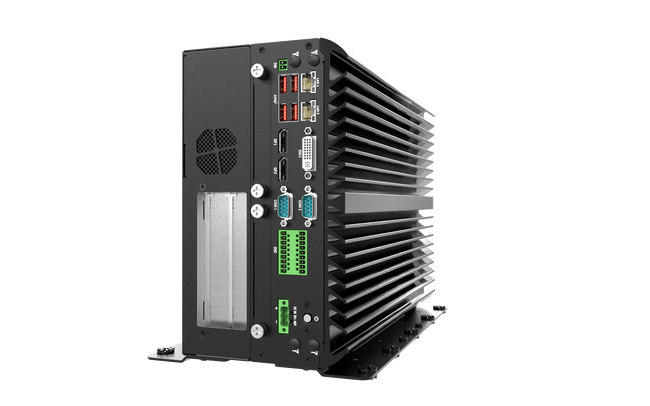

VCO-6000-CFL-2 Machine Vision Computer with 9th Gen Intel® Core™ CFL-R S Processor, 2x Expansion

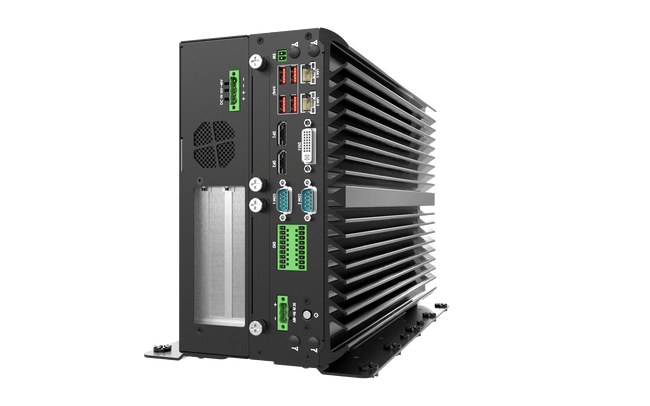

VCO-6000-CFL-2-2PWR Machine Vision Computer with 9th Gen Intel® Core™ CFL-R S Processor, 2x Expansion, Dual Power Input
VCO-6000-CFL-3 Machine Vision Computer with 9th Gen Intel® Core™ CFL-R S Processor, 3x Expansion
VCO-6000-CFL-3-2PWR Machine Vision Computer with 9th Gen Intel® Core™ Processor, 3x PCIe Expansion, Dual Power Input
VCO-6000-CFL-4 Machine Vision Computer with 9th Gen Intel® Core™ CFL-R S Processor, 4x Expansion
VCO-6000-CFL-4M2 Machine Vision Computer with 9th Gen Intel® Core™ Processor, 4x Hotswap M.2 NVMe
VCO-6000-CFL-5 Machine Vision Computer with 9th Gen Intel® Core™ CFL-R S Processor, 5x Expansion

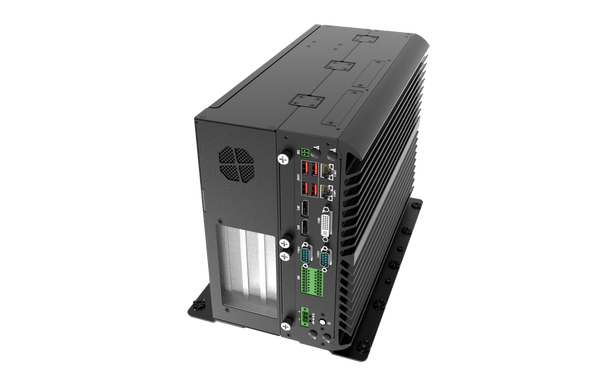

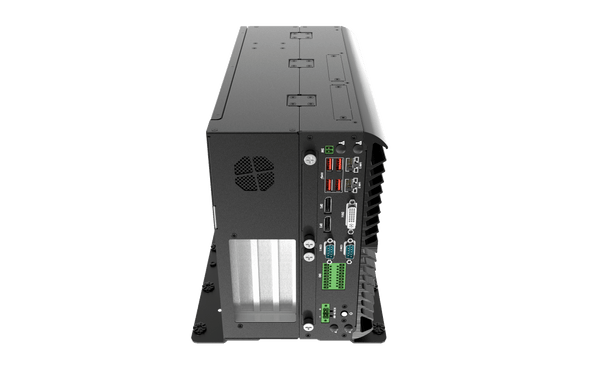

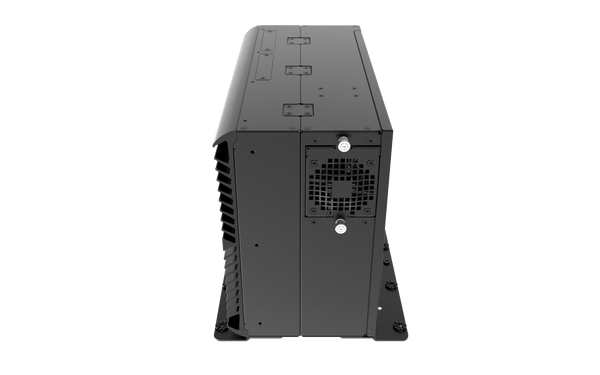

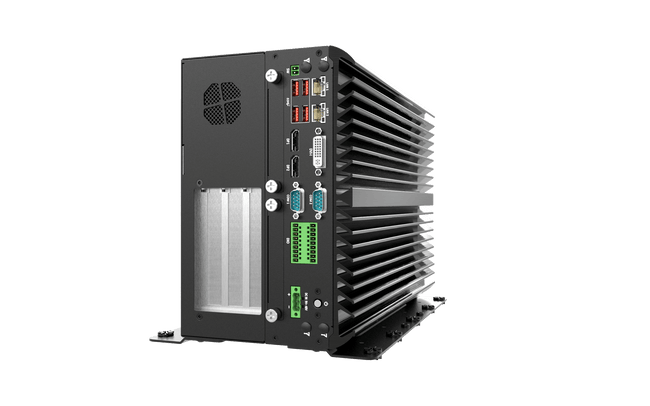

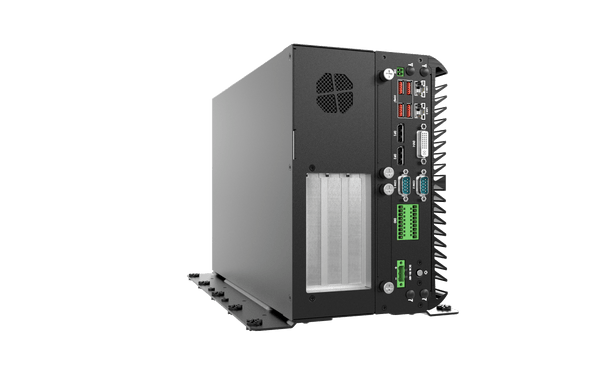

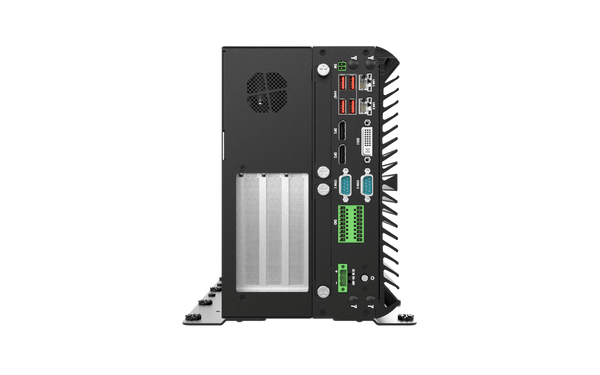

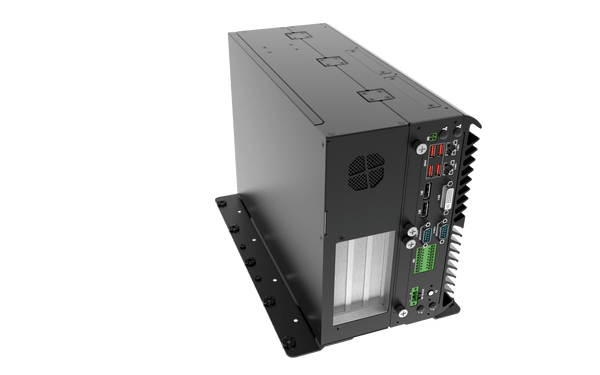

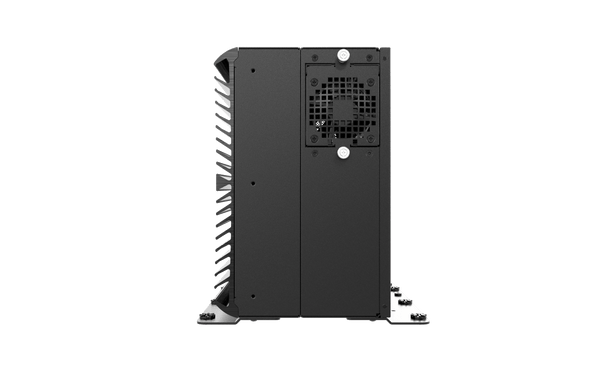

VCO-6000-CFL-3 Machine Vision Computer with 9th Gen Intel® Core™ CFL-R S Processor, 3x Expansion
SKU Alias: VCO-6133
- Support 9th Gen Intel® CFL-R S Processor (LGA 1151, 35W TDP)
- Intel® Q370 Chipset
- Triple Independent Display by 1x DVI-I and 2x DisplayPort
- 2x Intel® GbE supporting Wake-on-LAN and PXE
- 2x Full-size mini PCIe (shared by 1x mSATA), and 2x SIM socket
- 4x 2.5" SATA HDD Bay with RAID 0, 1, 5, 10 support, 1x mSATA (Shared by 1x Mini PCIe)
- 1x M.2 (M Key, NVMe PCIe x4, 2280), 1x M.2 (E Key, PCIe x2, USB 2.0, 2230, Support CNVi)
- 6x RS-232/422/485 (4x internal)
- 4x USB 3.2 Gen 2 (10 Gbps), 5x USB 3.2 Gen 1 (5 Gbps, internal), 2x USB 2.0 header (internal)
- 2x PCIe x4 1-lane, 1x PCIe x16 (VCO-6000-CFL-3E) or 3x PCI (VCO-6000-CFL-3I) or 1x PCIe x16, 2x PCI (VCO-6000-CFL-3C)
- 8x DI + 8x DO with isolation
- 9 to 48V DC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature (-25°C to 70°C)
- TPM 2.0 Supported
Model:
VCO-6000-CFL-3Certifications:
Specification
System | |
---|---|
Processor | Support 9th Gen Intel® Core™ CFL-R S Processor (LGA 1151, 35W TDP) - Intel® Core™ i7-9700TE, 8 Cores, 12MB cache, up to 3.8 GHz - Intel® Core™ i5-9500TE, 6 Cores, 9MB Cache, up to 3.6 GHz - Intel® Core™ i3-9100TE, 4 Core, 6MB Cache, 3.2 GHz |
System Chipset | Intel® Q370 Express Chipset |
LAN Chipset | GbE1: Intel I219LM (Support Wake-on-LAN and PXE) GbE2: Intel I210-AT (Support Wake-on-LAN and PXE) |
Audio Codec | Realtek ALC888S |
System Memory | 2x 260-Pin DDR4 2400/2666MHz SODIMM. Max. up to 64GB |
Graphics | Intel® UHD Graphics 610/630 |
BIOS | AMI 256Mbit SPI BIOS |
Watchdog | Software Programmable Supports 1~255 sec. System Reset |
TPM | TPM 2.0 |
Display | |
Display Port | 2x DP |
DVI | 1x DVI-I |
Multiple Display | Triple Display |
VGA | Yes (by optional split cable) |
Storage | |
M.2 | 1x M.2 (M Key, NVMe PCIe x4, 2280) 1x M.2 (E Key, PCIe x2, USB 2.0, 2230, Support CNVi) |
mSATA | 1x mSATA (shared by 1x Mini PCIe) |
SIM Socket | 2x Internal SIM socket |
SSD/HDD | 2x Internal 2.5" SATA HDD Bay 2x Hotswap 2.5" SATA HDD Bay Support RAID 0, 1, 5, 10 |
Expansion | |
Mini PCIe | 2x Full-size Mini PCIe (1x Shared with mSATA) |
PCI | 3x PCI (3I-Model) 2x PCI (3C-Model) |
PCIe | 2x PCIe x4 (1-lane), 1x PCIe x16 (3E-Model) 1x PCIe x16 (3C-Model) |
Card Dimension | 310 (L) x 112 (H) mm |
I/O | |
COM | 2x RS-232/422/485, 4x RS-232/422/485 (Internal) |
DIO | 8 in / 8 out (Isolated) |
LAN | 2x RJ45 |
Universal I/O Bracket | 2x Universal I/O Bracket (By mini PCIe interface) |
USB | 4x USB 3.2 Gen 2 (10 Gbps) 5x USB 3.2 Gen 1 (5Gbps, Internal) 2x USB 2.0 header (Internal) |
Others | 4x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch 1x Remote Power On/Off 1x PC/Car Mode Switch, 1x Delay Time Switch 1x Removable CMOS Battery |
Operating System | |
Windows | Windows 10 |
Linux | Linux kernel 5.X |
Power | |
Power Adapter | Optional AC/DC 24V/9.2A, 220W Optional AC/DC 24V/5A, 120W |
Power Mode | AT, ATX |
Power Supply Voltage | 9 ~ 48 VDC |
Power Connector | 3-pin Terminal Block 4-pin 12V DC input as optional |
Power Protection | Over-Voltage Protection (OVP) Over-Current Protection (OCP) Reverse Polarity Protection (RPP) |
Environment | |
Operating Temperature | -25°C to 70°C (35W CPU) |
Storage Temperature | -30°C ~ 85°C |
Relative Humidity | 10% to 95% (non-condensing) |
Certification | CE, FCC Class A, E-Mark, EMC Conformity with EN 50155, EN 50121-3-2 |
Vibration | 3 Grms, 5 ~ 500 Hz, 0.5 hr/axis (SSD) 1 Grms, 5 ~ 500 Hz, 0.5 hr/axis (HDD) |
Shock | 20G, half-sine, 11 ms (SSD) |
Physical | |

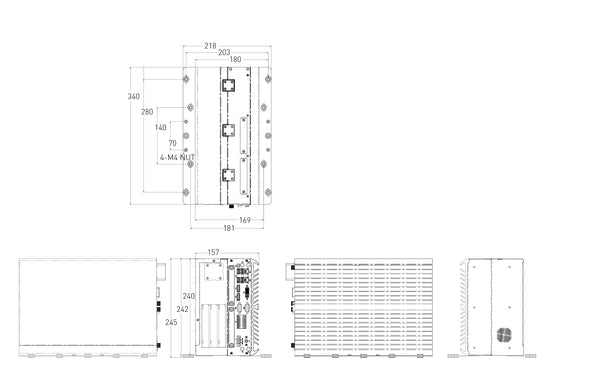

Dimension | 157 (W) x 340 (D) x 240 (H) mm |
Weights | 9.1 kg |
Construction | Extruded aluminum with heavy duty metal |
Mounting Options | Wall Mount / Book Mount (Optional) |
