VCO-6000-CFL-2 Machine Vision Computer with 9th Gen Intel® Core™ CFL-R S Processor, 2x Expansion
VCO-6000-CFL-2-2PWR Machine Vision Computer with 9th Gen Intel® Core™ CFL-R S Processor, 2x Expansion, Dual Power Input
VCO-6000-CFL-3 Machine Vision Computer with 9th Gen Intel® Core™ CFL-R S Processor, 3x Expansion
VCO-6000-CFL-3-2PWR Machine Vision Computer with 9th Gen Intel® Core™ Processor, 3x PCIe Expansion, Dual Power Input
VCO-6000-CFL-4 Machine Vision Computer with 9th Gen Intel® Core™ CFL-R S Processor, 4x Expansion
VCO-6000-CFL-4M2 Machine Vision Computer with 9th Gen Intel® Core™ Processor, 4x Hotswap M.2 NVMe
VCO-6000-CFL-5 Machine Vision Computer with 9th Gen Intel® Core™ CFL-R S Processor, 5x Expansion

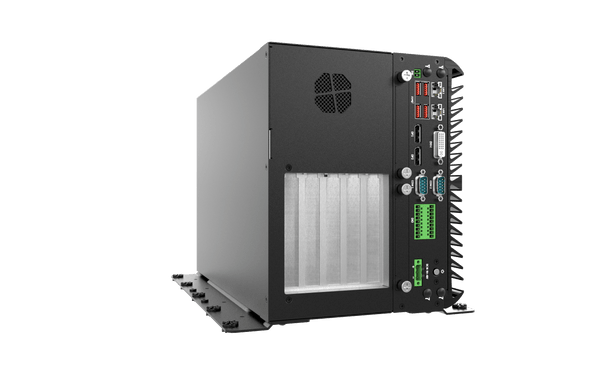

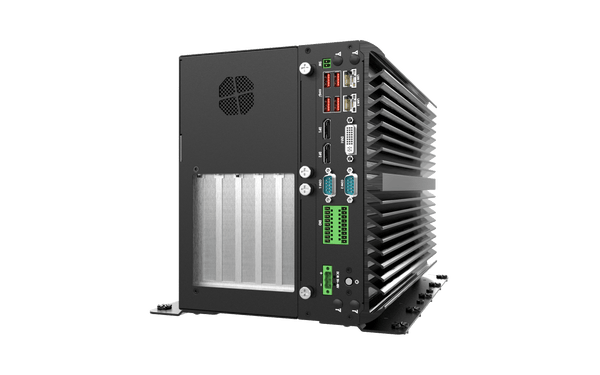

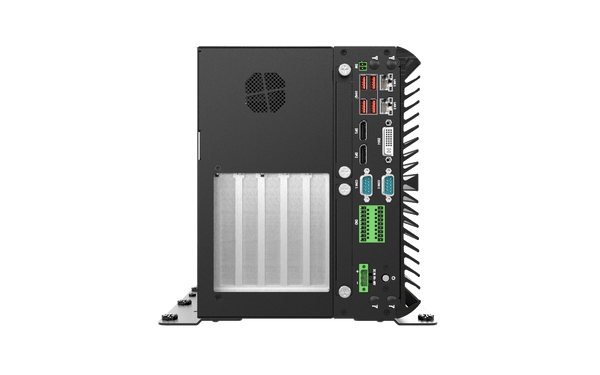

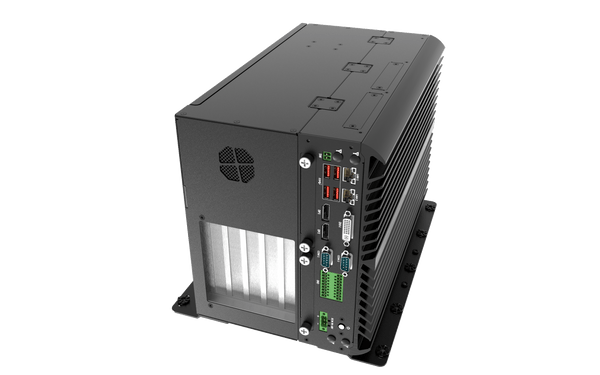

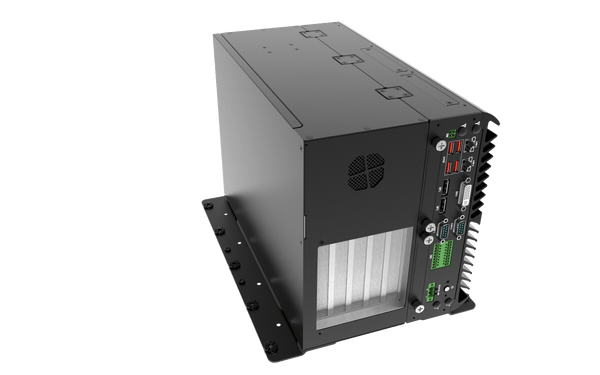

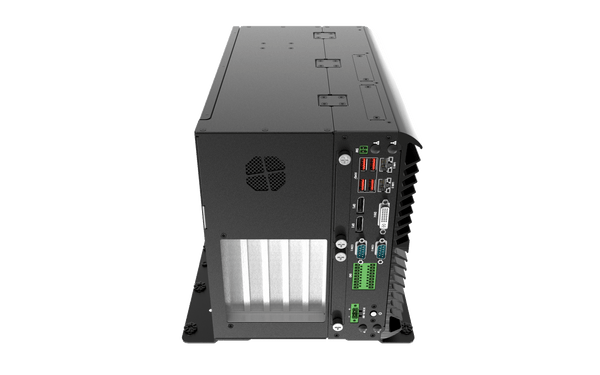

VCO-6000-CFL-5 Machine Vision Computer with 9th Gen Intel® Core™ CFL-R S Processor, 5x Expansion

SKU Alias: VCO-6155

  • Support 9th Gen Intel® CFL-R S Processor (LGA 1151, 35W TDP)
  • Intel® Q370 Chipset
  • Triple Independent Display by 1x DVI-I and 2x DisplayPort
  • 2x Intel® GbE supporting Wake-on-LAN and PXE
  • 2x Full-size mini PCIe (shared by 1x mSATA), and 2x SIM socket
  • 4x 2.5" SATA HDD Bay with RAID 0, 1, 5, 10 support, 1x mSATA (Shared by 1x Mini PCIe)
  • 1x M.2 (M Key, NVMe PCIe x4, 2280), 1x M.2 (E Key, PCIe x2, USB 2.0, 2230, Support CNVi)
  • 6x RS-232/422/485 (4x internal)
  • 4x USB 3.2 Gen 2 (10 Gbps), 5x USB 3.2 Gen 1 (5 Gbps, internal), 2x USB 2.0 header (internal)
  • 2x PCIe x4, 1x PCIe x16 8-lane, 2x PCI (VCO-6000-CFL-5C)
  • 8x DI + 8x DO with isolation
  • 9 to 48V DC Wide Range Power Input Supporting AT/ATX Mode
  • Wide Operating Temperature (-25°C to 70°C)
  • TPM 2.0 Supported
See Datasheet

Certifications:

Intel Partner
AWS Greengrass IoT

9th Intel® Core™ Processor

5x PCI/PCIe Expansion Slots

-25° to 60°C Wide Operating Temperature

2x SIM Sockets, Wifi, Bluetooth

20G Shock
3 GRMS Vibration

Data Security TPM 2.0 Supported

Accelerate Machine Learning with x16 PCIe GPU (Full Length)

The front sided PCIe expansion slots for the vision computer can be populated with GPU performance accelerators in a Full-Length, Full Height form factor. GPUs allow intelligent devices to run machine learning algorithms for inference analysis of data from a variety of IoT sensors.

Accessible PCIe Magazine Tray

Unique PCIe magazine tray is designed for easy installation and access to full-size PCIe x16 GPU acceleration cards. Easy and adjustable mechanical brackets provide locking reinforcement to ensure resistance against shock and vibration.

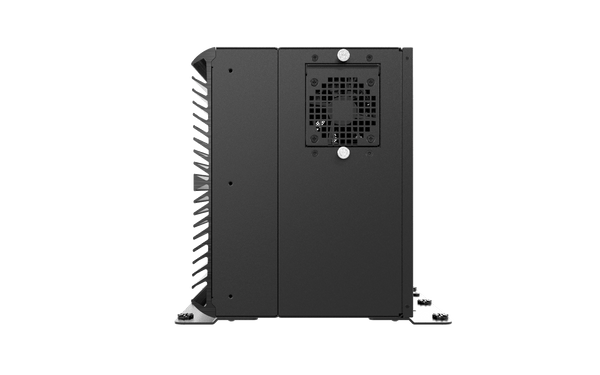

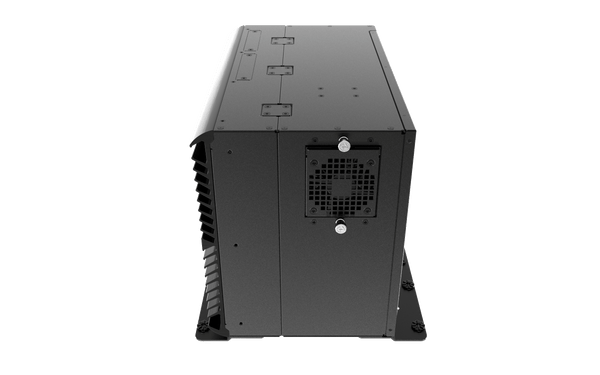

Hot-Swappable Blower

The VCO-6000-CFL Machine Vision Computer Series ensures ultimate reliability by delivering cooling where it counts. The ultra-conductive aluminum heat sink dissipates heat with the support of a hot-swappable smart fan module that regulates performance based on thermal readings.

NVMe: Immediate Edge Intelligence

Support for an onboard M.2 NVMe drive with PCIe 3.0 x4 performance efficiently feeds integrated CPUs and GPUs volumes of data for complex data cache applications.

Additional Storage Support

Supports two hot-swappable external SATA SSD/HDD drive bays and two internal drive bays for a scalable RAID solution. The external 2.5" drive bays permit hot-swappable replacement of the SATA drives, simplifying service and capacity upgrades.

Specification

System
Processor Support 9th Gen Intel® Core™ CFL-R S Processor (LGA 1151, 35W TDP)
- Intel® Core™ i7-9700TE, 8 Cores, 12MB cache, up to 3.8 GHz
- Intel® Core™ i5-9500TE, 6 Cores, 9MB Cache, up to 3.6 GHz
- Intel® Core™ i3-9100TE, 4 Core, 6MB Cache, 3.2 GHz
System Chipset Intel® Q370 Express Chipset
LAN Chipset GbE1: Intel I219LM (Support Wake-on-LAN and PXE)
GbE2: Intel I210-AT (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S
System Memory 2x 260-Pin DDR4 2400/2666MHz SODIMM.
Max. up to 64GB
Graphics Intel® UHD Graphics 610/630
BIOS AMI 256Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 sec.
System Reset
TPM TPM 2.0
Display
Display Port 2x DP
DVI 1x DVI-I
Multiple Display Triple Display
VGA Yes (by optional split cable)
Storage
M.2 1x M.2 (M Key, NVMe PCIe x4, 2280)

1x M.2 (E Key, PCIe x2, USB 2.0, 2230, Support CNVi)
mSATA 1x mSATA (shared by 1x Mini PCIe)
SIM Socket 2x Internal SIM socket
SSD/HDD 2x Internal 2.5" SATA HDD Bay

2x Hotswap 2.5" SATA HDD Bay

Support RAID 0, 1, 5, 10
Expansion
Mini PCIe 2x Full-size Mini PCIe (1x Shared with mSATA)
PCI 2x PCI (5C-Model)
PCIe 2x PCIe x4 (1-lane), 1x PCIe x16 8-Lane (5C-Model)
Card Dimension 310 (L) x 112 (H) mm
I/O
COM 2x RS-232/422/485, 4x RS-232/422/485 (Internal)
DIO 8 in / 8 out (Isolated)
LAN 2x RJ45
Universal I/O Bracket 2x Universal I/O Bracket (By mini PCIe interface)
USB 4x USB 3.2 Gen 2 (10 Gbps)
5x USB 3.2 Gen 1 (5Gbps, Internal)
2x USB 2.0 header (Internal)
Others 4x WiFi Antenna Holes

1x Power Switch, 1x AT/ATX Switch

1x Remote Power On/Off

1x PC/Car Mode Switch, 1x Delay Time Switch

1x Removable CMOS Battery
Operating System
Windows Windows 10
Linux Linux kernel 5.X
Power
Power Adapter Optional AC/DC 24V/9.2A, 220W
Optional AC/DC 24V/5A, 120W
Power Mode AT, ATX
Power Supply Voltage 9 ~ 48 VDC
Power Connector 3-pin Terminal Block
4-pin 12V DC input as optional
Power Protection Over-Voltage Protection (OVP)
Over-Current Protection (OCP)
Reverse Polarity Protection (RPP)
Environment
Operating Temperature -25°C to 70°C (35W CPU)
Storage Temperature -30°C ~ 85°C
Relative Humidity 10% to 95% (non-condensing)
Certification CE, FCC Class A, E-Mark, EMC Conformity with EN 50155, EN 50121-3-2
Vibration 3 Grms, 5 ~ 500 Hz, 0.5 hr/axis (SSD) 1 Grms, 5 ~ 500 Hz, 0.5 hr/axis (HDD)
Shock 20G, half-sine, 11 ms (SSD)
Physical
Dimension 197 (W) x 340 (D) x 240 (H) mm
Weights 10 kg
Construction Extruded aluminum with heavy duty metal
Mounting Options Wall Mount / Book Mount (Optional)

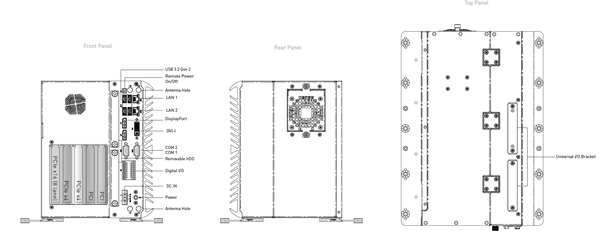

Mechanical Layout

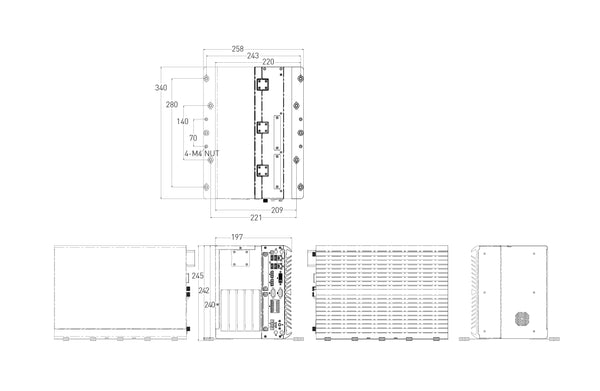

Product Dimension
