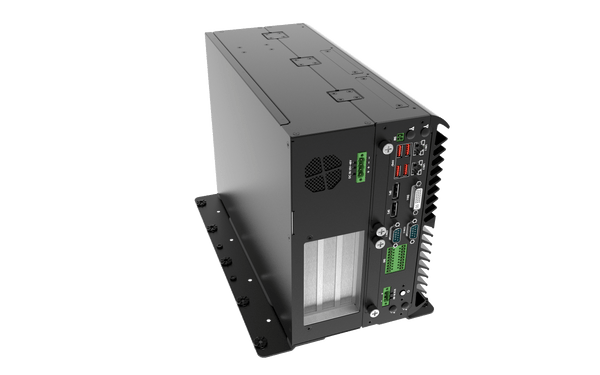

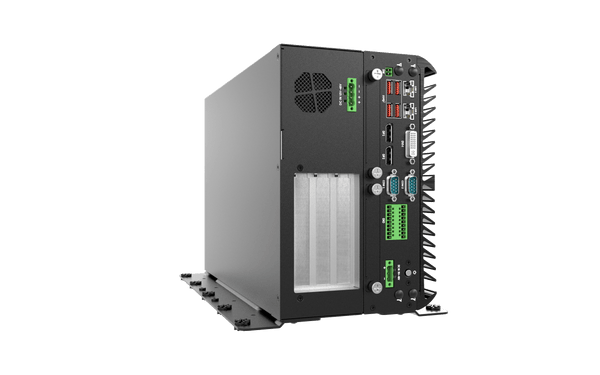

VCO-6000-CFL-3-2PWR Machine Vision Computer with 9th Gen Intel® Core™ Processor, 3x PCIe Expansion, Dual Power Input

SKU Alias: VCO-6133E-2PWR

  • Support 9th Gen Intel® CFL-R S Processor (LGA 1151, 35W TDP)
  • Intel® Q370 Chipset
  • Triple Independent Display by 1x DVI-I and 2x DisplayPort
  • 2x Intel® GbE supporting Wake-on-LAN and PXE
  • 2x Full-size mini PCIe (shared by 1x mSATA), and 2x SIM socket
  • 4x 2.5” SATA HDD Bay with RAID 0, 1, 5, 10 support,1x mSATA (Shared by 1x Mini PCIe)
  • 1x M.2 (M Key, NVMe PCIe x4, 2280), 1x M.2 (E Key, PCIe x2, USB 2.0, 2230Support CNVi)
  • 6x RS-232/422/485 (4x internal)
  • 4x USB 3.2 Gen 2 (10 Gbps), 4x USB 3.2 Gen 1 (5 Gbps, internal)
  • 8x DI + 8x DO with isolation
  • 9 to 48V DC Wide Range Power Input Supporting AT/ATX Mode
  • Wide Operating Temperature (-25°C to 70°C)
  • TPM 2.0 Supported

Certifications:

Intel Partner
AWS Greengrass IoT

9th Intel® Core™ Processor

3x PCI/PCIe Expansion Slots

-25° to 60°C Wide Operating Temperature

2x SIM Sockets, Wifi, Bluetooth

20G Shock
3 GRMS Vibration

Data Security TPM 2.0 Supported

Accelerate Machine Learning with x16 PCIe GPU (Full Length)

The front sided PCIe expansion slots for the vision computer can be populated with GPU performance accelerators in a Full-Length, Full Height form factor. GPUs allow intelligent devices to run machine learning algorithms for inference analysis of data from a variety of IoT sensors.

Accessible PCIe Magazine Tray

Unique PCIe magazine tray is designed for easy installation and access to full-size PCIe x16 GPU acceleration cards. Easy and adjustable mechanical brackets provide locking reinforcement to ensure resistance against shock and vibration.

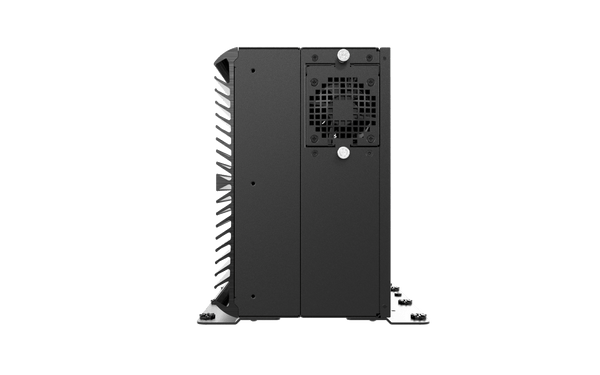

Hot-Swappable Blower

The VCO-6000-CFL Machine Vision Computer Series ensures ultimate reliability by delivering cooling where it counts. The ultra-conductive aluminum heat sink dissipates heat with the support of a hot-swappable smart fan module that regulates performance based on thermal readings.

NVMe: Immediate Edge Intelligence

Support for an onboard M.2 NVMe drive with PCIe 3.0 x4 performance efficiently feeds integrated CPUs and GPUs volumes of data for complex data cache applications.

Additional Storage Support

Supports two hot-swappable external SATA SSD/HDD drive bays and two internal drive bays for a scalable RAID solution. The external 2.5" drive bays permit hot-swappable replacement of the SATA drives, simplifying service and capacity upgrades.

dual power input

Dual-Power Input for Hardware Acceleration

The VCO-6000-CFL Machine Vision Computer provides a dual-power input solution for stable power and efficiency with wide voltage support. It’s modular design powers leading edge technologies in GPU, TPU, M.2 accelerators, and NVMe storage.

  • 9 – 48 VDC for PC
  • 12 - 48 VDC for performance acceleration cards
* Barebone Pricing Only; Sales team to review component configuration and price
Regular price $1,662.00
*Starting At: $1,662.00

Specification

System
ProcessorSupport 9th Gen Intel® Core™ CFL-R S Processor (LGA 1151, 35W TDP)
- Intel® Core™ i7-9700TE, 8 Cores, 12MB cache, up to 3.8 GHz
- Intel® Core™ i5-9500TE, 6 Cores, 9MB Cache, up to 3.6 GHz
- Intel® Core™ i3-9100TE, 4 Core, 6MB Cache, 3.2 GHz
System ChipsetIntel® Q370 Express Chipset
LAN ChipsetGbE1: Intel I219LM (Support Wake-on-LAN and PXE)
GbE2: Intel I210-AT (Support Wake-on-LAN and PXE)
Audio CodecRealtek ALC888S
System Memory2x 260-Pin DDR4 2400/2666MHz SODIMM.
Max. up to 64GB
GraphicsIntel® UHD Graphics 610/630
BIOSAMI 256Mbit SPI BIOS
WatchdogSoftware Programmable Supports 1~255 sec.
System Reset
TPMTPM 2.0
Display
Display Port2x DP (support resolution 4096 x 2304)
DVI1x DVI-I (support resolution 1920 x 1200)
Multiple DisplayTriple Display
VGAYes (by optional split cable)
Storage
M.21x M.2 (M Key, NVMe PCIe x4, 2280)

1x M.2 (E Key, PCIe x2, USB 2.0, 2230, Support CNVi)
mSATA1x mSATA (shared by 1x Mini PCIe)
SIM Socket2x Internal SIM socket
SSD/HDD2x Internal 2.5" SATA HDD Bay (support H=9mm)

2x Hotswap 2.5" SATA HDD Bay

(support H=7mm) , Support RAID 0, 1, 5, 10
Expansion
Mini PCIe2x Full-size Mini PCIe (1x Shared with mSATA)
PCIe2x PCIe x 4 (1-lane), 1x PCIe x16
Card Dimension260 (L) x 129 (H) mm
I/O
COM2x RS-232/422/485, 4x RS-232/422/485 (Internal)
DIO8 in / 8 out (Isolated)
LAN2x RJ45
Universal I/O Bracket2x Universal I/O Bracket (By mini PCIe interface)
USB 4x USB 3.2 Gen 2 (10 Gbps)
5x USB 3.2 Gen 1 (5Gbps, Internal)
2x USB 2.0 header (Internal)
Others4x WiFi Antenna Holes

1x Power Switch, 1x AT/ATX Switch

1x Remote Power On/Off

1x PC/Car Mode Switch, 1x Delay Time Switch

1x Removable CMOS Battery
Operating System
WindowsWindows 10
LinuxLinux kernel 5.X
Power
Power AdapterOptional AC/DC 24V/9.2A, 220W

Optional AC/DC 24V/11.67A, 280W
Power ModeAT, ATX
Power Supply Voltage9 ~ 48 VDC
Power Connector3-pin Terminal Block

4-pin Terminal Block
Power ProtectionOver-Voltage Protection (OVP)
Over-Current Protection (OCP)
Reverse Polarity Protection (RPP)
Environment
Operating Temperature-25°C to 70°C (35W CPU)
Storage Temperature-30°C ~ 85°C
Relative Humidity10% to 95% (non-condensing)
CertificationCE, FCC Class A, E-Mark, EMC Conformity with EN 50155, EN 50121-3-2
Vibration3 Grms, 5 ~ 500 Hz, 0.5 hr/axis (SSD) 1 Grms, 5 ~ 500 Hz, 0.5 hr/axis (HDD)
Shock20G, half-sine, 11 ms (SSD)
Physical
Dimensions (W x H x D)157 (W) x 340 (D) x 240 (H) mm
Weights9.4 kg
ConstructionExtruded aluminum with heavy duty metal
Mounting OptionsWall Mount/ Book Mount (optional)

Mechanical Layout

Product Dimension

Unit:mm
