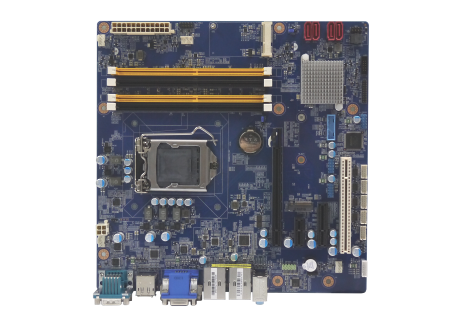

CT-MSL01 MicroATX Industrial Motherboard with LGA 1151 Socket for 6th Gen. Intel® Core™ i7/i5/i3 Processor, Q170 PCH

  • Supports Intel® 6th/7th Gen Intel Core™ processor (LGA1151) with Intel Q170 PCH
  • 4x DDR4 DIMM support total up to 64GB
  • 2x Intel® GbE supporting Wake-on-LAN and PXE
  • DVI-D/DisplayPort//HDMI/VGA
  • 1x PCIe x16, 1x PCIe x4, 1x PCIe x1, 1x PCI, 1x Mini-PCIe
  • 1x M.2, and 4x SATA 6.0Gb/s
  • 6x COM port, 6x USB 3.0, 6x USB 2.0
  • 1x 8-bit GPIO
  • Supports Intel® AMT 11.0
  • Supports TPM 2.0 (optional)
Regular price $299.00 Total: $299.00

*All specifications are subject to change without notice. Please contact us for exact offers. Products may not be available in all markets.

Specification
System
Processor LGA 1151 socket supporting 6th/7th Gen Intel Core i3/i5/i7 Pentium®, Celeron® Desktop Processor
System Chipset Q170
LAN Chipset 1x Intel® I219LM GbE PHY
1x Intel® I211AT GbE controller
(Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC892 HD Audio Codec
System Memory 4x 288-Pin DDR4 1866/2133MHz DIMM, Max. 64GB
BIOS AMI UEFI 128MB SPI Flash
Watchdog Timer Software Programmable 1~255 sec. or min. per step System Reset
I/O
I/O 4 x SATA 6.0Gb/s
2 x USB 3.0, 6 x USB 2.0
4 x RS-232
1 x 8-bit GPIO
1 x System Fan, 1 x CPU Fan
1 x Front Panel Audio
1 x LPC
1 x Front Panel Connector
1 x PS/2 Keyboard/Mouse

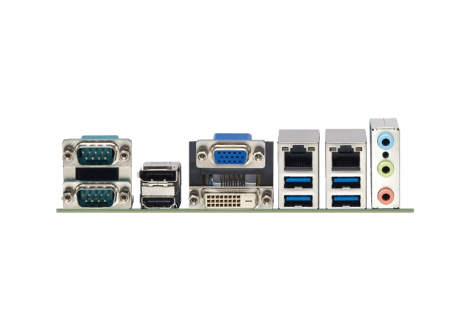

Back I/O 1 x DVI-D, 1 x DisplayPort, 1 x HDMI, 1x VGA
4 x USB2.0
2 x GbE RJ-45
2 x RS-232/422/485
1 x Line-out, 1 x Line-in, 1 x Mic-in
Expansion 1 x mini-PCIe
1 x PCIe x16
1 x PCIe x4
1 x PCIe x1
1 x PCI
Power
Power Management ACPI 5.0 compliant
Power Mode ATX Power (2×12-pin and 2×2-pin power connector)
Environment
Operating Temperature 0 °C ~ 60 °C (32 °F ~ 140 °F)
Storage Temperature -40 °C ~ 80 °C (-40 °F ~ 176 °F)
Relative Humidity 10% ~ 90% relative humidity, non-condensing
Physical
Resource

Data Sheet

ds_CT-MSL01_p-KBL.pdf
