SKU Alias: BCO-1010U
| System | |
|---|---|
| Processor | Intel® Celeron® Processor J1900, Quad Core, 2MB Cache, 2.0 GHz |
| System Chipset | SoC integrated |
| LAN Chipset | GbE1: Intel® I210-AT (Support Wake-on-LAN and PXE) |
| Audio Codec | Realtek ALC888S |
| System Memory | 1x 204-Pin DDR3L 1066/1333MHz SODIMM. Max up to 8GB |
| BIOS | AMI 64Mbit SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 Sec. System Reset |
| Display | |
| DVI | 1x DVI-I |
| Multiple Display | Dual Display |
| VGA | Yes (by optional split cable) |
| Storage | |
| mSATA | 1x mSATA (shared by 1x Mini PCIe) |
| SIM Socket | 1x External SIM socket |
| SSD/HDD | 1x Internal 2.5" SATA HDD Bay |
| Expansion | |
| Mini PCIe | 1x Full-size Mini PCIe Socket with USIM Socket (PCIe + USB + SATA) 1x Full-size Mini PCIe Socket (PCIe + USB) |

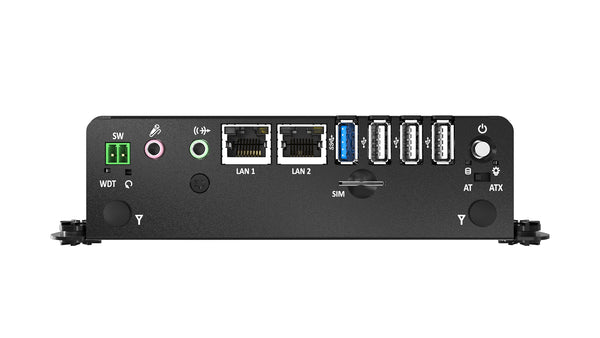

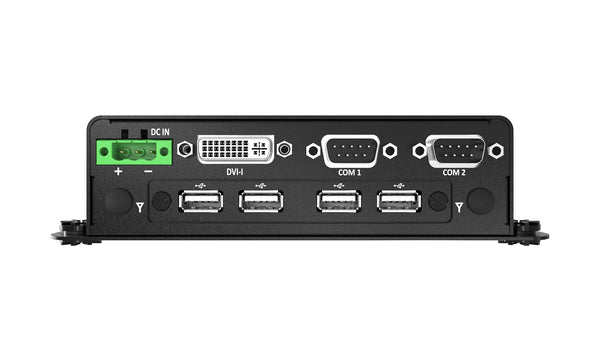

| I/O | |
| Audio | 1x Mic-in, 1x Line-out |
| COM | 2x RS-232/422/485 |
| LAN | 2x RJ45 |
| USB | 1x USB 3.0, 7x USB 2.0 |
| Others | 4x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch |
| Operating System | |
| Windows | Windows 10, Windows 7, WES7 |
| Linux | Linux kernel 3.X |
| Power | |
| Power Adapter | Optional AC/DC 12V/5A, 60W |
| Power Mode | AT, ATX |
| Power Supply Voltage | 9~30 VDC |
| Power Connector | 3-pin Terminal Block |
| Power Protection | Over Voltage Protection (OVP) |
| Environment | |
| Operating Temperature | -20 °C to 50 °C |
| Storage Temperature | -30 °C to 70 °C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Vibration | with SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis with HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis |
| Shock | with SSD: 50G, half sine, 11ms |
| Physical | |
| Dimensions | 142 (W) x 101 (D) x 41.5 (H) mm |
| Weights | 0.62kg |
| Construction | Fanless Design |
| Mounting Options | Wall Mounting |
