Product EOL
BCO-1000-J1900-10A Fanless Mini Computer with Intel® Celeron® J1900 Processor, 1x DVI-I, 1x DP, 2x COM, 1x 2.5" SATA HDD Bay
SKU Alias: BCO-1010A
- Intel® Celeron® processor J1900, up to 2.0GHz
- 1x 204-pin DDR3L SODIMM. max up to 8GB

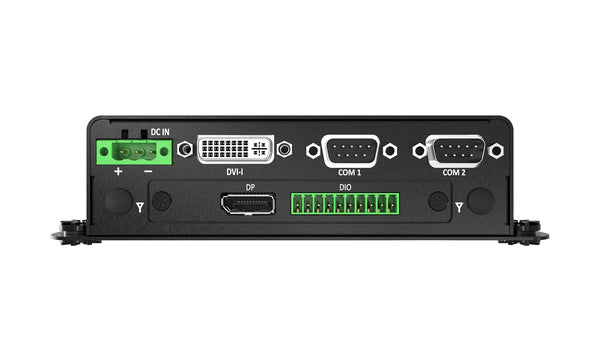

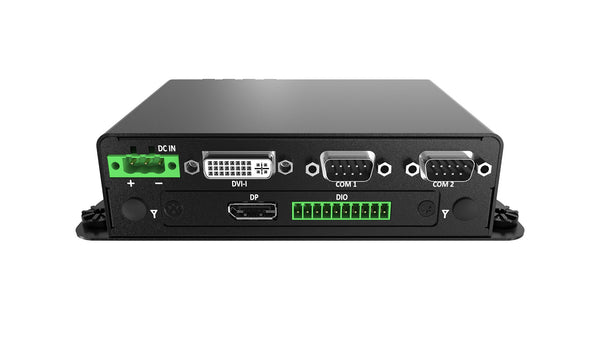

- Dual independent display supported by 1x DVI-I and 1x DisplayPort
- 2x Intel® GbE supporting Wake-on-LAN and PXE
- 1x 2.5" SATA HDD bay, 1x mSATA
- 2x full-size mini PCIe for communication or expansion modules,
1x SIM socket - 2x RS-232/422/485, 1x USB 3.0, 3x USB 2.0
- 9 to 30VDC wide range power input supporting AT/ATX mode
- -20°C to 50°C extended operating temperature
Model:
BCO-1000-J1900-10ACertifications:
![Intel Partner](https://cdn.shopify.com/s/files/1/0028/7509/7153/files/IPA-Badge-Titanium-primary-rgb-DIGITAL-3000x3000_120x.png?v=1663868251)
![](https://cdn.shopify.com/s/files/1/0028/7509/7153/files/thomas-shield-tier-v-lg_120x.png?v=1638320912)
![](https://cdn.shopify.com/s/files/1/0028/7509/7153/files/fcc-logo_black-85w_120x.png?v=1586367868)
![](https://cdn.shopify.com/s/files/1/0028/7509/7153/files/ce-logo-85w_120x.png?v=1586367868)
Specification
System | |
---|---|
Processor | Intel® Celeron® Processor J1900, Quad Core, 2MB Cache, 2.0 GHz |
System Chipset | SoC integrated |
LAN Chipset | GbE1: Intel® I210-AT (Support Wake-on-LAN and PXE) |
Audio Codec | Realtek ALC888S |
System Memory | 1x 204-Pin DDR3L 1066/1333MHz SODIMM. Max up to 8GB |
BIOS | AMI 64Mbit SPI BIOS |
Watchdog | Software Programmable Supports 1~255 Sec. System Reset |
Display | |
Display Port | 1x DP |
DVI | 1x DVI-I |
Multiple Display | Dual Display |
VGA | Yes (by optional split cable) |
Storage | |
mSATA | 1x mSATA (shared by 1x Mini PCIe) |
SIM Socket | 1x External SIM socket |
SSD/HDD | 1x Internal 2.5" SATA HDD Bay |
Expansion | |
Mini PCIe | 1x Full-size Mini PCIe Socket with USIM Socket (PCIe + USB + SATA) 1x Full-size Mini PCIe Socket (PCIe + USB) |
I/O | |
Audio | 1x Mic-in, 1x Line-out |
COM | 2x RS-232/422/485 |
DIO | 4 in / 4 out (Isolated) |

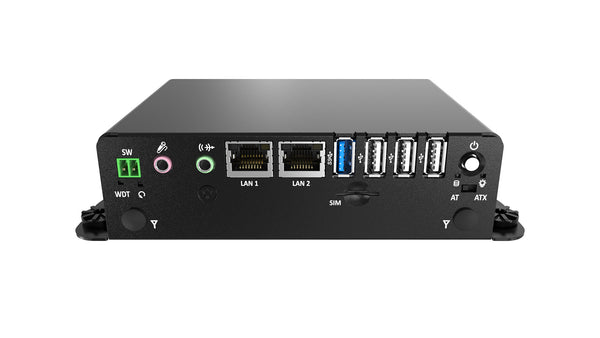

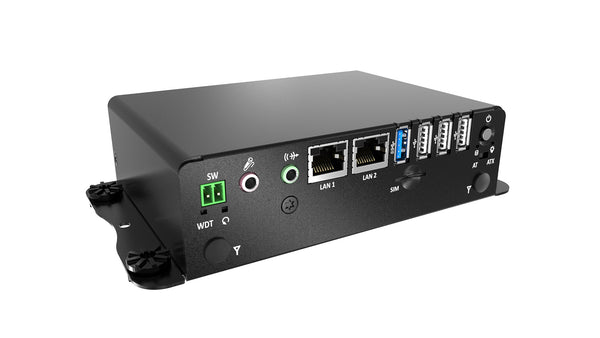

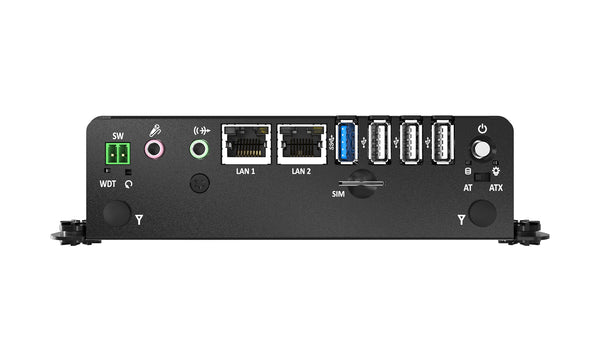

LAN | 2x RJ45 |
USB | 1x USB 3.0, 3x USB 2.0 |
Others | 4x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch |
Operating System | |
Windows | Windows 10, Windows 7, WES7 |
Linux | Linux kernel 3.X |
Power | |
Power Adapter | Optional AC/DC 12V/5A, 60W |
Power Mode | AT, ATX |
Power Supply Voltage | 9~30 VDC |
Power Connector | 3-pin Terminal Block |
Power Protection | Over Voltage Protection (OVP) |
Environment | |
Operating Temperature | -20 °C to 50 °C |
Storage Temperature | -30 °C to 70 °C |
Relative Humidity | 10% to 95% (non-condensing) |
Vibration | with SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis with HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis |
Shock | with SSD: 50G, half sine, 11ms |
Physical | |
Dimensions (W x H x D) | 142 (W) x 101 (D) x 41.5 (H) mm |
Weights | 0.60kg |
Construction | Fanless Design |
Mounting Options | Wall Mounting |
Resources
Data Sheet |
DS_BCO-1000-J1900-10A_Premio.pdf
|
Install Guide |
LTE Modem Installation Guide.pdf
|
User's Manual |
UM_BCO-1000-J1900_Generic.pdf
|
