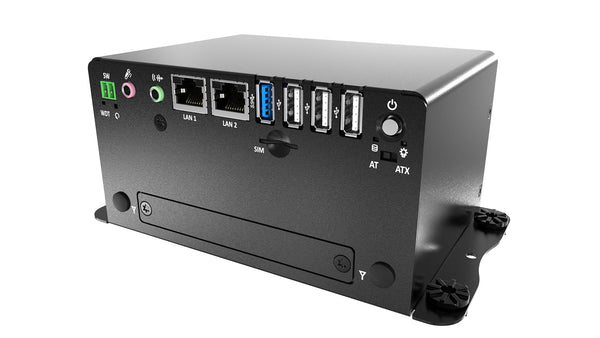

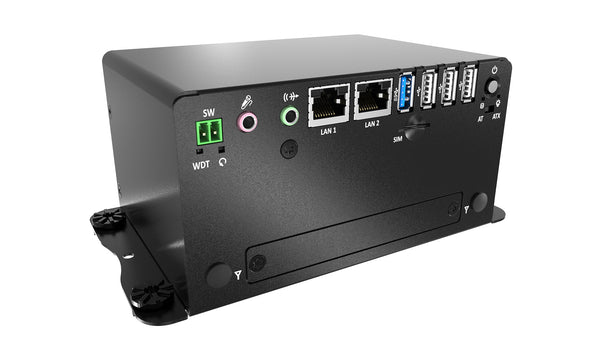

BCO-1000-J1900-30 Fanless Mini Computer with Intel® Celeron® J1900 Processor, 1x DVI-I, 1x DP, 6xCOM, 1x 2.5" SATA HDD Bay

SKU Alias: BCO-1030

  • Intel® Celeron® processor J1900, up to 2.0GHz
  • 1x 204-pin DDR3L SODIMM. max up to 8GB
  • Dual independent display supported by 1x DVI-I and 1x DisplayPort
  • 2x Intel® GbE supporting Wake-on-LAN and PXE
  • 1x 2.5" SATA HDD bay, 1x mSATA
  • 2x full-size mini PCIe for communication or expansion modules,
    1x SIM socket
  • 6x RS-232/422/485, 1x USB 3.0, 3x USB 2.0
  • 4x DI + 4x DO with isolation
  • 9 to 30VDC wide range power input supporting AT/ATX mode
  • -20°C to 50°C extended operating temperature
See Datasheet

Certifications:

Intel Partner

Specification

System
Processor Intel® Celeron® Processor J1900, Quad Core, 2MB Cache, 2.0 GHz
System Chipset SoC integrated
LAN Chipset GbE1: Intel® I210-AT
(Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S
System Memory 1x 204-Pin DDR3L 1066/1333MHz SODIMM.
Max up to 8GB
BIOS AMI 64Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 Sec. System Reset
Display
Display Port 1x DP
DVI 1x DVI-I
Multiple Display Dual Display
VGA Yes (by optional split cable)
Storage
mSATA 1x mSATA (shared by 1x Mini PCIe)
SIM Socket 1x External SIM socket
SSD/HDD 1x Internal 2.5" SATA HDD Bay
Expansion
Mini PCIe 1x Full-size Mini PCIe Socket with USIM Socket (PCIe + USB + SATA)

1x Full-size Mini PCIe Socket (PCIe + USB)

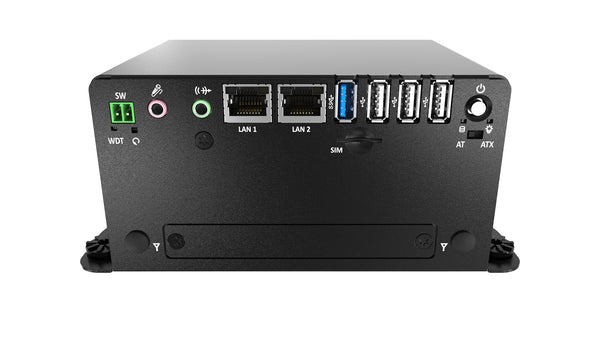

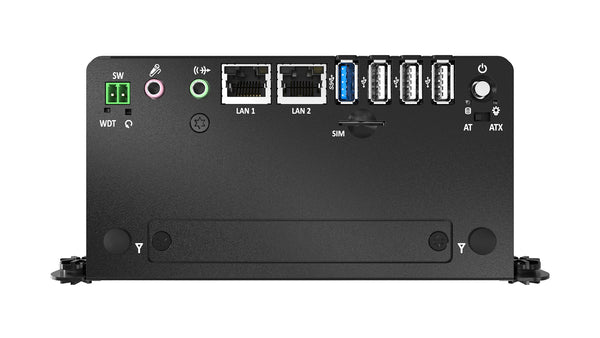

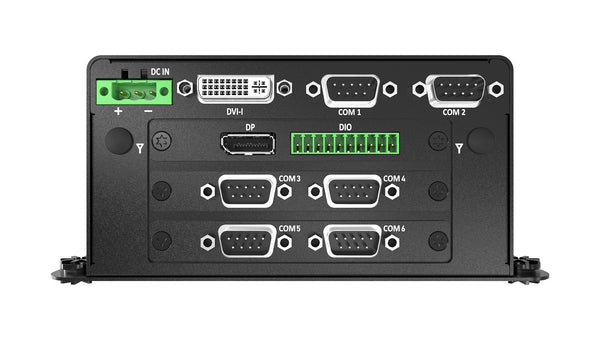

I/O
Audio 1x Mic-in, 1x Line-out
COM 2x RS-232/422/485

4x RS-232/422/485 (module)
DIO 4 in / 4 out (Isolated)
LAN 2x RJ45
USB 1x USB 3.0, 3x USB 2.0
Others 4x WiFi Antenna Holes
1x Power Switch,
1x AT/ATX Switch
Operating System
Windows Windows 10, Windows 7, WES7
Linux Linux kernel 3.X
Power
Power Adapter Optional AC/DC 12V/5A, 60W
Power Mode AT, ATX
Power Supply Voltage 9~30 VDC
Power Connector 3-pin Terminal Block
Power Protection Over Voltage Protection (OVP)
Environment
Operating Temperature -20 °C to 50 °C
Storage Temperature -30 °C to 70 °C
Relative Humidity 10% to 95% (non-condensing)
Vibration with SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis
with HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock with SSD: 50G, half sine, 11ms
Physical
Dimension 142 (W) x 101 (D) x 75 (H) mm
Weights 0.72kg
Construction Fanless Design
Mounting Options Wall Mounting

Mechanical Layout

Product Dimension

Unit:mm
