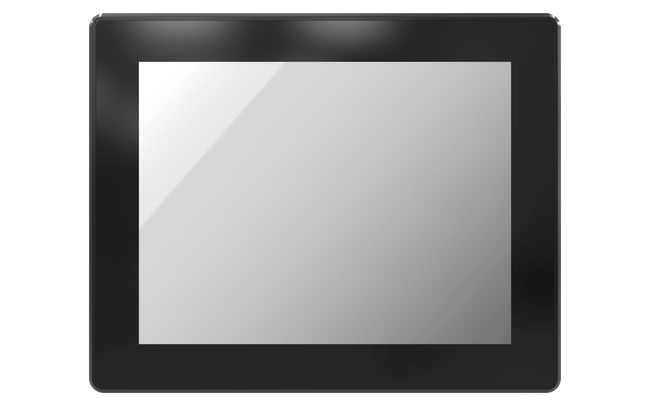

VIO-212-MX100H 12.1" 4:3 IP65 Industrial Touchscreen Monitor

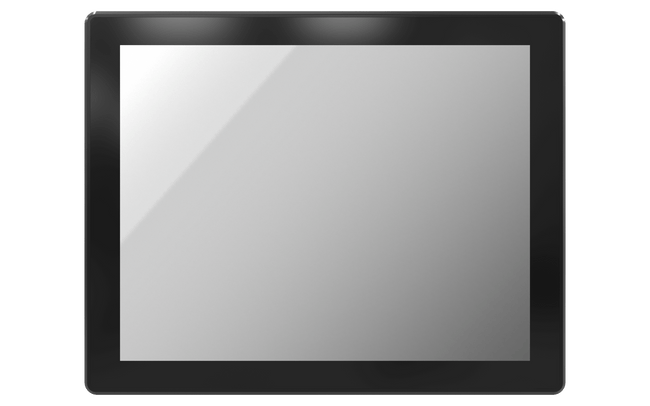

VIO-215-MX100H 15" 4:3 IP65 Industrial Touchscreen Monitor

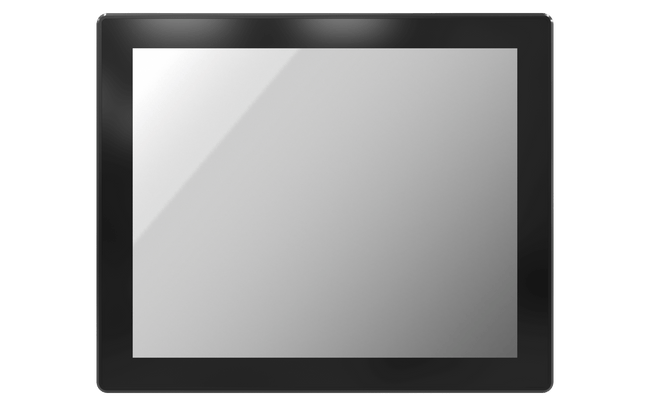

VIO-217-MX100H 17" 4:3 IP65 Industrial Touchscreen Monitor

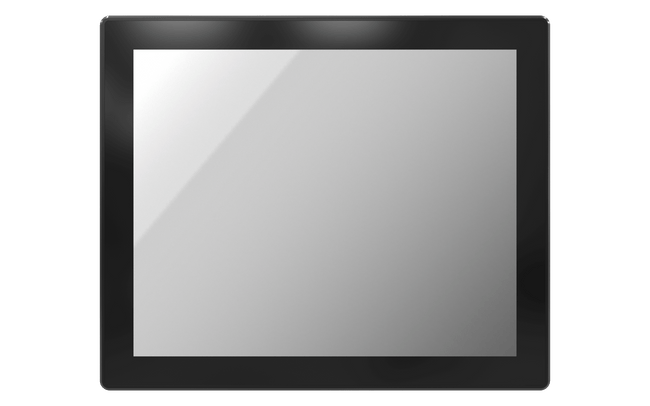

VIO-219-MX100H 19" 4:3 IP65 Industrial Touchscreen Monitor

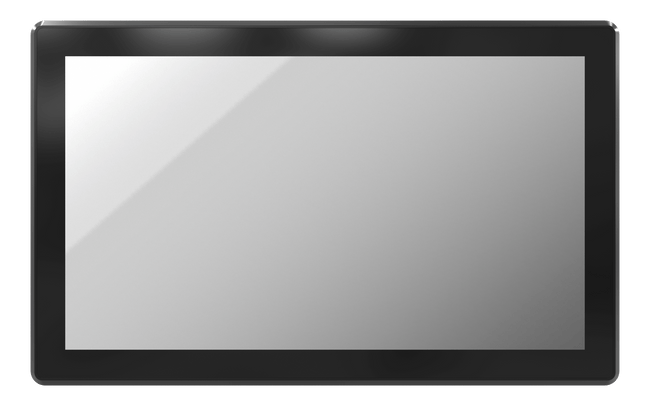

VIO-W215-MX100H 15.6" 16:9 IP65 Industrial Touchscreen Monitor
VIO-W221-MX100H 21.5" 16:9 IP65 Industrial Touchscreen Monitor

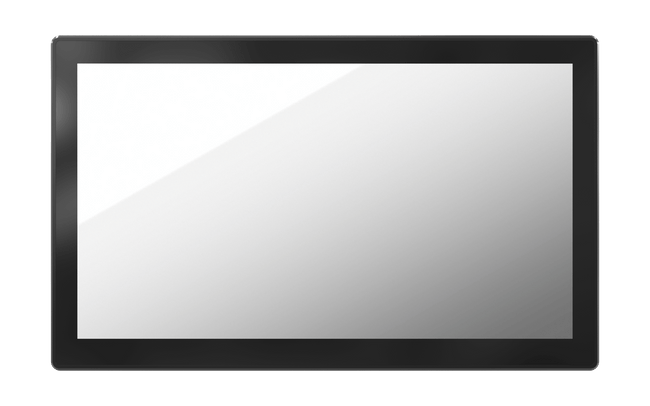

VIO-W224-MX100H 24" 16:9 IP65 Industrial Touchscreen Monitor

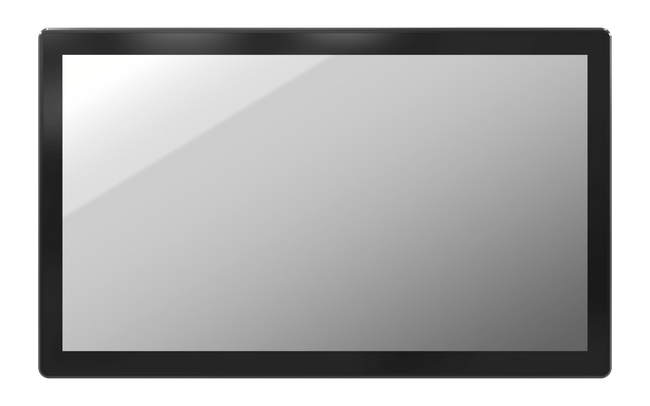

VIO-W221-MX100H 21.5" 16:9 IP65 Industrial Touchscreen Monitor

  • 21.5” TFT 1920×1080 FHD 16:9 LCD
  • Resistive 5-wire or Projected Capacitive Touch

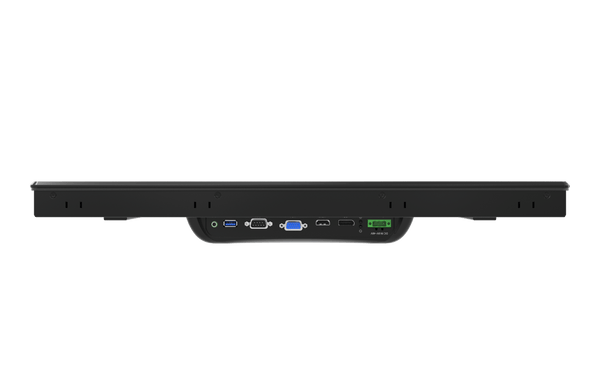

  • 1x VGA, 1x DVI-D, 1x HDMI, 1x DisplayPort, 1x USB 2.0, 1x COM, 1x Audio
  • 9 to 48 VDC wide range power input
  • -10 °C to 50 °C extended operating temperature
  • Aluminum die-casting front panel
  • IP65 compliant front panel
  • Two 10W internal speakers
  • Multi-language OSD
  • VESA mount option
  • High Brightness Display and Optical Bonding (Optional)
See Datasheet

Certifications:

Intel Partner

This model is built-to-order only with a minimum order quantity

* Estimated Total Only; Sales team to review component configuration and price
Starting At: $0.00

*All specifications are subject to change without notice. Please contact us for exact offers. Products may not be available in all markets.

Specification

Display
IP Rating IP65
LCD Size 21.5" (16:9)
Max. Resolution 1920 x 1080 (FHD)
Brightness (cd/m²) 500 / 1000 (optional)
Contrast Ratio 1000:1
LCD Color 16.7M
Pixel Pitch (mm) 0.248(H) x 0.248(V)
Viewing Angle 178/178
Backlight MTBF 30000 hrs (LED Backlight)
Touch Type Resistive 5-Wire
Projective Capacitive

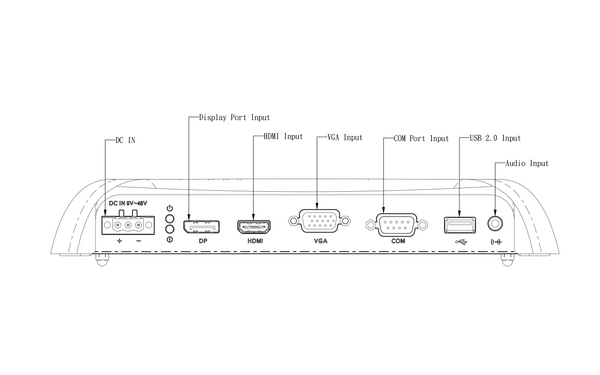

I/O
Audio 1x Audio Input
COM 1x COM (For Resistive Touch)
USB 1x USB 2.0 (For Resistive Touch or P-CAP Touch)
DP 1x DP
DVI 1x DVI-D
HDMI 1x HDMI
VGA 1x VGA
Optical Bonding Optional, contact us for more information
OSD LCD On/Off, Auto, Menu
Up And Down
Multi-Language
Speaker AMP 10W + 10W
Power
Power Adapter Optional AC/DC 12V/5A, 60W
Power Management Power Ignition Management
Power Mode AT, ATX
Power Supply Voltage 9~48 VDC
Power Connector 3-Pin Terminal Blcok
Power Protection OVP (Over Voltage Protection)
OCP (Over Current Protection)
Reverse Protection
Environment
Operating Temperature -10 °C ~ 50 °C (14 °F ~ 140 °F )
Storage Temperature -20 °C to 60 °C (-4 °F to 158 °F)
Relative Humidity 10% ~ 80% (non-condensing)
IP Level IP 65 Compliant Front Panel
Certification UL 62368 Ed. 3, CE, FCC Class A
Vibration 1.5 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock 20G, half sine, 11ms
Physical
Dimension 528.5 x 324 x 71 mm (20.8" x 12.8" x 2.8")
Weights VIO-W221R-MX100: 8.09 kg (17.8 lb)
VIO-W221C-MX100: 7.77 kg (17.1 lb)
Mounting Options VESA Mounting Holes 75 x 75mm, 100 x 100mm

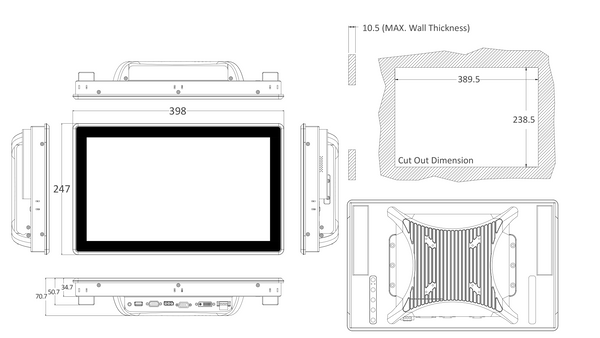

Mechanical Layout

Product Dimension

Unit:mm
