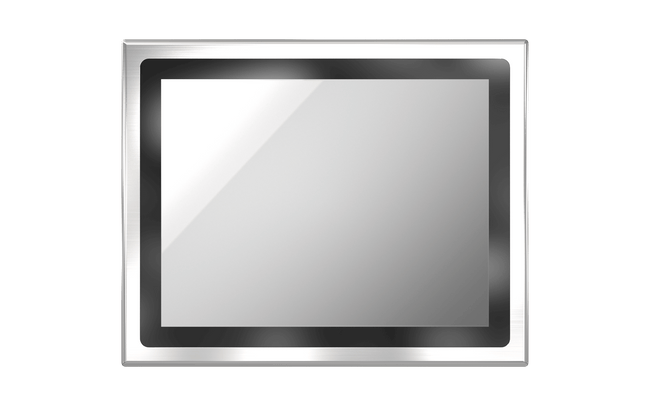

SIO-215-J1900 15" Stainless Steel Panel PC with Intel® Celeron® J1900
SIO-W215-J1900 15.6" Stainless Steel Panel PC with Intel® Celeron® J1900
SIO-W221-J1900 21.5" Stainless Steel Panel PC with Intel® Celeron® J1900
SIO-W224-J1900 23.8" Stainless Steel Panel PC with Intel® Celeron® J1900
SIO-W221-i5-8365UE 21.5" Stainless Steel Panel PC with Intel® Core™ i5-8365UE Processor
SIO-W224-i5-8365UE 23.8" Stainless Steel Panel PC with Intel® Core™ i5-8365UE Processor

Coming Soon

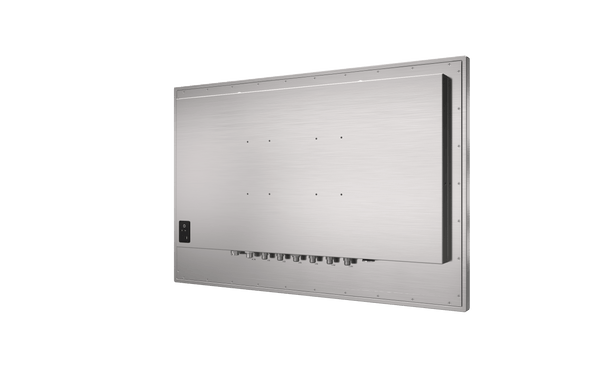

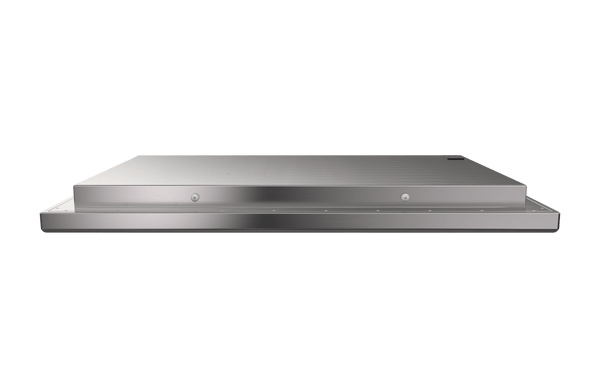

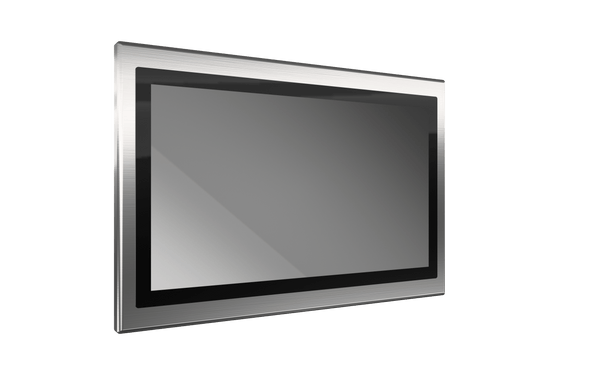

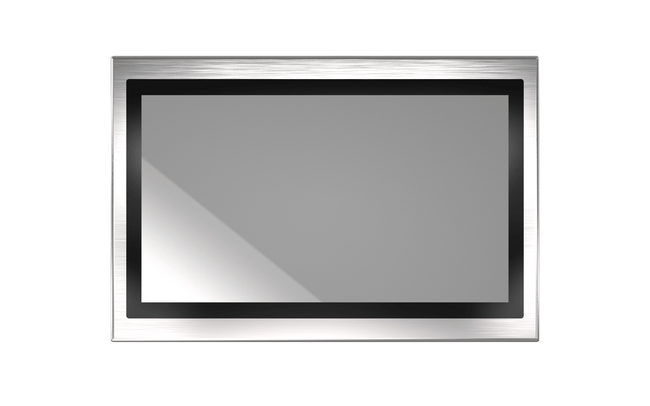

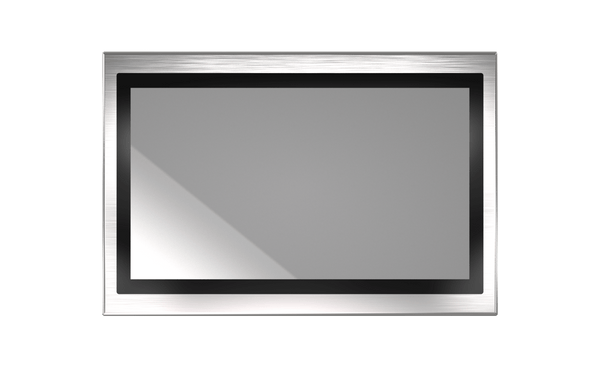

SIO-W224-i5-8365UE 23.8" Stainless Steel Panel PC with Intel® Core™ i5-8365UE Processor

SKU Alias: SIO-W224-8365UE

  • 23.8” Full HD 16:9 LCD with resistive 5-wire / projected capacitive touch
  • Intel® Core™ i5-8365UE Processor, 4.10 GHz
  • 1x DDR4 2400MHz SO-DIMM memory slot, 1x mSATA slot for internal storage
  • 1x M12 for 2x USB 2.0, 1x M12 for LAN, 1x M12 for COM
  • 1x Full-size Mini PCIe for expansion
  • Support 110V to 240V AC power input by M12 Power Connector
  • -10°C to 50°C operating temperature
  • Full system IP66/IP69K with Stainless Steel SUS316 construction
  • Touch Function ON/OFF Switch

Certifications:

Intel Partner
Regular price

Specification

Display
IP RatingIP66/IP69K
LCD Size 23.8" (16:9)
Max. Resolution1920 x 1080 (FHD)
Brightness (cd/m²)300
Contrast Ratio1000:1
LCD Color16.7M
Pixel Pitch (mm)0.248 (H) x 0.248 (V)
Viewing Angle 178/178
Backlight MTBF50000 hrs (LED Backlight)
Touch
Touch TypeResistive 5-wire
Projected Capacitive
System
ProcessorIntel® Core™ i5-8365UE Processor 6M Cache, up to 4.10 GHz
System ChipsetSoC Integrated
LAN ChipsetGbE1: Intel® I210-IT (Support Wake-on-LAN and PXE)
Audio CodecRealtek ALC886
System Memory1x 260-Pin DDR4 2400MHz SO-DIMM slot, Max 32GB
BIOSAMI uEFI 8Mbit SPI BIOS
WatchdogSoftware Programmable Supports 1~255 sec. System Reset
Storage
mSATA1x mSATA
SIM Socket1x Internal SIM socket
Expansion
Mini PCIe1x Full-size Mini PCIe

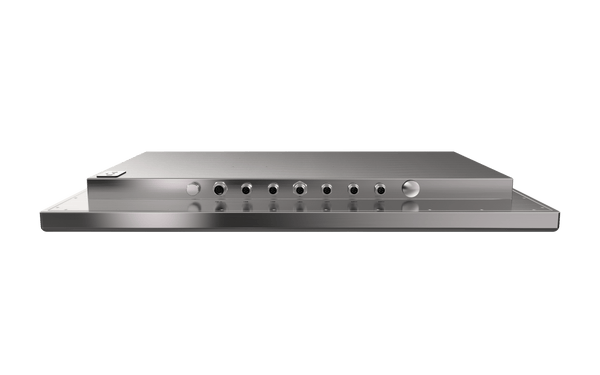

I/O
COM1x RS-232/422/485 by M12 A-Code 8-pin
LAN1x LAN by M12 X-Code 8-pin
USB2x USB 2.0 by M12 A-code 8-pin
Others1x Additional RS-232/422/485 by M12 A-Code 8-pin

2x Additional USB 2.0 by M12 A-Code 8-pin

1x Additional LAN by M12 X-Code 8-pin

2x WiFi Antenna

Power On/Off, Reset
Operating System
WindowsWindows 10, Windows 7, WES7
LinuxLinux kernel 3.X
Power
Power AdapterOptional AC/DC 12V/5A, 60W

Optional Waterproof Power Input Cable
Power ModeATX
Power Supply Voltage110 ~ 240V AC Input

Optional 12V DC Input
Power ConnectorM12 A-code 4-pin
Environment
Operating Temperature-20°C to 50°C
Storage Temperature-20°C to 70°C
Relative Humidity10% ~ 80% (non-condensing)
IP LevelFull System IP66/IP69K
CertificationCE, FCC Class A
VibrationWith SSD: 2.4 Grms, 5 - 500 Hz, 0.5 hr/axis

With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
ShockWith SSD: 20G, half sine, 11ms
Physical
ConstructionStainless Steel SUS316
Mounting OptionsVESA Mounting Holes 100 x 100mm

Optional Yoke Mount, Panel Mount

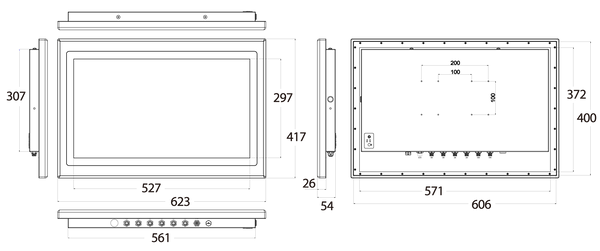

Mechanical Layout

Resources

Data Sheet DS_SIO-W224-8365UE.pdf
Install Guide LTE Modem Installation Guide.pdf
User's Manual UM_SIO-200-8365UE.pdf
