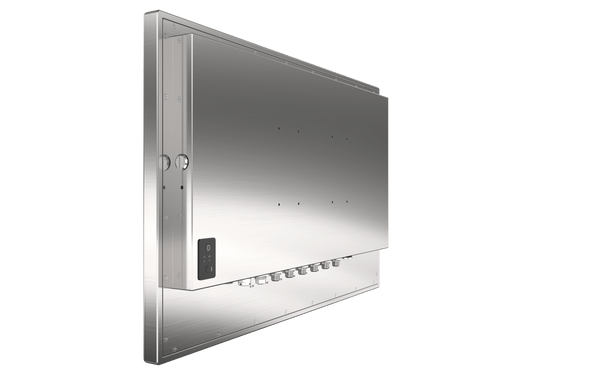

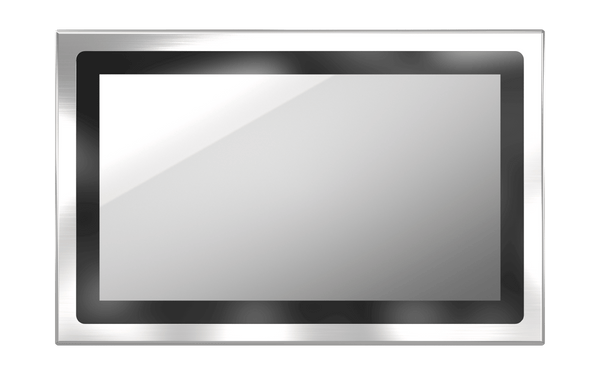

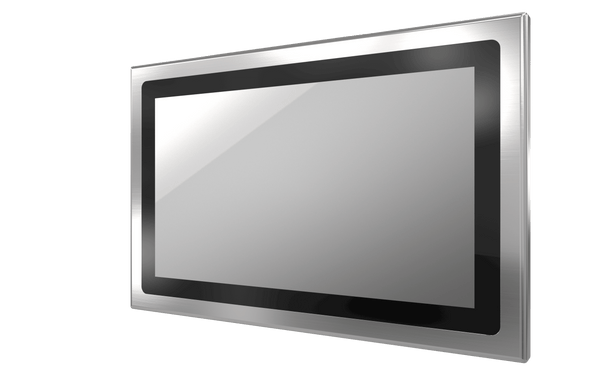

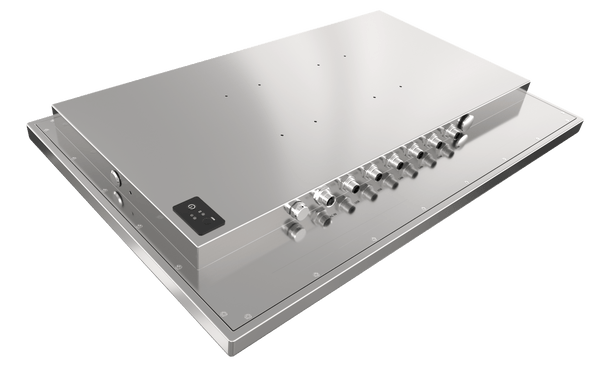

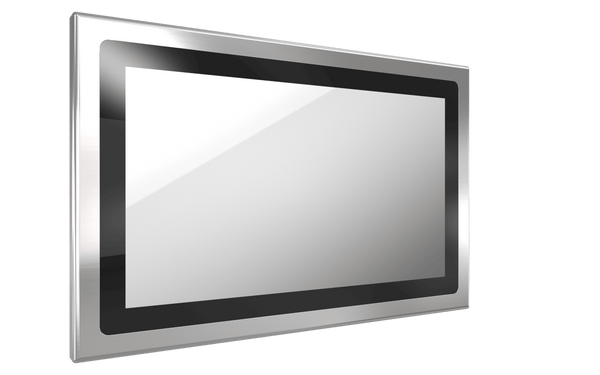

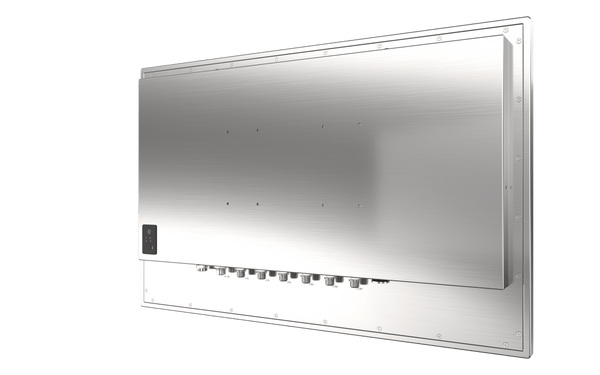

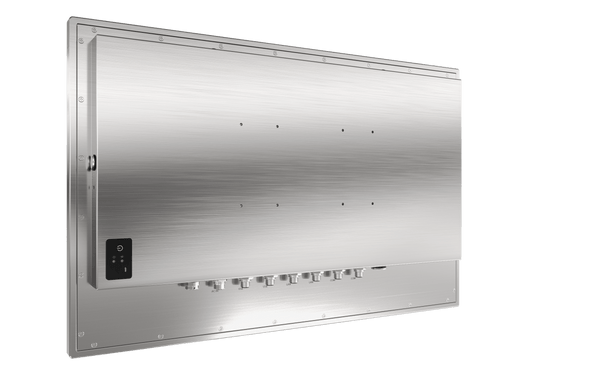

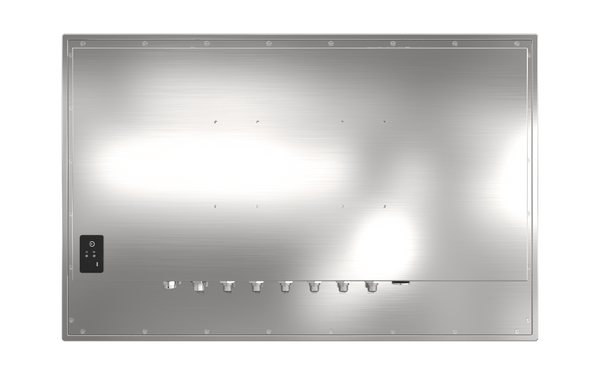

SIO-W221-I5-8365UE 21.5" Stainless Steel Panel PC with Intel® Core™ i5-8365UE Processor, M12 US PWR Cord

SKU Alias: SIO-W221-8365UE

  • 21.5" Full HD 16:9 LCD with resistive 5-wire / projected capacitive touch
  • Intel® Core™ i5-8365UE Processor, 4.10 GHz
  • 1x DDR4 2400MHz SO-DIMM memory slot, 1x mSATA slot for internal storage
  • M12 2x LAN, 4x USB, 2x COM
  • 1x Full-size Mini PCIe for expansion
  • Support 110V to 240V AC power input by M12 Power Connector
  • Fanless Operation from -10°C to 50°C
  • Full system IP66/IP69K with Stainless Steel SUS316 construction
  • Touch Function ON/OFF Switch
  • Scratch-resistant and Wear-resistant 7H Tempered Glass
  • Optical Bonding for ultimate clarity
  • Pressure Valve SUS316 VENT
See Datasheet

Certifications:

Intel Partner
AWS Greengrass IoT


Standardized Display Sizes & Compute for Industry 4.0

The SIO Series provides a diverse selection of industry standard sizes with compute options for all hygienic environments.

SIO-215-J1900 SIO-W215-J1900 SIO-W221-I5-8365UE SIO-W224-I5-8365UE
Compute
Processor Intel® Celeron® Processor J1900 Intel® Celeron® Processor J1900 Intel® Core™ i5-8365UE Processor Intel® Core™ i5-8365UE Processor
Memory DDR3L 1600MHz SODIMM, 8GB Max DDR3L 1600MHz SODIMM, 8GB Max DDR4 2400MHz SODIMM, 32GB Max DDR4 2400MHz SODIMM, 32GB Max
Display
LCD Size 15" (4:3) 15.6" (16:9) 21.5" (16:9) 23.8" (16:9)
Touchscreen 2-point PCAP
Optical Bonding Standard on all SIO models
Resolution XGA 1024 x 768 FHD 1920 x 1080 FHD 1920 x 1080 FHD 1920 x 1080
Brightness 300 nits 450 nits 350 nits 450 nits
Contrast Ratio 2500:1 800:1 1000:1 1000:1
LCD Color 16.7M 16.2M 16.7M 16.7M
Viewing Angle 85/85/85/85 85/85/85/85 89/89/89/89 89/89/89/89
Backlight MTBF 60,000 hours 60,000 hours 60,000 hours 30,000 hours
Certification CE, FCC

Rugged Stainless Steel Design - Reinforced for Aggressive Washdowns

Type 316 Stainless Steel & IP66/69K rated enclosure provides rigid, corrosion resistance for tough washdown cleanrooms.

Ruggedized Stainless Steel Pressure Valve

Offers protection and balance from damage and failures in sudden internal pressure changes.



Resilient, Responsive Touch Technologies

2-point PCAP touch, 7H hardness glass, and an optional high brightness display provide exceptional visibility and precise interaction. Touchscreen enable/disable control button allows the device to remain powered throughout intense high-pressure washdowns.

Wireless IoT Connectivity & AC Power

Bluetooth or Wi-Fi allow for seamless connectivity to systems and edge/cloud resources. Direct AC power connection simplifies integration with in-line factory systems.

Optical Bonding Enhancement

Prevent condensation and increase longevity and touch accuracy by filling the vulnerable air gap between the touch panel and LCD.

Without Optical Bonding

With Optical Bonding

Flexible Mounting Options

The SIO Washdown Touchscreen Computer integrates smoothly into workspace systems through several mounting options. The SIO may be situated on yoke or VESA mounts, or within recessed panel spaces, affording countless deployment options for industrial applications.

* Barebone Pricing Only; Sales team to review component configuration and price
*Starting At: $0.00

Specification

Display
IP Rating IP66/IP69K
LCD Size 21.5" (16:9)
Max. Resolution 1920 x 1080 (FHD)
Brightness (cd/m²) 350
Contrast Ratio 1000:1
LCD Color 16.7M
Surface hardness >3H
Response time 12ms
Pixel Pitch (mm) 0.248 (H) x 0.248 (V)
Viewing Angle 89 /89 /89 /89 (Typ.) (CR>=10)
Backlight MTBF 60000 hrs (LED Backlight)
Operating Temperature 0°C to 60°C
Storage Temp. -20°C to 60°C
Touch
Surface hardness Resistive 5-wire >3H
Projected Capacitive 7H
Touch points Resistive Single point
Projected Capacitive 2 point
Impact absorption Projected Capacitive IK07
Touch Type Resistive 5-wire
Projected Capacitive
System
Processor Intel® Core™ i5-8365UE Processor 6M Cache, up to 4.10 GHz
System Chipset SoC Integrated
LAN Chipset GbE1: Intel® I210-IT (Support Wake-on-LAN and PXE)

GbE2: Intel® I219-LM (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC886
System Memory 1x 260-Pin DDR4 2400MHz SO-DIMM slot, Max 32GB
TPM TPM 2.0 Through Infineon® SLB9665TT2.0 or Equivalent
Storage
mSATA 1x mSATA
SIM Socket 1x Internal SIM socket
Expansion
Mini PCIe 1x Full-size Mini PCIe

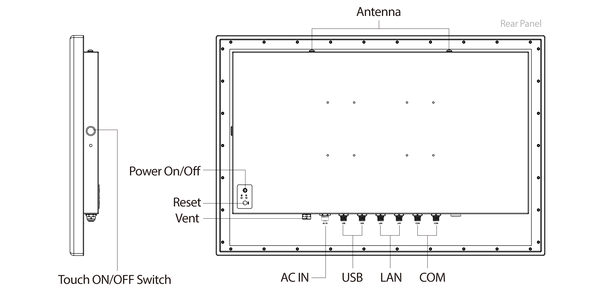

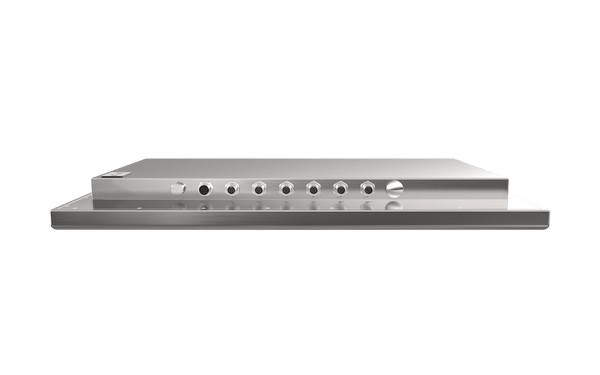

I/O
COM 2x RS-232/422/485 by M12 A-Code 8-pin
LAN 2x LAN by M12 X-Code 8-pin
USB 4x USB 2.0 by M12 A-code 8-pin
Others 2x WiFi Antenna (Optional)

Power On/Off, Reset

IP68/IP69K SUS 316 Vent
Operating System
Windows Windows 10, Windows 7, WES7
Linux Linux kernel 5.X
Power
Power Mode ATX
Power Supply Voltage 110 ~ 240V AC Input
Power Connector M12 S-code 4-pin
Environment
Operating Temperature -10°C to 50°C
Storage Temperature -20°C to 70°C
Relative Humidity 10% ~ 80% (non-condensing)
IP Level Full System IP66/IP69K
Certification CE, FCC Class A
Vibration With SSD: 2.4 Grms, 5 - 500 Hz, 0.5 hr/axis

With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock With SSD: 20G, half sine, 11ms
Physical
Dimension 588.5 (W) x 380 (H) x 52.8 (D) mm
Weights 8.6 kg
Construction Stainless Steel SUS316 with Optical bonding
Mounting Options VESA Mounting Holes 100 x 100mm or 200 x 100mm

Optional Yoke Mount, Panel Mount

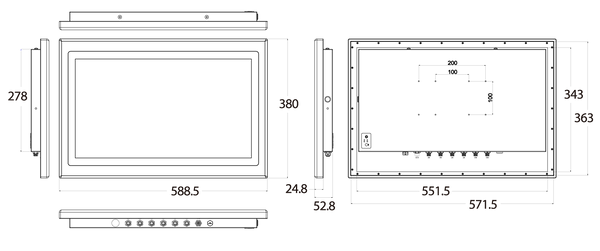

Mechanical Layout

Product Dimension

Unit:mm
