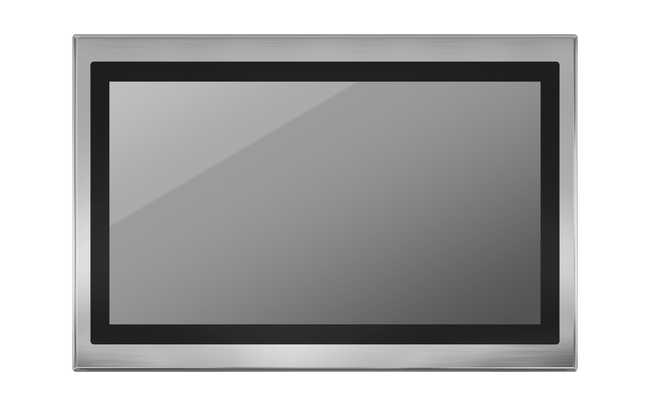

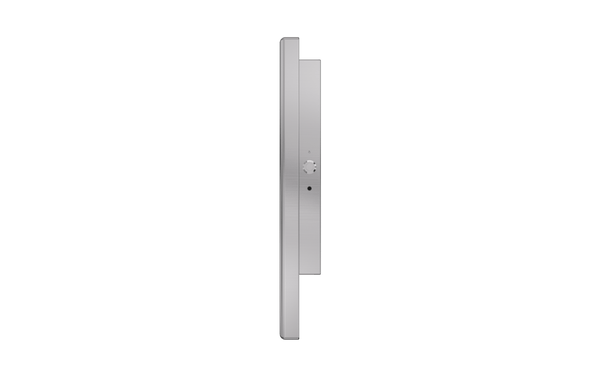

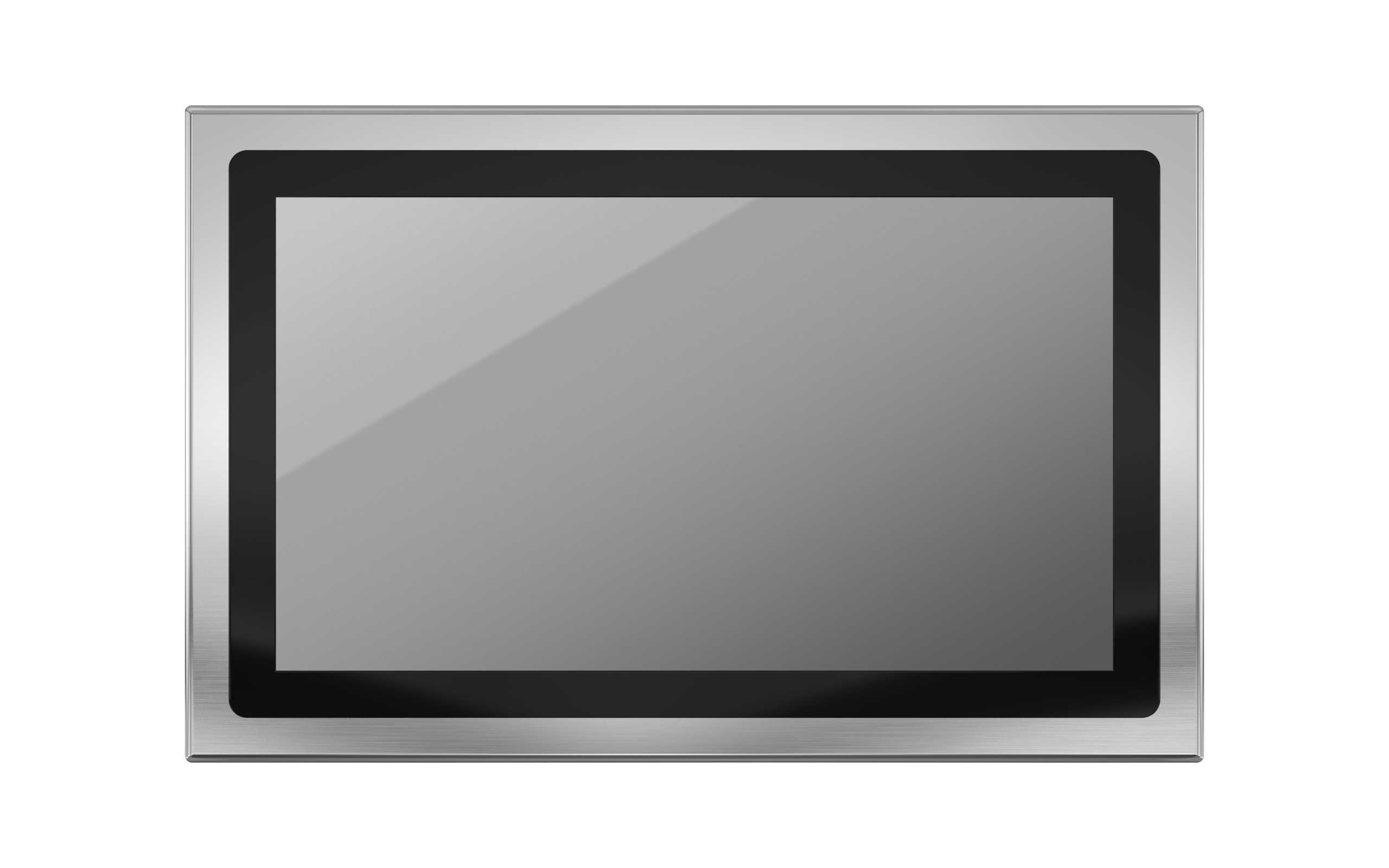

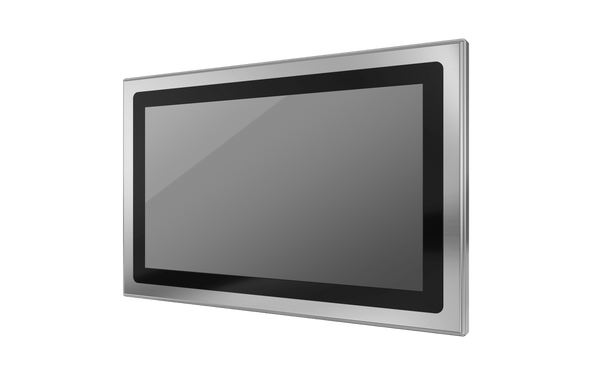

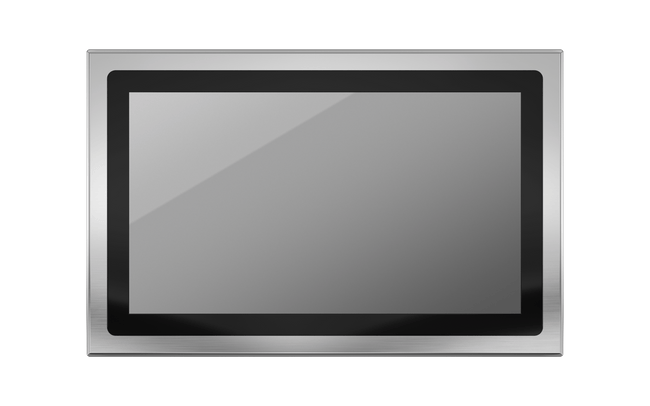

Industrial Touch Panel PCs and Monitors
IP Rated Touchscreen Computers For HMI Integration
IP Rated Touchscreen Computers For HMI Integration
| Display | |
|---|---|
| IP Rating | IP66/IP69K |
| LCD Size | 21.5" (16:9) |
| Max. Resolution | 1920 x 1080 (FHD) |
| Brightness (cd/m²) | 400 nits |
| Contrast Ratio | 1000:1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.248 (H) x 0.248 (V) |
| Viewing Angle | 89 /89 /89 /89 (Typ.) (CR>=10) |
| Backlight Lifetime | 50,000 hrs (LED Backlight) |
| Touch | |
| Projected Capacitive Touch | Surface Hardness: 7H / IK07 Multi-touch: Default 2 point (Support Glove Mode) Anti-noise: CS 10V rms |
| Resistive Touch (Option) | Surface Hardness: 3H Touch Point: single Touch IP Rating: IP65 |
| System | |
| Processor | Standard - Intel® Processor N97 6M Cache, up to 3.60 GHz 4 core 12W Project Based - Intel® Atom® x7835RE Processor 6M Cache, up to 3.60 GHz, 8 core 12W |
| System Chipset | SoC Integrated |
| LAN Chipset | GbE1: Intel i226V 2.5GbE LAN PXE Support GbE2: Intel i226V 2.5GbE LAN PXE Support |
| Audio Codec | Realtek ALC897 |
| System Memory | 1x DDR5 4800/5600 MT/s SO-DIMM. Max. 32GB |
| BIOS | AMI uEFI 256MB SPI flash |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| Storage | |
| SATA | 1x 2.5" SATA SSD (optional) |
| M.2 | 1x M.2 B key 2242/3042 NVMe/SATA SSD (optional 4G/5G) |
| Expansion | |
| M.2 | 1x M.2 E Key for Wi-Fi 6E (Optional) |

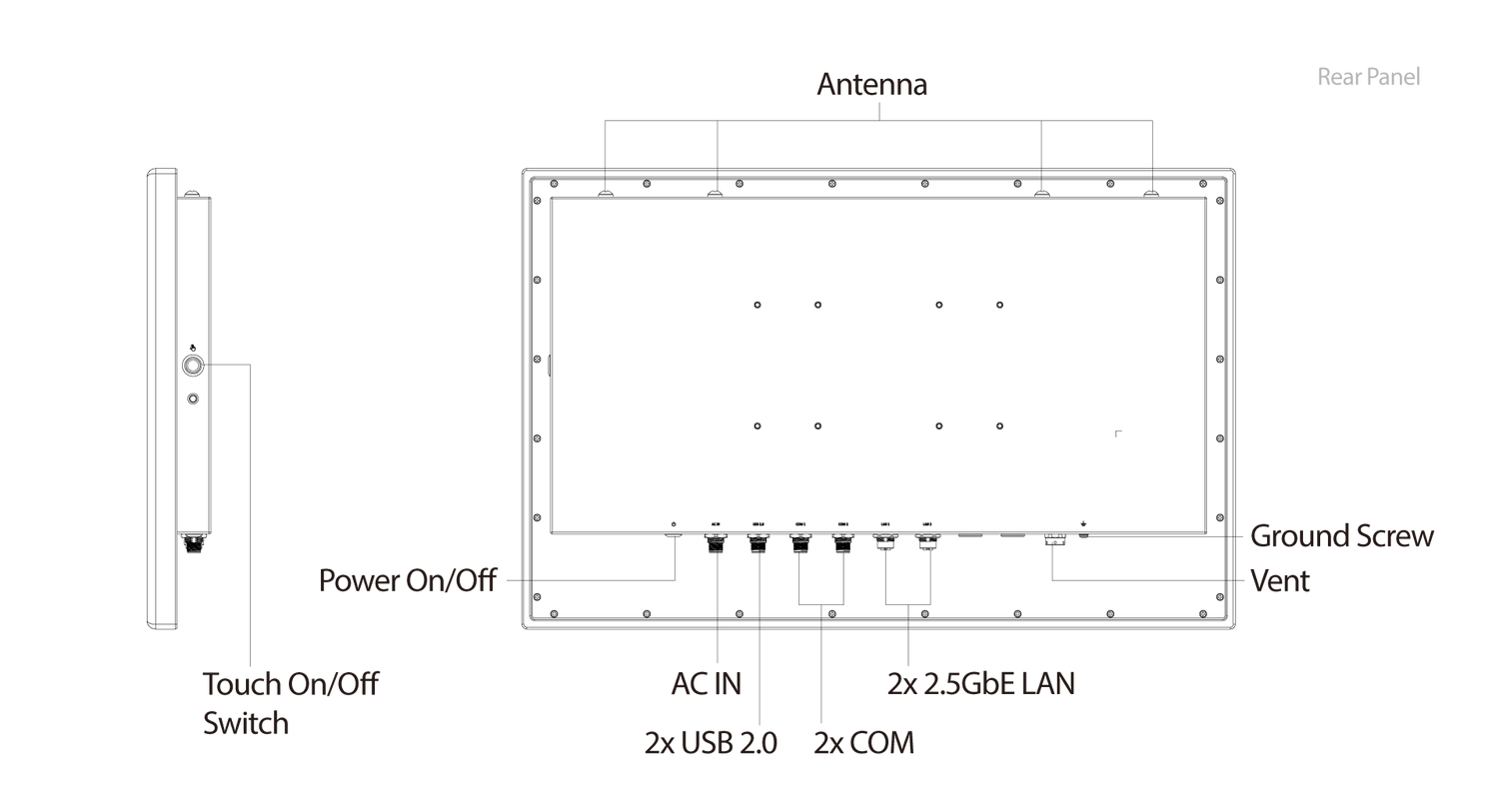

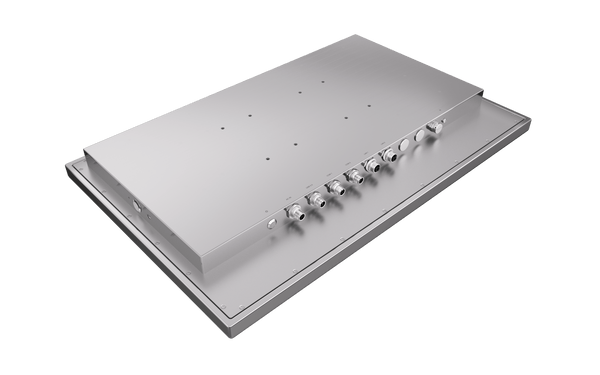

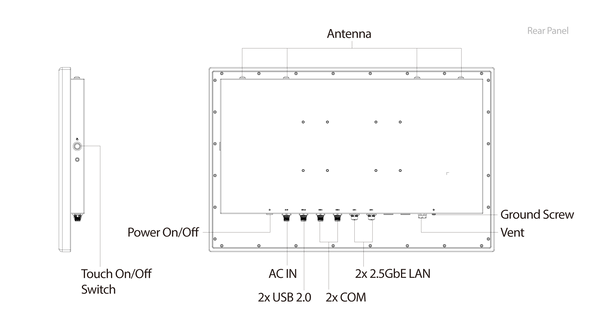

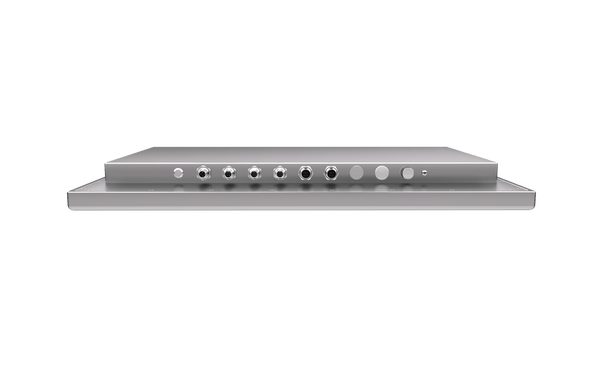

| I/O | |
| COM | COM1: 1x RS232/422/485 by M12 A-Code 8-pin (Default RS232) COM2: 1x RS232 by M12 A-Code 8-pin |
| LAN | 2x LAN by M12 X-Code 8-pin |
| USB | 1x M12 A-code by 2x USB 2.0 (8-pin) |
| Others | 4x Antennas (Optional) Power On/Off SUS 316 Vent |
| Operating System | |
| Windows | Windows 10/11 |
| Linux | Ubuntu 22.04 / 24.04 LTS |
| Power | |
| Power Mode | AT / ATX (default) |
| Power Supply Voltage | 110 ~ 240V AC Input |
| Power Connector | M12 S-code 4-pin |
| Environment | |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 10% ~ 80% (non-condensing) |
| IP Level | Full System IP66/IP69K |
| Certification | CE,FCC Class A |
| Vibration | With SSD: 3 Grms (5 - 500 Hz, 0.5 hr/axis) |
| Shock | With SSD: 20G half-sin 11ms |
| Physical | |
| Dimensions | 588.5 (W) x 380 (H) x 52.8 (D) mm |
| Weights | 10 kg |

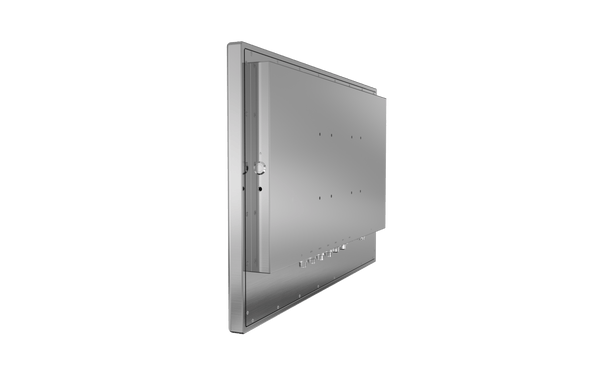

| Construction | Stainless Steel SUS316 with Optical bonding |

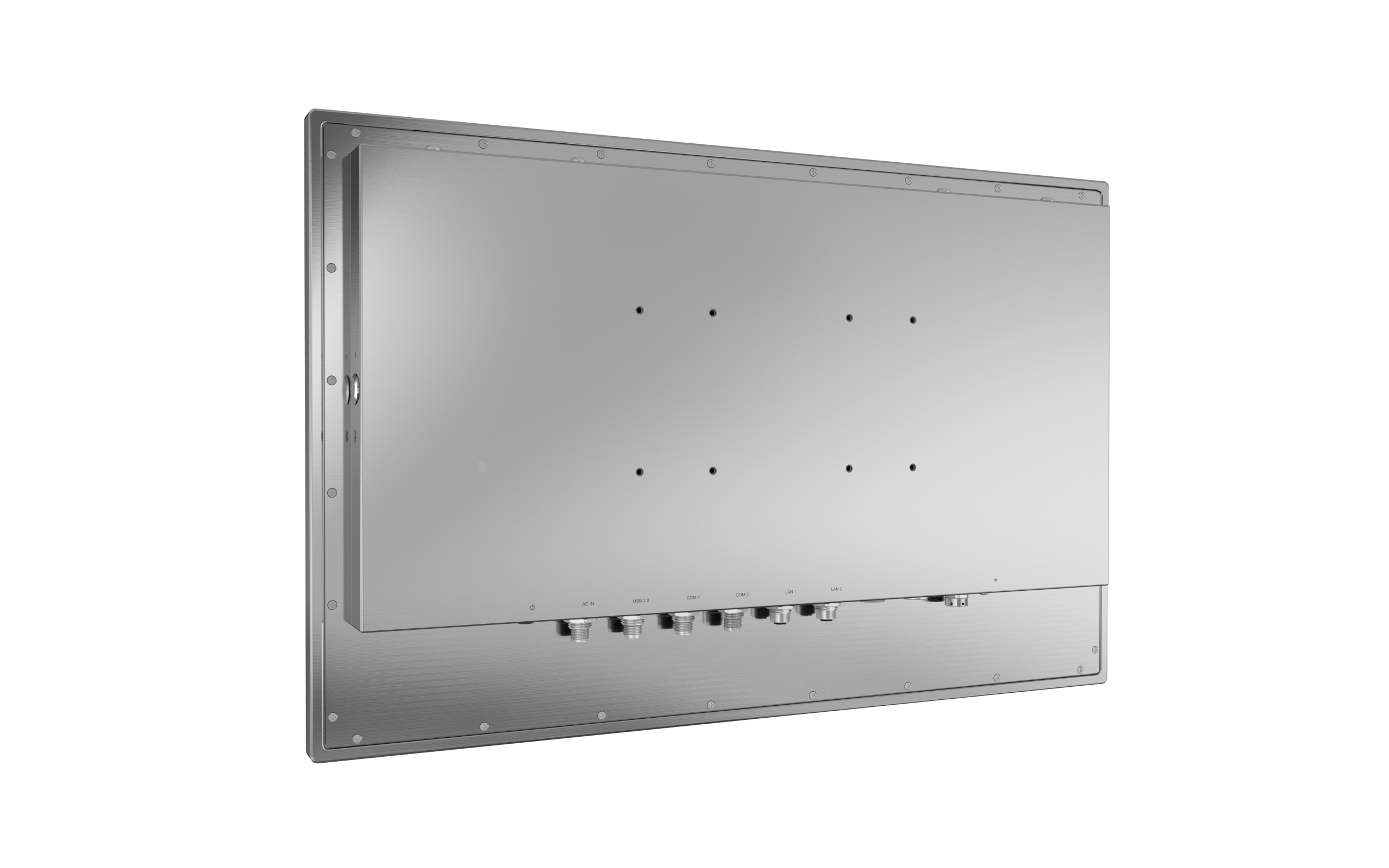

| Mounting Options | VESA Mounting Holes 100 x 100 mm or 200 x 100 mm Optional Yoke Mount |
