- LGA 1151 socket for 8th/9th Gen. Intel® CFL-R S Processor Pentium® / Celeron® Desktop Processor
- Intel® Q370 chipset
- NVIDIA GeForce® RTX 2060 Super Graphics engine based on NVIDIA Turing™ GPU architecture
- 2x 260-pin DDR4 SODIMM. Max. up to 64GB
- 6 Display interface supported by 1x DVI-I, 1x DVI-D, 3x DisplayPort, 1x HDMI
- 2x Intel® GbE supporting Wake-on-LAN and PXE
- 4x 2.5” SATA HDD Bay and 2x mSATA with RAID 0, 1, 5, 10 support
- 1x M.2 (M Key, NVMe PCIe x4, 2280); 1x M.2 (E Key, PCIe x2, USB 2.0, 2230),2x SIM socket
- 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature (-25°C to 60°C)
- Power ignition management
- Download Product Brief
Deploying powerful inference computers at the edge to process data and make decisions in real-time enables organizations to reflexively respond to situational data, glean keener insights into their operations, achieve low latency data processing and decision-making, and reduce their network demands.
Premio has combined next-generation processing and high-speed storage technologies with the latest IoT connectivity features to create a solution designed from the ground up to deliver holistic inference analysis at the rugged edge.

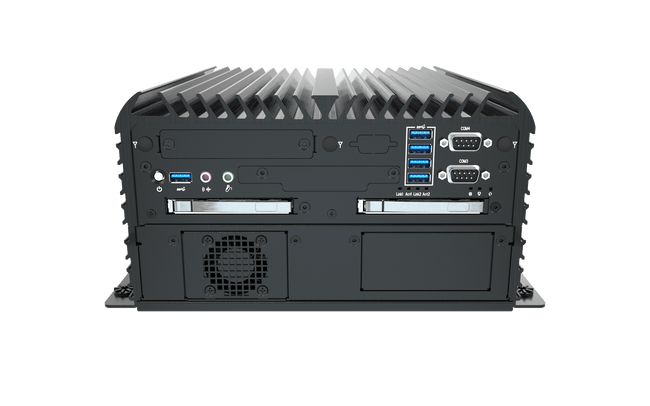

The RCO-6120-2060S AI Edge Inference Computer incorporates advanced performance Intel 9th Generation processors, rich GPU support, and scalable, hot-swappable NVMe capacity into versatile hardware that is designed to withstand deployment in challenging industrial environments. Introducing EDGEBoost Nodes for GPU acceleration and high-capacity NVMe storage, this AI edge inference computer pushes the performance limits for compute, storage, and connectivity at the rugged edge. Popular IoT workloads that can utilize this edge computer include: security and surveillance, kiosks, railway, vehicle telematics, ADAS, mining and industrial automation.
Multi-Core Computing For the Evolving Edge
The RCO-6120-2060S AI Edge Inference Computer leverages rich performance enhancements provided by 9th Generation Intel CFL-R S Processors and Q370 Chipset support. The LGA1151 socket design is combined with Intel’s Q370 chipset to deliver augmented peripheral performance for low-latency edge responsiveness. Gigabit wireless speeds, PCIe 3.0 lanes, SATA ports, and high-speed USB 3.2 Gen 2 grants this AI Edge Inference Computers exceptional I/O integration options for transmitting data to and from sensory devices sitting at the edge.
Flexible I/O and Connectivity
The RCO-6120-2060S AI Edge Inference Computer supports Premio daughterboard modules that integrate easily into our embedded and edge computers through standard PCIe signals. These flexible add-in modules provide additional ethernet I/O ports and scalable connectivity (Wired 10GbE and Cellular 5G) for IoT deployments that require a variety of connections in multiple RJ45 and M12 locking connectors. Both RJ45 and M12 locking connector modules can also provide PoE+ (IEEE 802.3at) for data and power through single cable.
- 4x RJ45 or M12 Locking Connectors in LAN/PoE
- 2x 10 GbE Ports
- 5G Module
Performance Blocks: 2 Piece Modular Design
A key differentiator of Premio’s RCO-6120-2060S AI Edge Inference Computer is its modular add-on nodes for powerful inferencing capabilities and high-performance NVMe storage. System integrators can select specific nodes that provide high-speed, high capacity NVMe storage and GPU performance acceleration. This innovative mechanical design provides a rugged and fanless industrial computer that pairs with performance acceleration nodes, or “EdgeBoost Nodes” that can manage a variety of complex workloads at the edge.
- Industrial Fanless PC on Top
- Flexible and dedicated “EdgeBoost Nodes” on Bottom

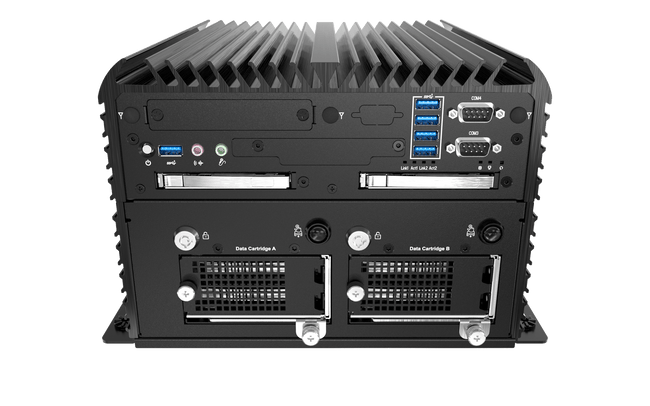

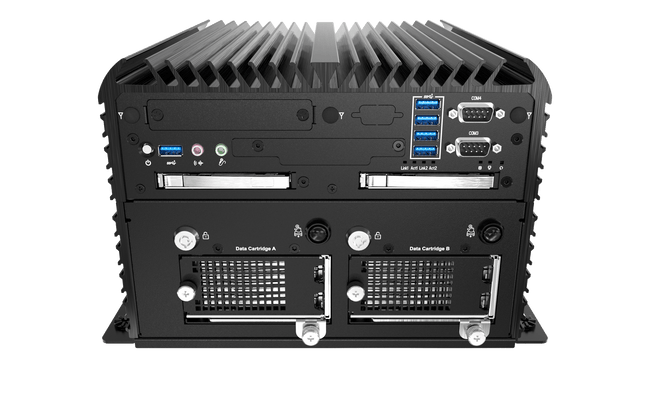

Cannister Bricks. Hot-Swappable & Removable
The RCO-6120-2060S AI Edge Inference Computer enables NVMe storage in a unique cannister brick design. These hot-swappable NVMe cannister bricks streamline and assist with data offload directly from the computer into a centralized location. The ability to quickly swap cannisters bricks provides easy data management and enterprise redundancy for applications that use data for machine learning and inference analysis.
- 1x – Hot-Swappable, Lockable, and Removable Cannister Brick
- Includes x4 Individual 2.5” Tooless NVMe SSD Drive Trays
- RAID Options available

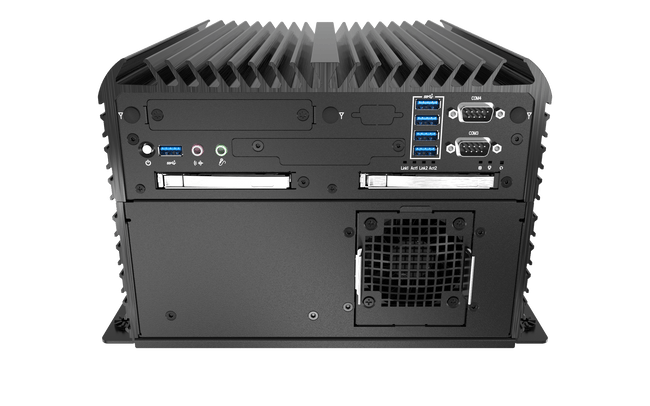

Performance Acceleration with GPU
The RCO-6120-2060S AI Edge Inference Computer supports the power of NVIDIA GeForce RTX 2060 Super that is dedicated to machine learning and inference analysis for proven GPU acceleration at the edge.
Reliable Cooling Where It Counts
When the RCO-6120-2060S AI Edge Inference Computer Series is equipped with an EdgeBoost node, the enclosure housing the NVMe SSD storage drives and/or GPU comes with a dedicated hot-swappable blower fan, delivering high RPM active cooling for where it matters most. Unlike other fan designs, this fan can be easily accessed and replaced in seconds, eliminating detrimental downtime in compute heavy applications.
Connecting From The Rugged Edge
The RCO-6120-2060S AI Edge Inference Computer support five antennae that wirelessly connects to Wi-Fi, cellular and GPS systems. Onboard Wi-Fi 6 and Bluetooth 5 technologies reliably connect to IoT sensors and network systems. Dual external access SIM sockets provide continuous 4G/LTE cellular connectivity at remote of mobile edge deployments. An optional modular add-in card also grants the industrial edge computer 5G connectivity for additional ultra-low latency connections.
Vast I/O Expandability

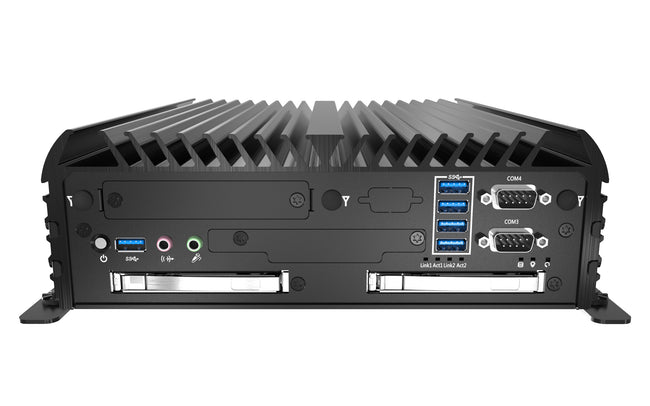

The RCO 6100 Industrial Computer Series support rich expandability to boost wireless connectivity, streamline integration and unlock automation capabilities in harsh deployments. Leading edge and legacy technologies are easily incorporated into a powerful, intelligent IoT solution. Flexible add-in modules provide additional ethernet I/O ports in 1GbE (RJ45 & M12), 10GbE (RJ45), USB 3.0, and 5G ready M.2 for scalable connectivity in IoT deployments at the edge.
|Processor||Processor Support 8th/9th Gen Intel® Core™ CFL-R S Processor (LGA 1151, 65W/35W TDP)
- Intel® Core™ i7-9700E, 8 Cores, 12MB cache, up to 4.4 GHz
- Intel® Core™ i5-9500E, 6 Cores, 9MB Cache, up to 4.2 GHz
- Intel® Core™ i3-9100E, 4 Core, 6MB Cache, 3.7 GHz
- Intel® Core™ i7-9700TE, 8 Cores, 12MB cache, up to 3.8 GHz
- Intel® Core™ i5-9500TE, 6 Cores, 9MB Cache, up to 3.6 GHz
- Intel® Core™ i3-9100TE, 4 Core, 6MB Cache, 3.2 GHz
- Intel® Core™ i7-8700T, 6 Cores, 12MB cache, up to 4.0 GHz
- Intel® Core™ i5-8500T, 6 Cores, 9MB Cache, up to 3.5 GHz
- Intel® Core™ i3-8100TE, 4 Cores, 6MB Cache, 3.1 GHz
- Intel® Pentium® G5400T, 2 Cores, 4MB Cache, up to 3.1 GHz
- Intel® Celeron® G4900T, 2 Cores, 2MB Cache, up to 2.9 GHz
|System Chipset||Intel® Q370 Express Chipset|
|LAN Chipset||GbE1: Intel I219LM (Support Wake-on-LAN and PXE)
GbE2: Intel I210-AT (Support Wake-on-LAN and PXE)
|Audio Codec||Realtek ALC888S|
|System Memory||2x 260-Pin DDR4 2400/2666MHz SODIMM.
Max. up to 64GB
|Graphics||Intel® UHD Graphics 610/630 or NVIDIA GeForce ® RTX 2060 Super|
|BIOS||AMI 256Mbit SPI BIOS|
|Watchdog||Software Programmable Supports 1~255 sec.
|Display Port||3x DP|
|DVI||1x DVI-I, 1x DVI-D|
|Multiple Display||6 Display Interfaces|
|VGA||Yes (by optional split cable)|
|M.2||1x M.2 (M Key, NVMe PCIe x4, 2280)
1x M.2 (E Key, PCIe x2, 2230, USB 2.0, Support CNVi)
|mSATA||1x mSATA (shared by 1x Mini PCIe)|
|SIM Socket||2x External SIM socket|
|SSD/HDD||2x Internal 2.5" SATA HDD Bay (support H=9mm)
2x Hotswap 2.5" SATA HDD Bay (support H=7mm)
Support RAID 0, 1, 5, 10
|Mini PCIe||2x Full-size Mini PCIe (1x Shared with mSATA)|
|PCIe||1x PCIe x16|
|Audio||1x Mic-in, 1x Line-out|
|COM||4x RS-232/422/485 ; 2x RS-232/422/485 (internal)|
|DIO||8 in / 8 out (Isolated)|
|Universal I/O Bracket||3x Universal I/O Bracket (By mini PCIe interface)|
|USB|| 4x USB 3.2 Gen 2 (10Gbps)
5x USB 3.2 Gen 1 (5 Gbps)
1x USB 3.2 Gen 1 header (5 Gbps, internal)
|Others||5x WiFi Antenna Holes
1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off
1x PC/Car Mode Switch, 1x Delay Time Switch
1x Removable CMOS Battery
|Linux||Linux kernel 5.X|
|Power Adapter||Optional AC/DC 24V, 220W/280W
Optional AC/DC 24V, 220W for GPU
|Power Mode||AT, ATX|
|Power Ignition Sensing||Power Ignition Management|
|Power Supply Voltage||9~48VDC
12~48VDC for GPU
|Power Connector||3-pin Terminal Block, 3-pin or 4-pin Terminal Block for GPU
(12V requires 4-pin terminal block)
|Power Protection||Over-Voltage Protection (OVP)
Over-Current Protection (OCP)
Reverse Polarity Protection (RPP)
|Operating Temperature||-25°C to 60°C (35W/ 65W CPU)|
|Storage Temperature||-30°C ~ 85°C|
|Relative Humidity||10% to 95% (non-condensing)|
|Certification||CE, FCC Class A, E-Mark, EN 50155, EN 50121-3-2|
|Vibration||3 Grms, 5 ~ 500 Hz, 0.5 hr/axis (SSD) 1 Grms, 5 ~ 500 Hz, 0.5 hr/axis (HDD)|
|Shock||20G, half-sine, 11 ms (SSD)|
|Dimensions (W x H x D)||240 (W) x 261 (D) x 127.2 (H) mm|
|Construction||Extruded aluminum with heavy duty metal|
|Mounting Options||Wall Mounting|
