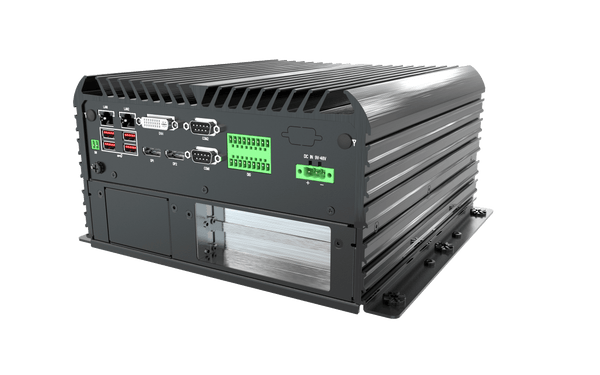

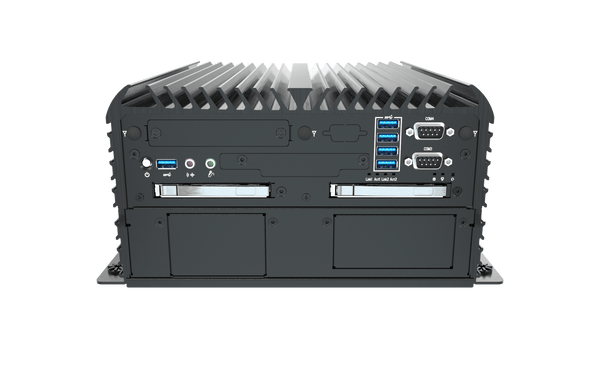

RCO-6000-CFL-2 Industrial Computer with 9th Gen Intel® Core™ CFL-R S Processor, 2x PCI/PCIe Expansion
SKU Alias: RCO-6122
- LGA 1151 socket for 9th Gen. Intel® CFL-R S Processor (35W TDP)
- Intel® Q370 chipset
- 2x DDR4 2400/2666Hz SODIMM. Max. up to 64GB
- Triple Independent Display by 1x DVI-I and 2x DisplayPort
- 2x Intel® GbE supporting Wake-on-LAN and PXE
- 2x Full-size mini PCIe for communication or expansion modules, 2x SIM socket
- 4x 2.5" SATA HDD Bay and 1x mSATA with RAID 0, 1, 5, 10 support
- 1x M.2 (M Key, NVMe PCIe x4, 2280); 1x M.2 (E Key, PCIe x2, 2230, USB 2.0, Support CNVi)
- 6x RS-232/422/485 (w/ 2x internal), 4x USB 3.2 Gen 2, 5x USB 3.2 Gen 1
- 8x DI + 8x DO with isolation
- 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature -25°C to 70°C (35W CPU)
- 2x PCIe x8 Expansion (RCO-6000-CFL-2E)
- 2x PCI Expansion (RCO-6000-CFL-2I)
- 1x PCIe x16, and 1x PCI Expansion (RCO-6000-CFL-2C)
- TPM 2.0 Supported
- Supports Hailo-8™ Module m.2 M-Key PCIe x4
Model:
RCO-6000-CFL-2Certifications:
Specification
System | |
---|---|
Processor | Support 9th Gen Intel® Core™ CFL-R S Processor (LGA 1151, 35W TDP) - Intel® Core™ i7-9700TE, 8 Cores, 12MB cache, up to 3.8 GHz - Intel® Core™ i5-9500TE, 6 Cores, 9MB Cache, up to 3.6 GHz - Intel® Core™ i3-9100TE, 4 Core, 6MB Cache, 3.2 GHz |
System Chipset | Intel® Q370 Express Chipset |
LAN Chipset | GbE1: Intel I219LM (Support Wake-on-LAN and PXE) GbE2: Intel I210-AT (Support Wake-on-LAN and PXE) |
Audio Codec | Realtek ALC888S |
System Memory | 2x 260-Pin DDR4 2400/2666MHz SODIMM. Max. up to 64GB |
Graphics | Intel® UHD Graphics 610/630 |
BIOS | AMI 256Mbit SPI BIOS |
Watchdog | Software Programmable Supports 1~255 sec. System Reset |
AI Accelerator | Hailo-8™ Module m.2 M-Key PCIe x4 (Optional) |
TPM | TPM 2.0 |
Display | |
Display Port | 2x DP |
DVI | 1x DVI-I |
Multiple Display | Triple Display |
VGA | Yes (by optional split cable) |
Storage | |
M.2 | 1x M.2 (M Key, NVMe PCIe x4, 2280) 1x M.2 (E Key, PCIe x2, 2230, USB 2.0, Support CNVi) |
mSATA | 1x mSATA (shared by 1x Mini PCIe) |
SIM Socket | 2x External SIM socket |
SSD/HDD | 2x Internal 2.5" SATA HDD Bay (support H=9mm) 2x Hotswap 2.5" SATA HDD Bay (support H=7mm) Support RAID 0, 1, 5, 10 |
Expansion | |
Mini PCIe | 2x Full-size Mini PCIe (1x Shared with mSATA) |
PCI | 2x PCI (2I-Model) 1x PCI (2C-Model) |
PCIe | 2x PCIe x8 (2E-Model) 1xPCIe x16 (2C-Model) |
Expansion Modules |
|

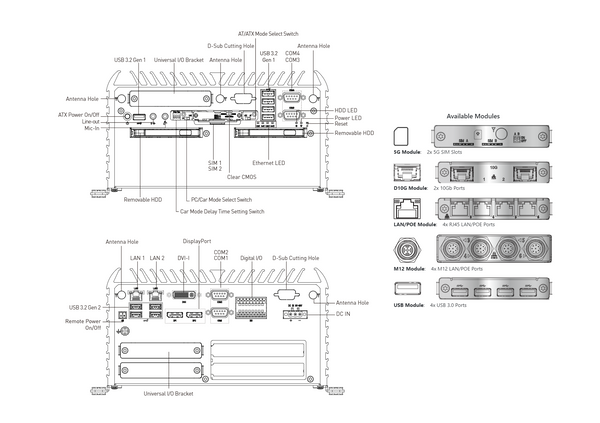

I/O | |
Audio | 1x Mic-in, 1x Line-out |
COM | 4x RS-232/422/485 ; 2x RS-232/422/485 (internal) |
DIO | 8 in / 8 out (Isolated) |
LAN | 2x RJ45 |
Universal I/O Bracket | 3x Universal I/O Bracket (By mini PCIe interface) |
USB | 4x USB 3.2 Gen 2 (10Gbps) 5x USB 3.2 Gen 1 (5 Gbps) 1x USB 3.2 Gen 1 header (5 Gbps, internal) |
Others | 5x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off 1x PC/Car Mode Switch, 1x Delay Time Switch 1x Removable CMOS Battery |
Operating System | |
Windows | Windows 10 |
Linux | Linux kernel 5.X |
Power | |
Power Adapter | Optional AC/DC 24V/9.2A, 220W Optional AC/DC 24V/5A, 120W |
Power Mode | AT, ATX |
Power Ignition Sensing | Power Ignition Management |
Power Supply Voltage | 9 ~ 48 VDC |
Power Connector | 3-pin Terminal Block |
Power Protection | Over-Voltage Protection (OVP) Over-Current Protection (OCP) Reverse Polarity Protection (RPP) |
Environment | |
Operating Temperature | -25°C to 70°C (35W CPU) |
Storage Temperature | -30°C ~ 85°C |
Relative Humidity | 10% to 95% (non-condensing) |
Certification | CE, FCC Class A, E-Mark, EMC Conformity with EN 50155, EN 50121-3-2 |
Vibration | 5 Grms, 5 ~ 500 Hz, 0.5 hr/axis (SSD) 1 Grms, 5 ~ 500 Hz, 0.5 hr/axis (HDD) |
Shock | 50G, half-sine, 11 ms (SSD) |
Physical | |
Dimension | 240 (W) x 261 (D) x 127.3 (H) mm |
Weights | 8.25 - 9.3kg |
Construction | Extruded aluminum with heavy duty metal |
Mounting Options | Wall Mounting |
