RCO-6000-RPL-4NS AI Edge Inference Computer w/ LGA 1700 for Intel 12/13th Gen CPU & R680E PCH, 4x U.2 15mm NVMe, Software RAID
- LGA 1700 socket for 12/13th Gen. Intel® ADL & RPL Processor (35W TDP)
- Intel® R680E Chipset
- 2x DDR5 4800/5600MHz SODIMM. Max. up to 64GB
- Triple Independent Display: 2x DisplayPort, 1x DVI-I
- 2x Intel® 2.5 GbE supporting Wake-on-LAN and PXE
- 1x Full-size Mini PCIe for communication or expansion modules, 2x SIM socket
- 4x 15mm Hot-swappable U.2 NVMe SSD Module with RAID 0, 1, 5, 10
- 1x 9mm 2.5" SATA SSD (Internal), 1x 7mm 2.5" SATA SSD (Hot-swap)
- 1x M.2 (E Key, PCIe x1, USB 2.0, 2230)
- 1x M.2 (B Key, 2242/3042/3052, PCIe x2, Support AI Module/NVMe Storage, PCIe x1 & USB 3.2 Gen1, Support 4G/5G)
- 6x RS-232/422/485 (4x internal), 8x USB 3.2 Gen 2, 1x USB 3.2 Gen 1 (internal)
- 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature -25°C to 60°C (35W CPU)
- TPM 2.0 Supported
Model:
RCO-6000-RPL-4NSCertifications:
Specification

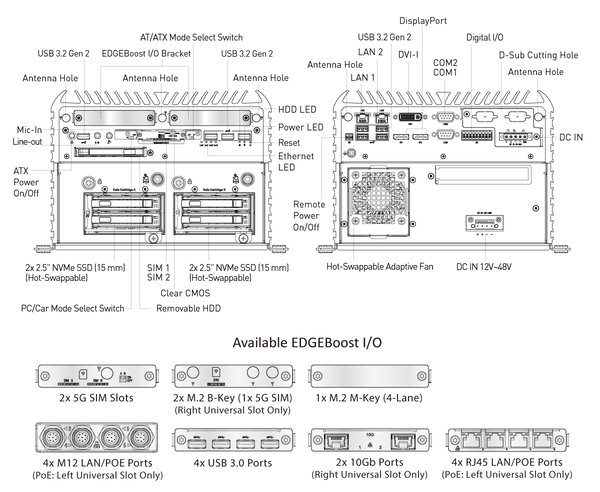

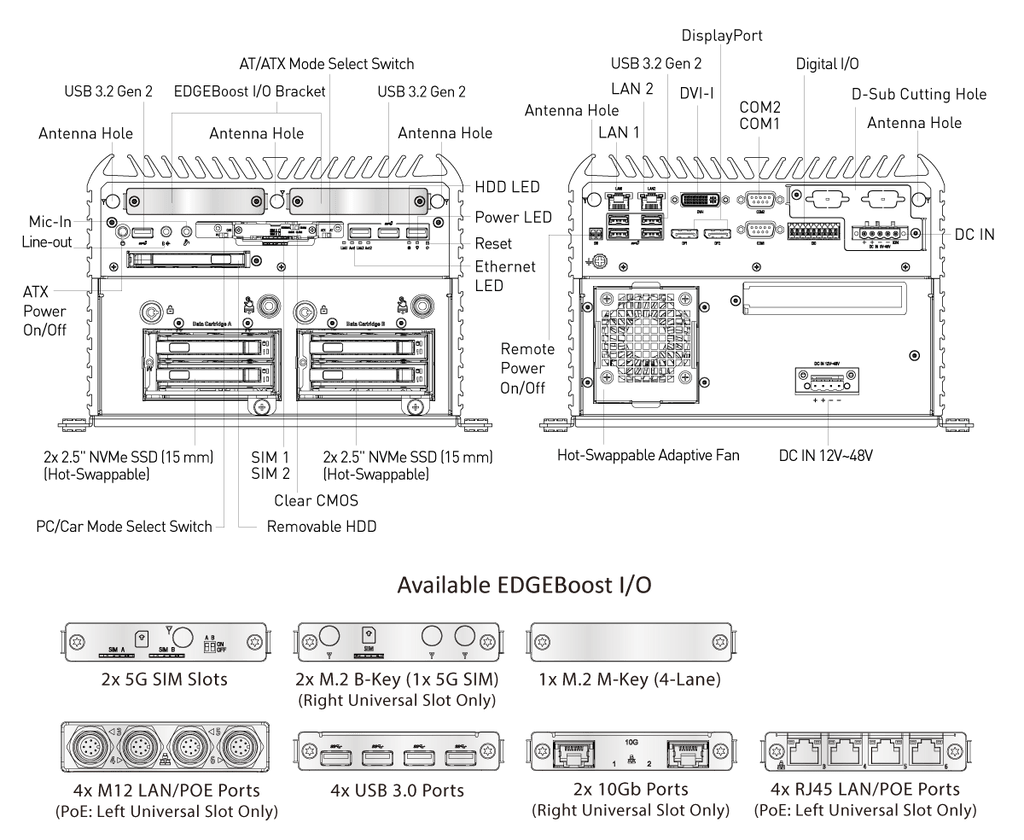

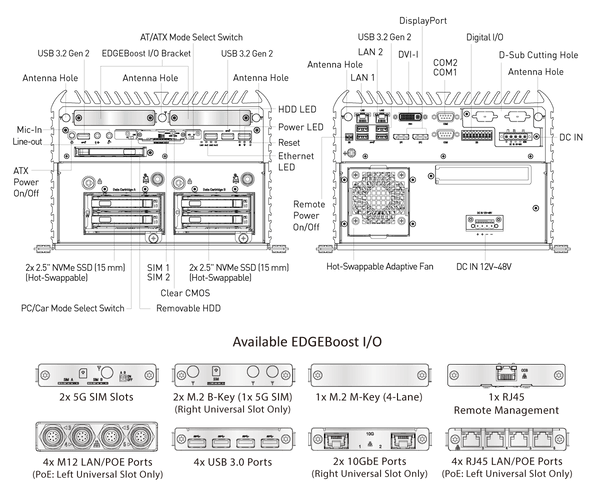

System | |
---|---|
Processor | Support 12/13th Gen Intel® ADL & RPL Processor (LGA 1700, 35W TDP) - Intel® Core™ i9-13900TE/i9-12900TE, up to 24 Cores, 36MB Cache, up to 5 GHz, 35W - Intel® Core™ i7-13700TE/i7-12700TE, up to 16 Cores, 30MB cache, up to 4.8 GHz, 35W - Intel® Core™ i5-13500TE/i5-12500TE, up to 14 Core, 24MB Cache, up to 4.5 GHz, 35W - Intel® Core™ i3-13100TE/i3-12100TE, up to 4 Cores, 12MB Cache, up to 4.1 GHz, 35W |
System Chipset | Intel® R680E Express Chipset |
LAN Chipset | 2.5 GbE1: Intel I226, 2.5 GbE2: Intel I226 Support Wake-on-LAN and PXE, Support TSN |
Audio Codec | Realtek ALC888S |
System Memory | 2x 262-Pin DDR5 4800/5600MHz SODIMM. Max. up to 64GB (ECC and Non-ECC) |
Graphics | Intel® UHD Graphics 770/710 |
BIOS | AMI 256Mbit SPI BIOS |
Watchdog | Software Programmable Supports 1~255 sec. System Reset |
AI Accelerator | Supports 3x Hailo-8™ modules |
TPM | TPM 2.0 |
Display | |
Display Port | 2x DisplayPort, Support resolution 5120 x 3200, Up to 7680 x 4320 |
DVI | 1x DVI-I, support resolution 1920 x 1200 |
VGA | Yes (by optional split cable) |
Multiple Display | Triple Display |
Storage | |
M.2 | 1x M.2 B Key, 2242/3042/3052 (PCIe x2, Support AI Module/NVMe Storage) (PCIe x1 & USB 3.2 Gen1, Support 4G/5G) |
mSATA | 1x mSATA (Shared by 1x Mini PCI Express) |
NVMe | 2x Removable Cannister Bricks with 2.5" 4 Bay U.2 NVMe SSD (Support H=15mm) with Software RAID 0, 1, 5, 10 |
SIM Socket | 2x External SIM socket (Mini PCIE/M.2 B Key attached) |
SSD/HDD | 1x 9mm 2.5" SATA HDD Bay (Internal) 1x 7mm 2.5" SATA HDD Bay (Hot-swappable) 4x 15mm 2.5" NVMe SSD Bay (Hot-swappable) Support RAID 0, 1, 5, 10 |
Expansion | |
M.2 | 1x M.2 (E Key, PCIe x1, USB 2.0, 2230) |
Mini PCIe | 1x Full-size Mini PCIe (1x shared by 1x mSATA) |
Expansion Modules | 2x EDGEBoost I/O Brackets: • 4-port GbE module with Intel® I350 Chipset, RJ-45/M12 connector (PoE optional) • 2-Port RJ45 10GbE with Intel X710 Chipset • 4-Port USB 3.0 (share PCIe Gen2 x1 bandwidth) • 1x M.2 B-Key, 2242 for AI/NVMe, 1x M.2 B-Key, 3042/3052 for 5G/AI/NVMe • 1x M.2 M-Key, PCIe x4 Lane, 2242/2260 for AI Module/NVMe • 1x M.2 for 5G (B Key, PCIe x1, USB 3.0, 3042/3052), 2x SIM socket, 1x SIM switch |
I/O | |
Audio | 1x Mic-in, 1x Line-out |
CAN | 2x CAN 2.0 A/B 2-pin Internal header |
COM | 2x RS-232/422/485 ; 4x RS-232/422/485 (Internal) |
DIO | 8 in / 8 out (Isolated) |
EDGEBoost I/O Bracket | 2x EDGEBoost I/O Bracket (By mini PCIe interface) |
LAN | 2x RJ45 |
USB | 8x USB 3.2 Gen 2 (10 Gbps) 1x USB 3.2 Gen 1 (5 Gbps, 1x Internal), 2x USB 2.0 (Internal) |
Others | 5x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off 1x PC/Car Mode Switch, 1x Delay Time Switch 1x Removable CMOS Battery |
Operating System | |
Windows | Windows 10/11 |
Linux | Linux kernel |
Power | |
Power Adapter | Optional AC/DC 24V/9.2A, 220W Optional AC/DC 24V/11.67A, 280W (GPU/Card Expansion) Optional AC/DC 24V/15A, 360W (i7/i9 CPU/GPU/Card Expansion) |
Power Mode | AT, ATX |
Power Ignition Sensing | Power Ignition Management |
Power Supply Voltage | 9~48VDC 12~48VDC for NVMe EDGEboost Node |
Power Connector | 5-pin Terminal Block 4-pin Terminal Block for NVMe EDGEBoost Node (12V requires 4-pin terminal block) |
Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection |
Environment | |
Operating Temperature | -25°C to 60°C |
Storage Temperature | -30°C to 85°C |
Relative Humidity | 10% to 95% (non-condensing) |
Certification | UL 62368 Ed. 3, CE, FCC Class A |
Vibration | IEC60068-2-64:2008 With HDD: 1 Grms (5 - 500 Hz, 0.5 hr/axis) With SSD: 3 Grms (5 - 500 Hz, 0.5 hr/axis) Designed to comply with MIL-STD-810G Method 514.7 Procedure I |
Shock | IEC60068-2-27:2008 With SSD: 50G half-sin 11ms Designed to comply with MIL-STD-810G Method 516.7 Procedure I |
Physical | |
Dimension | 240 (W) x 261 (D) x 166.9 (H) mm |
Weights | 10 ~ 11 kg |
Construction | Extruded Aluminum with Heavy Duty Metal |
Mounting Options | Wall Mounting |
