| System | |
|---|---|
| Processor | - Intel Atom® x7433RE Processor 6M Cache, up to 3.40 GHz 4 core 9W (Default) - Intel Atom® x7835RE Processor 6M Cache, up to 3.60 GHz 8 core 12W |
| System Chipset | SoC integrated |
| LAN Chipset | 2.5 GbE1: Intel I226 (Support Wake-on-LAN and PXE) 2.5 GbE2: Intel I226 (Support Wake-on-LAN and PXE) |
| Audio Codec | Realtek ALC888C |
| System Memory | 1x 262-Pin DDR5 4800/5600 MT/s SO-DIMM. Max. up to 32GB Non-ECC |
| Graphics | Intel® UHD Graphics |
| BIOS | AMI 256Mbit SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | TPM 2.0 |
| Display | |
| Display Port | 1x DisplayPort (4096 x 2304@60Hz) |
| HDMI | 1x HDMI 1.4b (Resolution up to 3840x2160 @ 30 Hz) |
| Multiple Display | Dual Display |
| Storage | |
| M.2 | 1x M.2 (B Key, 2242 / 3042 / 3052) for storage/4G/5G Module |
| SIM Socket | 2x External SIM socket |
| SSD/HDD | 1x Internal 2.5" SATA HDD Bay (support H=9.5 mm) |
| Expansion | |
| M.2 | 1x M.2 E key Type: 2230 (Support PCIe x1 + USB 2.0 signal for WiFi and Bluetooth) |
| Expansion Modules | • 1-Port OOB and 2-port COM (RS232/422/485) |

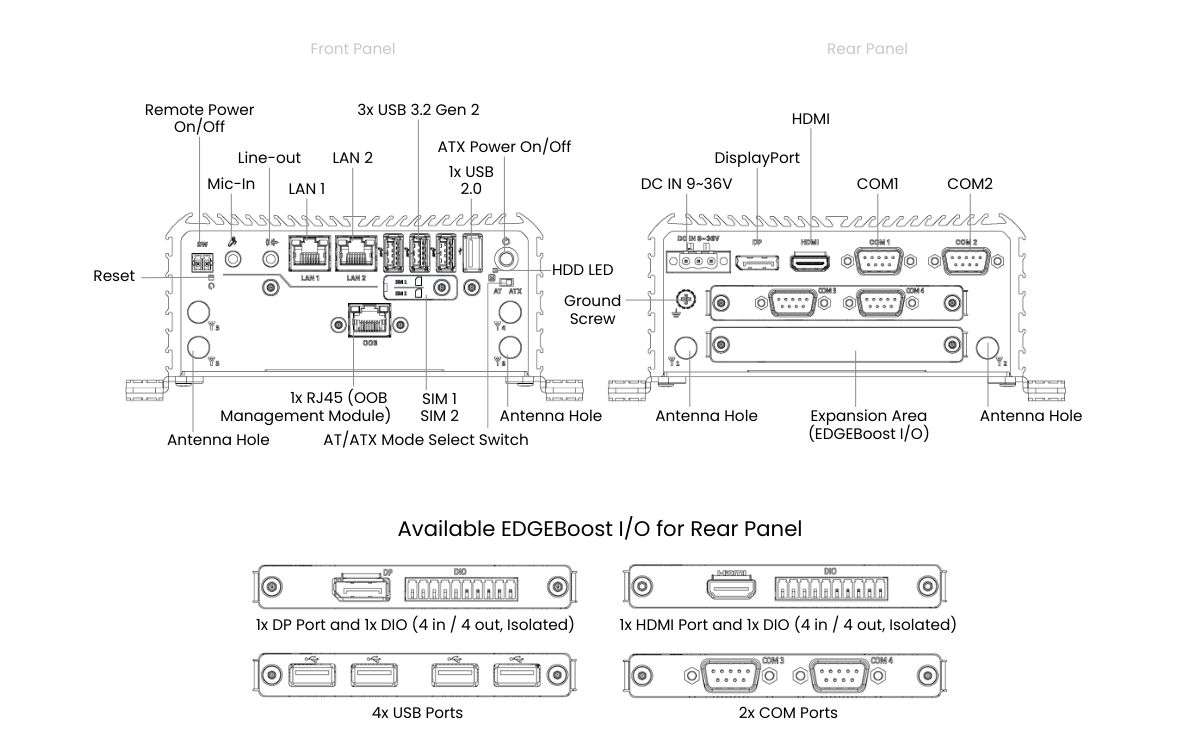

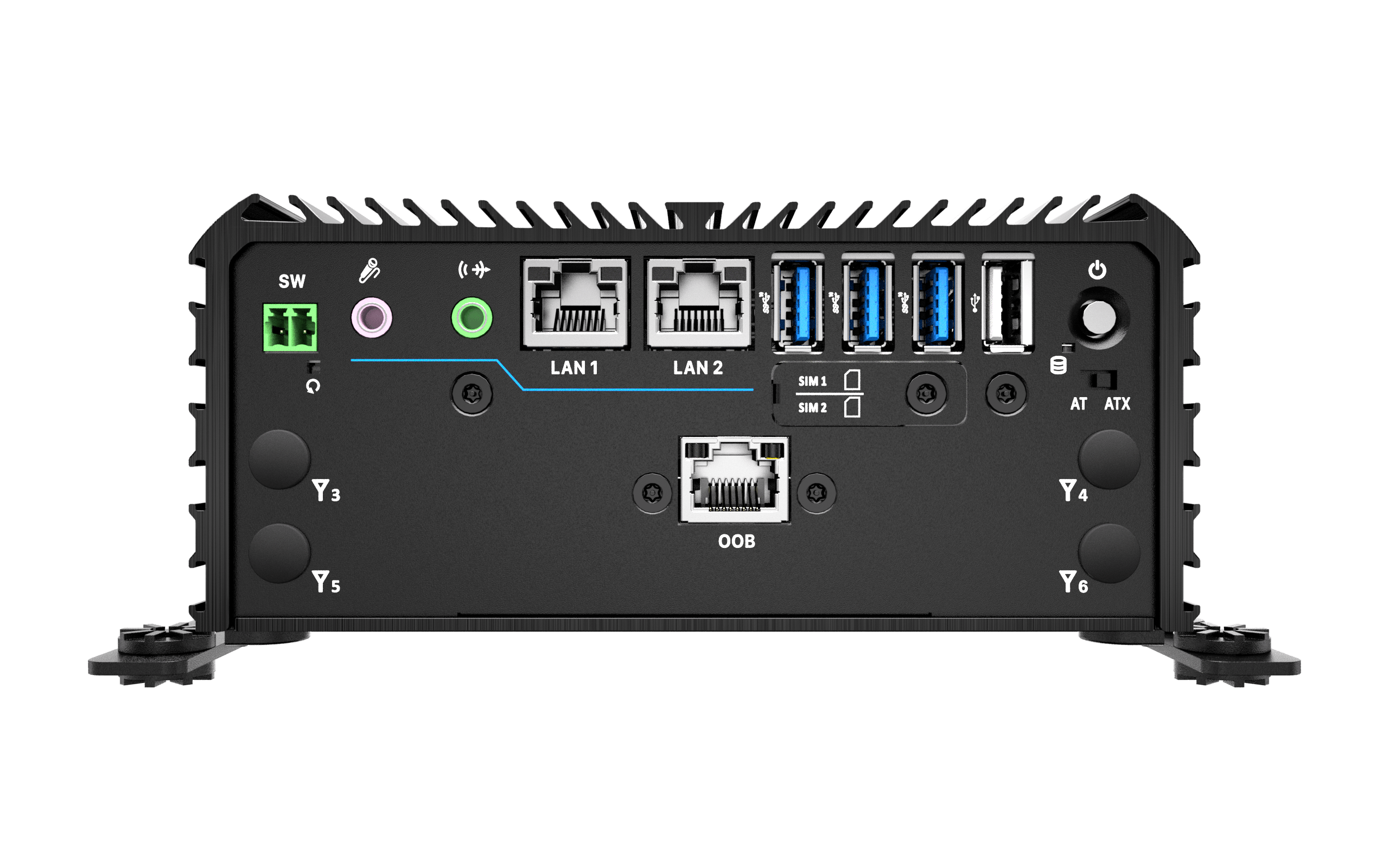

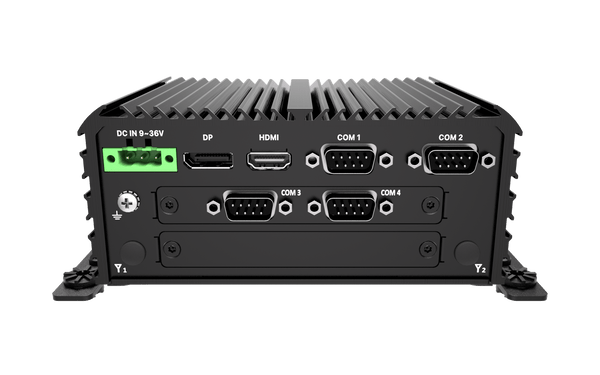

| I/O | |
| Audio | 1x Mic-in, 1x Line-out |
| CAN | 2x CAN 2.0 A/B 2-pin Internal header |
| COM | 2x RS-232/422/485 |
| EDGEBoost I/O Bracket | 2x EDGEBoost I/O Bracket (By mini PCIe interface, Proprietary Module) |
| LAN | 2x RJ45 (2.5 GbE) |
| OOB | 1x RJ45 (OOB Management Module, Optional) |
| USB | 3x USB 3.2 Gen 2 (10 Gbps) 1x USB 2.0 |
| Others | 6x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off 1x Internal CMOS Battery Cable 1x 4-PIN FAN Connector 1x Ground Screw 1x HDD LED , 1x Reset |
| Operating System | |
| Windows | Windows 10/11 |
| Linux | Linux Ubuntu 22.04 |
| Power | |
| Power Adapter | Optional AC/DC 12V/5A, 60W |
| Power Mode | AT, ATX |
| Power Ignition Sensing | Adjustable power ignition management can be achieved through BIOS and optional daughter board. |
| Power Supply Voltage | 9~36VDC |
| Power Connector | 3-pin Terminal Block |
| Power Protection | OVP (Over Voltage Protection); OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | UL, CE, FCC Class A |
| Vibration | With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis |
| Shock | With SSD: 50G, half sine, 11ms |
| Physical | |

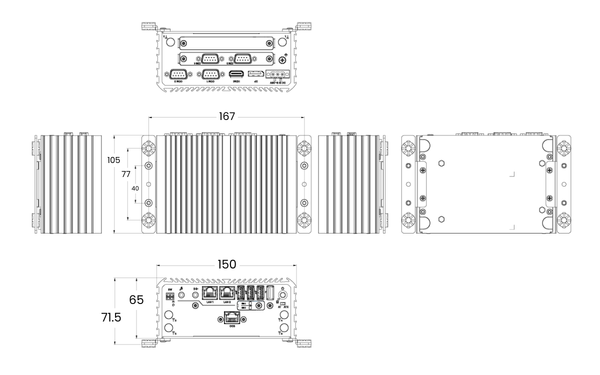

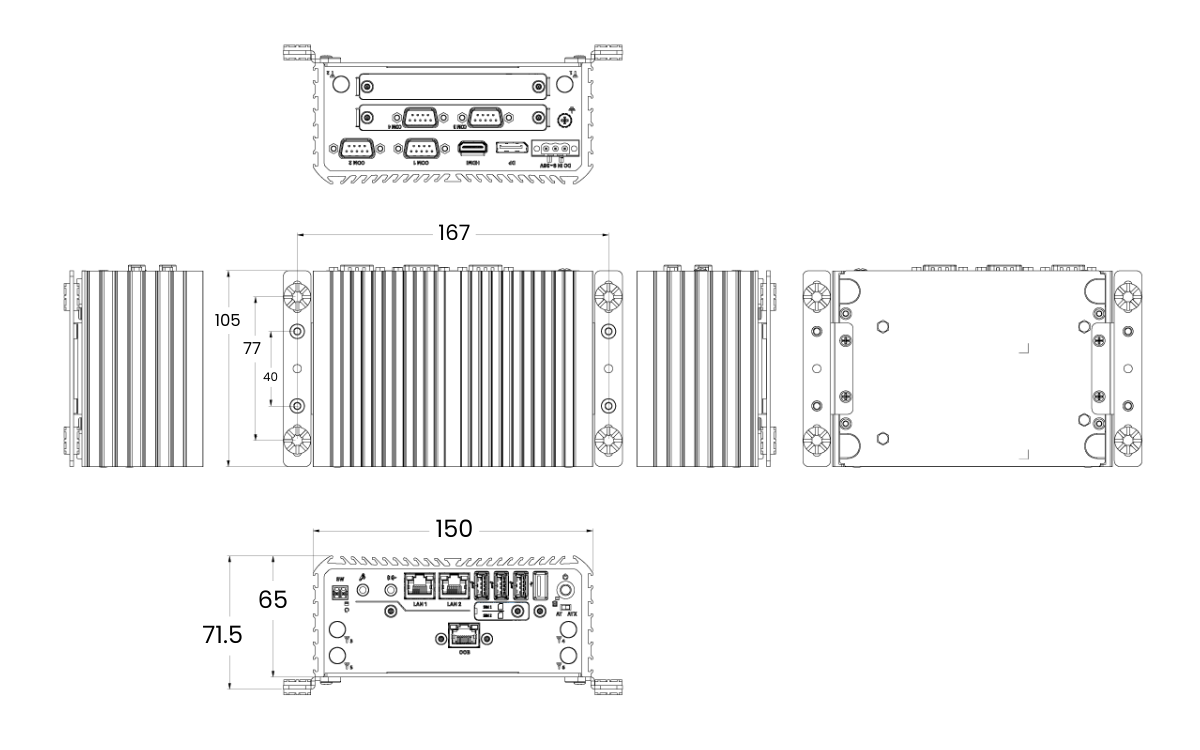

| Dimensions | 150 (W) x 105 (D) x 65 (H) mm |
| Weights | 1 kg |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting SIDE / VESA / DIN-Rail Mounting (Optional) |
