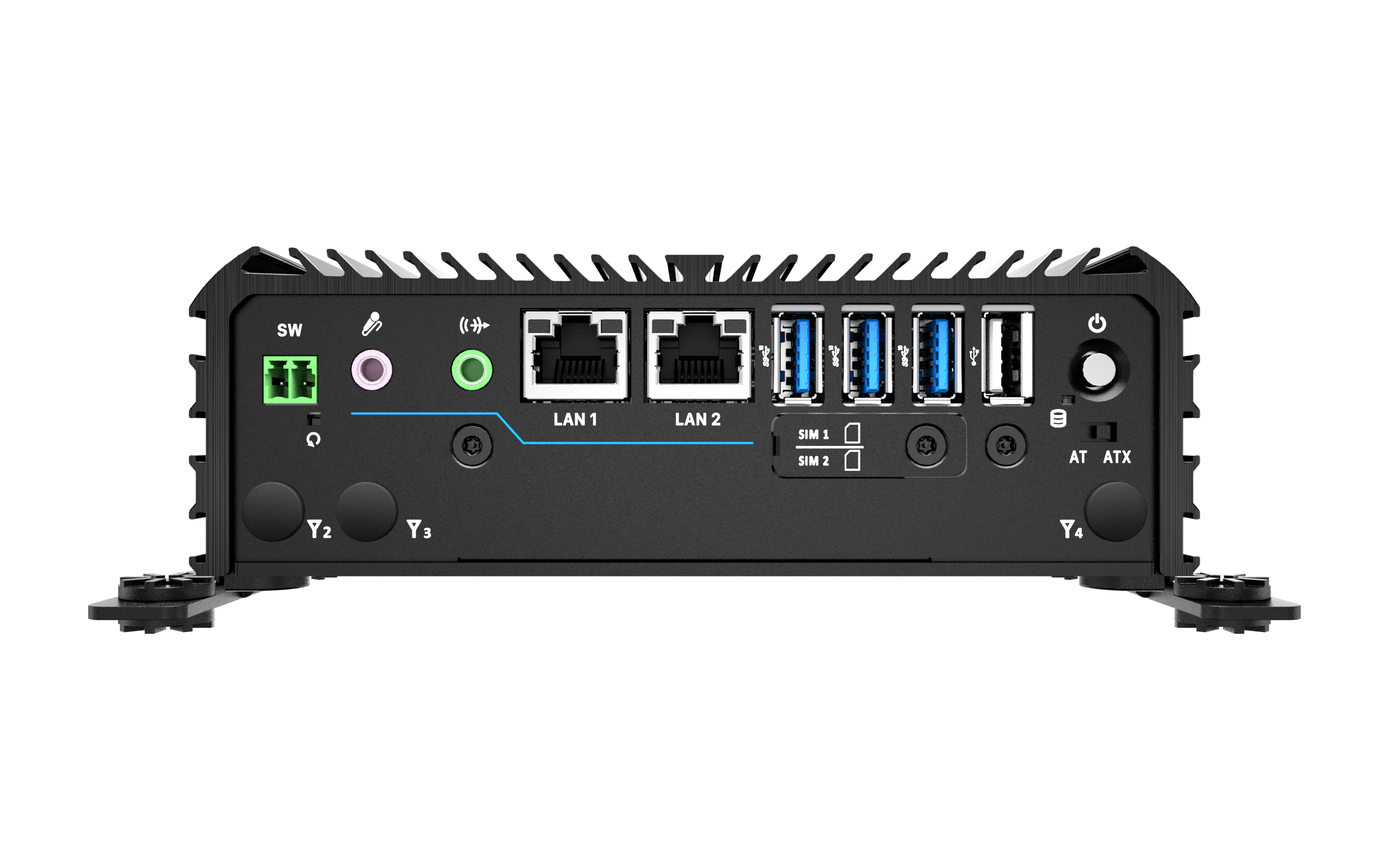

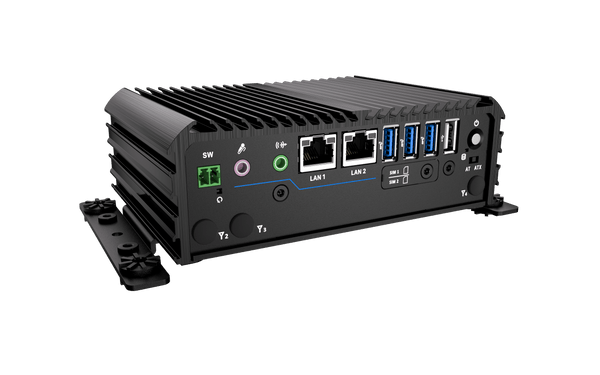

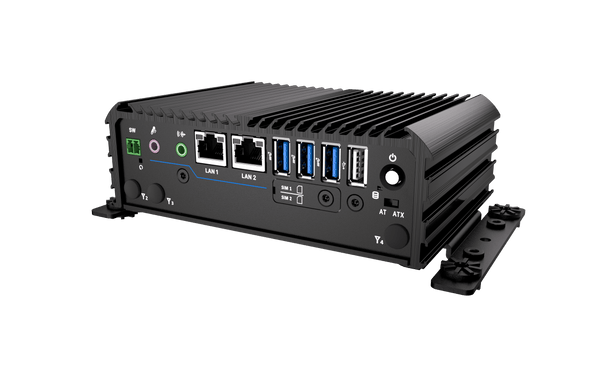

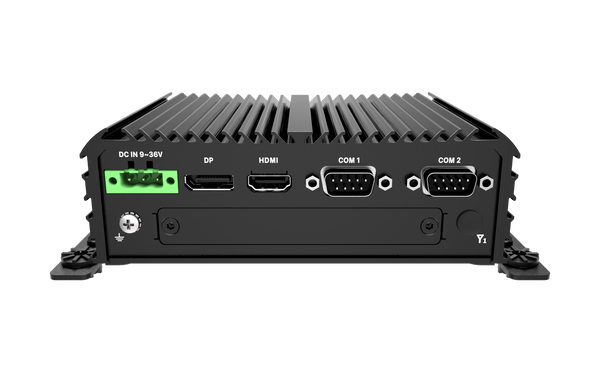

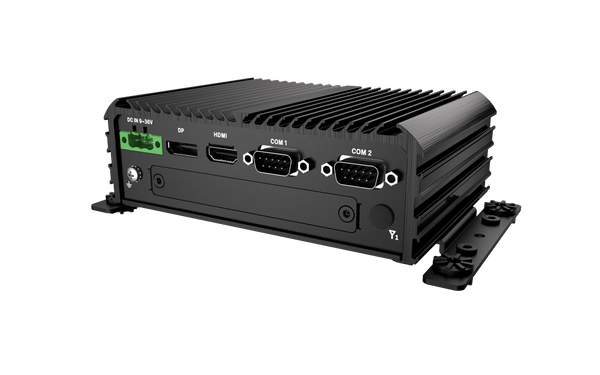

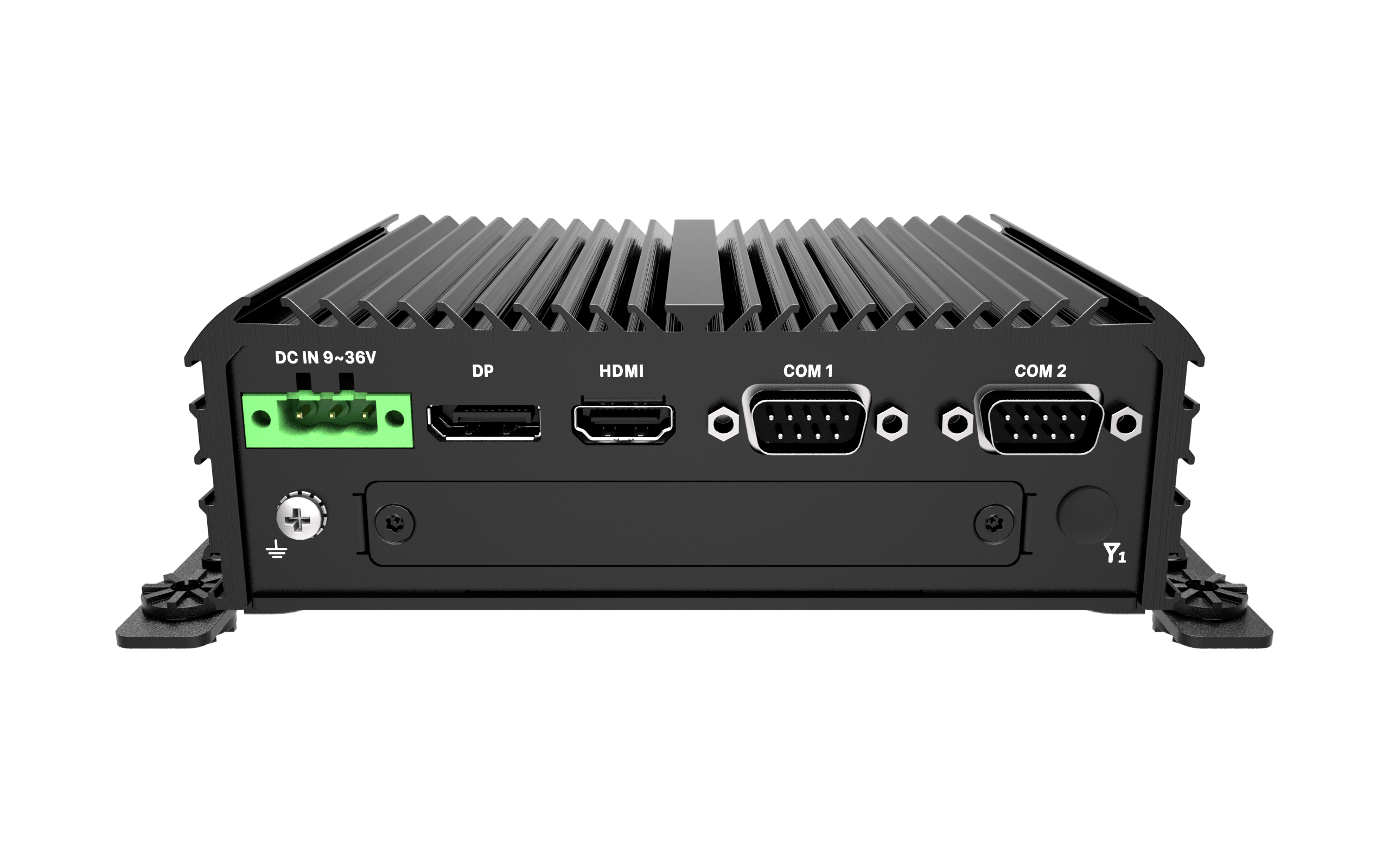

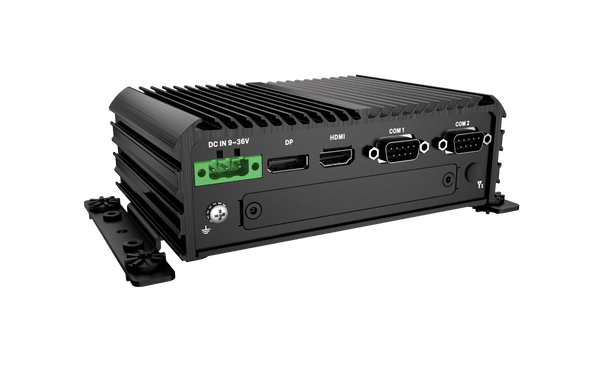

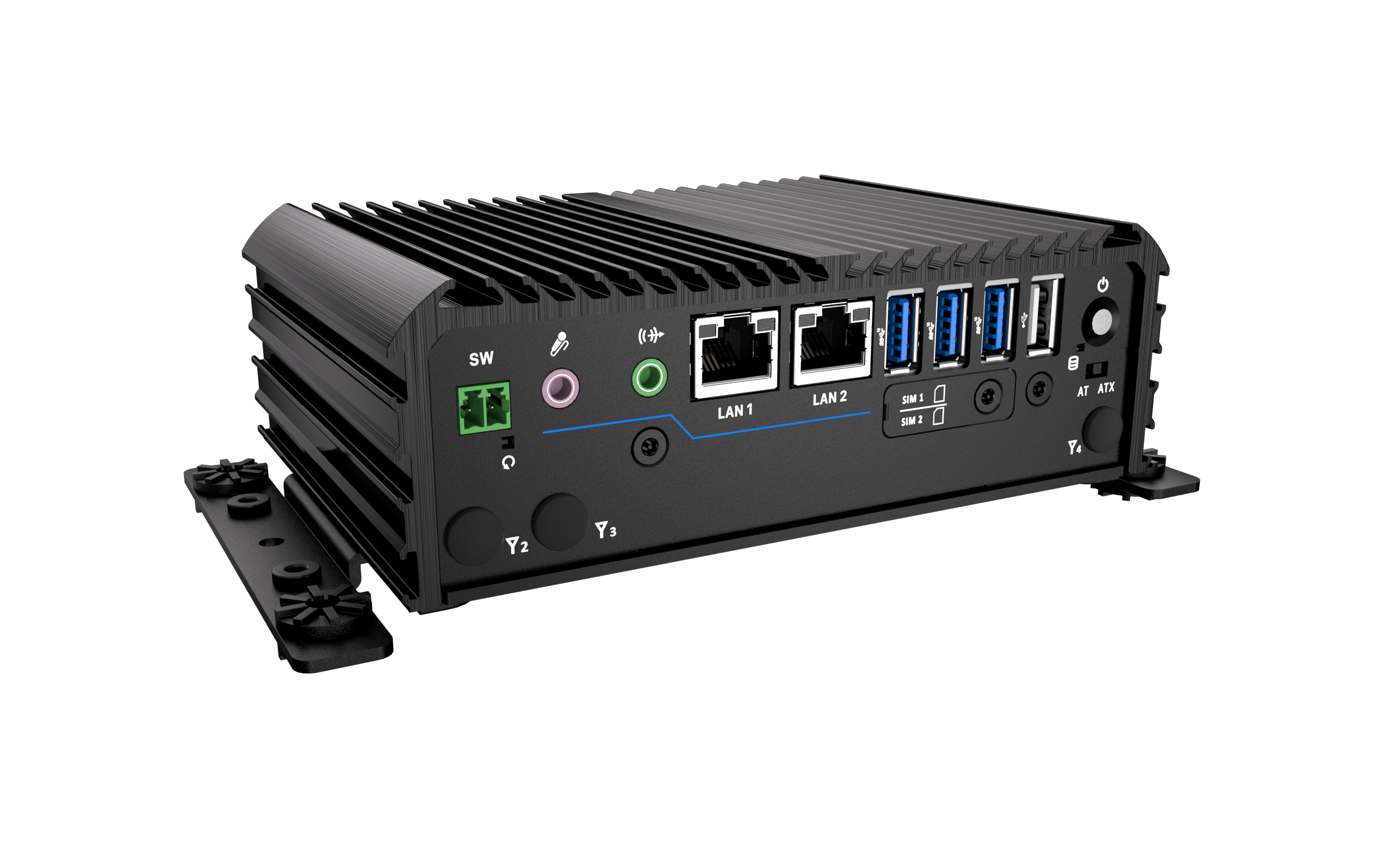

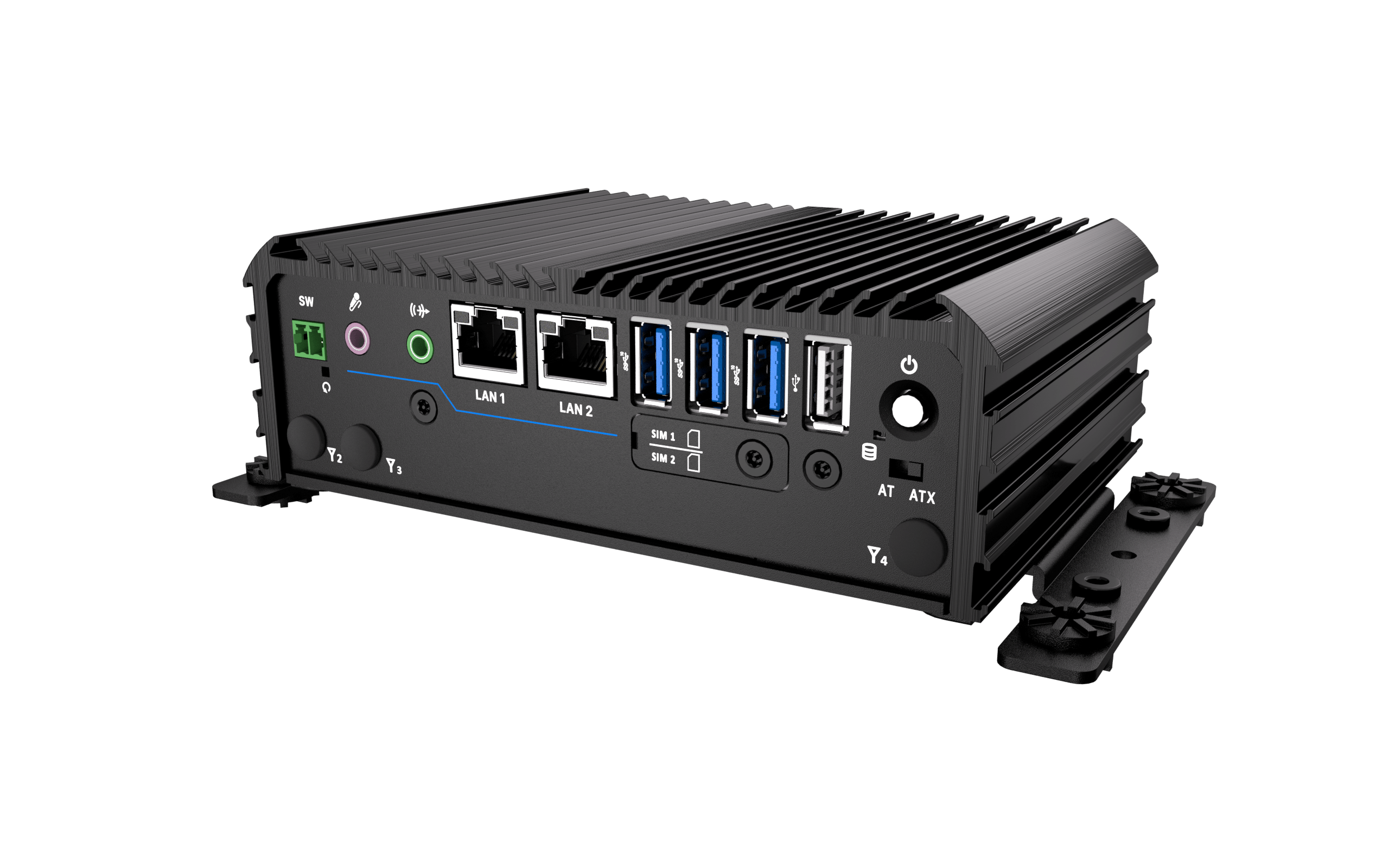

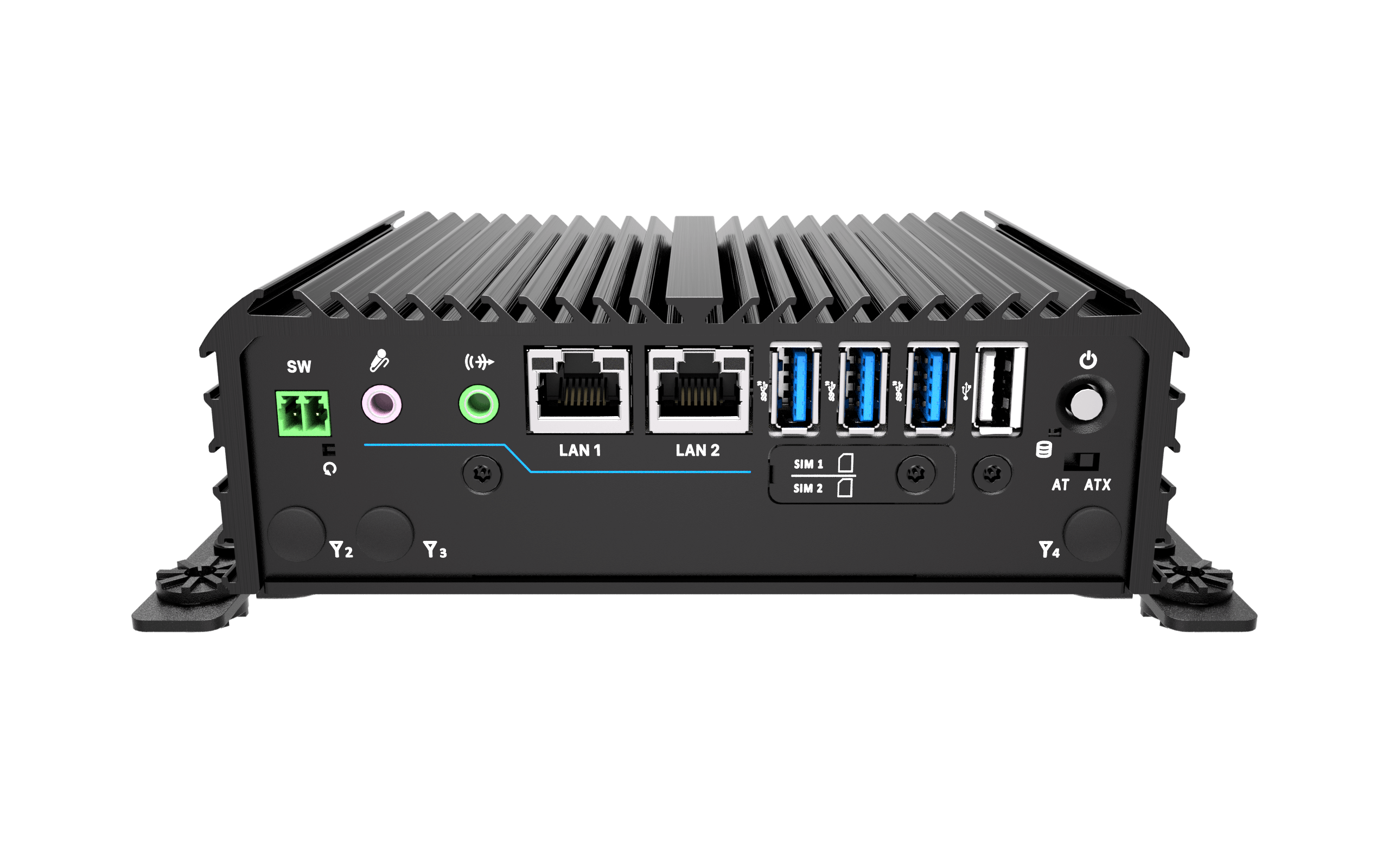

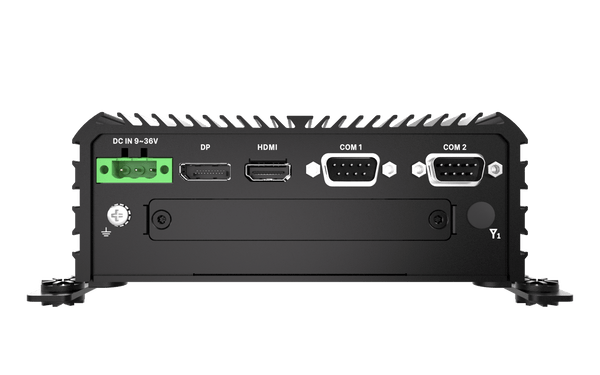

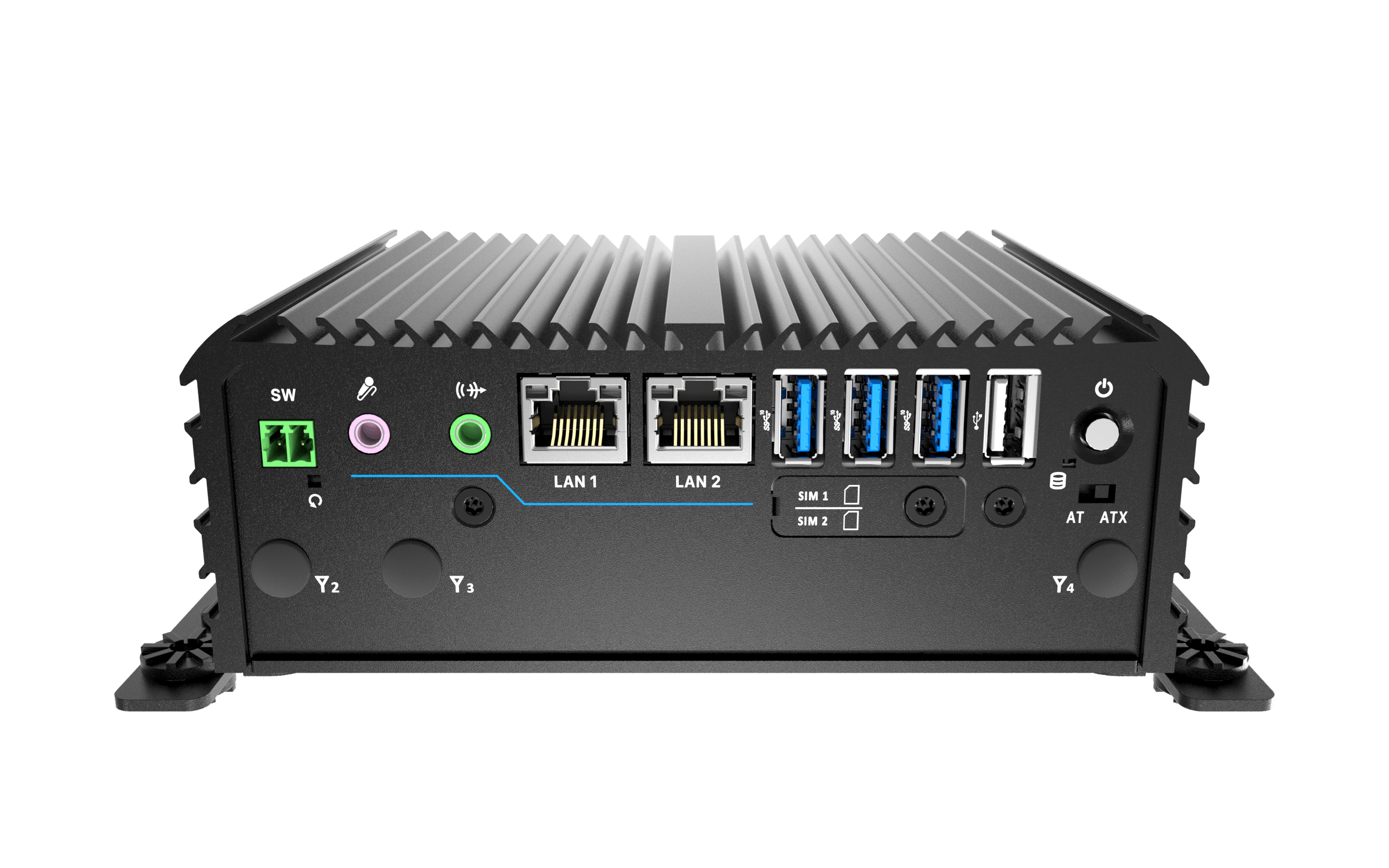

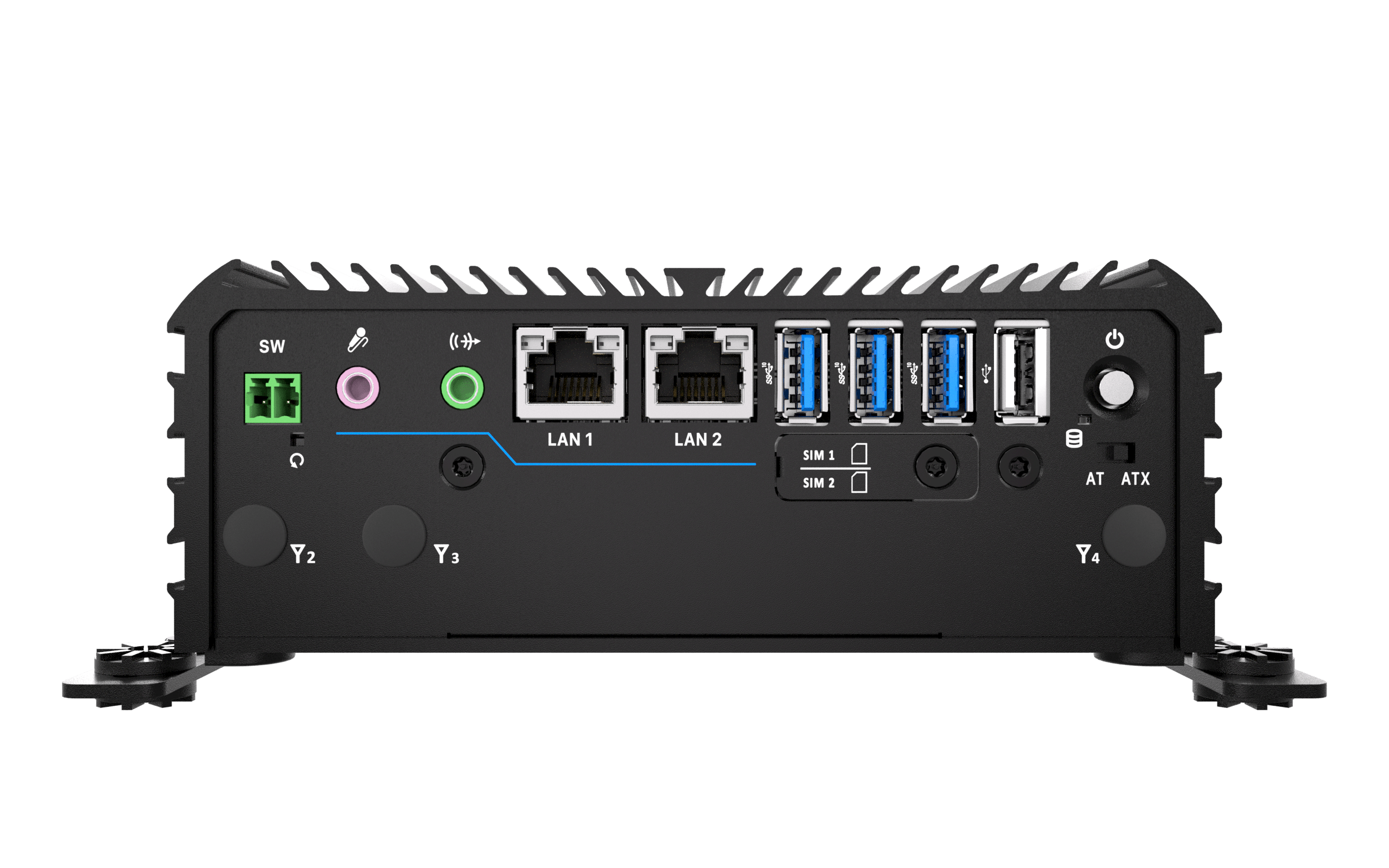

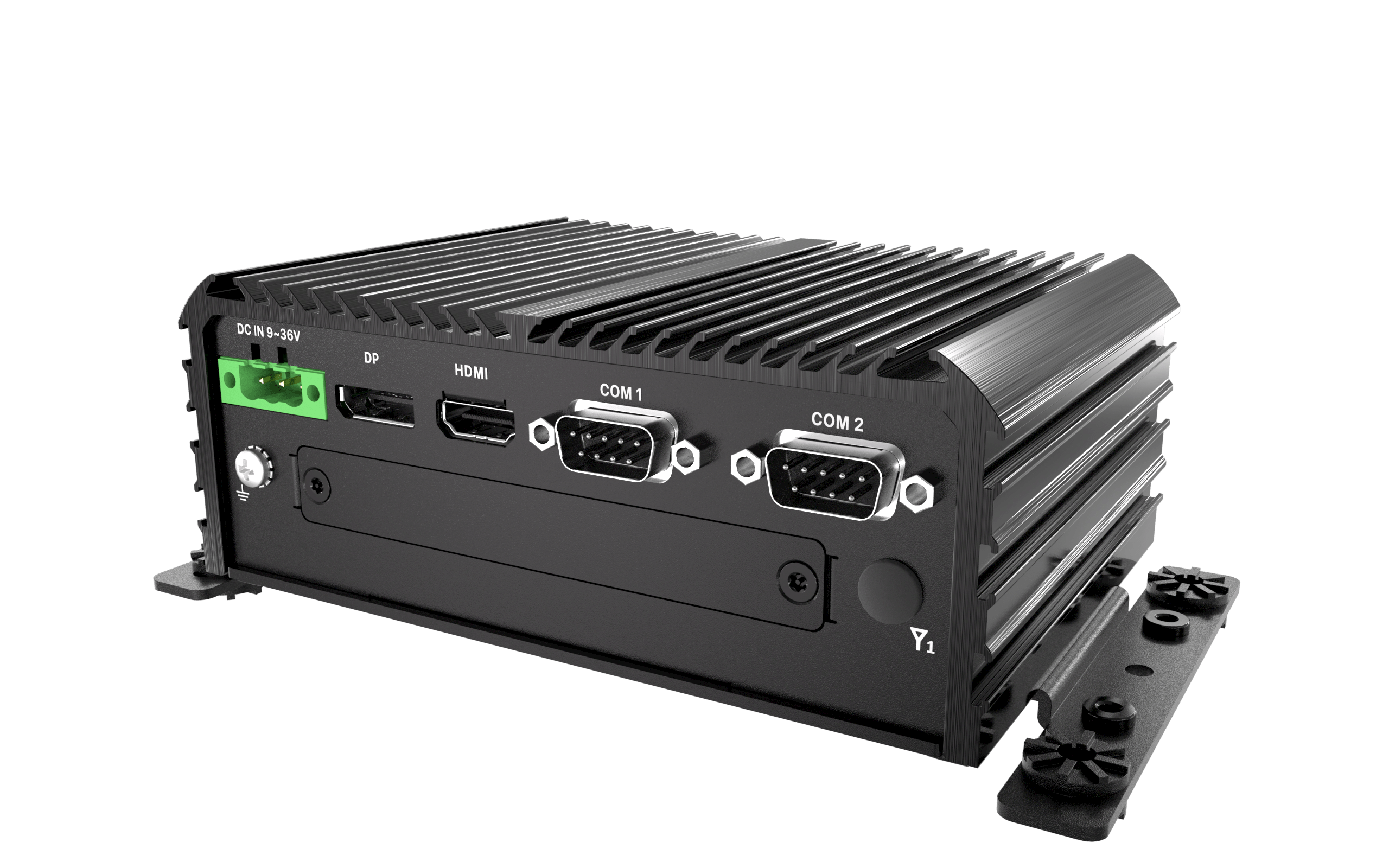

RCO-1000-ASL-10 Fanless Mini Computer with Intel® Atom® x7433RE/x7835RE Processors, 1x DP, 1x HDMI, 4x USB, 1x 2.5" SATA HDD Bay

  • Support Intel® Atom® x7433RE/x7835RE Processors
  • 1x 262-pin DDR5 SO-DIMM. Max. up to 32GB
  • 2x 2.5GbE (Wake-on-LAN and PXE)
  • 1x 2.5” SATA HDD Bay
  • 1x M.2 (B Key, 2242 / 3042 / 3052) for storage
  • 2x RS-232/422/485, 3x USB 3.2 Gen2, 1x USB 2.0
  • 9 to 36VDC Wide Range Power Input Supporting AT/ATX Mode
  • Wide Operating Temperature -40°C to 70°C
  • TPM 2.0 Supported
  • With 1x Universal Expansion Slots
  • UL Listed
See Datasheet

Certifications:

Intel Partner


Fanless & Cable-less

Maximized Expandability

Wide Temperature

Shock And Vibration Resistance

TPM 2.0 Security Module

Ultra Compact. Scalable Performance.

The RCO-1000-ASL Series delivers a compact footprint with scalable expansion for flexible deployment in space-constrained industrial environments.

  • RCO-1000-ASL-10 (150 x 105 x 49 mm)
  • RCO-1000-ASL-20 (150 x 105 x 65 mm)
  • RCO-1000-ASL-30 (150 x 105 x 83 mm)

Fanless & Rugged for Harsh Environments

  • Wide Operating Temperature: -40°C to 70°C
  • Wide Voltage Input: 9–36VDC
  • 50G Shock & 5Grms Vibration (MIL-STD-810H Compliance)
  • Over Current & Over Voltage Protection

Intel® Atom® Amston Lake with DDR5 Performance

Powered by Intel® Atom® x7433RE/ x7835RE processors, the RCO-1000-ASL supports up to 32GB DDR5 memory to enhance performance and data throughput at the edge.

Processor X7433RE X7835RE
Cores 4 8
Max TDP 9 W 12 W
CPU Max Turbo Frequency 3.4 GHz 3.6 GHz
Graphics Max Dynamix Frequency 1 GHz 1.2 GHz
Power Profile Ultra-Low Power Performance-Optimized

High-Speed I/O Ports

RCO-1000-ASL includes high-speed I/O ports for low-latency real-time connectivity.

  • 2.5Gb Ethernet
  • USB 3.2 Gen 2 (10 Gbps)
  • True 4K DisplayPort

Modular I/O Expansion – Modular Daughterboards

With support for up to three modular daughterboards, the RCO-1000-ASL provides scalable I/O expansion for greater deployment flexibility.

  • Faster Time-to-Market
  • Flexibility & Scalability
  • Modular I/O Configurations
  • Quick Maintenance & Upgradability

1x DisplayPort and 1x DIO(4 in / 4 out, Isolated)

Support up to 1x EDGEBoost Bracket

1x HDMI Port and 1x DIO(4 in / 4 out, Isolated)

Support up to 1x EDGEBoost Bracket

4x USB Ports

Support up to 1x EDGEBoost Bracket

2x COM Ports

Support up to 2x EDGEBoost Bracket

Mobile & In-Vehicle Ready

  • 5G, 4G/LTE
  • Wi-Fi 6E
  • Bluetooth
  • On board CAN Bus
  • Power Ignition Management

Flexible Mounting

The RCO-1000-ASL supports various mounting configurations, including a Side mount, VESA mount, Wall mount, and an optional DIN-Rail mount. The ultra-rugged design, ultra-compact form factor, and flexible mounting options enable the new RCO-1000-ASL Series to be ready for industrial IoT deployments anywhere.

Wall Mount

Side Mount

DIN Mount

Vesa Mount

Certified by UL Solutions

For additional re-assurance in product quality and safety, this edge computer has earned the UL Certified Mark for ultimate reliability when operating in extreme industrial deployments.

• UL Listed (I.T.E E357184)

* Barebone Pricing Only; Sales team to review component configuration and price

Interested In
RCO-1000-ASL-10?

Contact Us

Specification

System
Processor - Intel Atom® x7433RE Processor 6M Cache, up to 3.4 GHz 8 core 9W (Default)
- Intel Atom® x7835RE Processor 6M Cache, up to 3.60 GHz 8 core 12W
System Chipset SoC integrated
LAN Chipset 2.5 GbE1: Intel I226 (Support Wake-on-LAN and PXE)
2.5 GbE2: Intel I226 (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888C
System Memory 1x 262-Pin DDR5 4800/5600 MT/s SO-DIMM. Max. up to 32GB Non-ECC
Graphics Intel® UHD Graphics
BIOS AMI 256Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 sec. System Reset
TPM TPM 2.0
Display
Display Port 1x DisplayPort (4096 x 2304@60Hz)
HDMI 1x HDMI 1.4b (Resolution up to 3840x2160 @ 30 Hz)
Multiple Display Dual Display
Storage
M.2 1x M.2 B key-1 SATA/PCIE/USB 3.0 (2242/3042/3052) for Storage
SIM Socket 2x External SIM socket
SSD/HDD 1x Internal 2.5" SATA HDD Bay (support H=9.5 mm)
Expansion
M.2 1x M.2 E key Type: 2230 (Support PCIe x1 + USB 2.0 signal for WiFi and Bluetooth)
Expansion Modules Optional:
• 2-port COM module with Super I/O Chipset
• 4-Port USB module with USB hub
• 1-Port DP 1.4 and DIO (4 in / 4 out, Isolated)
• 1-Port HDMI 2.0 and DIO (4 in / 4 out, Isolated)

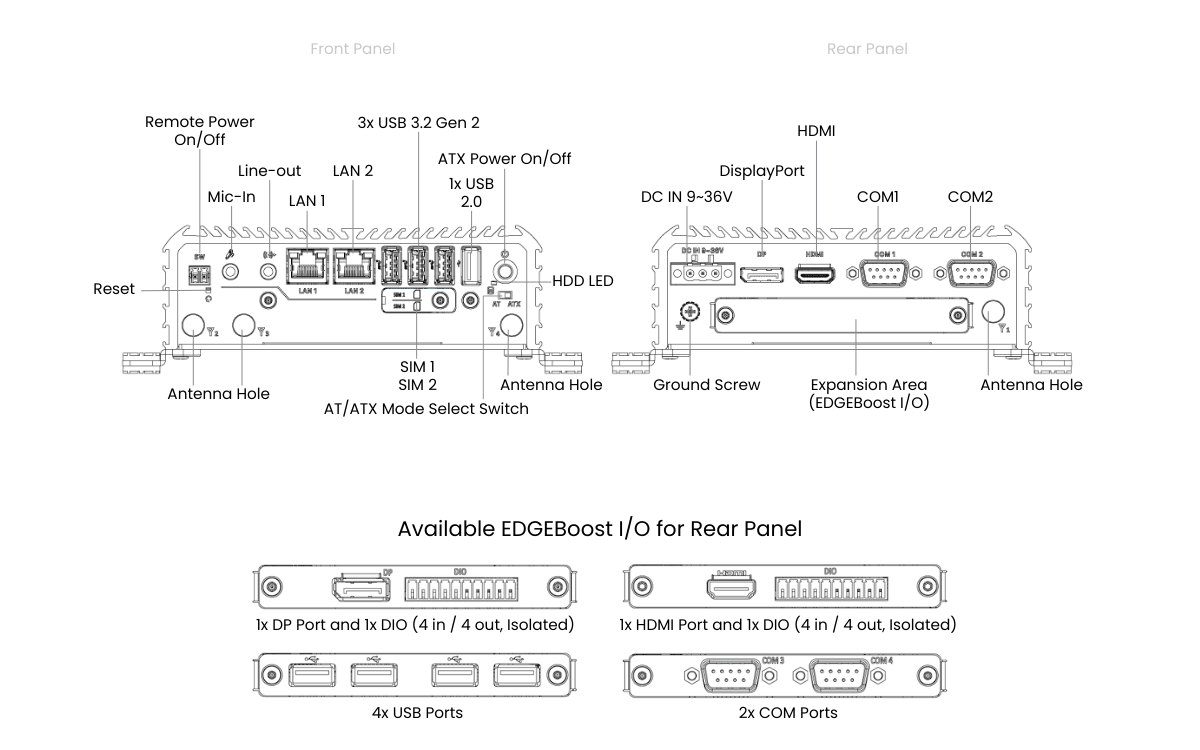

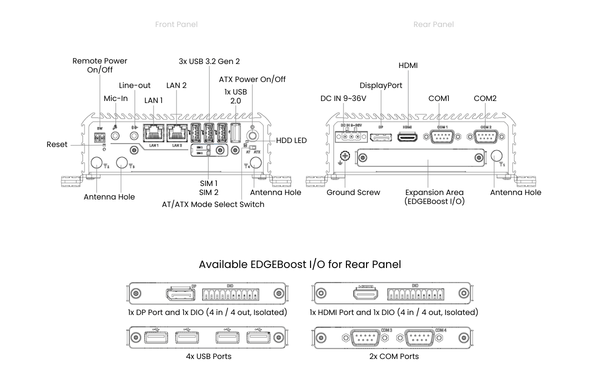

I/O
Audio 1x Mic-in, 1x Line-out
CAN 2x CAN 2.0 A/B 2-pin Internal header
COM 2x RS-232/422/485
EDGEBoost I/O Bracket 1x EDGEBoost I/O Bracket (By mini PCIe interface, Proprietary Module)
LAN 2x RJ45 (2.5 GbE)
USB 3x USB 3.2 Gen 2 (10 Gbps)
1x USB 2.0
Others 6x WiFi Antenna Holes
1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off
1x Internal CMOS Battery Cable
1x 4-PIN FAN Connector
1x Ground Screw
1x HDD LED , 1x Reset
Operating System
Windows Windows 10/11
Linux Linux Ubuntu 22.04
Power
Power Adapter Optional AC/DC 12V/5A, 60W
Power Mode AT, ATX
Power Ignition Sensing Adjustable power ignition management can be achieved through BIOS and optional daughter board.
Power Supply Voltage 9~36VDC
Power Connector 3-pin Terminal Block
Power Protection OVP (Over Voltage Protection)
OCP (Over Current Protection)
Reverse Protection
Environment
Operating Temperature -40°C to 70°C
Storage Temperature -40°C to 85°C
Relative Humidity 10% to 95% (non-condensing)
Certification UL, CE, FCC Class A
Vibration With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock With SSD: 50G, half sine, 11ms
Physical
Dimension 150 (W) x 105 (D) x 49 (H) mm
Weights 0.9 kg
Construction Extruded Aluminum with Heavy Duty Metal
Mounting Options Wall Mounting
SIDE / VESA / DIN-Rail Mounting (Optional)

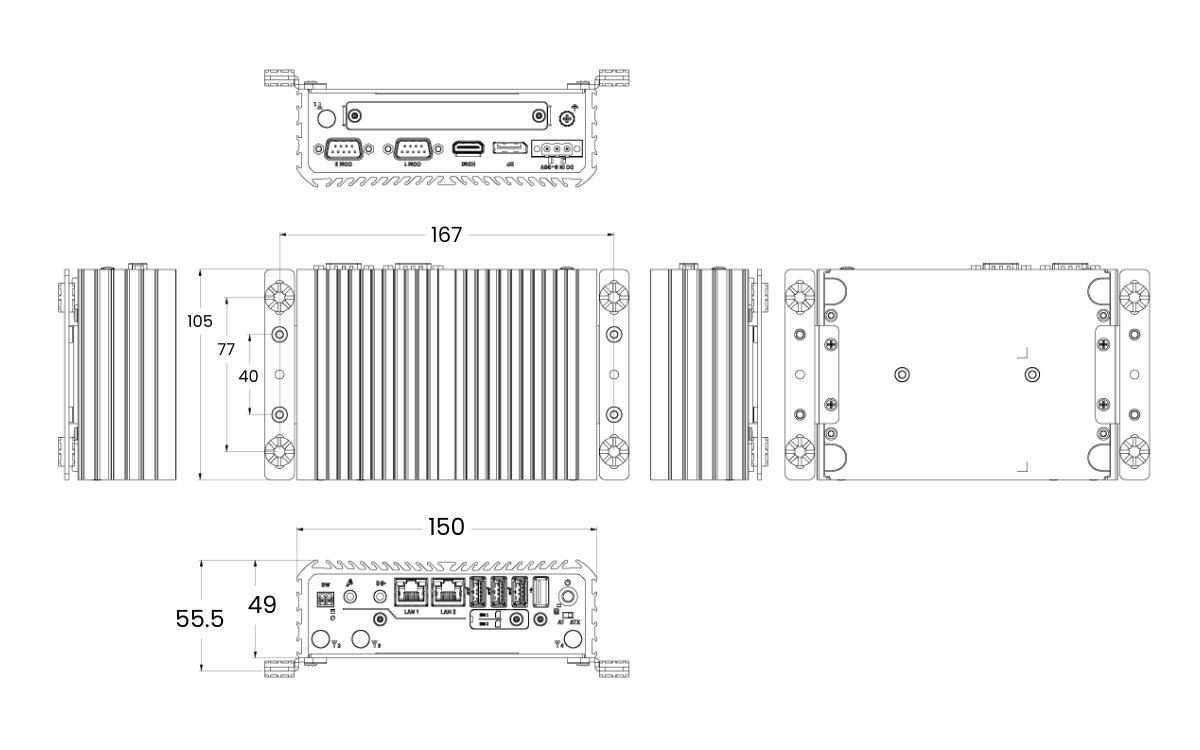

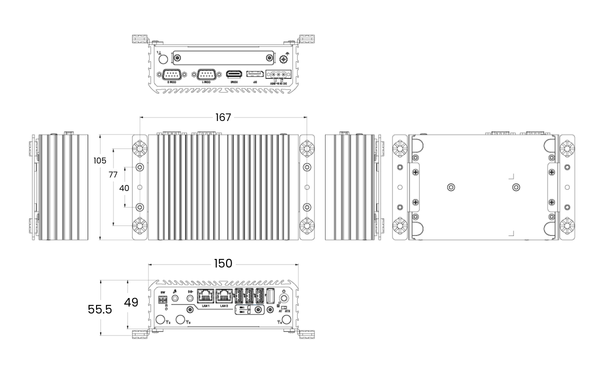

Mechanical Layout

Product Dimension

Unit:mm
