FlacheSAN2V-UN 2U 48 BAYS 7MM 12G SAS/SATA SSD SINGLE EPYC 800W HRP

Key Features

  • Flash server supports Single AMD EPYC up to 1TB DDR4

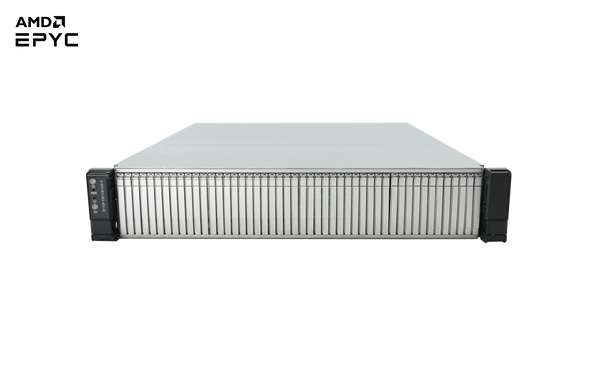

  • Front hot-swap 48x 2.5” 7mm and 2 internal 2.5” 15mm for OS drives
  • Up to 18GB/s (128Gbps) seq. read and up to 1.4M IOPS 4KB random read
  • Supports up to 7x Low Profile MD2 PCIe Expansion slots
  • High efficiency redundant power supplies
See Datasheet

Certifications:

Specification

System
Processor Supports UP AMD EPYC (Naples) up to 180W TDP socket SP3
System Memory Supports 16x DDR4 ECC RDIMM/LRDIMM 2133/2400/2666 MT/s
Storage 4x SlimSAS for 16 SATA 6G and 4x 6G/12G SAS HBA/RAID controllers by using available PCIe slots
Driver Bays 48x front hot-swap 2.5" 7mm 6G SATA drive bays; 2x internal .5" 7 or 15mm 6G SATA bays
Cooling 4x 80mm cooling fans
Expansion Supports up to total of 7 PCIe slots; 3 PCIe3 x8; 4 PCIe3 x16
Environment
Operating Temperature 0°C ~ 35°C
Storage Temperature -20°C ~ 70°C
Relative Humidity 5% ~ 95% relative humidity, non-condensing
HTS Code 8473 30 5100
ECCN 4A994
Compliance CE, FCC Class A, RoHS 6/6 compliant
Physical
Dimension System: 26"x19"x3.5" (LxWxH) Packaging: 36"x 24.5"x10.5"(LxWxH)
Weights Gross: 25KG/55LBS; Net: 21.36KG/46LBS
