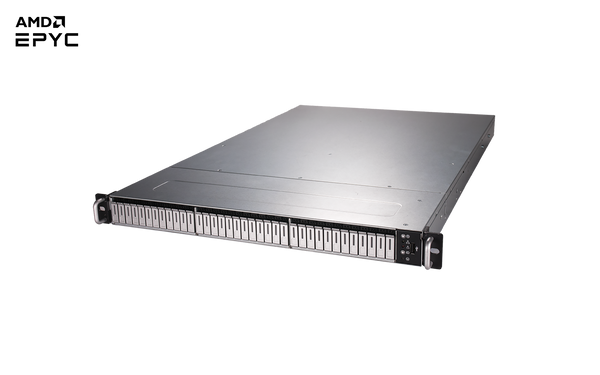

FlacheSAN1N36M-UN AMD EPYC 36 bay NF1 NVMe 850W HRP PSU

Key Features:

  • Storage server supports Single Socket AMD EPYC CPU up to 2TB DDR4

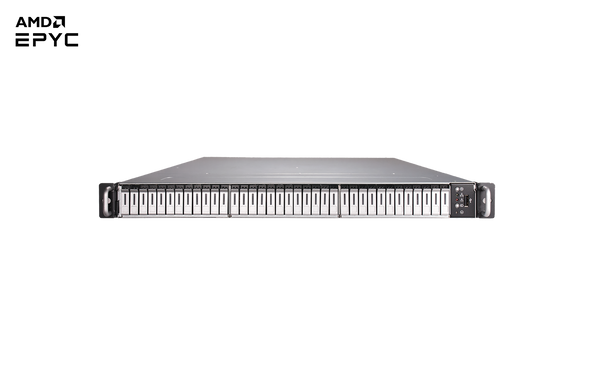

  • 1U with 36x hot-swappable NF1 or M.2 NVMe SSD bays
  • Supports 2x PCIe3 x16 slots and 1x PCIe3 x16 OCP 2.0 card
  • Capable of sustaining up to 300Gbps of bandwidth and 7.8M IOPS
See Datasheet

Certifications:

Specification

System
Processor Supports UP AMD EPYC (Naples) up to 180W TDP socket SP3
System Memory Supports up to 16x DIMMs DDR4 RDIMM/LRDIMM/NVDIMM 2667/2400 MHz
Network 2x GbE ports, 1x GbE dedicated for IPMI
Driver Bays 36x NF1 (M.3) NVMe drive bays
or 36x M.2
(2260/2280/22110) NVMe with adapter tray

2x internal M.2 NVMe for OS drives
Supported OS Microsoft Windows Server 64bit 2012/R2
Windows
2016 64bit
Linux RHEL 7.4
SUSE 11 SP4 x64

SUSE 12 SP2 x64
Ubuntu 16.04 x64
Ubuntu 17.04 x64
Cooling 5x 40mm fans with Smart Fan Control

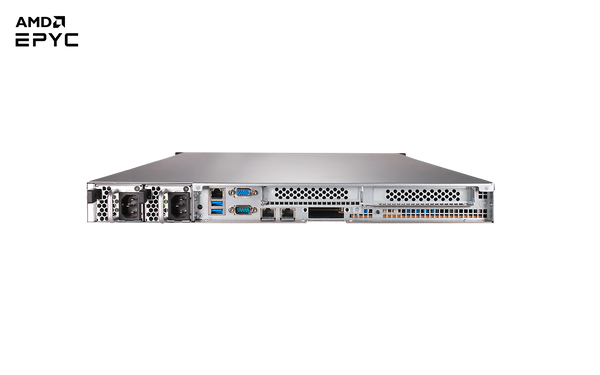

I/O 2x USB 3.0 ports
1x VGA port(s)
1x COM Port
2x 1GbE ports
1x 1GbE MGMT
Front I/O Power On/Off switch & LED
Locate switch & LED, NMI switch
2x LAN LED
Expansion 2x PCIe Gen 3 x16 Full Height Half Length
1x PCIe Gen3 x16 OCP 2.0
Power 1+1 850W AC/DC or -48VDC/DC high efficiency
redundant power supplies
Environment
Operating Temperature 0°C ~ 35°C
Storage Temperature -20°C ~ 70°C
Relative Humidity 5% ~ 95% relative humidity, non-condensing
HTS Code 8473 30 5100
ECCN 4A994
Compliance CE, FCC Class A, RoHS 6/6 compliant
Physical
Dimension System: 27.5”x19”x1.75” (LxWxH)
Packaging: 35”x 24.5”x9”(LxWxH)
Weights Gross: 50lbs without drives
Net: 35lbs without drives
