eDrawer4060S-UN 4U 60 Bays 3.5" HDD 12G SAS Single EPYC
eDrawer4048S-UN 4U 48 Bays 3.5" HDD 12G SAS Single EPYC

eDrawer4060S-UN 4U 60 Bays 3.5" HDD 12G SAS Single EPYC

Key Features

  • Storage server supports single AMD EPYC (Naples)

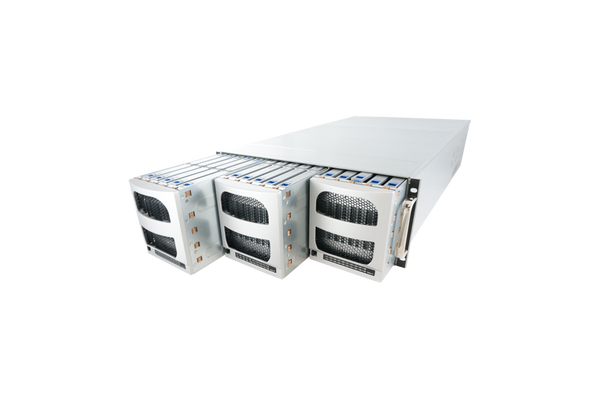

  • Support 60 x 3.5″ Trayless Drive Bays in 4RU
  • Two 48 ports 12G SAS expanders for maximum throughput
  • Support full height PCIe expansions without risers

      Certifications:

      Regular price

      Specification

      System
      ProcessorSupports Single AMD EPYC (Naples) up to 108W TDP socket SP3
      System MemorySupports up to 8x DIMMs DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 up to 1TB
      StorageTwo 48 ports SAS Expander 6 SFF8643 24 ports 12G SAS/SATA to HBA/RAID
      Driver Bays60 hot-swap 3.5" 6G SAS/SATA trayless drive bays 2x internal 2.5" 7mm for OS drive bays
      Cooling5x 97mm exhaust blower
      Expansion3 PCIe 3.0 x16; 3 PCIe 3.0 x8
      Environment
      Operating Temperature0°C ~ 35°C
      Storage Temperature-20°C ~ 70°C
      Relative Humidity5% ~ 95% relative humidity, non-condensing
      HTS Code8473 30 5100
      ECCN4A994
      ComplianceCE, FCC Class A, RoHS 6/6 compliant
      Physical
      Dimensions (W x H x D)System: 36.5"x19"x7" (LxWxH) Packaging: 47.6" x 24.8"x13.6"(LxWxH)
      WeightsGross: 69Kg/152 Lbs; Net: 60Kg/132Lbs

      Resources

      Data Sheet DS-eDrawer4060S-UN.pdf
      Product Brief PB_ScaleStreams_AMD.pdf
