eDrawer4060S-UN 4U 60 Bays 3.5" HDD 12G SAS Single EPYC
eDrawer4048S-UN 4U 48 Bays 3.5" HDD 12G SAS Single EPYC

eDrawer4048S-UN 4U 48 Bays 3.5" HDD 12G SAS Single EPYC

Key Features

  • Supports Single Socket AMD EPYC™ up to 1TB DDR4 RAM

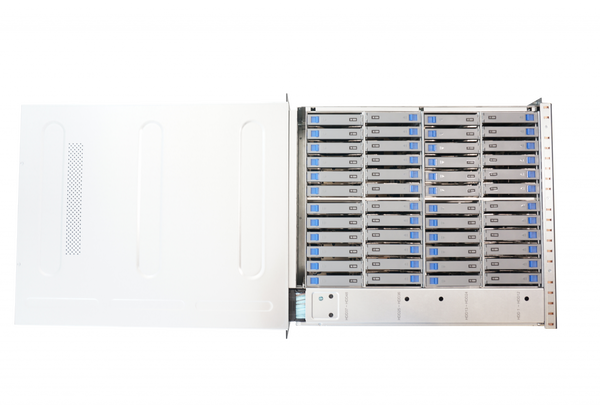

  • Supports 48 x 3.5” and 4 x 2.5” hot-swap SSD/Hard Drives in 4RU
  • Two 36 ports 12G SAS expanders for maximum throughput
  • Supports full height PCIe expansions without risers
See Datasheet

Model:

EDRAWER4048S-UN-4U-48-BAYS

EDRAWER4060S-UN

EDRAWER4048S-UN-4U-48-BAYS

Certifications:

Specification

System
Processor Supports Single Socket AMD EPYC™ up to 180W TDP socket SP3
System Memory Supports up to 16x DIMMs DDR4 RDIMM/L 2400
Storage Two 36 ports 12G SAS Expander 6 SFF8643 24 ports 12G SAS To HBA/RAID up to 19GB/s bandwidth Throughput
Driver Bays 48 hot-swap 3.5" 6G/12G SAS/SATA drive bay 4x 2.5" 7mm SATA rear hot-swap bay 2x internal 2.5" 7mm for OS drive bays
Cooling 4x 97mm exhaust blower
Expansion 4x PCI-E3.0 x16; 3x PCI-E3.0 x8
Environment
Operating Temperature 0°C ~ 35°C
Storage Temperature -20°C ~ 70°C
Relative Humidity 5% ~ 95% relative humidity, non-condensing
HTS Code 8473 30 5100
ECCN 4A994
Compliance CE, FCC Class A, RoHS 6/6 compliant
Physical
Dimension System: 34.5"x19"x7" (LxWxH) Packaging: 47.6"x 24.8"x13.6"(LxWxH)
Weights Gross: 51.78KG/114LBS; Net: 33.9KG/75LBS
