CT-AR701 ATX Industrial Motherboard With AMD AM5 Socket for EPYC™ & Ryzen™ Processors, B650 Chipset

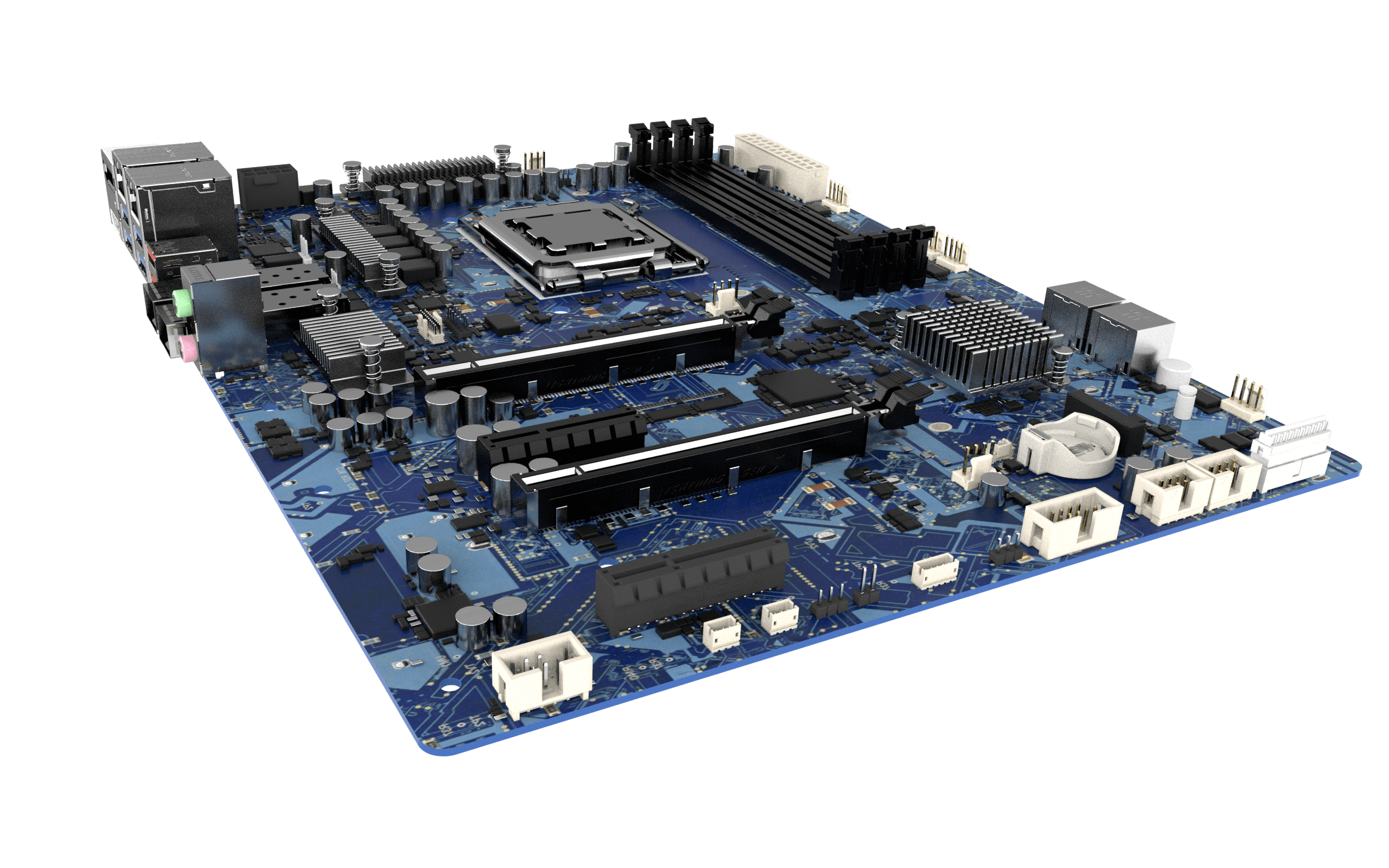

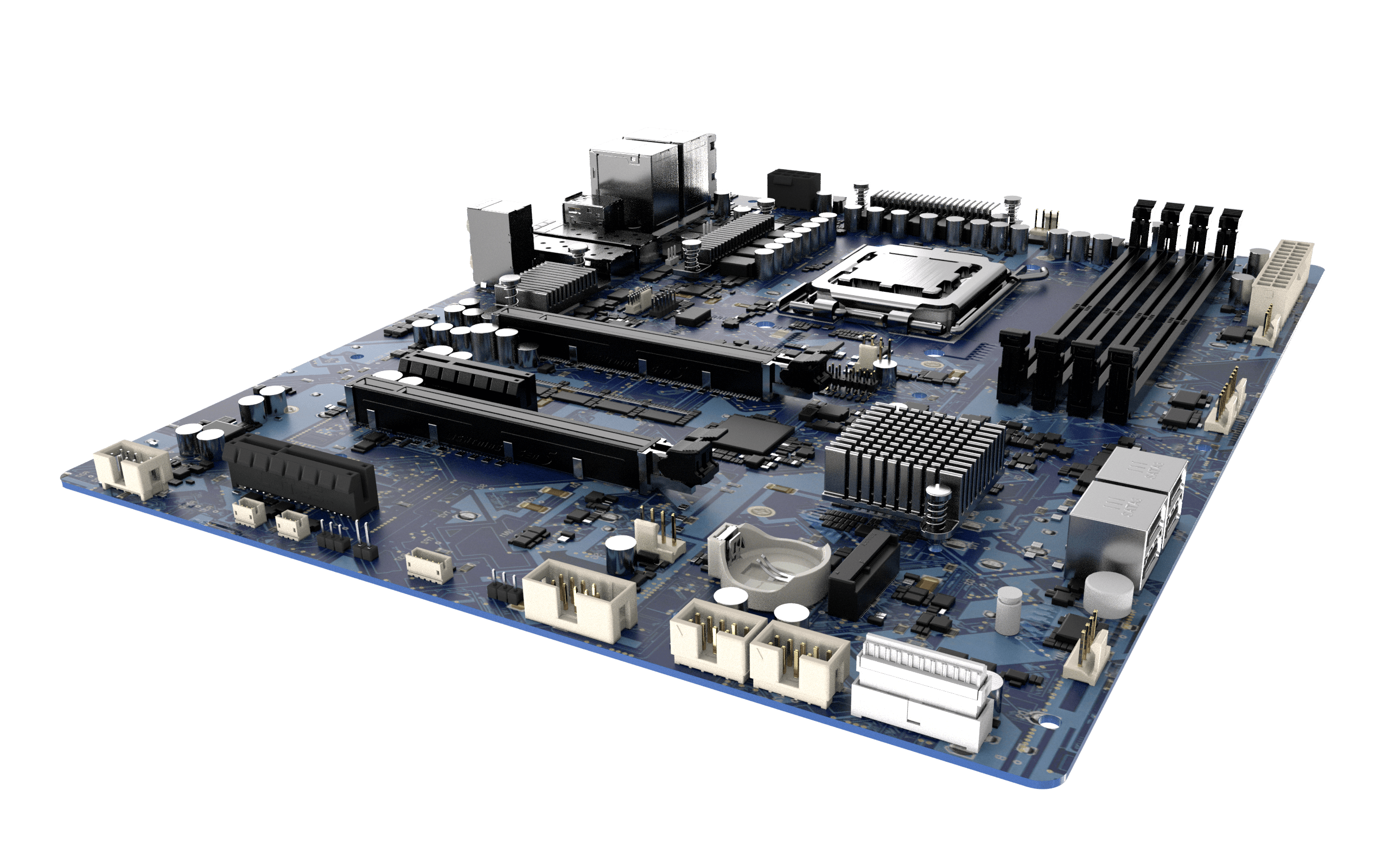

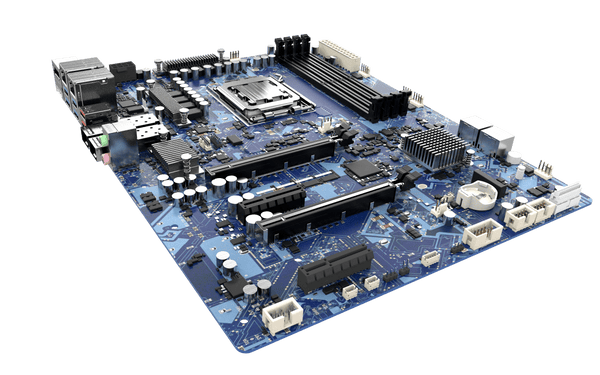

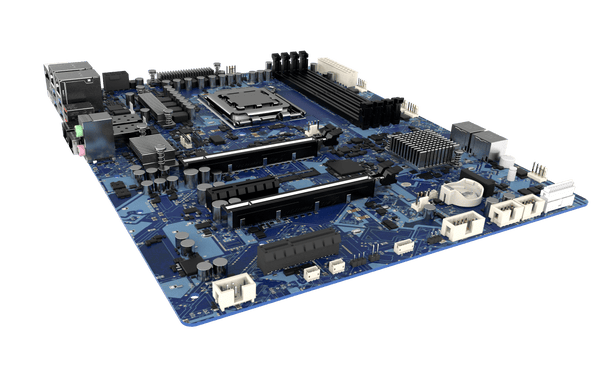

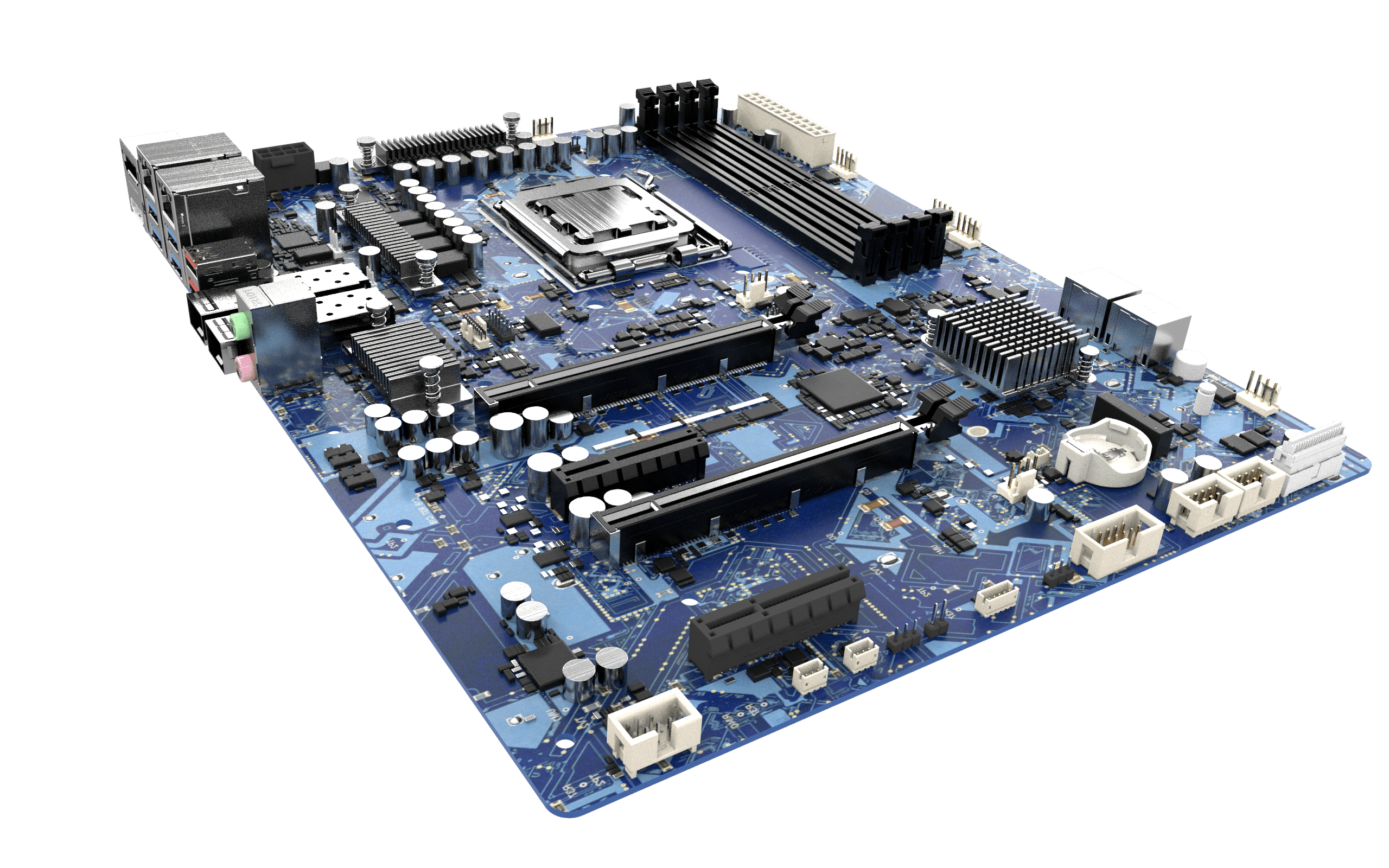

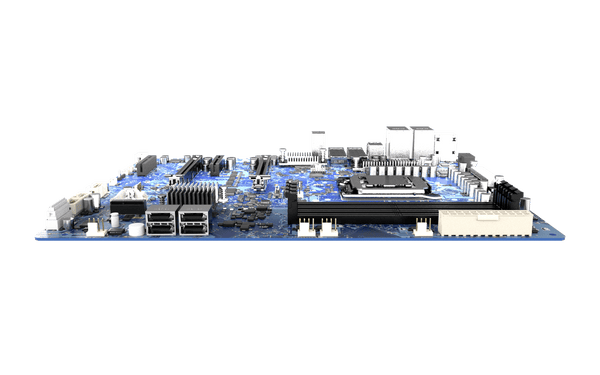

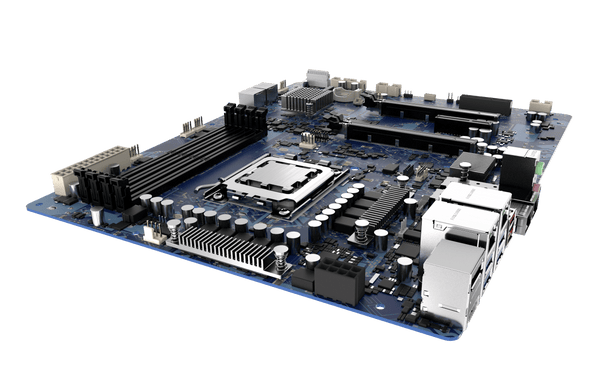

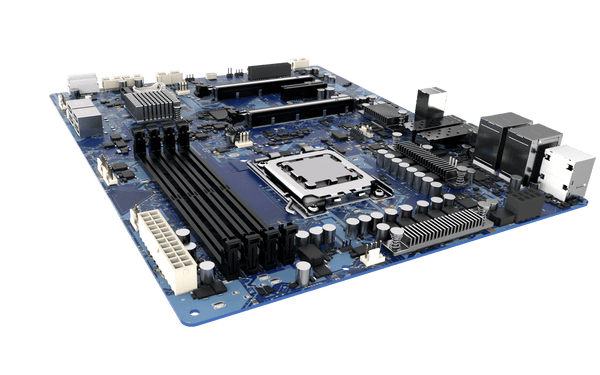

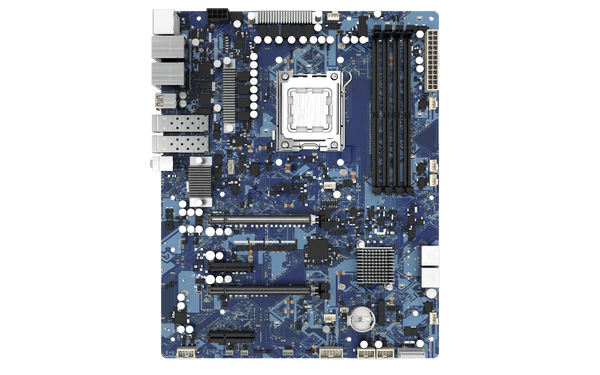

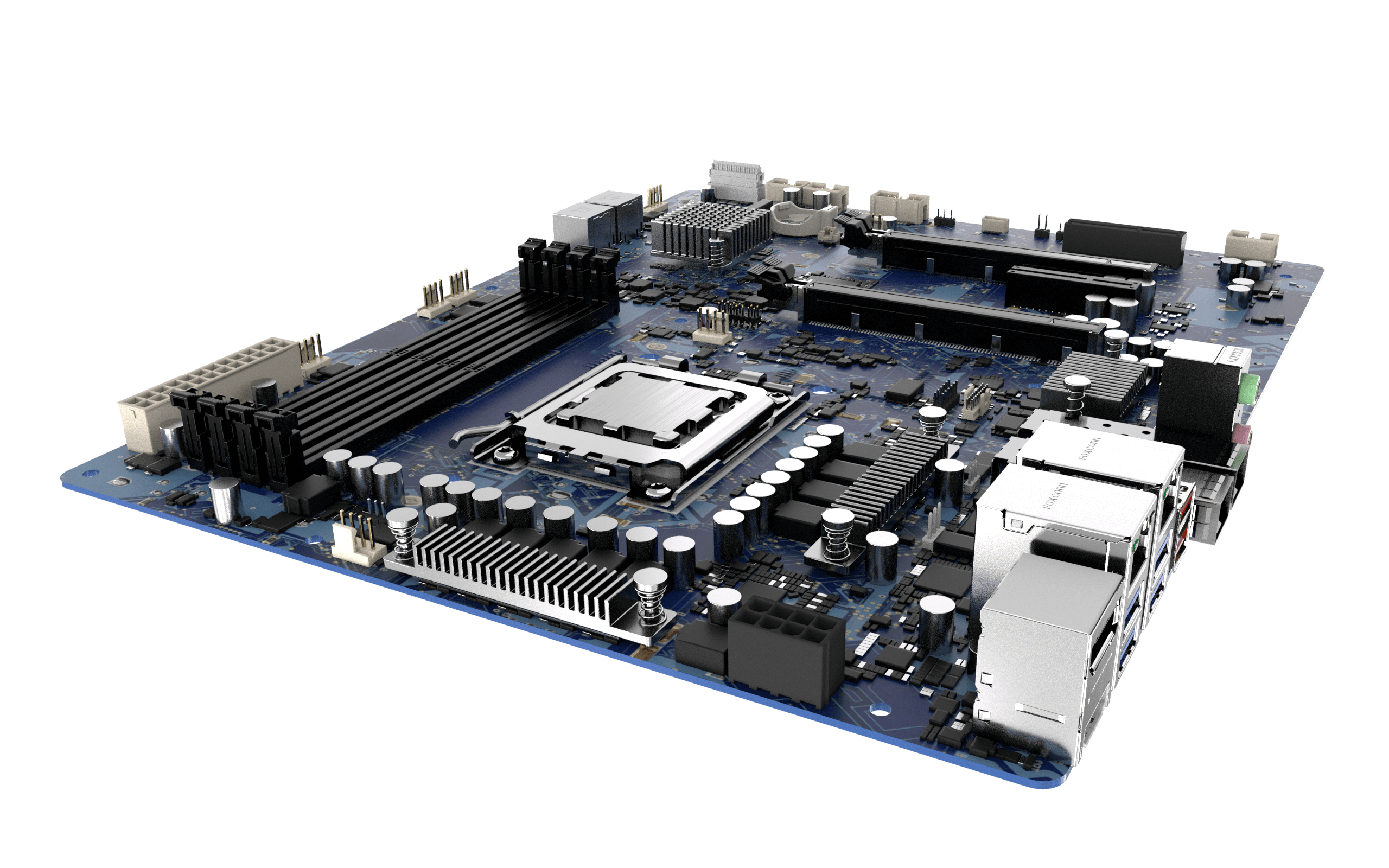

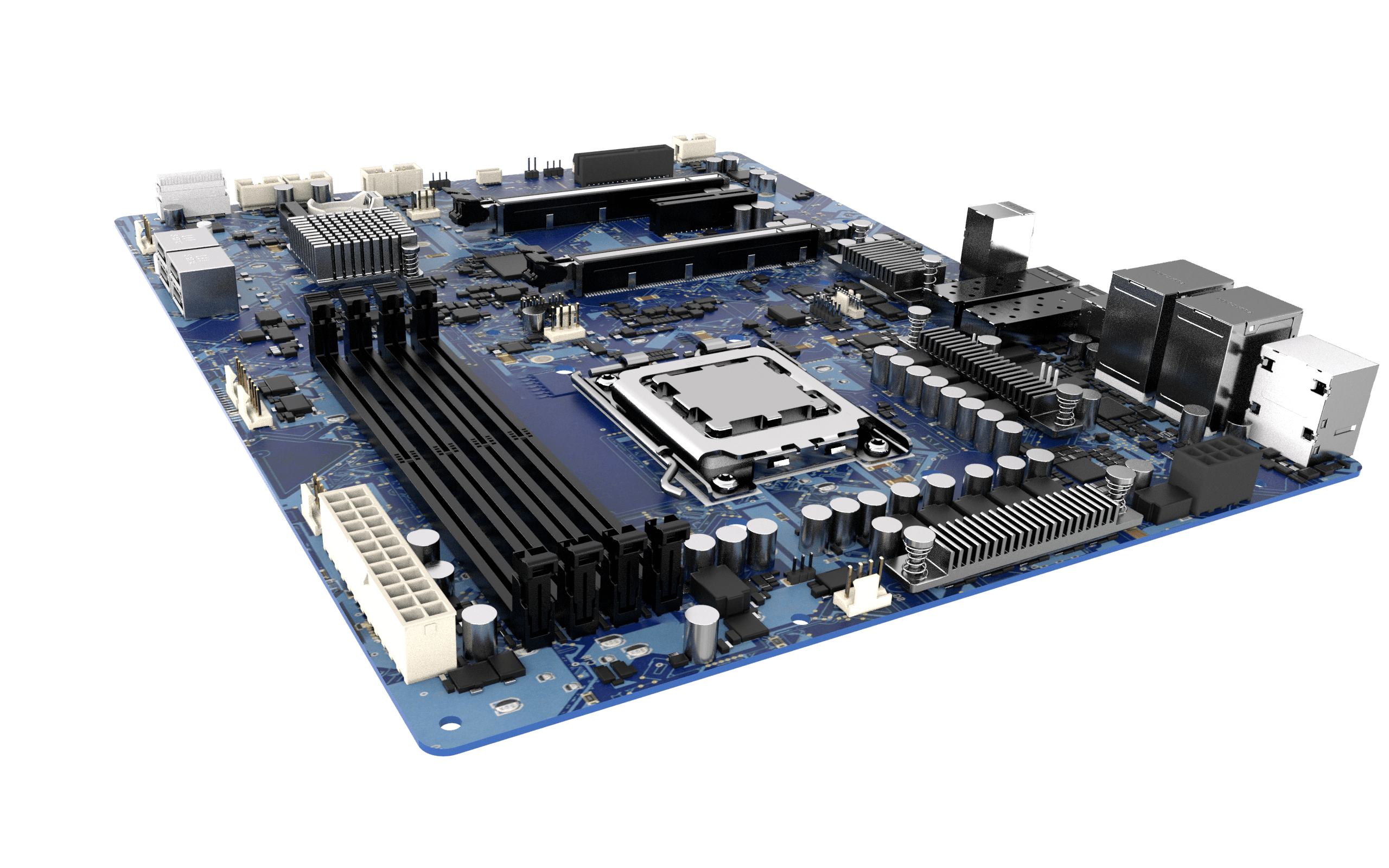

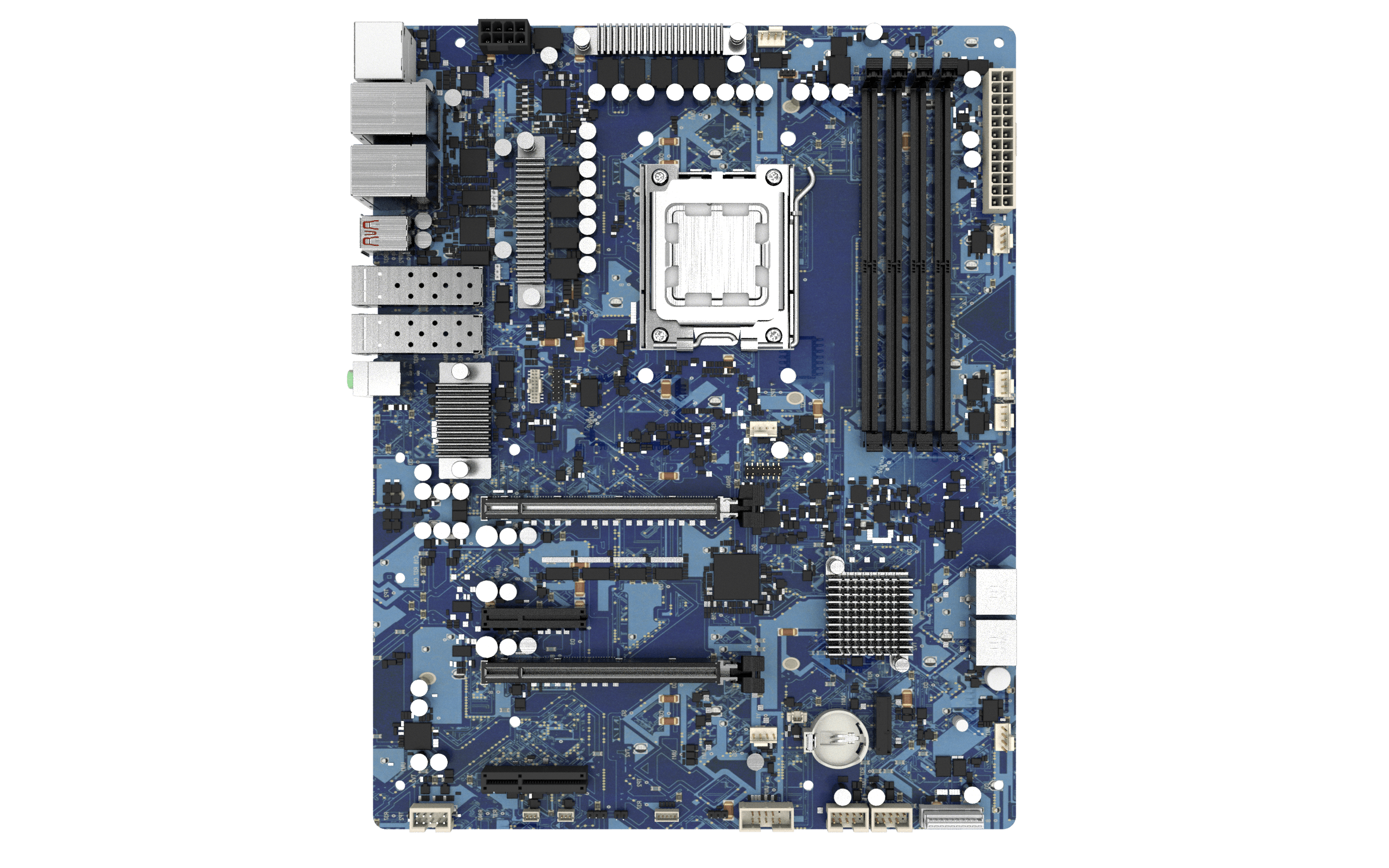

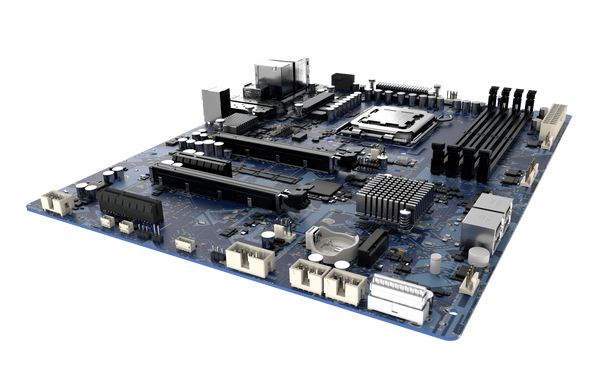

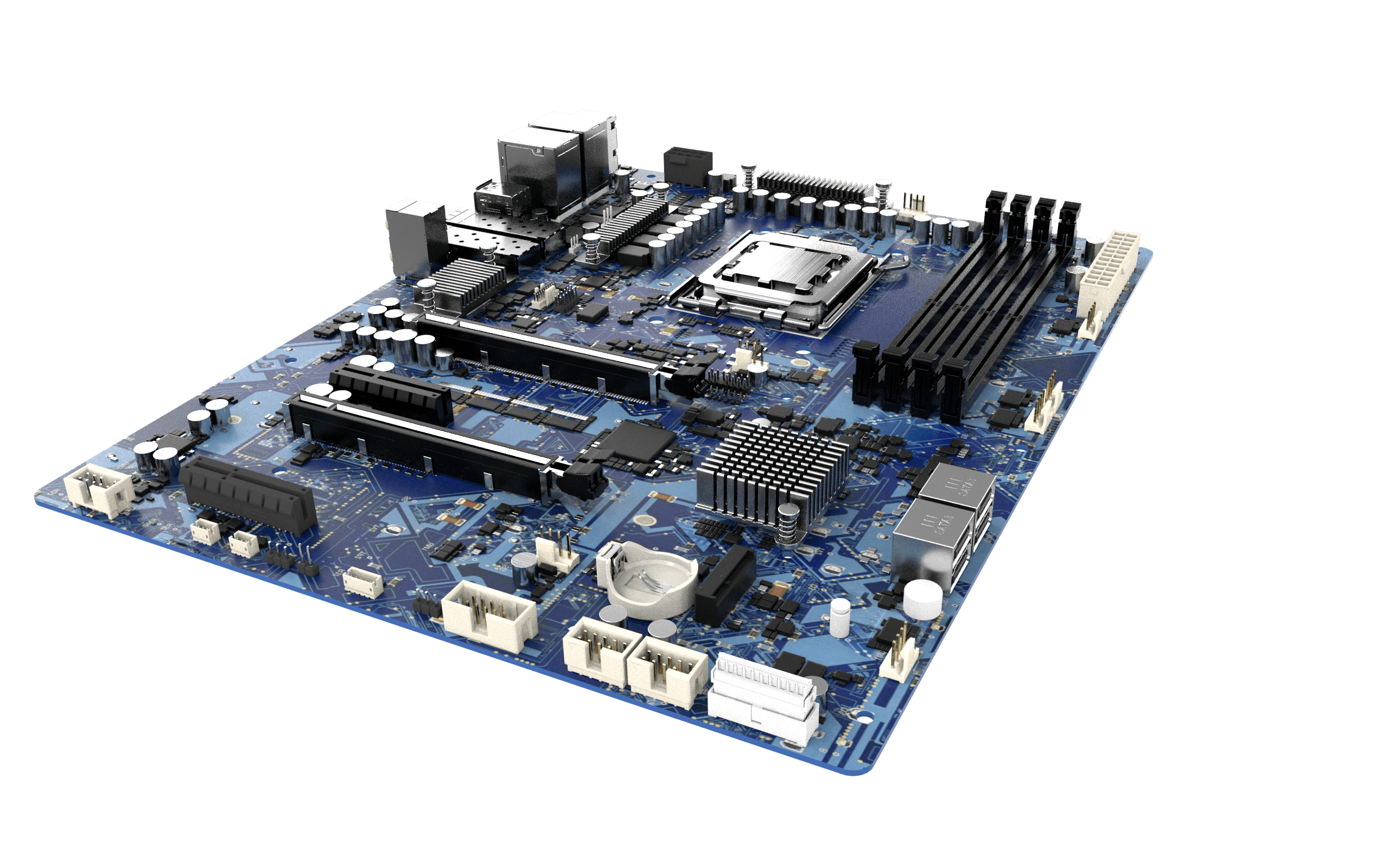

CT-AR701 ATX Industrial Motherboard With AMD AM5 Socket for EPYC™ & Ryzen™ Processors, B650 Chipset

  • Support AMD EPYC 4005/ 4004 & Ryzen™ 9000/7000 Series Desktop Processors (Max 170W TDP)
  • AMD B650 Chipset
  • 4x DDR5 UDIMM, up to 5600 MT/s, Max. 192GB (Non-ECC)
  • 2x Intel® I210AT, 2x Broadcom 10GbE LAN
  • Dual independent displays supported: DP, HDMI
  • 2x M.2 M key 2280 NVMe, 1x M.2 E key 2230
  • 2x PCIe x16 Gen 5, 1x PCIe x4 (Open End), 1x PCIe x1
  • 4x Dual SATA 3.0
  • 6x USB 3.2 Gen 2 x1 (10Gbps), 2x USB 3.2 Gen 1 x1 (5Gbps) (2x Internal), 4x USB 2.0-Ports (Internal)
  • Watchdog timer 1~255 sec. System reset
  • TPM 2.0 Supported
Datasheet
User Manual
Product Brief

Model:

CT-AR701

CT-ARL01

CT-AR701

Certifications:

Ryzen Embedded

Scalable Multi-Core Computing

High Capacity DDR5 Memory

High-Speed Networking

Flexible Expansion

Storage Expansion

Industrial I/O Connectivity

Scalable AMD Ryzen™ & EPYC™ Performance

Supporting AMD Ryzen™ 9000/7000 Series and AMD EPYC™ 4005/4004 processors, the platform delivers:

  • Up to 16 cores / 32 threads, processor dependent
  • Ryzen™ options for high-performance edge and AI workloads
  • EPYC™ options for server-oriented and multi-workload deployments
  • PCIe Gen 5 and DDR5 support for scalable system performance

High-Capacity DDR5 Memory

Equipped with 4x DDR5 5600 UDIMM slots, the CT-AR701 supports up to 192GB of system memory for demanding industrial and edge workloads.

High-Bandwidth Networking with Dual 10GbE SFP+

Powered by the Broadcom BCM57412 controller, the CT-AR701 is designed for long-distance, low-latency, and EMI-resistant data transmission.

  • 2x 10GbE SFP+ for high-speed fiber or direct-attach networking
  • 2x 1GbE RJ45 for standard copper Ethernet connectivity

PCIe Gen 5 Expansion for High-Performance Systems

Multiple PCIe slots support add-in cards, enabling integration of GPUs, AI accelerators, and other specialized expansion cards.

  • 2x PCIe x16 slots with PCIe Gen 5 supported
  • 1x PCIe x4 open end slot
  • 1x PCIe x4 (x1 Lane)

Efficient Storage for Data-Intensive Workloads

With versatile storage and wireless expansion options. The CT-AR701 delivers fast data access and reliable storage capacity.

  • 2x M.2 M-Key for PCIe NVMe storage
  • 1x M.2 E-Key for Wi-Fi and Bluetooth
  • 4x SATA 3.0 ports with RAID support

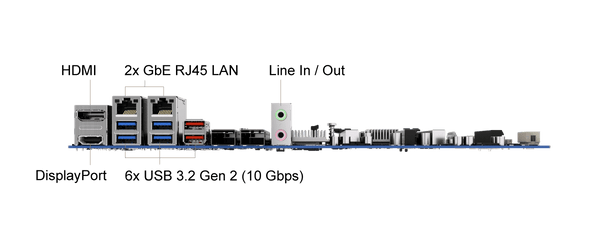

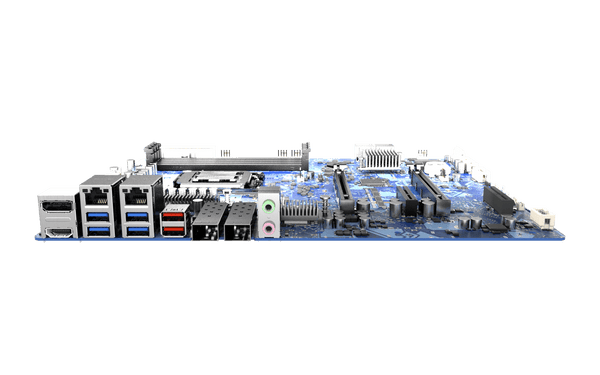

Industrial-Grade I/O for Reliable Integration

This combination supports fast communication between cameras, storage devices, sensors, network infrastructure, and other connected equipment.

  • 6x USB 3.2 Gen 2 ports with transfer speeds up to 10Gbps
  • 2x internal USB 3.2 Gen 1 and 4x internal USB 2.0 ports
  • Line-in and line-out audio connectivity

Reliable Remote Management for 24/7 Operations

Premio remote management solutions help organizations monitor, update, troubleshoot, and recover edge devices. With both in-band and out-of-band management, the CT-AR701 enables scalable visibility, remote maintenance, and hardware-level control.

Dual Independent 4K Display Outputs

Supports dual independent 4K displays for monitoring, visualization, control, and operator interface applications.

  • 1x DisplayPort 1.4a, up to 4096 x 2304 @60Hz
  • 1x HDMI 2.0, up to 4096 x 2160 @60Hz

Industrial Reliability for Long-Term Deployment

Designed for dependable operation in industrial systems and continuous edge workloads, providing:

  • Operating temperature range: 0°C to 60°C
  • CE / FCC Class B certification
  • TPM 2.0 for hardware-based security
*Barebone Pricing Only; Sales team to review component configuration and price
*Starting At: $525.00

Specifications

System
Processor Support AMD EPYC 4005/ 4004 & Ryzen™ 9000/7000 Series Desktop Processors (Max 170W TDP):
• AMD EPYC™ 4565P
• AMD EPYC™ 4564P
• AMD Ryzen™ 9 9950X
System Chipset AMD B650
LAN Chipset LAN1/2: Intel® I210AT GbE LAN
LAN3/4: Broadcom BCM57412 10GbE LAN
Audio Codec Realtek® ALC897-VA2-CG High Definition Audio Codec
System Memory 4x 288-pin Dual-Channel DDR5 UDIMM, Max. up to 192GB (Non-ECC)
• EPYC 4005 / Ryzen 9000: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC)
• EPYC 4004 / Ryzen 7000: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)
Graphics AMD Radeon Graphics
BIOS AMI UEFI 256MB SPI flash
Watchdog Software Programmable Supports 1~255 sec. System Reset
Super I/O NUVOTON NCT6126D-S
TPM TPM 2.0
Display
Display Port 1x DP 1.4a up to 4096×2304 @60Hz
HDMI 1 x HDMI 2.0, up to 4096 x 2160 @60Hz
Storage
M.2 2x M.2 M Key (2280, PCIe x2) support for NVMe
Expansion
M.2 1x M.2 E Key (2230, PCIe x1, USB 2.0) support for Wifi/Bluetooth
PCI 2 x PCIe x16 Slots Gen5/Gen4 Supported
1 x PCIe x4 open end slot
1 x PCIe x1 (PCIe x4 Slot Type)
PCIe 2 x PCIe x16 Slots Gen5 Supported
1 x PCIe x4 open end slot
1 x PCIe x1 (PCIe x4 Slot Type)
I/O
Audio 1x Line In / Out
LAN 2x 1GbE RJ45 LAN
2x 10GbE SFP+ LAN
USB 6x USB 3.2 Gen 2 x1 (10Gbps)
Internal I/O
OOB 1x OOB header
SATA 4 x SATA-3.0 Ports Right Angle Connectors
USB 4x USB 2.0 Internal 2.0 Headers
2x USB 3.2 Gen 1 x1 (5Gbps)
Operating System
Windows Windows 10/11
Linux Ubuntu 22.04 / 24.04 LTS
Power
Power Mode ATX
Power Connector 1 x 24P ATX-Power Connector
1 x 8P 12V ATX-Power Connector
Mechanical Environment
Form Factor ATX
Operating Temperature 0°C to 60°C
Storage Temperature -20°C to 80°C
Relative Humidity 10% to 90% (non-condensing)
Certification CE, FCC Class B
Physical
Dimensions 305mm x 244mm x 1.6mm

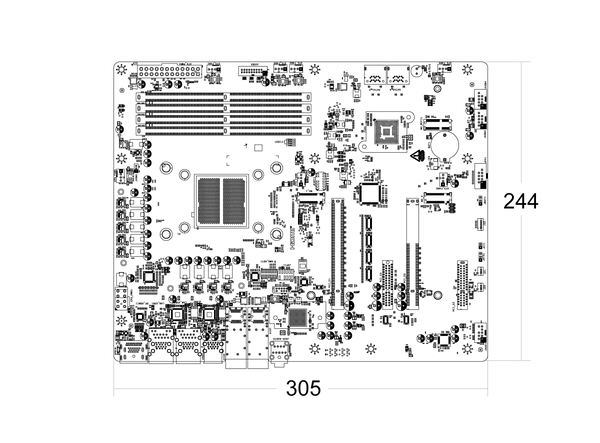

Mechanical Layout

Dimensions

Unit:mm
