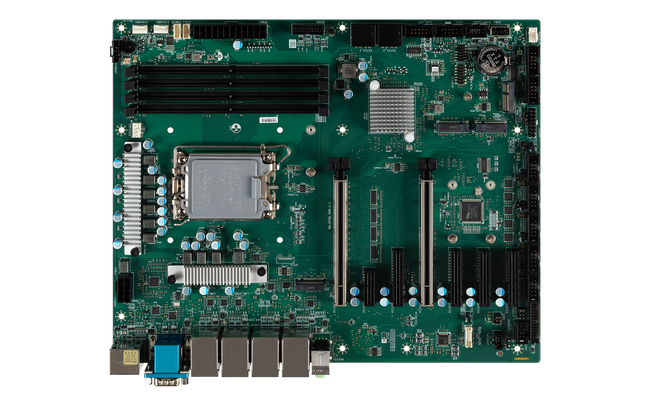

CT-ARL01 ATX Industrial Motherboard with LGA 1700 Socket Supporting 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium®, Celeron® Processor, Intel® R680E Chipset
- Intel® 14th/13th/12th Gen Raptor Lake-S/Alder Lake-S Series with R680E Chipset
- 4 DDR5 4400 MHz ECC/non-ECC UDIMM slots up to 128GB
- Triple independent displays: VGA, DP, HDMI
- 4 2.5GbE LAN with RJ-45
- 1 PCIe x16 (Gen 5) Slot or 2 PCIe x8 (Gen 5), 1 PCIe x4 (Gen 4), 3 PCIe x4 (Gen 3), 1 M.2 E key, 1 M.2 B key slots
- 2 M.2 M key, 4 SATA 3.0 for storage
- 4x SATA 3.0, RAID 0/1/5/10
- 8 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, 3 USB 2.0, 6 COM (6 RS-485), GPIO, PS/2, Audio, 3 System FAN
- Onboard TPM 2.0
- SMBus, I2C, PMBus, iAMT 16.x, Chassis Intrusion
- ATX Power
Model:
CT-ARL01
Certifications:
Specification
| System | |
|---|---|
| Processor | • 14th Gen Intel® Raptor Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 125W • 13th Gen Intel® Raptor Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 125W • 12th Gen Intel® Alder Lake-S i9/i7/i5/i3/Pentium®/Celeron® IOTG Series Processor, Max 125W |
| System Chipset | Intel® R680E Express |
| LAN Chipset | Intel® I225-LM |
| Audio Codec | Realtek® ALC897 Audio Codec (Co-lay ALC888S) |
| System Memory | • 4x 288-pin UDIMMs • Dual Channel DDR5 (ECC / non-ECC) 4400 MHz • Up to 128GB Max |
| Graphics | Intel® UHD Graphics |
| BIOS | AMI UEFI |
| Watchdog | 256-level Watchdog Timer |
| Super I/O | FINTEK F81966D-I |
| TPM | Infineon® SLB9672VU2.0 |
| Display | |
| Display Port | 1x DP (4096x2160 @60Hz) |
| HDMI | 1x HDMI (4096x2304 @60Hz) |
| Multiple Display | 3 Independent Displays |
| VGA | 1x VGA (1920x1200 @60Hz) |
| Storage | |
| SATA | 4x SATA 3.0 (RAID 0/1/5/10) |
| Expansion | |
| M.2 | • 1x M key (Signal from CPU) 2280/22110, • 1x M key (Signal Shared by PCIe Slot5) 2242/2280 • 1x E key (PCIe x1), 2230 • 1x B key (PCIe x2), 2242/2280 |
| PCIe | • 2x PCIe x16 (Signal configured as 1x PCIe x16 or 2x PCIe x8) • 4x PCIe x4 • 1x PCIe x1 |
| I/O | |
| Audio | 1x Mic-in, 1x Line-out |
| COM | • 6 x COM-Ports for COM1 ~ 6 (1 x Rear, 5 x Internal) • COM1/2 RS-232/422/485 with Ring/0V/5V/12V Auto-flow Control Supported (Default set to Ring) • COM3/4/5/6 RS-232/422/485 with 0V/5V/12V Auto-flow Control Supported |
| GPIO | 16-bits (8 x GPI; 8 x GPO), 5V |
| LAN | 4x 2.5GbE LAN |
| USB | • 8 x USB 3.2 Gen 2 x1 Ports (8 x Rear) • 2 x USB 3.2 Gen 1 Ports (2 x Internal) • 3 x USB 2.0 Ports (3 x Internal with one Vertical Type-A Connector) |
| Others | 1 x PS/2 port by Y-cable for keyboard and mouse |
| Operating System | |
| Windows | • Windows 10 IoT Enterprise 2021 LTSC (64-bit) • Windows 11 IoT Enterprise 22H2 (64-bit) |
| Linux | Linux Kernel 5.xx, Ubuntu 22.04 LTS Pre-scan |
| Power | |
| Power Mode | ATX-Power 24P, 12V-8P |
| Environment | |
| Operating Temperature | 0 ~ 60°C |
| Storage Temperature | -20 ~ 80° C |
| Relative Humidity | 10 ~ 90%, non-condensing |
| Certification | CE, FCC Class-B, DSMI, RCM, VCCI |
| Physical | |
| Form Factor | ATX |
| Dimension | 305 x 244 mm |
| Weights | 0.779 kg |
