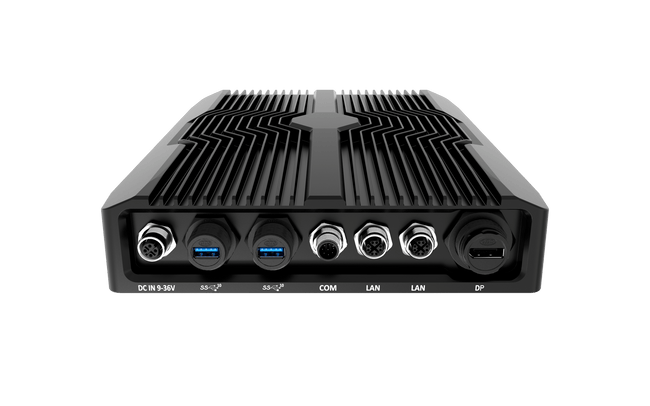

WCO-3000-EHL Advanced IP68/69K Waterproof Computer with Intel Atom® X6425E CPU, 1x DP, 2x LAN, 2x USB 3.2 Gen 2
WCO-3000-KBL-U Advanced IP65/67 Waterproof Computer with 7th Generation Intel® Core™ Mobile-U Processor

WCO-3000-KBL-U Advanced IP65/67 Waterproof Computer with 7th Generation Intel® Core™ Mobile-U Processor

SKU Alias: WCO-3400

  • Intel® 7th Gen (Kabylake-U) Processor Core™ i5-7300U, Core™ i3-7100U
  • 1x 260-pin DDR4 SODIMM. Max up to 16GB
  • Single display supported by 1x VGA (waterproof connector)
  • 2x LAN by M12 X-Code 8-pin
  • 1x RS-232/422/485 by M12 D-Code 8-pin, 1x USB 3.0 (waterproof connector), 2x USB 2.0 by M12 D-Code 8-pin
  • 1x 2.5" SATA HDD bay and 1x mSATA (shared by 1x Mini PCIe)
  • 2x Full-size mini PCIe for communication or expansion modules, 2x internal SIM socket
  • Full system IP65 level dustproof & waterproof
  • 9 to 50VDC wide range power input supporting AT/ATX mode
  • -40°C to 70°C extended operating temperature
See Datasheet

Model:

WCO-3000-KBL-U

WCO-3000-EHL

WCO-3000-KBL-U

Certifications:

Intel Partner
AWS Greengrass IoT

This model is built-to-order only with a minimum order quantity

* Estimated Total Only; Sales team to review component configuration and price
Starting At: $0.00

*All specifications are subject to change without notice. Please contact us for exact offers. Products may not be available in all markets.

Specification

System
Processor 7th Gen Intel® Core™ i5-7300U Processor,

Dual Core, 3MB Cache, up to 3.5 GHz

7th Gen Intel® Core™ i3-7100U Processor,

Dual Core, 3MB Cache, 2.4 GHz
System Chipset SoC integrated
LAN Chipset GbE1: Intel® I219LM (Support Wake-on-LAN and PXE)

GbE2: Intel® I210-AT (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S
System Memory 1x 260-Pin DDR4 1866/2133MHz SODIMM. Max. up to 16GB

8GB DDR4 1866/2133MHz SODIMM (IP-67 Model)
BIOS AMI 128Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 Sec. System Reset
Display
Multiple Display Single Display
VGA 1x VGA
Storage
mSATA 1x mSATA shared by 1x Mini PCIe (IP65 Model)
SSD/HDD 1x Internal 2.5" SATA HDD Bay (IP65 Model)

1 x 256GB 2.5" SATA SSD (IP67 Model)
Expansion
SIM Socket 2x Internal SIM socket
Mini PCIe 2x Full-size Mini PCIe

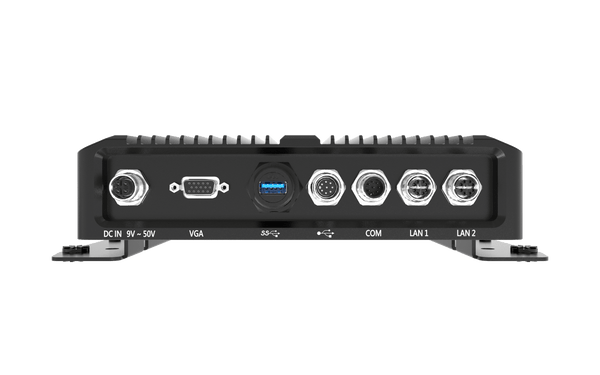

I/O
COM 1x RS-232/422/485 by M12 D-Code 8-pin
LAN 2x LAN by M12 X-Code 8-pin
USB 1x USB 3.0 (Waterproof connector)

2x USB 2.0 by M12 D-Code 6-pin
Others 2x WiFi Antenna

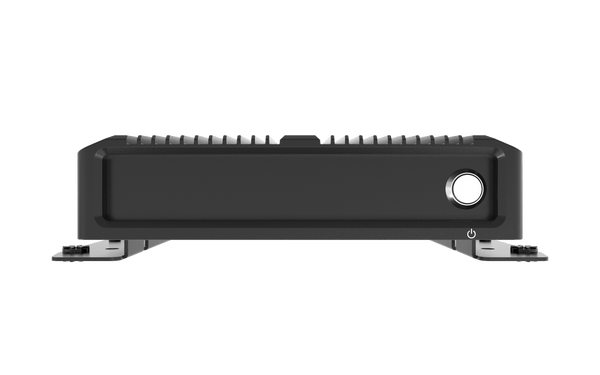

1x Power Switch
Operating System
Windows Windows 10
Linux Linux kernel 4.X
Power
Power Adapter Optional AC/DC 12V/5A, 60W
Optional waterproof power input cable
Power Mode ATX
Power Supply Voltage 9~50VDC
Power Connector M12 A-code 4-pin
Power Protection OVP (Over Voltage Protection)
OCP (Over Current Protection)
Reverse Protection
Environment
Operating Temperature -40°C to 70°C
Storage Temperature -40°C to 85°C
Relative Humidity 10% to 95% (non-condensing)
Certification IP65 or IP67
CE, FCC Class A
Vibration with SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis

with HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock Shock with SSD: 50G, half sine, 11ms
Physical
Dimension 231 (W) x 292 (D) x 56.5 (H) mm
Construction Extruded Aluminum with Heavy Duty Metal
Mounting Options Wall Mounting

Mechanical Layout

Product Dimension

Unit:mm
