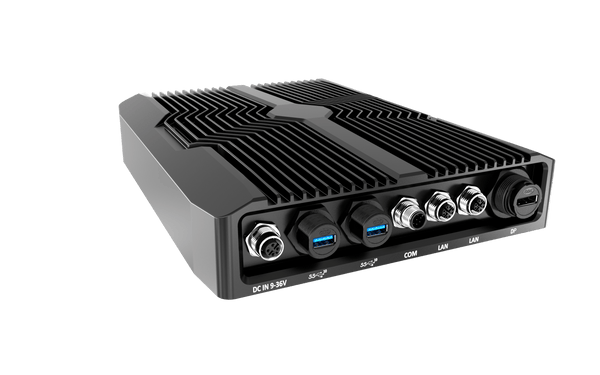

WCO-3000-EHL Advanced IP68/69K Waterproof Computer with Intel Atom® X6425E CPU, 1x DP, 2x LAN, 2x USB 3.2 Gen 2

  • Support Intel Atom® x6425E Processor
  • 1x 260-pin DDR4 SODIMM. Max up to 32GB
  • Single display supported by 1x Real 4K DisplayPort
  • 2x LAN by M12 X-Code (2.5GbE and 1GbE)
  • 1x RS-232/422/485 by M12 A-Code, 2x USB 3.2 Gen 2 (waterproof connector)
  • 1x 2.5" SATA HDD bay and 1x mSATA (shared by 1x Mini PCIe)
  • 1x Full-size mini PCIe for communication or expansion modules, 2x Internal SIM socket
  • Full system IP68/69K level dustproof & waterproof
  • 9 to 36VDC / 48 to 110VDC wide range power input supporting AT/ATX mode
  • -40°C to 60°C extended operating temperature
  • TPM 2.0 Supported
  • Edge AI Ready with Hailo-8™ (26 TOPS / 2.5W)
See Datasheet

Certifications:

Intel Partner


Rugged Fanless

Wide Temperature

Shock And Vibration Resistance

TPM 2.0 Security Module

IP68 / IP69K Waterproof

Embedded Long-life Cycle

Built Rugged, Built Ready

The WCO-3000-EHL Series is built to withstand harsh environments while maintaining high performance and industrial-grade reliability.

  • Wide Temperature Range: -40°C to 60°C
  • 50G Shock & 5Grms Vibration (MIL-STD-810G Compliance)
  • Wide Voltage Input: 9VDC-36VDC Input
  • CE, FCC Safety Certifications

IP68 & IP69K Dust and Water Protection

The WCO-3000-EHL can support IP68 and IP69K ratings.

  • IP68: Protected against full water immersion beyond 1m up to 30 mins (More suitable for devices used in water-related activities.)
  • IP69K: Totally dust-tight and be protected against high-temperature, high-pressure water jet sprays

Smart City

Smart Agriculture

Digital Signage

Food Processing

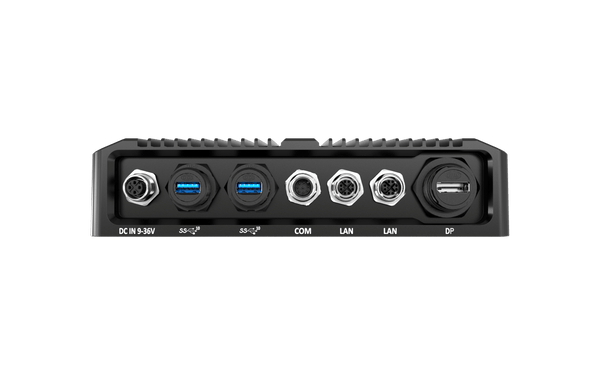

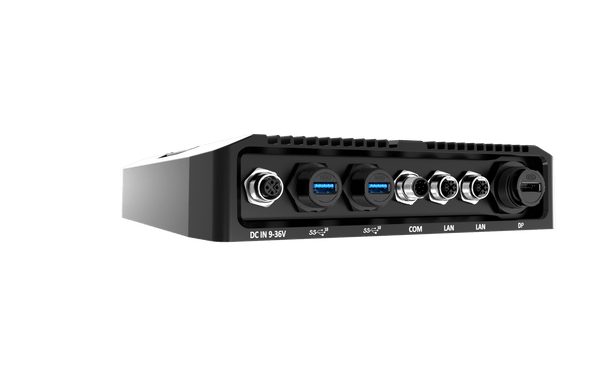

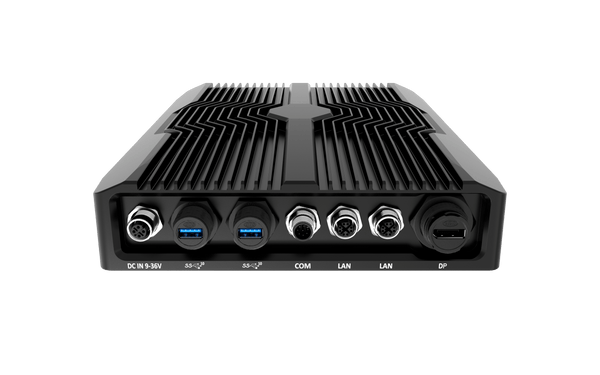

High-Speed I/O Ports And 4K Display

The WCO-3000-EHL supports high-speed I/O ports with M12 connectors for more demanding IIoT edge applications.

  • 1x 2.5Gb Ethernet for low-latency real-time connectivity
  • 2x USB 3.2 Gen 2 (10 Gbps) for improved data transfer rate
  • 1x True 4K Dual Independent DisplayPort

Edge AI Ready with Hailo AI Acceleration

WCO-3000-EHL is compatible with a small form factor, power-efficient Hailo-8™ AI acceleration module to deliver high-performance real-time AI processing with low power consumption.

  • Up to 26 TOPS
  • Low-power efficiency (2.5W)

Mobile IoT Connectivity Ready

WCO-3000-EHL features a Dual-SIM socket compatible with 5G cellular connectivity through a modular add-in card.

  • 5G/4G LTE support with major North America cellular carriers like AT&T, T-Mobile, and Verizon
  • Supports Multiple SIM Cards
  • Wi-Fi, and Bluetooth

Intelligent Transportation Ready

The WCO Series implements essential on-board I/O specific for automation and transportation deployment applications.

  • Optional CAN Bus headers for communication with other modules and network devices
  • Optional Power Ignition Management for ignition sensing and management
* Barebone Pricing Only; Sales team to review component configuration and price
*Starting At: $1,042.00

Specification

System
Processor Supports 11th Gen Intel® Atom® Processors X Series (Elkhart Lake)
- Intel® Atom® Processor x6425E, Quad Core, 1.5 MB Cache, 1.8 GHz, 12W TDP
System Chipset SoC integrated
LAN Chipset 1 GbE1: Intel I210 (Support Wake-on-LAN and PXE)
2.5 GbE2: Intel I225 (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S
System Memory 1x 260-Pin DDR4 2400/2667/3200MT/s SODIMM.
Max. up to 32 GB (non-ECC)
Graphics Intel® UHD Graphics
BIOS AMI 256Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 sec. System Reset
AI Accelerator Supports 1x Hailo-8™ module
TPM TPM 2.0
Display
Display Port 1x DisplayPort 1.4, DP++ (4096 x 2160@60Hz) or 1x HDMI (Optional)
Multiple Display Single Display
Storage
mSATA 1x mSATA shared by 1x Mini PCI Express
SSD/HDD 1x Internal 2.5" SATA HDD Bay
Expansion
M.2 1x M.2 (B Key, 3042/3052, PCIe x 1 + USB 3.2 Gen2,
Support 4G/5G/Hailo AI Module)
SIM Socket 2x Internal SIM socket
Mini PCIe 1x Full-size Mini PCIe

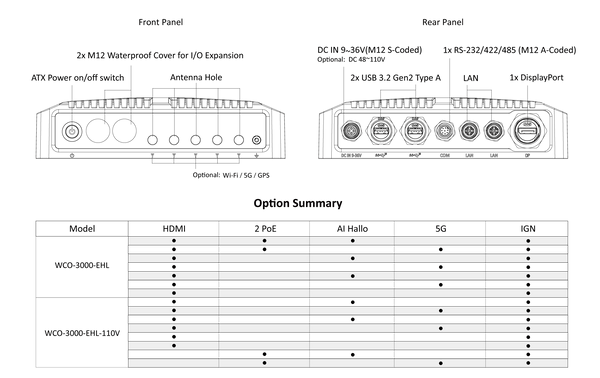

I/O
Audio Internal 1x Mic-in, 1x Line-out
CAN 2x CAN 2.0 A/B 2-pin Internal header
COM 1x RS-232/422/485 by M12 A-Code
LAN 2x RJ45 by M12 X-Code
Universal I/O Bracket 2x M12 Waterproof Cover for I/O Expansion
USB 2x USB 3.2 Gen 2 Type A (Waterproof)
Others 5x WiFi Antenna Holes
1x Power Switch
1x AT/ATX Switch, Internal
1x Remote Power On/Off, Internal
1x Internal CMOS Battery Cable
Operating System
Windows Windows 10
Linux Linux kernel 5.X
Power
Power Adapter Optional AC/DC 12V/5A, 60W
Optional AC/DC 12V/6.67A, 80W for PoE
Power Mode AT, ATX
Power Ignition Sensing Power Ignition Management (Optional)
Power Supply Voltage DC IN 9~36V
DC IN 48~110V, Optional
Power Connector M12 S-Code 4-Pin
Power Protection OVP (Over Voltage Protection)
OCP (Over Current Protection)
Reverse Protection
Environment
Operating Temperature -40°C to 60°C
Storage Temperature -40°C to 85°C
Relative Humidity 10% to 95% (non-condensing)
Certification CE, FCC Class A, IP68, IP69K
Vibration IEC60068-2-64:2008
With HDD: 1 Grms (5 - 500 Hz, 0.5 hr/axis)
With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis)
Designed to comply with MIL-STD-810G Method 514.7 Procedure I
Shock IEC60068-2-27:2008
With SSD: 50G half-sin 11ms
Designed to comply with MIL-STD-810G Method 516.7 Procedure I
Physical
Dimension 231 (W) x 292 (D) x 57 (H) mm
Construction Extruded Aluminum with Heavy Duty Metal
Mounting Options Wall Mounting

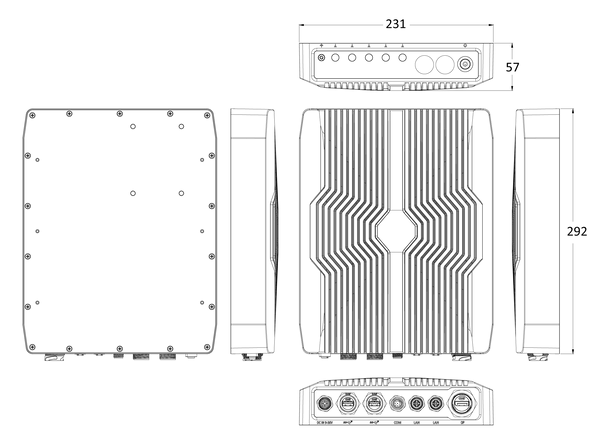

Mechanical Layout

Product Dimension

Unit:mm
