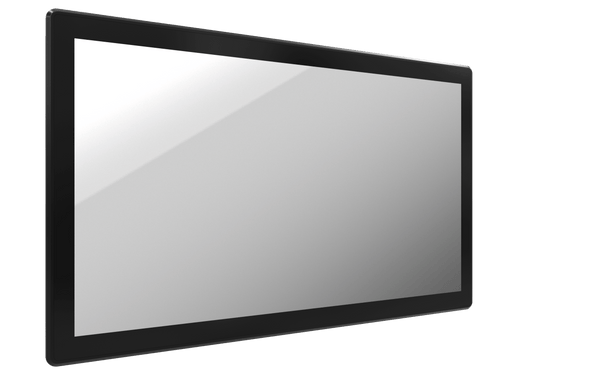

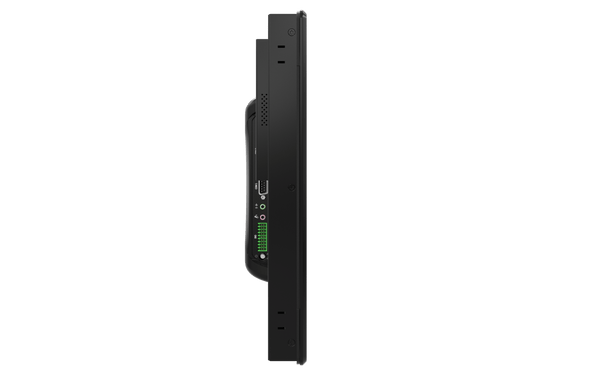

VIO-W221-PC100-EHL 21.5" Full HD Resistive / Capacitive Touch Thin Frame Industrial Touchscreen Computer with Intel® Celeron® J6413

21.5" TFT Full HD 16:9 LCD with resistive 5-wire / projected capacitive touch
Intel® Celeron® Processor J6413
1x 260-pin DDR4 SODIMM. max up to 32GB
1x 2.5" SATA HDD bay, 1x mSATA, 2x SIM socket
1x Full-size Mini PCIe (USB 2.0, SATA)
2x LAN, 1x DP, 1x HDMI
6x RS-232/422/485 (w/ 2x internal)
2x USB 3.2 Gen 2, 2x USB 2.0
8x DI + 8x DO with isolation
9 to 36VDC wide range power input
0°C to 50°C extended operating temperature
Designed with aluminum die-casting front frame
IP65 compliant front panel / Fanless Industrial Display Computer
Two 10W internal speakers built-in
Multi-language OSD built-in
1x Universal I/O Bracket for 2x COM Expansion (PC100-EHL-1E Model)
Edge AI Ready with Hailo-8™ (26 TOPS / 2.5W)
UL Listed

See Datasheet

Model:

VIO-W221-PC100-EHL

VIO-212-PC100-EHL

VIO-215-PC100-EHL

VIO-217-PC100-EHL

VIO-219-PC100-EHL

VIO-W215-PC100-EHL

VIO-W221-PC100-EHL

VIO-W224-PC100-EHL

Certifications:

Fanless & Cable-less

PCAP/Resistive Touch

Modular Design

Wide Temperature

Shock And Vibration Resistance

TPM 2.0 Security Module

Powered by Intel® Celeron® Processor J6413

The PC100-EHL delivers reliable performance for industrial applications using the Intel Celeron Processor J6413.

Efficient Performance
Low Power Consumption
Enhanced Security with TPM 2.0 Support
Optimal Productivity
Reliable Processing

Advanced Expansion with M.2 Capability

The PC100-EHL series boosts its capabilities with M.2 slot, enabling advanced expansions for Hailo AI modules for AI and machine learning, 5G modules for fast, low-latency communication essential in IoT, and SSDs for quick, reliable data storage.

1x M.2 (E Key, PCIe x1, USB 2.0)
1x M.2 (B Key, PCIe x2 + USB 3.2 Gen1)

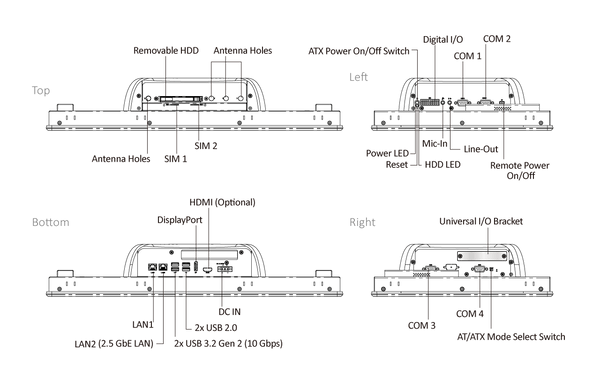

Universal Bracket Expansion

The PC100-EHL module provides a universal I/O expansion to provide maximum connectivity

4x COM RS-232/422/485 (Standard)
2x COM RS-232/422/485 (Bracket Expansion)

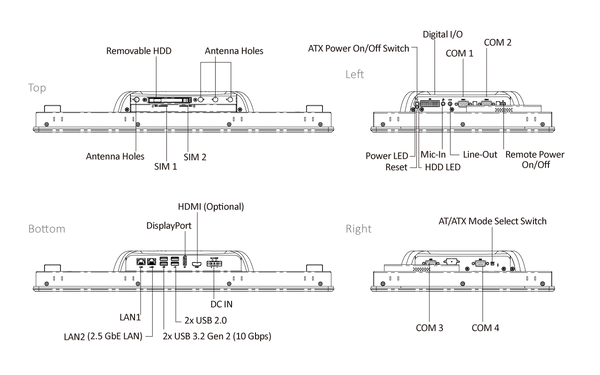

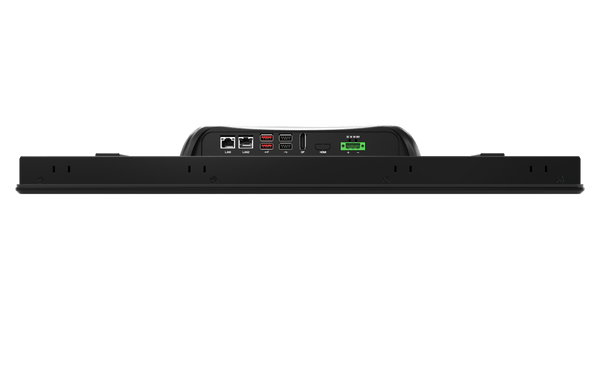

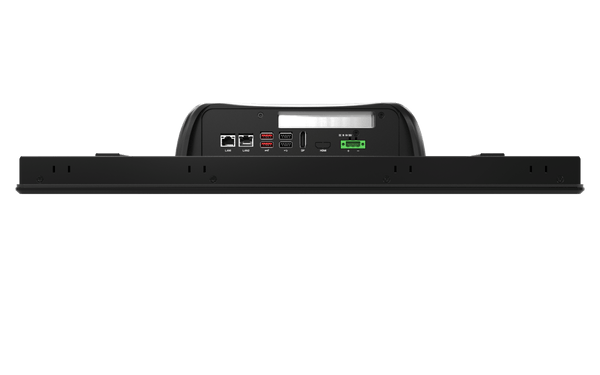

I/O Connectivity

The PC100-EHL integrates seamlessly into existing systems with a variety of ports and expansion options:

2x LAN for robust networking
Rich I/O with 6x COM, 2x USB 3.2, and 2x USB 2.0 ports
8x DI + 8x DO with isolation for secure signal transmission
PCIe x4 Lane

PCIe x4 Expansion

* Barebone Pricing Only; Sales team to review component configuration and price

*Starting At: $0.00

Configure Product
See Product Features

Specification

Display
IP Rating	IP65
LCD Size	21.5" (16:9)
Max. Resolution	1920 x 1080 (Full HD)
Brightness (cd/m²)	500 / 1000 (Optional)
Contrast Ratio	1000:1
LCD Color	16.7M
Pixel Pitch (mm)	0.248(H) x 0.248(V)
Viewing Angle	178/178
Backlight MTBF	30000 hrs (LED Backlight)
Touch Type	Resistive 5-Wire Projective Capacitive
System
Processor	Intel® Celeron® J6413 Processor Quad core (1.5M Cache,1.8GHz up to 3.00 GHz) FC-BGA16F, Tray 10W
System Chipset	SoC Integrated
LAN Chipset	GbE1: Intel® I210 (Support Wake-on-LAN and PXE) 2.5 GbE2: Intel® I225 (Support Wake-on-LAN and PXE)
Audio Codec	Realtek ALC888S
System Memory	1x 260-Pin DDR4 2400/2667/3200MT/s SODIMM. Max. up to 32 GB
BIOS	AMI 128Mbit SPI BIOS
TPM	TPM 2.0
Watchdog	Software Programmable Supports 1~255 sec. System Reset
AI Accelerator	Supports 1x Hailo-8™ module
Storage
M.2	1x M.2 (E Key, PCIe x1, USB 2.0, 2230) 1x M.2 (B Key, PCIe x2 + USB 3.2 Gen1, 2242/3042/3052)
mSATA	1x mSATA
SIM Socket	2x External SIM socket
SSD/HDD	1x Removable 2.5" SATA HDD Bay
Expansion
Mini PCIe	1x Full-size Mini PCIe (USB 2.0, SATA)
PCIe	PC100-EHL-1E: 1x PCIe x4 (1-lane)
I/O
Audio	1x Mic-in, 1x Line-out
CAN	2x CAN 2.0 A/B 2-pin Header (Internal)
COM	4x RS-232/422/485 2x RS-232/422/485 (internal)
DIO	8 in / 8 out (Isolated)
LAN	2x RJ45
Universal I/O Bracket	PC100-EHL-1E : 1x Universal I/O Bracket (By mini PCIe interface)
USB	2x USB 3.2 Gen 2 (10 Gbps) 2x USB 2.0
DP	1x DisplayPort 1.2 (4096 x 2160@60Hz)
HDMI	1x HDMI 2.0b (4096 x 2160@60Hz) (Optional)
Others	4x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off 1x DB9 Cutting Hole
Optical Bonding	Optional, contact us for more information
Others Features
Speaker	AMP 10W + 10W
OSD	LCD On/Off, Auto, Menu, Up and Down Multi-language
Operating System
Windows	Windows 10, Windows 11
Linux	Linux kernel 5.X
Power
Power Adapter	Optional AC/DC 12V/5A, 60W
Power Management	Power Ignition Management (Optional Module)
Power Mode	AT, ATX
Power Supply Voltage	9~36 VDC
Power Connector	3-Pin Terminal Blcok
Power Protection	OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection
Environment
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Relative Humidity	10%~80% (non-condensing)
IP Level	IP 65 Compliant Front Panel
Certification	UL 62368 Ed. 3, CE, FCC Class A
Vibration	With SSD: 1.5 Grms, 5 - 500 Hz, 0.5 hr/axis With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock	With SSD: 20G, half sine, 11ms
Physical
Dimension	VIO-W221-PC100-EHL: 527.5 (W) x 323 (D) x 71 (H) mm VIO-W221-PC100-EHL-1E: 527.5 (W) x 323 (D) x 93 (H) mm
Weights	VIO-W221-PC100-EHL, Resistive Touch: 7.92 kg VIO-W221-PC100-EHL, Capacitive Touch: 8.11 kg VIO-W221-PC100-EHL-1E, Resistive Touch: 8.17 kg VIO-W221-PC100-EHL-1E, Capacitive Touch: 8.22 kg
Mounting Options	VESA Mounting Holes 75 x 75mm, 100 x 100mm

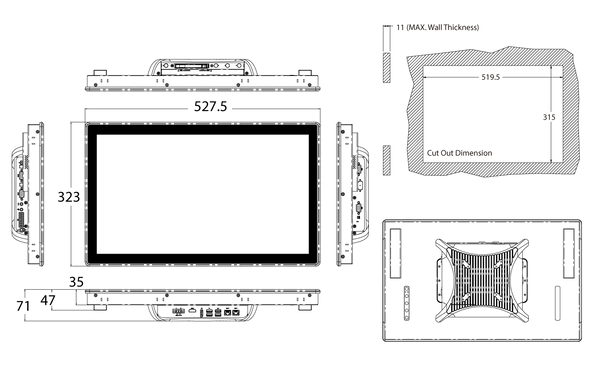

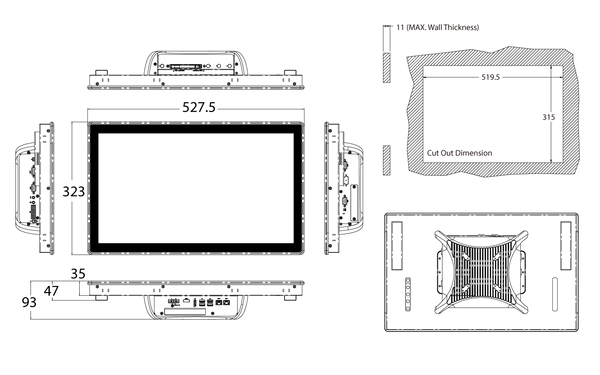

Mechanical Layout
