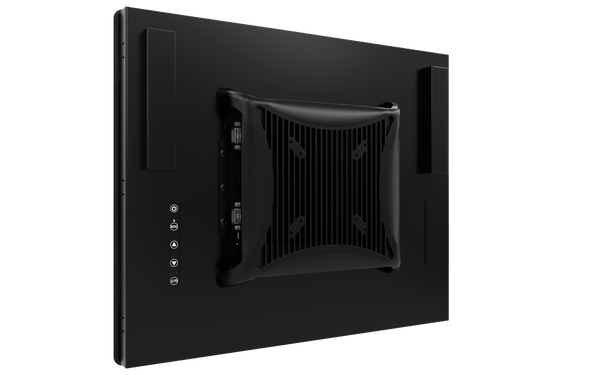

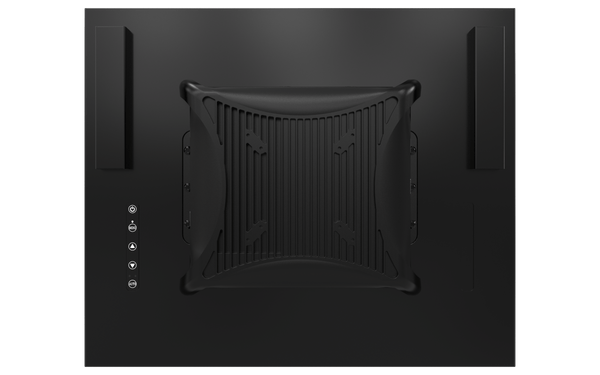

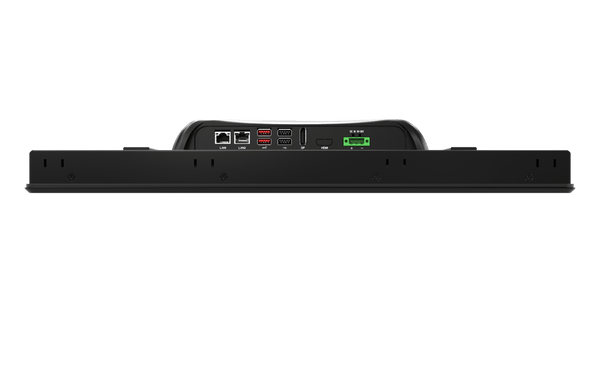

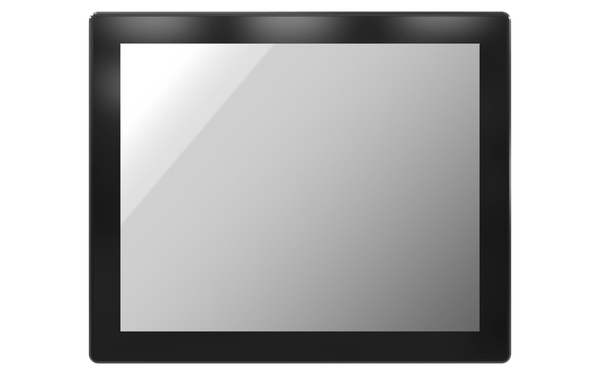

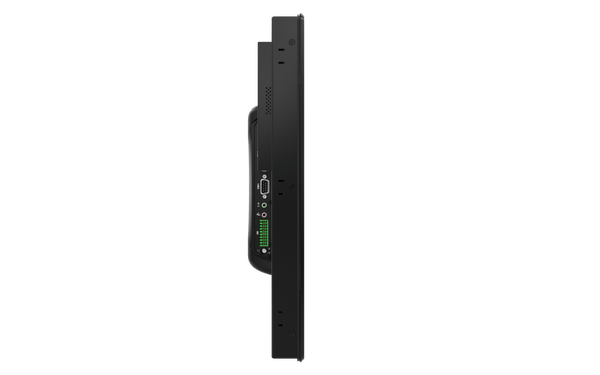

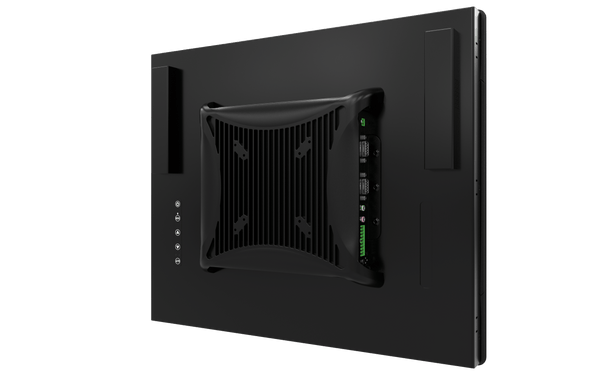

VIO-219-PC100-EHL 19" SXGA Resistive / Capacitive Touch Thin Frame Industrial Touchscreen Computer with Intel® Celeron® J6413

  • 19" TFT SXGA 4:3 LCD with resistive 5-wire / projected capacitive touch
  • Intel® Celeron® Processor J6413
  • 1x 260-pin DDR4 SODIMM. max up to 32GB
  • 1x 2.5" SATA HDD bay, 1x mSATA, 2x SIM socket
  • 1x Full-size Mini PCIe (USB 2.0, SATA)
  • 2x LAN, 1x DP, 1x HDMI
  • 6x RS-232/422/485 (w/ 2x internal)
  • 2x USB 3.2 Gen 2, 2x USB 2.0
  • 8x DI + 8x DO with isolation
  • 9 to 36VDC wide range power input
  • 0°C to 50°C extended operating temperature
  • Designed with aluminum die-casting front frame
  • IP65 compliant front panel / Fanless Industrial Display Computer
  • Two 10W internal speakers built-in
  • Multi-language OSD built-in
  • 1x Universal I/O Bracket for 2x COM Expansion (PC100-EHL-1E Model)
  • Edge AI Ready with Hailo-8™ (26 TOPS / 2.5W)
  • UL Listed
See Datasheet

Certifications:

Intel Partner


Fanless & Cable-less

PCAP/Resistive Touch

Modular Design

Wide Temperature

Shock And Vibration Resistance

TPM 2.0 Security Module

Powered by Intel® Celeron® Processor J6413

The PC100-EHL delivers reliable performance for industrial applications using the Intel Celeron Processor J6413.

  • Efficient Performance
  • Low Power Consumption
  • Enhanced Security with TPM 2.0 Support
  • Optimal Productivity
  • Reliable Processing

Advanced Expansion with M.2 Capability

The PC100-EHL series boosts its capabilities with M.2 slot, enabling advanced expansions for Hailo AI modules for AI and machine learning, 5G modules for fast, low-latency communication essential in IoT, and SSDs for quick, reliable data storage.

  • 1x M.2 (E Key, PCIe x1, USB 2.0)
  • 1x M.2 (B Key, PCIe x2 + USB 3.2 Gen1)

Universal Bracket Expansion

The PC100-EHL module provides a universal I/O expansion to provide maximum connectivity

  • 4x COM RS-232/422/485 (Standard)
  • 2x COM RS-232/422/485 (Bracket Expansion)

I/O Connectivity

The PC100-EHL integrates seamlessly into existing systems with a variety of ports and expansion options:

  • 2x LAN for robust networking
  • Rich I/O with 6x COM, 2x USB 3.2, and 2x USB 2.0 ports
  • 8x DI + 8x DO with isolation for secure signal transmission
  • PCIe x4 Lane

PCIe x4 Expansion

* Barebone Pricing Only; Sales team to review component configuration and price
*Starting At: $0.00

Specification

Display
IP Rating IP65
LCD Size 19" (4:3)
Max. Resolution 1280 x 1024 (SXGA)
Brightness (cd/m²) 350 / 1000 (Optional)
Contrast Ratio 1000:1
LCD Color 16.7M
Pixel Pitch (mm) 0.294(H) x 0.294(V)
Viewing Angle 170/160
Backlight MTBF 50000 hrs (LED Backlight)
Touch Type Resistive 5-Wire
Projective Capacitive
System
Processor Intel® Celeron® J6413 Processor Quad core (1.5M Cache,1.8GHz up to 3.00 GHz) FC-BGA16F, Tray 10W
System Chipset SoC Integrated
LAN Chipset GbE1: Intel® I210 (Support Wake-on-LAN and PXE)
2.5 GbE2: Intel® I225 (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S
System Memory 1x 260-Pin DDR4 2400/2667/3200MT/s SODIMM.
Max. up to 32 GB
BIOS AMI 128Mbit SPI BIOS
TPM TPM 2.0
Watchdog Software Programmable Supports 1~255 sec. System Reset
AI Accelerator Supports 1x Hailo-8™ module
Storage
M.2 1x M.2 (E Key, PCIe x1, USB 2.0, 2230)
1x M.2 (B Key, PCIe x2 + USB 3.2 Gen1, 2242/3042/3052)
mSATA 1x mSATA
SIM Socket 2x External SIM socket
SSD/HDD 1x Removable 2.5" SATA HDD Bay
Expansion
Mini PCIe 1x Full-size Mini PCIe (USB 2.0, SATA)
PCIe PC100-EHL-1E: 1x PCIe x4 (1-lane)

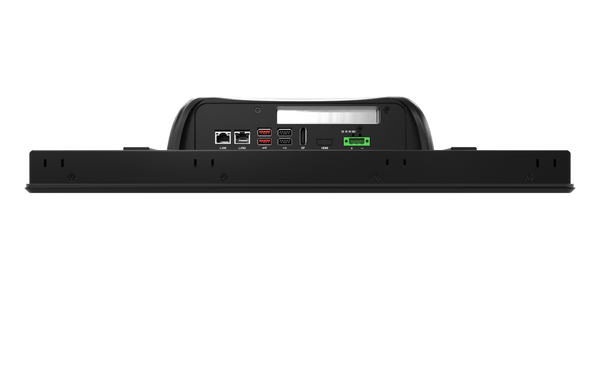

I/O
Audio 1x Mic-in, 1x Line-out
CAN 2x CAN 2.0 A/B 2-pin Header (Internal)
COM 4x RS-232/422/485
2x RS-232/422/485 (internal)
DIO 8 in / 8 out (Isolated)
LAN 2x RJ45
Universal I/O Bracket PC100-EHL-1E :
1x Universal I/O Bracket (By mini PCIe interface)
USB 2x USB 3.2 Gen 2 (10 Gbps)
2x USB 2.0
DP 1x DisplayPort 1.2 (4096 x 2160@60Hz)
HDMI 1x HDMI 2.0b (4096 x 2160@60Hz) (Optional)
Others 4x WiFi Antenna Holes
1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off
1x DB9 Cutting Hole
Optical Bonding Optional, contact us for more information
Others Features
Speaker AMP 10W + 10W
OSD LCD On/Off, Auto, Menu, Up and Down Multi-language
Operating System
Windows Windows 10, Windows 11
Linux Linux kernel 5.X
Power
Power Adapter Optional AC/DC 12V/5A, 60W
Power Management Power Ignition Management (Optional Module)
Power Mode AT, ATX
Power Supply Voltage 9~36 VDC
Power Connector 3-Pin Terminal Blcok
Power Protection OVP (Over Voltage Protection)
OCP (Over Current Protection)
Reverse Protection
Environment
Operating Temperature 0°C to 50°C
Storage Temperature -20°C to 60°C
Relative Humidity 10%~80% (non-condensing)
IP Level IP 65 Compliant Front Panel
Certification UL 62368 Ed. 3, CE, FCC Class A
Vibration With SSD: 1.5 Grms, 5 - 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock With SSD: 20G, half sine, 11ms
Physical
Dimension VIO-219-PC100-EHL: 450 (W) x 375 (D) x 71 (H) mm

VIO-219-PC100-EHL-1E: 450 (W) x 375 (D) x 93 (H) mm
Weights VIO-219-PC100-EHL, Resistive Touch: 7.64 kg
VIO-219-PC100-EHL, Capacitive Touch: 7.68 kg
VIO-219-PC100-EHL-1E, Resistive Touch: 7.72 kg
VIO-219-PC100-EHL-1E, Capacitive Touch: 7.79 kg
Mounting Options VESA Mounting Holes 75 x 75mm, 100 x 100mm

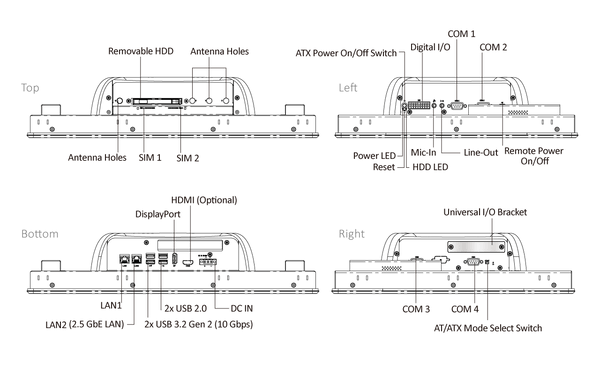

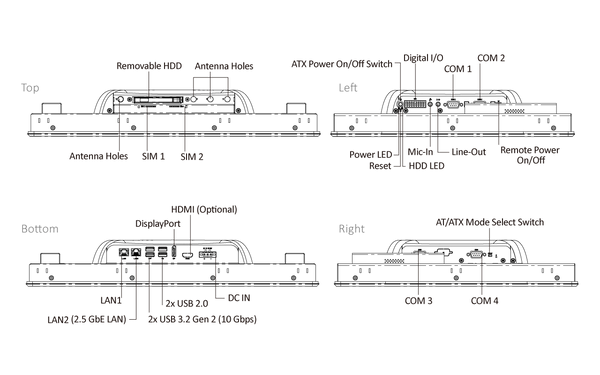

Mechanical Layout

VIO-219-PC100-EHL

VIO-219-PC100-EHL-1E

Product Dimension

Unit:mm

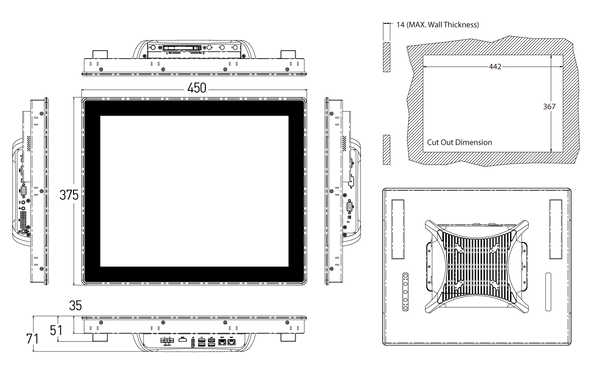

VIO-219-PC100-EHL

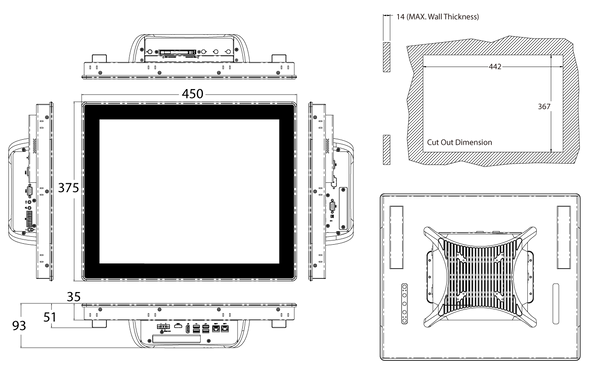

VIO-219-PC100-EHL-1E
