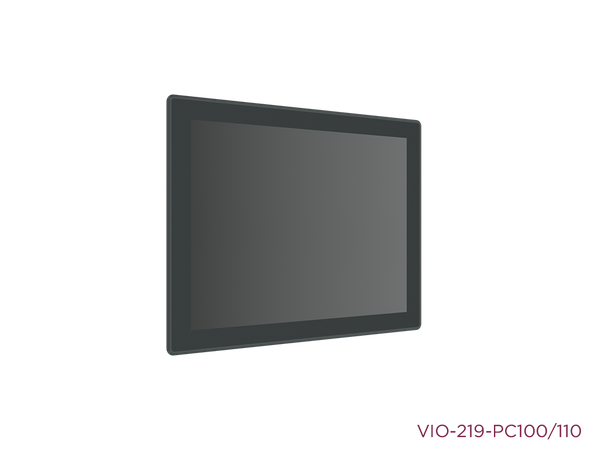

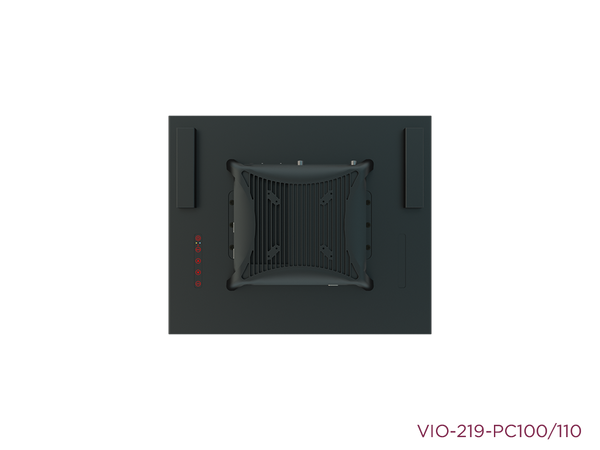

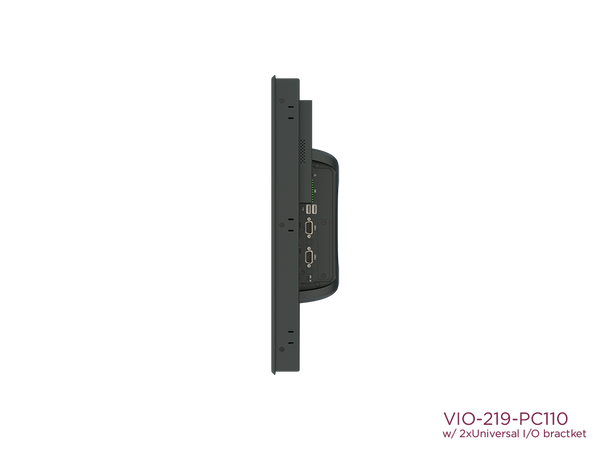

VIO-219-PC100-J1900 19" 4:3 IP65 Industrial Touchscreen Computer with Intel® Celeron® J1900
SKU Alias: VIO-219-PC100
- 19" TFT SXGA 4:3 LCD with resistive 5-wire / projected capacitive touch
- Intel® Celeron® processor J1900, 2.0 GHz
- 1x 204-pin DDR3L SODIMM. max up to 8GB
- 1x 2.5" SATA HDD bay, 1x mSATA, 1x CFast, 2x SIM socket
- 2x full-size mini PCIe for communication or expansion modules
- 2x LAN, 1x VGA, 1x DisplayPort
- 6x RS-232/422/485 (w/ 2x internal), 1x USB 3.0, 3x USB 2.0, Audio
- 8x DI + 8x DO with isolation
- PC100-J1900-1: 2x universal I/O bracket (by mini PCIe interface)
- 9 to 50VDC wide range power input
- -10°C to 50°C extended operating temperature
- Designed with aluminum die-casting front frame
- IP65 compliant front panel
- Two 10W internal speakers built-in
- Multi-language OSD built-in
- High Brightness Display and Optical Bonding (Optional)
Model:
VIO-219-PC100-J1900
Certifications:
This model is built-to-order only with a minimum order quantity
* Estimated Total Only; Sales team to review component configuration and price
*All specifications are subject to change without notice. Please contact us for exact offers. Products may not be available in all markets.
Specification
| Display | |
|---|---|
| IP Rating | IP65 |
| LCD Size | 19" (4:3) |
| Max. Resolution | 1280 x 1024 (SXGA) |
| Brightness (cd/m²) | 350 / 1000 (optional) |
| Contrast Ratio | 1000:1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.294(H) x 0.294(V) |
| Viewing Angle | 170/160 |
| Backlight MTBF | 50000 hrs (LED Backlight) |
| Touch Type | Resistive 5-Wire Projective Capacitive |
| System | |
| Processor | Intel® Celeron® Processor J1900, Quad Core, 2MB Cache, 2.0 GHz |
| System Chipset | SoC Integrated |
| LAN Chipset | GbE1 & GbE2: Intel® I210-AT (Support Wake-on-LAN and PXE) |
| System Memory | 1x 204-Pin DDR3L 1333/1600MHz SODIMM up to 8GB |
| BIOS | AMI 64Mbit SPI BIOS |
| Watchdog | Software Programmable 1~255 sec. System Reset |
| Storage | |
| CFast | 1x CFast |
| mSATA | 1x mSATA |
| SIM Socket | 2x External SIM socket |
| SSD/HDD | 1 x Hotswap 2.5" SATA HDD Bay |
| Expansion | |
| Mini PCIe | 1x Full-size Mini PCIe Socket with USIM Socket (PCIe + USB + SATA) 1x Full-size Mini PCIe Socket with USIM Socket (PCIe + USB) |

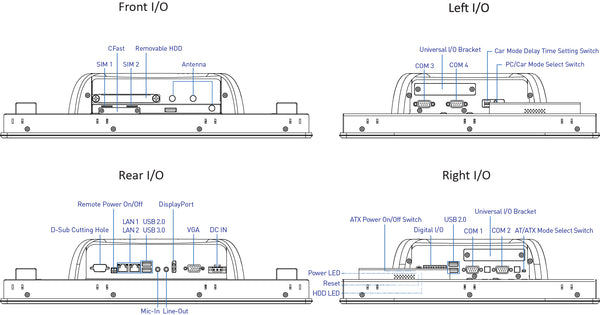

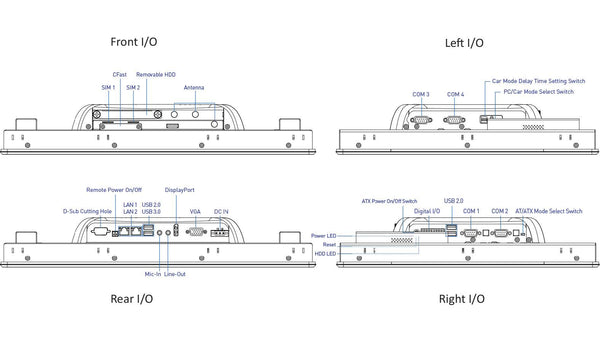

| I/O | |
| Audio | 1x Mic-In, 1x line-out |
| COM | 4x RS-232/422/485 2x RS-232/422/485 (internal) |
| DIO | 8 in / 8 out (Isolated) |
| LAN | 2x RJ45 |
| Universal I/O Bracket | PC 110 2x Universal I/O Bracket |
| USB | 1x USB 3.0 3x USB 2.0 |
| DP | 1x DP |
| Others | 3x Antenna 1x Power Switch 1x AT/ATX Switch 1x Remote Power On/Off |
| VGA | 1x VGA |
| Optical Bonding | Optional, contact us for more information |
| OSD | LCD On/Off, Auto, Menu, Up and Down Multi-language |
| Speaker | AMP 10W + 10W |
| Power | |
| Power Adapter | Optional AC/DC 12V/5A, 60W |
| Power Management | Power Ignition Management |
| Power Mode | AT, ATX |
| Power Supply Voltage | 9~50 VDC |
| Power Connector | 3-Pin Terminal Blcok |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | -10 °C ~ 50 °C |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 158 °F) |
| Relative Humidity | 10% ~ 80% (non-condensing) |
| IP Level | IP 65 Compliant Front Panel |
| Certification | CE, FCC Class A |
| Vibration | With SSD: 1.5 Grms, 5 - 500 Hz, 0.5 hr/axis With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis |
| Shock | 20G, half sine, 11ms |
| Physical | |

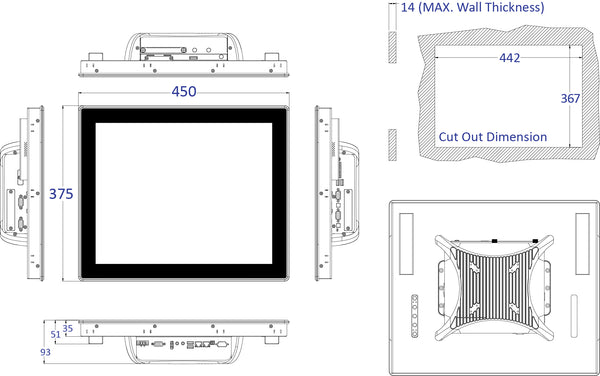

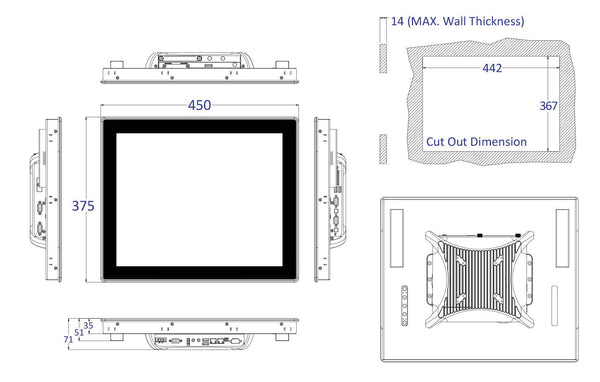

| Dimension | VIO-219-PC100-J1900: 450 (W) x 375 (D) x 71 (H) mm VIO-219-PC110-J1900-1: 450 (W) x 375 (D) x 93 (H) mm |
| Mounting Options | VESA Mounting Holes 75 x 75mm, 100 x 100mm |
