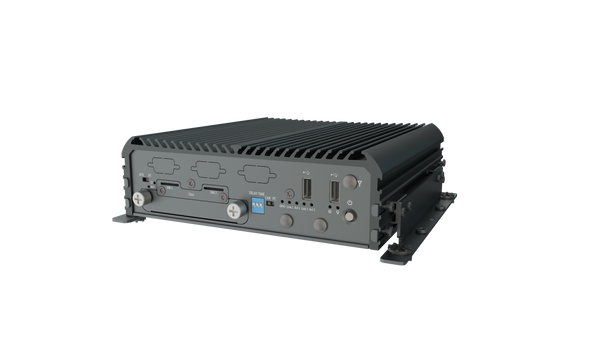

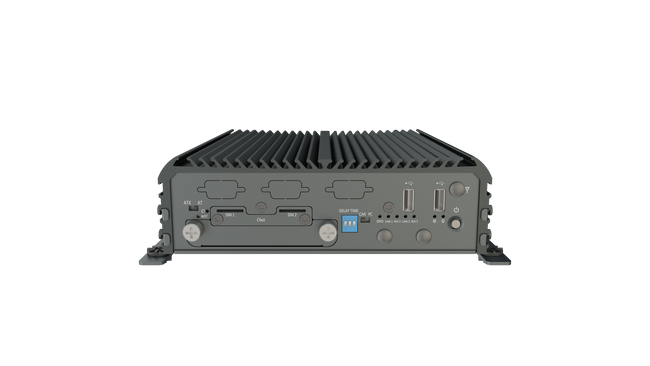

RCO-3000-KBL-U Industrial Computer with 7th Gen Intel® Core™ Mobile-U Processor

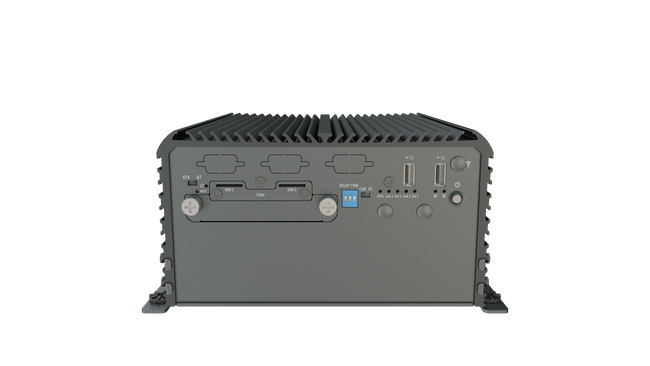

RCO-3000-KBL-U-2 Industrial Computer with 7th Gen Intel® Core™ Mobile-U Processor, 2x Expansion

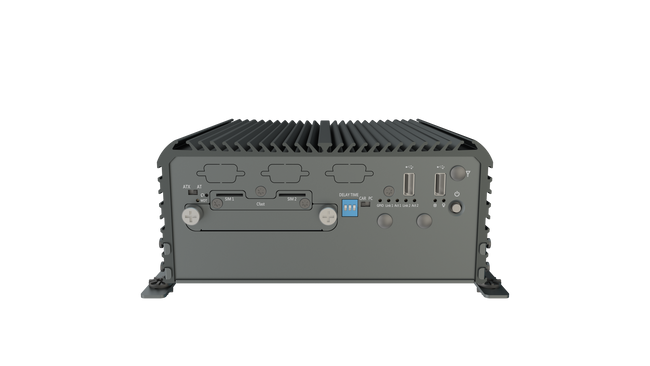

RCO-3000-KBL-U-1 Industrial Computer with 7th Gen Intel® Core™ Mobile-U Processor, 1x Expansion

RCO-3000-KBL-U Industrial Computer with 7th Gen Intel® Core™ Mobile-U Processor

SKU Alias: RCO-3400

  • Intel® 7th Gen (Kabylake-U) Processor Core™ i5-7300U, Core™ i3-7100U
  • 1x DDR4 SODIMM. max up to 16GB
  • Triple independent display supported by 1x VGA and 2x DisplayPort
  • 2x Intel® GbE supporting Wake-on-LAN and PXE
  • 2x 2.5" SATA HDD Bay (1x internal, 1x removable) with RAID 0, 1, 5 support,
    1x mSATA (shared by 1x Mini PCIe), and 1x CFast (shared by 1x mSATA)
  • 2x full-size mini PCIe for communication or expansion modules,
    2x SIM socket
  • 5x RS-232/422/485 (w/ 3x internal), 4x USB 3.0, 2x USB 2.0
  • 8x DI + 8x DO with isolation
  • 9 to 50VDC wide range power input supporting AT/ATX mode
  • -40°C to 70°C extended operating temperature
See Datasheet

Certifications:

Intel Partner
AWS Greengrass IoT

This model is built-to-order only with a minimum order quantity

* Estimated Total Only; Sales team to review component configuration and price
Starting At: $0.00

*All specifications are subject to change without notice. Please contact us for exact offers. Products may not be available in all markets.

Specification

System
Processor 7th Gen Intel® Core™ i5-7300U Processor,

Dual Core, 3MB Cache, up to 3.5 GHz

7th Gen Intel® Core™ i3-7100U Processor,

Dual Core, 3MB Cache, 2.4 GHz
System Chipset SoC integrated
LAN Chipset GbE1: Intel® I219LM (Support Wake-on-LAN and PXE)

GbE2: Intel® I210-AT (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S
System Memory 1x 260-Pin DDR4 1866/2133MHz SODIMM. Max. up to 16GB
BIOS AMI 128Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 Sec. System Reset
Display
Display Port 2x DP
Multiple Display Triple Display
VGA 1x VGA
Storage
CFast 1x CFast (shared by 1x mSATA & 1x SATA)
mSATA 1x mSATA (shared by 1x Mini PCIe & 1x SATA)
SIM Socket 2x External SIM socket
SSD/HDD 1x Internal 2.5" SATA HDD Bay

1x Hotswap 2.5" SATA HDD Bay

Support RAID 0, 1, 5, 10
Expansion
Mini PCIe 2x Full-size Mini PCIe

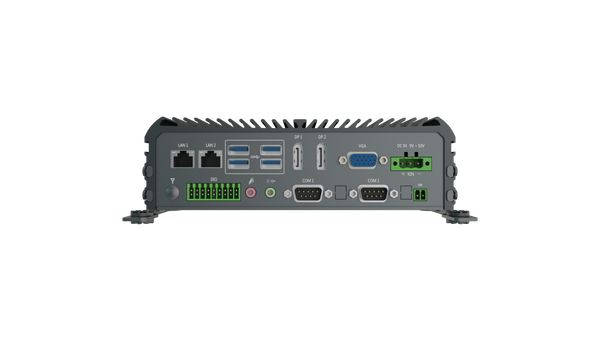

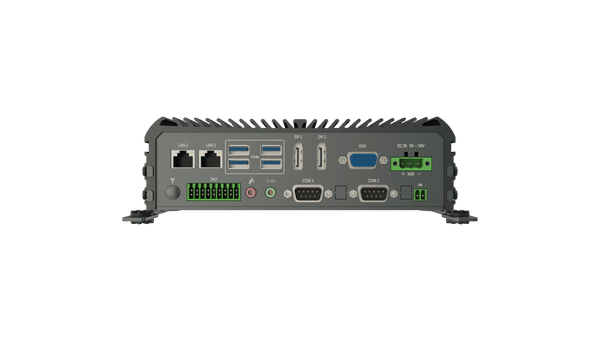

I/O
Audio 1x Mic-in, 1x Line-out
COM 2x RS-232/422/485
3x RS-232/422/485 (Internal)
DIO 8 in / 8 out (Isolated)
LAN 2x GbE RJ45 (Base Model)

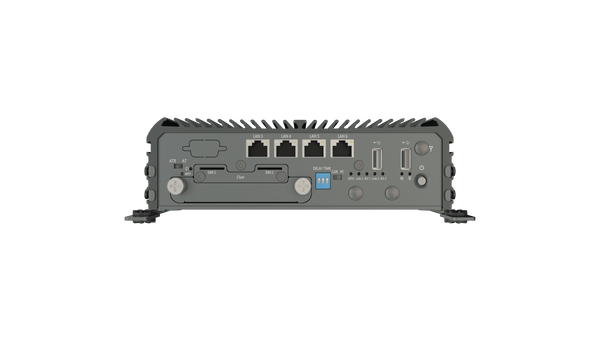

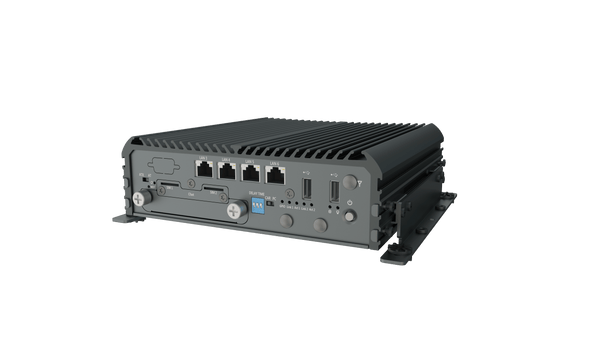

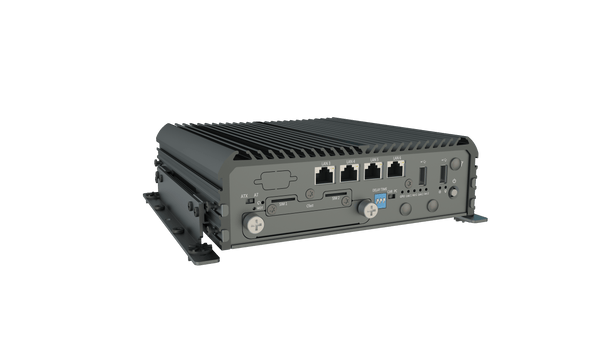

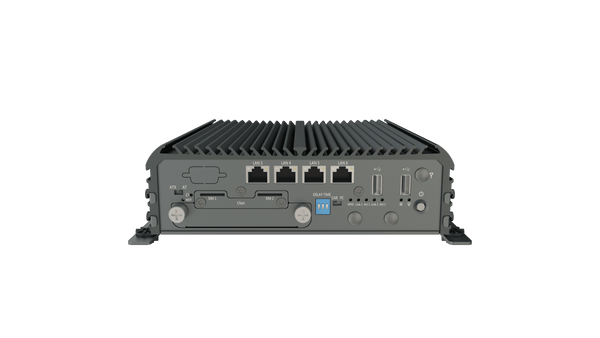

4x GbE RJ45 (Module)

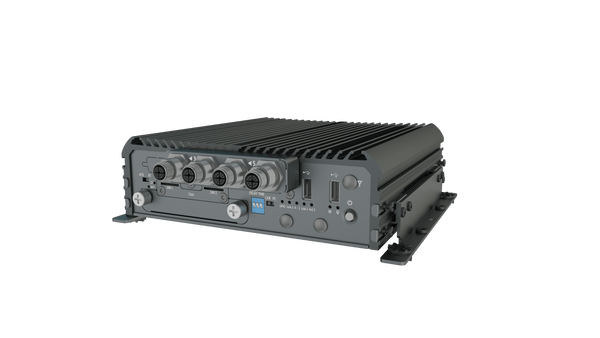

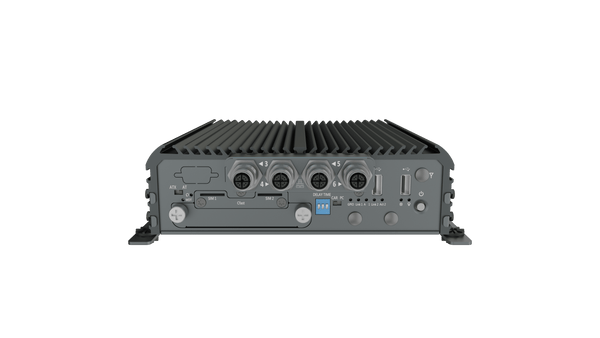

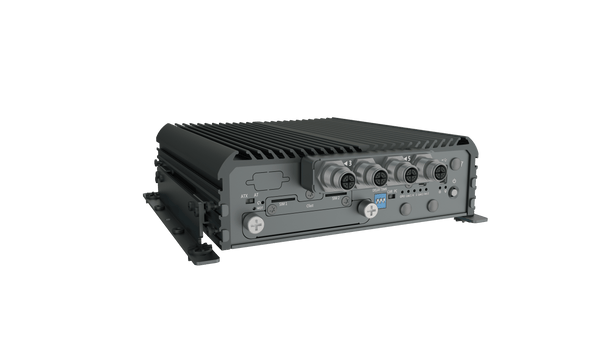

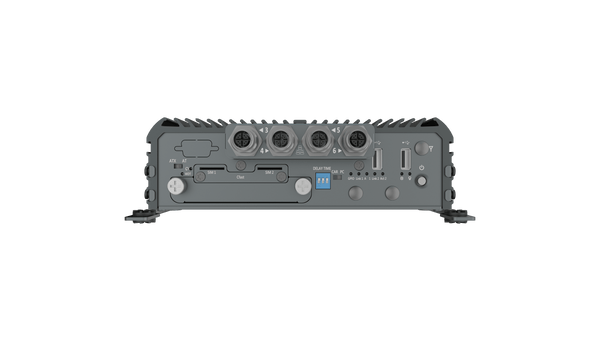

4x GbE M12 (Module)
USB 4x USB 3.0, 2x USB 2.0
Others 4x WiFi Antenna Holes

1x Power Switch, 1x AT/ATX Switch,
1x Remote Power On/Off
Operating System
Windows Windows 10
Linux Linux kernel 4.X
Power
Power Adapter Optional AC/DC 12V/5A, 60W
Power Mode AT, ATX
Power Ignition Sensing Power Ignition Management
Power Supply Voltage 9~50VDC
Power Connector 3-pin Terminal Block
Power Protection OVP (Over Voltage Protection)
OCP (Over Current Protection)
Reverse Protection
Environment
Operating Temperature -40°C to 70°C
Storage Temperature -40°C to 85°C
Relative Humidity 10% to 95% (non-condensing)
Certification CE, FCC Class A
Vibration With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock Shock With SSD: 50G, half sine, 11ms
Physical
Dimension 192 (W) x 197 (D) x 57.6 (H) mm
Construction Extruded Aluminum with Heavy Duty Metal
Mounting Options Wall Mounting

DIN-Rail Mounting(Optional)

Mechanical Layout

Product Dimension

Unit:mm

Resources

Azure IoT Quick Start Azure IoT Quick Start Guide
Data Sheet DS_RCO-3000-KBL-U_Premio.pdf
DS_RCO-3000-KBL-U_NoVGA_Premio.pdf (Temporary Deviation Beginning 12/1/2021)
Ethernet Modules
Ethernet Module
DS_Ethernet-Modules-LAN-M12.pdf
Install Guide LTE Modem Installation Guide.pdf
User's Manual UM_RCO-3000-KBL-U_Generic.pdf
