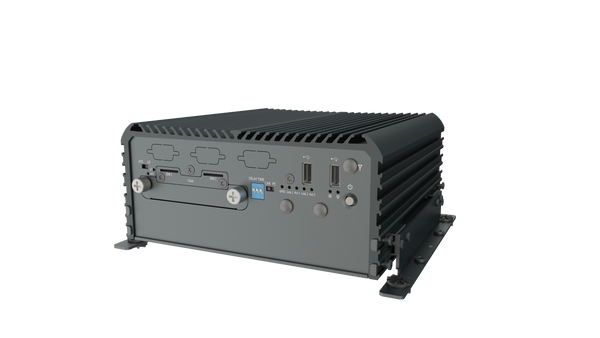

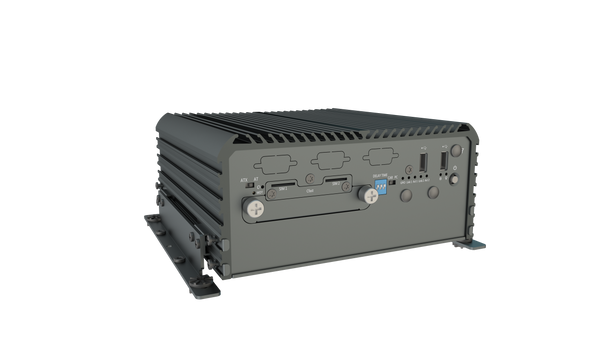

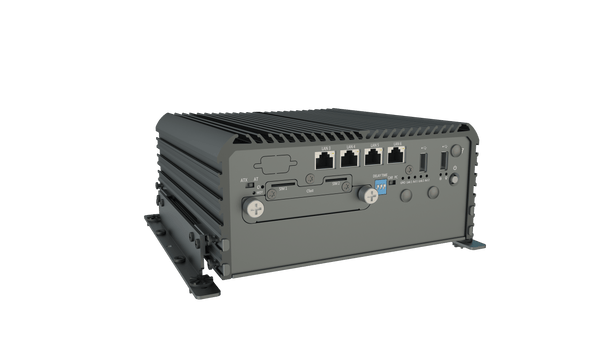

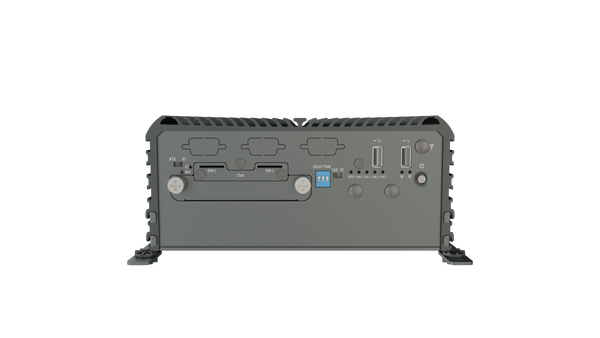

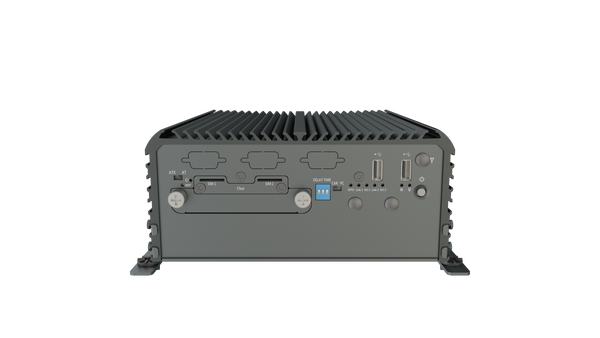

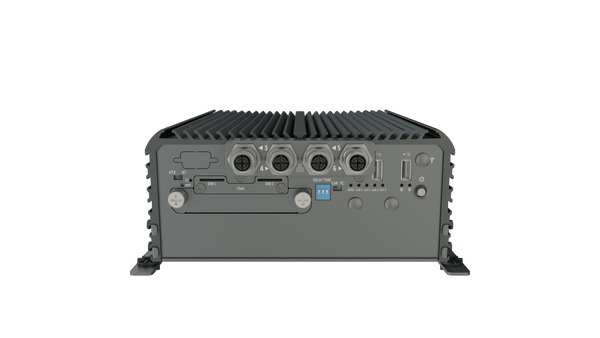

RCO-3000-KBL-U-1 Industrial Computer with 7th Gen Intel® Core™ Mobile-U Processor, 1x Expansion
SKU Alias: RCO-3411
- Intel® 7th Gen (Kabylake-U) Processor Core™ i5-7300U, Core™ i3-7100U
- 1x DDR4 SODIMM. max up to 16GB
- Triple independent display supported by 1x VGA and 2x DisplayPort
- 2x Intel® GbE supporting Wake-on-LAN and PXE
- 2x 2.5" SATA HDD Bay (1x internal, 1x removable) with RAID 0, 1, 5 support,
1x mSATA (shared by 1x Mini PCIe), and 1x CFast (shared by 1x mSATA) - 2x full-size mini PCIe for communication or expansion modules,
2x SIM socket - 5x RS-232/422/485 (w/ 3x internal), 4x USB 3.0, 2x USB 2.0
- 1x PCIe x4 or PCI expansion
- 8x DI + 8x DO with isolation
- 9 to 50VDC wide range power input supporting AT/ATX mode
- -40°C to 70°C extended operating temperature
Model:
RCO-3000-KBL-U-1
Certifications:
This model is built-to-order only with a minimum order quantity
* Estimated Total Only; Sales team to review component configuration and price
*All specifications are subject to change without notice. Please contact us for exact offers. Products may not be available in all markets.
Specification
| System | |
|---|---|
| Processor | 7th Gen Intel® Core™ i5-7300U Processor, Dual Core, 3MB Cache, up to 3.5 GHz 7th Gen Intel® Core™ i3-7100U Processor, Dual Core, 3MB Cache, 2.4 GHz |
| System Chipset | SoC integrated |
| LAN Chipset | GbE1: Intel® I219LM (Support Wake-on-LAN and PXE) GbE2: Intel® I210-AT (Support Wake-on-LAN and PXE) |
| Audio Codec | Realtek ALC888S |
| System Memory | 1x 260-Pin DDR4 1866/2133MHz SODIMM. Max. up to 16GB |
| BIOS | AMI 128Mbit SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 Sec. System Reset |
| Display | |
| Display Port | 2x DP |
| Multiple Display | Triple Display |
| VGA | 1x VGA |
| Storage | |
| CFast | 1x CFast (shared by 1x mSATA & 1x SATA) |
| mSATA | 1x mSATA (shared by 1x Mini PCIe & 1x SATA) |
| SIM Socket | 2x External SIM socket |
| SSD/HDD | 1x Internal 2.5" SATA HDD Bay 1x Hotswap 2.5" SATA HDD Bay Support RAID 0, 1, 5, 10 |
| Expansion | |
| Mini PCIe | 2x Full-size Mini PCIe |
| PCI | 1x PCI (1I-Model) |
| PCIe | 1x PCIe (1E-Model) |

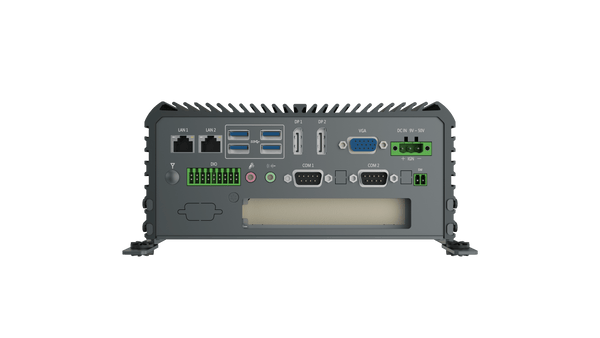

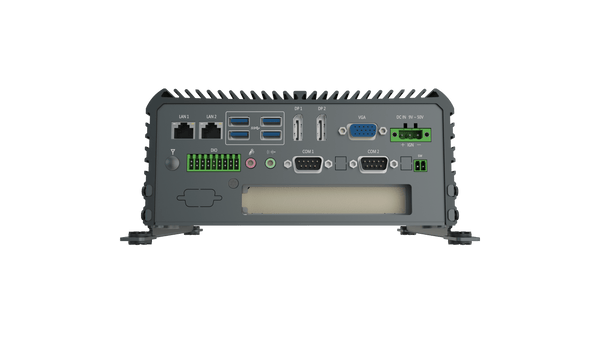

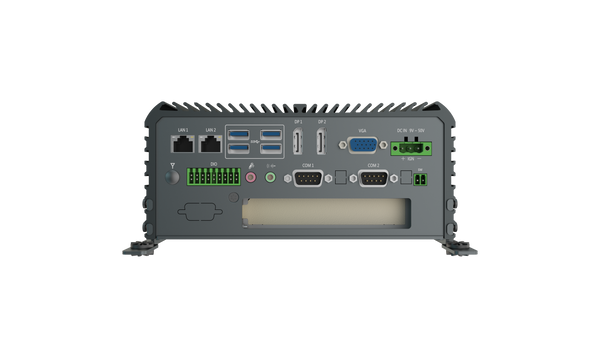

| I/O | |
| Audio | 1x Mic-in, 1x Line-out |
| COM | 2x RS-232/422/485 3x RS-232/422/485 (Internal) |
| DIO | 8 in / 8 out (Isolated) |

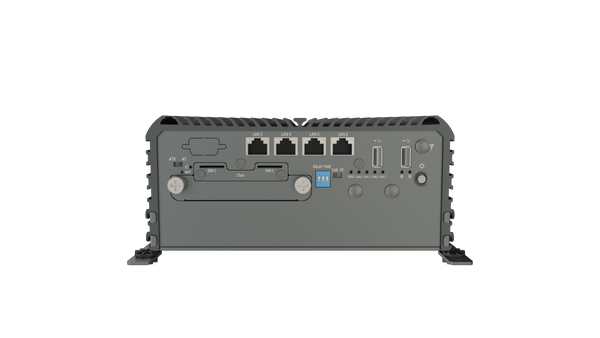

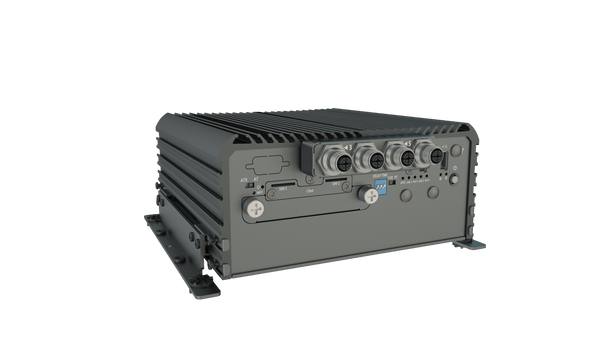

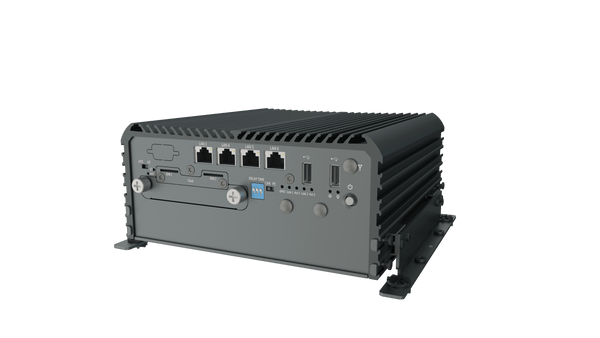

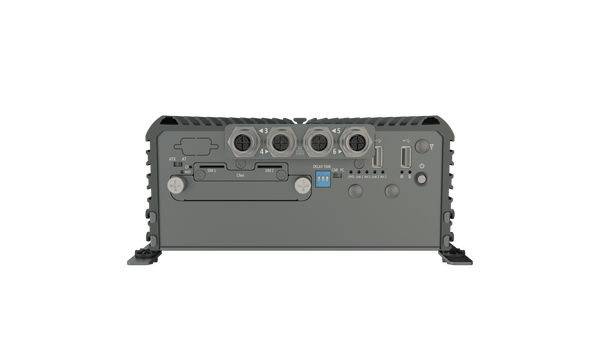

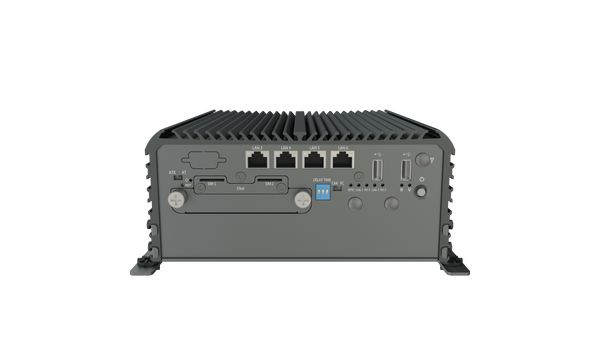

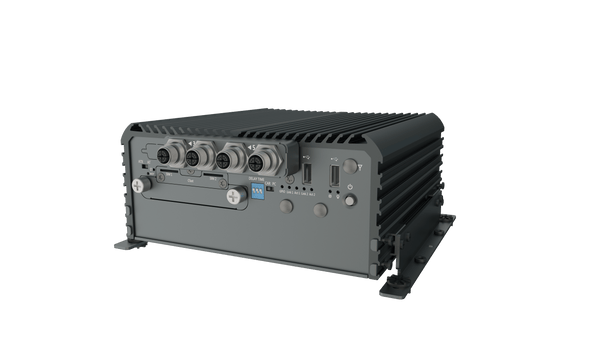

| LAN | 2x GbE RJ45 (Base Model) 4x GbE RJ45 (Module) 4x GbE M12 (Module) |
| USB | 4x USB 3.0, 2x USB 2.0 |
| Others | 4x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off |
| Operating System | |
| Windows | Windows 10 |
| Linux | Linux kernel 4.X |
| Power | |
| Power Adapter | Optional AC/DC 12V/5A, 60W |
| Power Mode | AT, ATX |
| Power Ignition Sensing | Power Ignition Management |
| Power Supply Voltage | 9~50VDC |
| Power Connector | 3-pin Terminal Block |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | -40°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | CE, FCC Class A |
| Vibration | With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis |
| Shock | Shock With SSD: 50G, half sine, 11ms |
| Physical | |
| Dimension | 192 (W) x 197 (D) x 85.1 (H) mm |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting |
