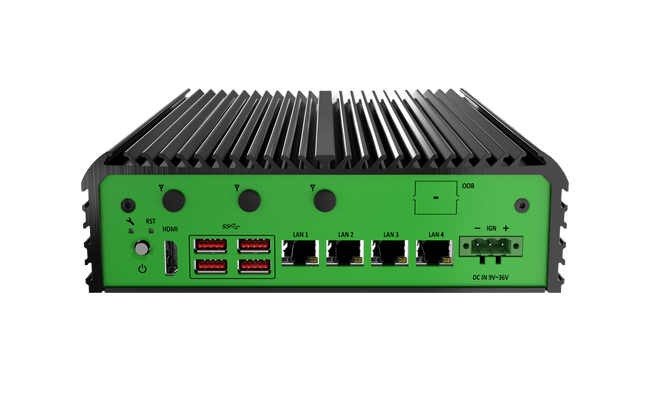

JCO-3000-ORN-B_4L Mid-Range AI Edge Computer with NVIDIA Jetson Orin™ NX or Nano Super

JCO-3000-ORN-B_4L Mid-Range AI Edge Computer with NVIDIA Jetson Orin™ NX or Nano Super

SKU Alias: JCO-3000-ORN-B

  • NVIDIA® Jetson Orin™ NX 8GB/16GB or Orin Nano Super 8GB/4GB
  • 1x HDMI 4K, 3840 x 2160 @ 60Hz
  • 4x GbE RJ45 LAN with Optional PoE option
  • 1x External Dual Nano SIM socket
  • 1x M.2 (M Key, 2242/2280, PCIex 4,Support NVMe)
  • 4x USB 3.2 Gen 2, 1x USB Type-C
  • 8x DI + 8x DO with isolation
  • 9 to 36VDC Wide Range Power Input Supporting AT/ATX Mode
  • Wide Operating Temperature -20°C up to 60°C
See Datasheet

Model:

JCO-3000-ORN-B_4L

JCO-3000-ORN-B_4L

Certifications:

NVIDIA Jetson
AWS Greengrass IoT


Rugged Fanless

Compact Size

Wide Temperature

Shock And Vibration Resistance

World Class Certifications

NVIDIA Jetson Orin NX and Nano Modules

The NVIDIA Jetson Orin NX and Orin Nano modules are pivotal in enhancing edge AI capabilities, providing substantial AI performance with efficient power consumption.

AI Performance TDP Applications
Orin NX 70 -100 TOPS 10W - 25W A wide range of edge applications
Orin Nano 20 – 40 TOPS 7W - 15W Edge device and IIoT

Built Rugged, Built Ready for Edge AI

  • Wide Operating Temperature (-20°C to 55°C)
  • Shock & Vibration Resistant (MIL-STD-810G Compliant)
  • TPM 2.0

Configurable PoE+ for Machine Vision

The JCO-3000 Series supports up to 4x RJ45 PoE+ ports designed to support flexible network configurations and IoT vision cameras.

JCO-3000-ORN-B_4L: 4x RJ45 GbE/Optional PoE+

Isolated DIO Signal Transmission

The JCO-3000 Series is designed to support isolated DIO ports with two distinct configurations for a wide range of industrial applications:

  • JCO-3000-ORN-B_4L: 16x DIO (8 in / 8 out) configuration

Remote Managment and Wireless Connectivity

Gain remote management and wireless connectivity on JCO-3000-ORN through Out-of-Band (OOB) module, SIM card, M.2 B Key and E Key.

  • on-board Out-Of-Band (OOB) device management module accessed through 1x RJ45
  • Support Allxon 24/7 Edge AI device remote management with OOB disaster recovery solutions
  • 1x SIM slot for 5G & 4G/LTE connectivity
  • M.2 E Key for WiFi and Bluetooth

Balanced I/O Configuration

  • Built-in CAN Bus
  • 4x USB 3.0 & 1x Micro USB
  • 1x HDMI Port
  • Dual Serial Ports

Why Premio? Built Rugged. Built Ready.

  • 30+ years of extensive design expertise for industrial-grade compute, storage, rich I/O, and high-speed connectivity
  • Global turnkey manufacturing and support infrastructure in the USA
  • Regulatory testing and compliance for rugged industrial computers
  • Long Product Life Cycles to ensure reliability
* Barebone Pricing Only; Sales team to review component configuration and price
*Starting At: $0.00

Specification

System
Processor - NVIDIA® Jetson Orin™ NX or Orin™ Nano Super GPU
• NX 16G: 1024-core NVIDIA Ampere architecture GPU (10-25W/100 TOPS)
• NX 8G: 1024-core NVIDIA Ampere architecture GPU (10-20W/ 70 TOPS)
• Nano 8G: 1024-core NVIDIA Ampere architecture GPU (15W-25W/40-67 TOPS)
• Nano 4G: 512-core NVIDIA Ampere architecture GPU (10W-25W/20-34 TOPS)
LAN Chipset GbE1: RGMII
GbE2~4: Intel LAN IC
System Memory 8G/16G LPDDR5 @ 3200 MHz on SOM
TPM TPM 2.0
Display
HDMI 1x HDMI 4K (3840*2160) 60Hz
Storage
M.2 1x M.2 (M Key, 2242/2280, PCIe x4, NVMe) (Default 128GB)
SD 1x Micro SD Slot
SIM Socket 1x External Dual Nano SIM socket (M.2 B Key attached)
Expansion
M.2 1x M.2 (B Key, 2242/3042/3052, USB 3.2 Gen1, Support 4G/5G)
1x M.2 (E Key, 2230, PCIe x1, USB 2.0, Support Wi-Fi/Bluetooth)
I/O
CAN CAN 2.0 B
COM 2x RS-232/422/485 (Switch by MCU)
DIO 8 in / 8 out (Isolated)
LAN 4x RJ45 LAN
OOB 1x RJ45 (Optional OOB Management Module, Occupied 1x COM & Micro USB Console Port)
PoE 4x RJ45 (Optional, PoE+ 120W Module, Type 2, Max 25W per Port)
USB 4x USB 3.2 Gen 2 (10 Gbps, Shared with USB 3 Hub)
1x Micro USB (Console)
1x USB Type-C (USB 2.0, For Flash OS)
Others 6x WiFi Antenna Holes
1x Power Switch, 1x Reset Switch, 1x Force Recovery Switch
1x 2P Terminal blcok for Remote Power SW
1x CMOS Battery Cable
1x 4-Pin FAN Connector
Operating System
Linux Linux Ubuntu 20.04 with JetPack 5.1.2 SDK
Power
Power Adapter Optional AC/DC 12V/5A, 60W
Optional AC/DC 12V/5A, 120W (For PoE Model)
Optional AC/DC 24V/9.2A, 220W (For PoE Model)
Power Mode AT, ATX
Power Ignition Sensing Adjustable Power Ignition Management
Power Supply Voltage 9~36VDC
12V: PoE Power Budget Supports Up to 60W
24V: PoE Power Budget Supports Up to 120W
Power Connector 3-pin Terminal Block
Power Protection OVP (Over Voltage Protection);

OCP (Over Current Protection)

Reverse Protection
Environment
Operating Temperature -20°C to 55°C (25W, NX Module)
-20°C to 60°C (15W, Nano Module)
Storage Temperature -30°C to 85°C
Relative Humidity 10% to 95% (non-condensing)
Certification • CE, FCC Class A
• UL 62368-1, 3rd Ed.
• E-mark (E24)
• RoHS 3.0, REACH
Vibration With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis)
Shock With SSD: 50G half-sin 11ms
Physical
Dimension 192 (W) x 140(D) x 58(H) mm
Weights 2.8 ~ 3.6 kg
Construction Extruded Aluminum with Heavy Duty Metal
Mounting Options Wall Mounting/DIN rail (Optional)

Mechanical Layout

Product Dimension

Unit:mm
