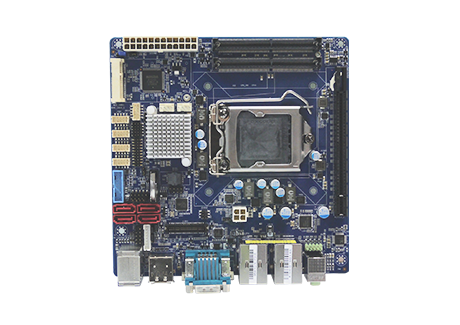

CT-XSL01 Mini-ITX Industrial Motherboard with Q170 PCH For Intel® 6th Generation LGA 1151 Socket
- Supports Intel® 6th/7th Gen Intel Core™ processor (LGA1151) with Intel Q170 PCH
- 2x DDR4 SO-DIMM support total up to 32GB
- 2x Intel® GbE supporting Wake-on-LAN and PXE
- DVI-D/DisplayPort//HDMI/LVDS
- 1x PCIe x16, 1x Mini-PCIe
- 1x mSATA (shared with Mini-PCIe), 1x M.2, and 4x SATA 6.0Gb/s
- 5x COM port, 6x USB 3.0, 4x USB 2.0
- 1x 8-bit GPIO
- Supports Intel® AMT 11.0
- Supports TPM 2.0 (optional)
Certifications:
This model is built-to-order only with a minimum order quantity
* Estimated Total Only; Sales team to review component configuration and price
*All specifications are subject to change without notice. Please contact us for exact offers. Products may not be available in all markets.
Specification
| System | |
|---|---|
| Processor | LGA 1151 socket supporting 6th/7th Gen Intel Core i3/i5/i7 Pentium®, Celeron® Desktop Processor |
| System Chipset | Q170 |
| LAN Chipset | 1x Intel® I219LM GbE PHY 1x Intel® I211AT GbE controller (Support Wake-on-LAN and PXE) |
| Audio Codec | Realtek ALC892 HD Audio Codec |
| System Memory | 2x 260-Pin DDR4 1866/2133MHz SO-DIMM, Max. 32GB |
| BIOS | AMI UEFI 128MB SPI Flash |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| iAMT | Intel AMT 11.0 |
| TPM | TPM 2.0 (optional) |
| Display | |
| LVDS | 2-ch 24-bit LVDS |
| Multiple Display | DVI-D / DP / HDMI |
| Storage | |
| M.2 | 1x M.2 Type 2280 M Key |
| mSATA | 1x mSATA (Shared with Mini PCIe) |
| SATA | 4x SATA III (6 Gb/s) |
| Expansion | |
| Mini PCIe | 1x Full-size Mini PCIe |
| PCIe | 1x PCIe x16 |

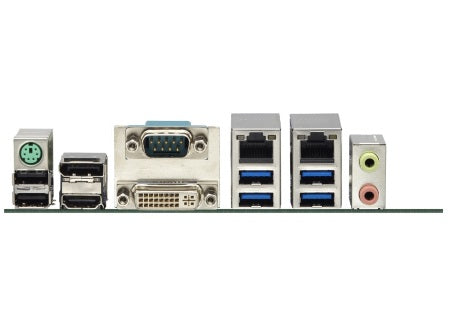

| I/O | |
| Audio | 1x Mic-in, 1x Line-out (rear) |
| COM | 1x RS-232/422/485 (rear) 4x RS-232 (header) |
| LAN | 2x GbE RJ45 (rear) |
| USB | 6x USB 3.0 (4x rear/2x header) 4x USB 2.0 (2x read/2x header) |
| Others | 1x PS/2 Keyboard/Mouse (rear) 1x LPC/1x 8-bit GPIO (header) 1x CPU Fan/1x System Fan (header) 1x Front Panel Audio (header) 1x Front Panel Connector (header) |
| Operating System | |
| Windows | Windows 10, Windows 8.1, WES8.1, Windows 7, WES7 |
| Linux | Linux kernel 4.X |
| Power | |
| Power Management | ACPI 5.0 compliant |
| Power Mode | ATX Power |
| Power Connector | 2×12-pin and 2×2-pin power connector |
| Environment | |
| Operating Temperature | 0 °C ~ 60 °C (32 °F ~ 140 °F) |
| Storage Temperature | -40 °C ~ 80 °C (-40 °F ~ 176 °F) |
| Relative Humidity | 10% ~ 90% relative humidity, non-condensing |
| Certification | CE, FCC Class A |
| Physical | |
| Dimensions (W x H x D) | 170 x 170 mm (5.91" x 4.13") |
