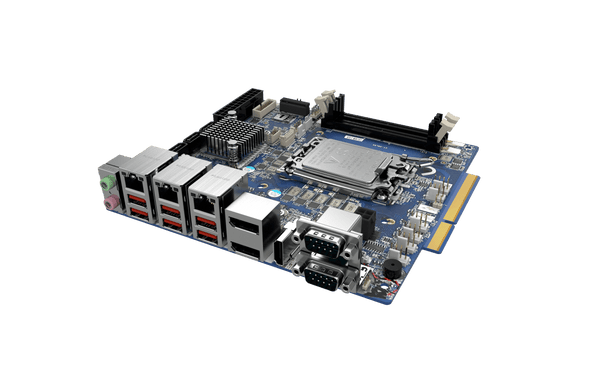

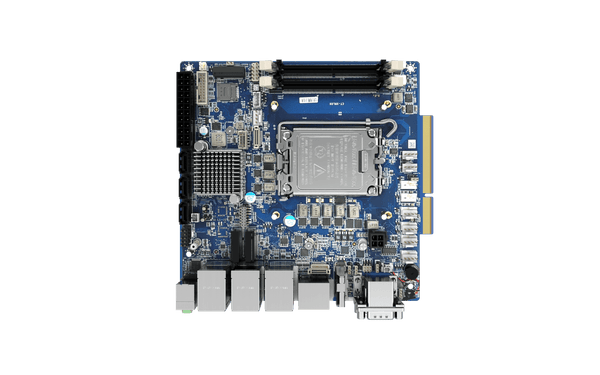

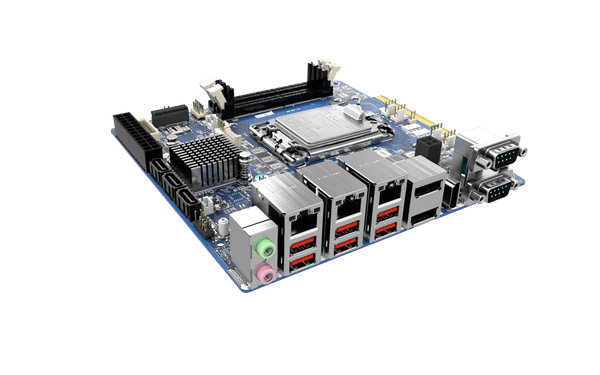

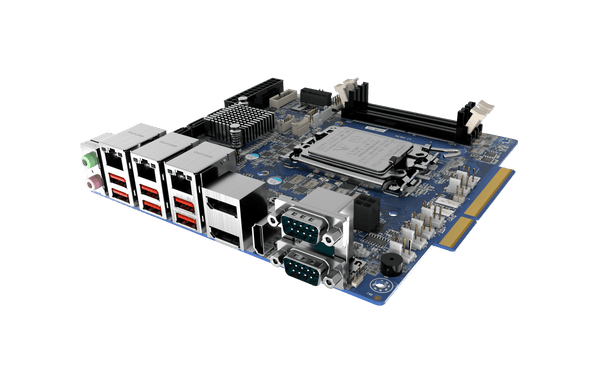

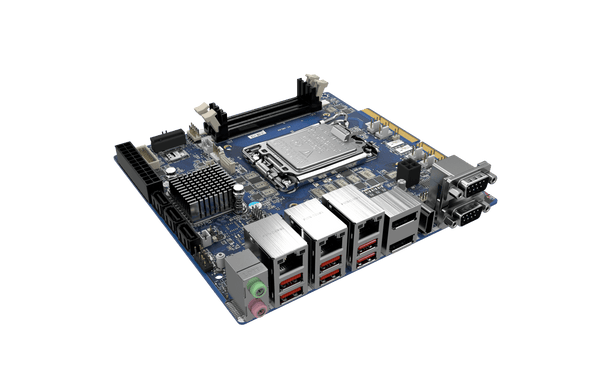

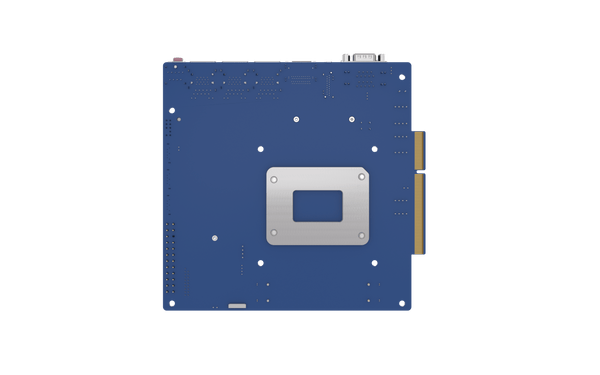

CT-XRL02 Mini-ITX Industrial Motherboard with LGA 1700 Socket Supporting 14th/13th/12th Gen Intel Core i9/i7/i5/i3, Pentium, Celeron Processor, Intel Q670E Chipset

Support 14/13/12th Gen. Intel Alder Lake-S / Raptor Lake-S Processor
Intel Q670E chipset
2x 260-pin DDR4 SO-DIMM. Max. up to 64GB
3x 2.5GbE (Support Wake-on-LAN and PXE)
3x independent display supported DP, HDMI
1x PCIe x16 (Gen 4) via PCB Golden Finger
1x M.2 B-Key (3042) with Nano SIM Holder for 4G/5G support
6x USB 3.2 Gen 2 (Rear), 2x USB 3.2 Gen 1 (Internal), 2x USB 2.0 (Internal)
2x RS-232/422/485 (Rear), 2x RS-232 (Internal)
3x SATA Gen 3 6.0 Gb/s
TPM 2.0

See datasheet

Model:

CT-XRL02

CT-XAR01

CT-XRL02

CT-XSL01

Certifications:

Edge Workload Ready: 14th/13th Gen Intel® Hybrid P/E Cores Processors

The CT-XLR02 motherboard supports 14th/13th Gen Intel® Core™ Processors with an LGA 1700 socket and a Q670E Chipset PCH featuring a hybrid Intel® P&E Cores technology.

Intel® Thread Director: Optimizes OS workload to cores distribution
Up to 24 Cores: 8 Performance-cores, 16 Efficient-cores
Up to 32 Threads: P-cores up to 5.8 GHz
Increased L2 & L3 Cache: compared to the previous generation

High-Capacity DDR4 Memory

DDR4 memory provides access to higher module densities and lower voltage requirements, coupled with higher transfer rates.

2x SODIMM 3200MT/s 64GB Max

Versatile Connectivity with Diverse I/O

The CT-XRL02 offers rich I/O options for high-speed IoT connectivity to ensure seamless integration and communication with various devices and peripherals.

6x USB 3.2 Gen 2
2x Serial COM Ports
3x 2.5 GbE LAN

Multiple True 4K Independent Displays

Simultaneously display up to three true 4K independent displays for ultimate data visualization with the available 2x DP and HDMI ports on-board.

PCIe Gen 4 Expansion Via Gold Finger

• Gold Finger provides a unique customizable solution as an industrial building block for OEM system builders.

• PCB's PCIe x16 can be configured with a riser card for OEM multiple configurations (2x PCIe x8 or 1x PCIe x16)

Built Rugged. Built Ready.

Built to withstand the rigors of demanding environments, this motherboard is rigorously tested and validated to ensure continuous performance where it matters most.

Standard Mini-ITX Form Factor (170 x 170mm)
Extended Operating Temperature: 0 °C to 60 °C
Relative Humidity: 10% ~ 90% relative humidity, non-condensing
CE and FCC Certified

*Barebone Pricing Only; Sales team to review component configuration and price

*Starting At: $0.00

Configure Product
See Product Features

Specifications

System
Processor	• 14th Gen Intel Raptor Lake-S i9/i7/i5/i3/Pentium /Celeron IOTG Series Processor, Max 65W • 13th Gen Intel Raptor Lake-S i9/i7/i5/i3/Pentium /Celeron IOTG Series Processor, Max 65W • 12th Gen Intel Alder Lake-S i9/i7/i5/i3/Pentium /Celeron IOTG Series Processor, Max 65W
System Chipset	Intel Q670E Express
LAN Chipset	GbE1: Intel I226LM PCIe 2.5GbE LAN PXE Support GbE2: Intel I226V PCIe 2.5GbE LAN PXE Support GbE3: Intel I226V PCIe 2.5GbE LAN PXE Support
Audio Codec	Realtek ALC897 High Definition Audio CODEC (Co-lay ALC888S-VD2)
System Memory	2 x 260-pin DDR4 SO-DIMMs 3200 MHz (Non-ECC) 64 GB Max
Graphics	Intel Integrated Iris Xe Graphic (CPU Dependent)
BIOS	AMI 256Mbit SPI BIOS
Watchdog	1 ~ 255 second timer
iAMT	AMT 16.x
TPM	TPM 2.0
Display
Display Port	2x DP (4096x2304 @60Hz)
HDMI	1x HDMI (4096x2304 @24Hz)
Multiple Display	Triple Displays
Storage
M.2	1 x M.2 M-Key (2242/2280, PCIe x4 Gen3) for NVMe SSD
SATA	3x SATA Gen 3 6.0 Gb/s (RAID 0/1/5) AHCI Mode Supported
Expansion
M.2	• 1x M.2 E-Key (2230, PCIe x1 + USB 2.0) for WiFi 6E & BT-5.1 • 1x M.2 B-key (3042, PCIe x1 +USB 3.2 Gen 2x1 + USB 2.0) with Nano SIM Holder for 4G/5G support
PCIe	1 x PCIe x16 Gen4 via PCB customized 200-pin Golden Finger (Support riser card, one x16 or two x8 via BIOS setting)

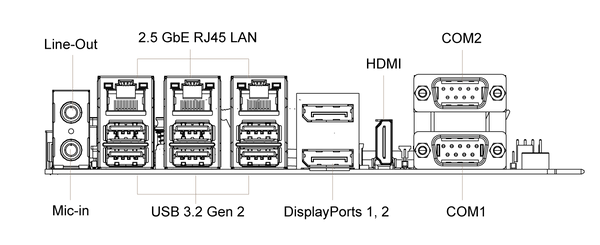

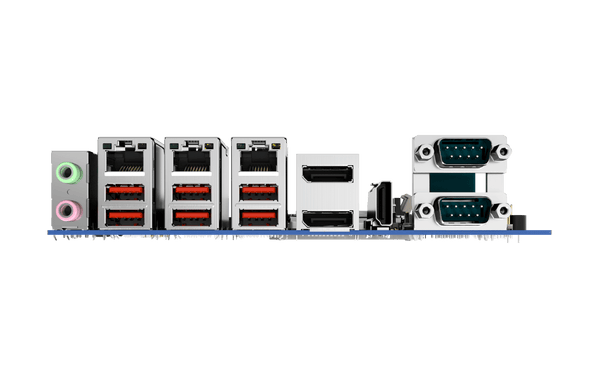

Rear I/O

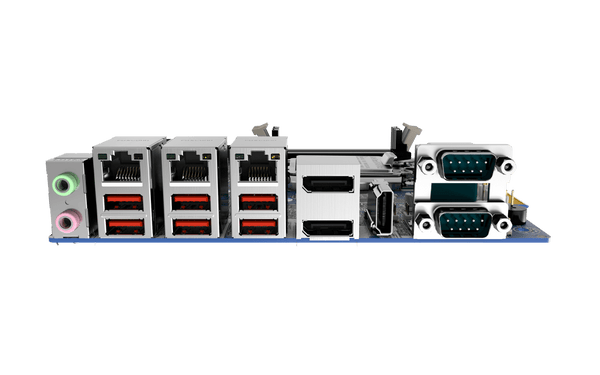

Audio	1x Mic-in, 1x Line-out
COM	2x RS-232/422/486
LAN	3x 2.5 GbE LAN
USB	6 x USB 3.2 Gen 2 (10 Gbps)
Internal I/O
Audio	1x Front panel audio
DIO	1x 16-bit DIO (8-in/8-out)
SATA	3x SATA Gen 3, suppor RAID 0/1/5
USB	2x USB 3.2 Gen 1 (5 Gbps), 2x USB 2.1
Operating System
Windows	Windows 10/11
Linux	Linux Kernel
Power
Power Mode	ATX-Power 24P, 12V-8P
Environment
Form Factor	Mini-ITX
Operating Temperature	0°C to 60°C
Storage Temperature	-20°C to 80°C
Relative Humidity	10% ~ 90% relative humidity, non-condensing
Certification	CE, FCC Class A
Physical
Dimensions	170mm x 170mm

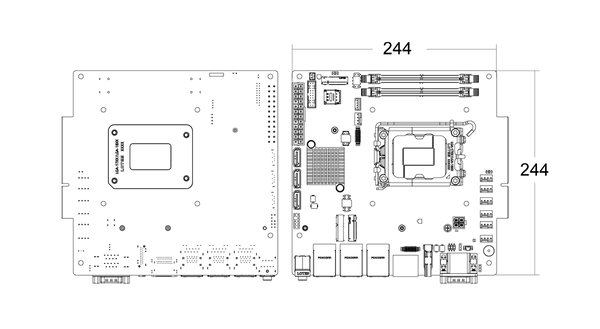

Mechanical Layout

Dimensions

Unit:mm

Resources

Datasheet	DS_CT-XRL02_Premio.pdf
Product Brief	PB_CT-XRL02.pdf
User's Manual	UM_CT-XRL02.pdf

Latest Articles:

Industrial Touch Panel PCs and Monitors

Supercapacitor Technology

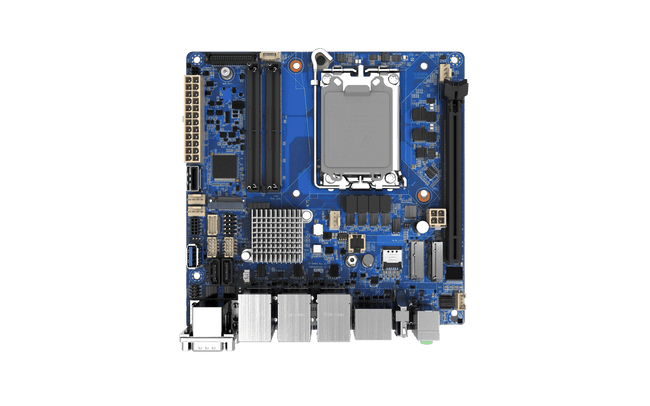

CT-XAR01 Mini-ITX Industrial Motherboard with LGA 1851 Intel® Core™ Ultra Series 2 Processors, Arrow Lake-S, W880 PCH
