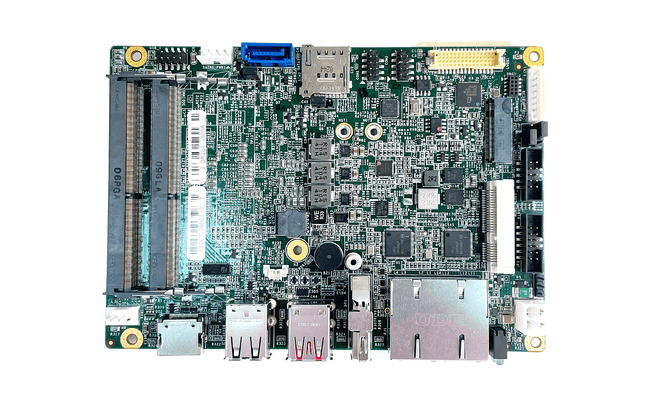

CT-DR101 3.5" SBC Industrial Motherboard with AMD Ryzen™ Embedded R1000/V1000 Series Processor
CT-NR101 1.8" SBC Industrial Motherboard with AMD Ryzen™ Embedded R1000 Series Processor

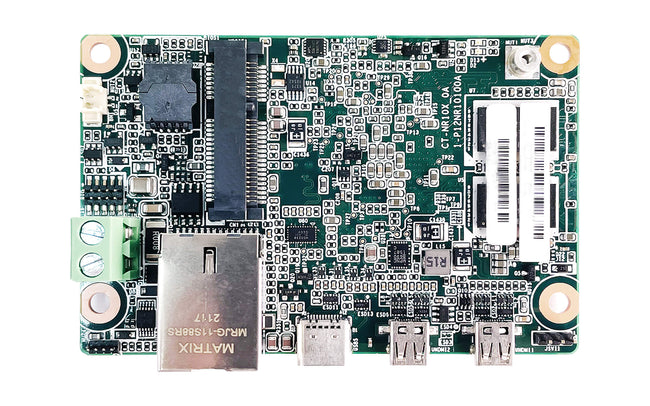

CT-NR101 1.8" SBC Industrial Motherboard with AMD Ryzen™ Embedded R1000 Series Processor

  • Femto-ITX form factor 1.8" SBC for space-limited applications
  • AMD Ryzen™ Embedded R1000 Series
  • Single Channel DDR4 Memory Down 4GB upto 8GB
  • HDMI 1.4 resolution supports up to 4096x2160 @ 24Hz
  • Rear I/O: 1x Intel GbE, 1x USB 3.1 Gen 1, 2x Micro HDMI
  • Expansion I/O: 1x Mini PCIe, 1x SMBus
See Datasheet

Model:

CT-NR101

CT-DR101

CT-NR101

Certifications:

Ryzen Embedded


AMD Ryzen™ Embedded R1000 SoCs

Our AMD SBC industrial motherboards deliver an optimal balance between superior graphics processing, computing performance, and power efficiency. The industrial motherboards can be configured with AMD Ryzen™ Embedded R1606G from the robust R1000 Series and also AMD Ryzen™ Embedded V1605B from the V1000 Series for even more multi-core performance.

R1000 Series

2C/4T

"Zen"Core

3

"Vega" Graphics CUs

3

2x 4K Displays,
1x WUXGA Display

Security

Secure boot and
Memory Encryption

SW & HW

Compability with V1000

4K

H264/H265 Enc. &
Dec. VP9 Decode

Expandable mPCIe Slot

The 1.8" CT-NR101 has a dedicated mPCIe slot for additional wireless card, I/O card, or performance accelerator expansion. The scalable mPCIe slot provides a further performance enhancement for this ultra-small and lightweight SBC.

USB Type-C Port

The USB Type-C port can support 5GB/s transfer speed and power (5V/3A) to an external device. With the mass adoption of USB Type-C, the CT-NR101 is future and deployment ready for various embedded applications at the edge.

* Barebone Pricing Only; Sales team to review component configuration and price
*Starting At: $459.00

Specification

System
Processor Support AMD Ryzen™ Embedded R1000 Series
AMD Ryzen™ Embedded R1606G with Radeon™ Vega 3 Graphics, 4M Cache,

2 Cores, 4 Threads, Up to 3.5 GHz
System Chipset SoC
LAN Chipset GbE1: Intel i210 (Support Wake-on-LAN and PXE)
System Memory DDR4-2400 Single-Channel Memory 4GB

(Up to 8GB, Optional)
Graphics AMD RadeonTM Vega 3 (R1606G)
BIOS AMI SPI 64 Mbit
TPM TPM 2.0
Display
HDMI 2x Micro HDMI 1.4, resolution up to 4096x2160, 24Hz
Multiple Display 2x Independent display (1x playback)
Storage
SSD/HDD eMMC up to 64GB
Expansion
Mini PCIe 1x Full-size Mini PCIe (PCIe x1, USB 2.0)
I/O
DIO 2x 5-pin header (4 In/4 Out)
LAN 1x RJ45
USB 1x USB 3.2 Gen 1 Type C (5V/3A)

1x USB 2.0 (4-pin header, internal)
Internal I/O
Others 1x RTC battery cable
Operating System
Windows Windows 10
Linux Linux Kernel 5.x (Fedora 30 or above / Ubuntu 19.04 or above)
Power
Power Management ACPI
Power Mode DC 12V
Power Connector 2-pin Terminal Block Pitch=5.0mm
Environment
Form Factor 1.8" Embedded SBC
Operating Temperature 0°C ~ 60°C, 90% (non-condensing), operating
Storage Temperature -40°C ~ 85°C, 90% (non-condensing) , Non-operating
Relative Humidity 5% ~ 90% relative humidity, non-condensing
Physical
Dimension 84 mm x 55 mm
