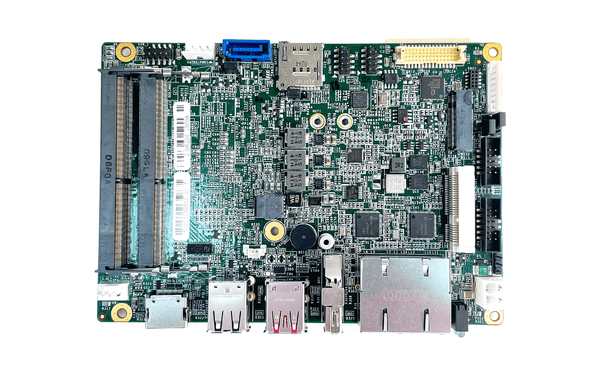

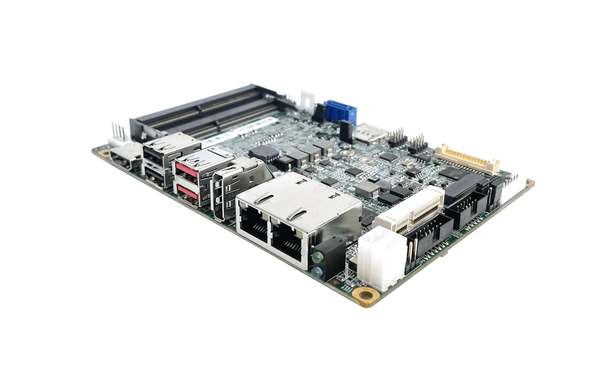

CT-DR101 3.5" SBC Industrial Motherboard with AMD Ryzen™ Embedded R1000/V1000 Series Processor

  • Support AMD Ryzen™ Embedded R1000/V1000 Series
  • 2x 260-pin DDR4 2400 SO-DIMM. Max. up to 32GB
  • 2x Intel® GbE (Support Wake-on-LAN and PXE)
  • Triple independent display Supported
  • 1x Front Panel with Audio support by internal header
  • 1x full-size Mini PCIe for expansion modules
  • 1x M.2 B Key for 4G/5G communications & Storage
  • 2x USB 3.2 Gen 2, 2x USB 2.0
  • 2x COM RS-232/422/485 (internal)
  • 1x SATA 6.0 Gb/s
  • Watchdog timer 1~225sec. system reset
  • TPM 2.0 Supported
See Datasheet

Model:

CT-DR101

CT-NR101

CT-DR101

Certifications:

Ryzen Embedded


AMD Ryzen™ Embedded V1000 SoCs

Premio’s industrial SBCs with AMD Ryzen™ Embedded SoCs power embedded and IoT applications with a new class of performance in a integrated single-board solution. AMD industrial motherboards reach new levels of versatility for advanced data processing and wireless telemetry for new levels of machine intelligence. Integrate AMD industrial single board computers for industrial-grade embedded deployments at the rugged edge!

R1000 Series

2C/4T

"Zen"Core

3

"Vega" Graphics CUs

3

2x 4K Displays,
1x WUXGA Display

Security

Secure boot and
Memory Encryption

SW & HW

Compability with V1000

4K

H264/H265 Enc. &
Dec. VP9 Decode

V1000 Series

4C/8T

"Zen"Core 14nm

3

TFLOPS

3

2x 4K Displays,
1x WUXGA Display

Security

Secure boot and
Memory Encryption

Scalability

12W - 54W

4K

H264/H265 Enc. &
Dec. VP9 Decode

Native ECC Memory Support

Deliver 24/7 reliability with ECC memory in high-performance, mission-critical applications. ECC memory can immediately detect and fix memory errors before they can cause data corruption or event systems crashes.

Compact 3.5” Form Factor

The CT-DR101 AMD embedded SBC is measured in a compact 146 mm x 102 mm, allowing the motherboard to be deployed within space-constrained embedded systems while providing rich I/O ports and a powerful computing configuration.

On-Board Expansion

The CT-DR101 offers a wide range of scalability through various on-board expansion slots, including mPCIe and M.2. These robust expansion slots can support various performance accelerators for even greater performance.

Robust Wireless Connectivity

The CT-DR101 3.5” AMD Embedded SBC enables robust wireless connectivity for remote and mobile embedded applications. The system features high-end wireless technologies to ensure a reliable connection to various networks, sensors, and IoT devices.

  • Wi-Fi 6
  • Bluetooth 5
  • SIM for 4G/LTE
  • SIM for 5G Cellular
* Barebone Pricing Only; Sales team to review component configuration and price
*Starting At: $0.00

Specification

System
Processor Support AMD Ryzen™ Embedded R1000/V1000 Series

AMD Ryzen™ Embedded V1605B with Radeon™ Vega 8 Graphics, 4M Cache, 4 Cores, 8 Threads, Up to 3.6 GHz



AMD Ryzen™ Embedded R1606G with Radeon™ Vega 3 Graphics, 4M Cache, 2 Cores, 4 Threads, Up to 3.5 GHz
System Chipset SoC
LAN Chipset GbE1: Intel i210 (Support Wake-on-LAN and PXE)

GbE2: Intel i210 (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S HD Audio Codec
System Memory 2x 260-Pin DDR4 2400 MHz SO-DIMM.
Max. up to 32GB (ECC and Non-ECC)
Graphics AMD RadeonTM Vega 8 (V1605B)
AMD RadeonTM Vega 3 (R1606G)
BIOS AMI uEFI 64 Mbit SPI flash
Watchdog Software Programmable Supports 1~255 sec. System Reset
TPM TPM 2.0
Display
Display Port 1x DisplayPort 1.4, DP++, Support resolution 3840 x 2160, 60Hz
HDMI 1x HDMI 2.0b, Support resolution 3840 x 2160, 60Hz (Optional)
LVDS 1x 24-bit dual channel LVDS, Support resolution up to 1920x1200, 60Hz
Multiple Display 3x Independent display for R1000 & V1000 series
Storage
M.2 1x M.2 B Key, 3042, Support SATA
SATA 1x SATA 7-Pin Connector
SIM Socket 1x SIM socket (M.2 B Key attached)
Expansion
Mini PCIe 1x Full-size Mini PCIe (PCIe x1, USB 2.0)

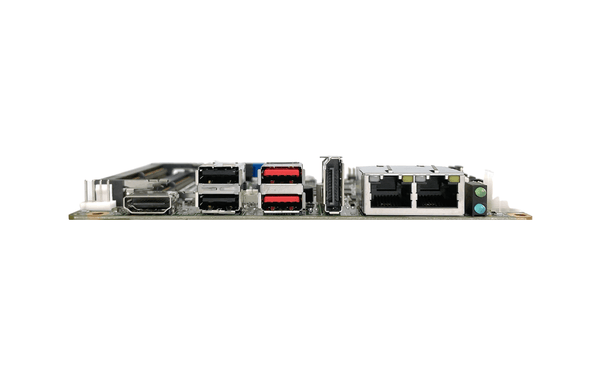

Rear I/O
Display Port 1x DisplayPort
HDMI 1x HDMI
LAN 2x RJ45
USB 2x USB 3.2 Gen2 (10Gbps)

2x USB 2.0
Others 1x Power LED, 1x HDD LED indicator
Internal I/O
Audio 2x 6-Pin Front Panel Header
COM 2x RS-232/422/485
DIO 2x 4-Bit DIO (4 In / 4 Out)
Others 1x Front Panel header

1x 4-Pin FAN Connector

1x RTC Battery Cable

1x 50-Pin High Speed Connector (PCIe x4)
Operating System
Windows Windows 10
Linux Linux Kernel 5.x (Fedora 30 or above / Ubuntu 19.04 or above)
Power
Power Management ACPI

OVP / OCP / Power reverse protection support
Power Mode AT/ ATX 12V
Power Connector 4-pin power connector (internal)
Environment
Form Factor 3.5" Embedded SBC
Operating Temperature -40°C ~ 75°C, 95% (non-condensing), operating
Storage Temperature -40°C ~ 85°C, 95% (non-condensing), Non-operating
Relative Humidity 10% ~ 90% relative humidity, non-condensing
Physical
Dimension 146 mm x 102 mm
