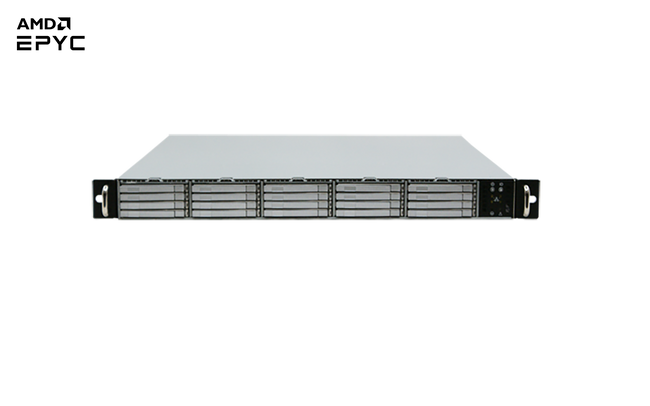

Key Features
| System | |
|---|---|
| Processor | Supports Single Socket AMD EPYC (Naples) CPU up to 180W TDP socket SP3 |
| System Memory | Supports up to 16x DIMMs DDR4 RDIMM/RDIMM/LRDIMM 2666 MHz |
| Network | 2x 1GbE Broadcom BCM5720 1x GbE dedicated for IPMI |
| Driver Bays | 10x 2.5" hot-swap U.2 NVMe drive bays 2x internal M.2 NVMe for OS drives |
| Cooling | 5x 40mm fans with Smart Fan Control |
| Expansion | 1x PCI-E 3.0 x16 OCP 2.0 Mezzanine 1x PCI-E 3.0 x16 Full Height 1x PCI-E 3.0 x16 Low Profile |
| Environment | |
| Operating Temperature | 0°C ~ 35°C |
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
| Physical | |
| Dimensions | System: 27"x19"x1.75" (LxWxH) Packaging: 35"x 24.5"x9"(LxWxH) |
| Weights | Gross Weight: 47lbs without Hard Drives Net Weight: 35lbs without Hard Drive |
| AVL |
AVL_FlacheSAN1N10U-1N20U-UN.pdf
|
| BIOS |
Tyan S8026GM2NRES8026_BMC.zipS8026_v100.zip |
| Datasheet |
DS-FlacheSAN1N20U-UN.pdf
|
| Install Guide |
QG_FlacheSAN1N20U-UN.pdf
|
| Product Brief |
PB_FlacheStreams_AMD.pdf
|
