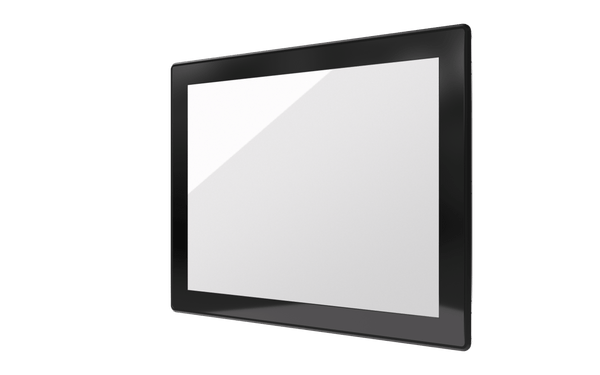

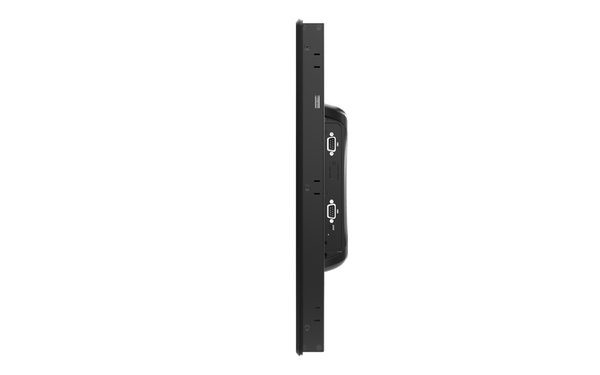

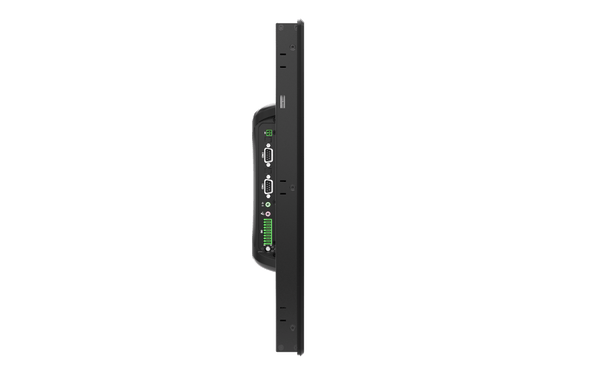

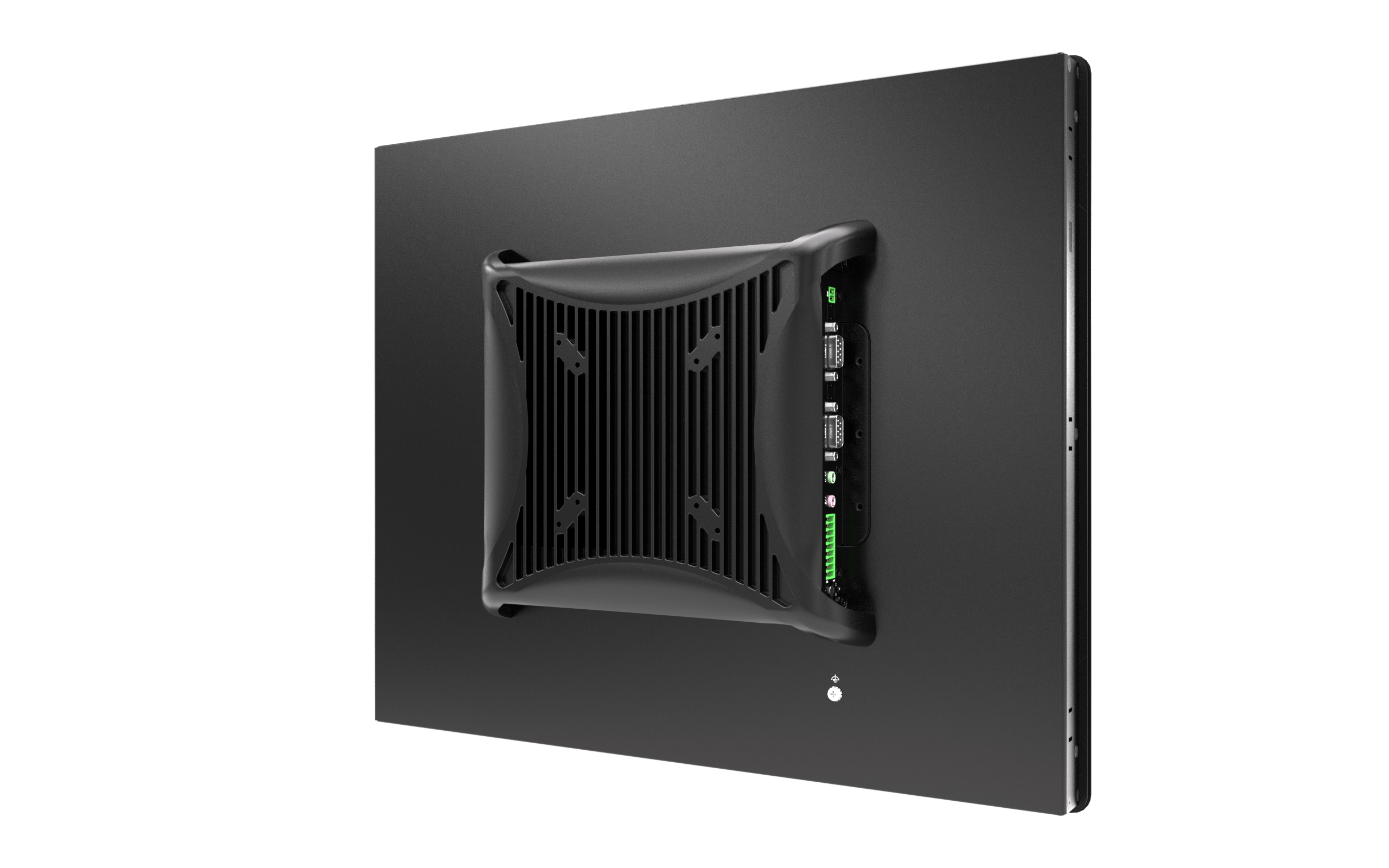

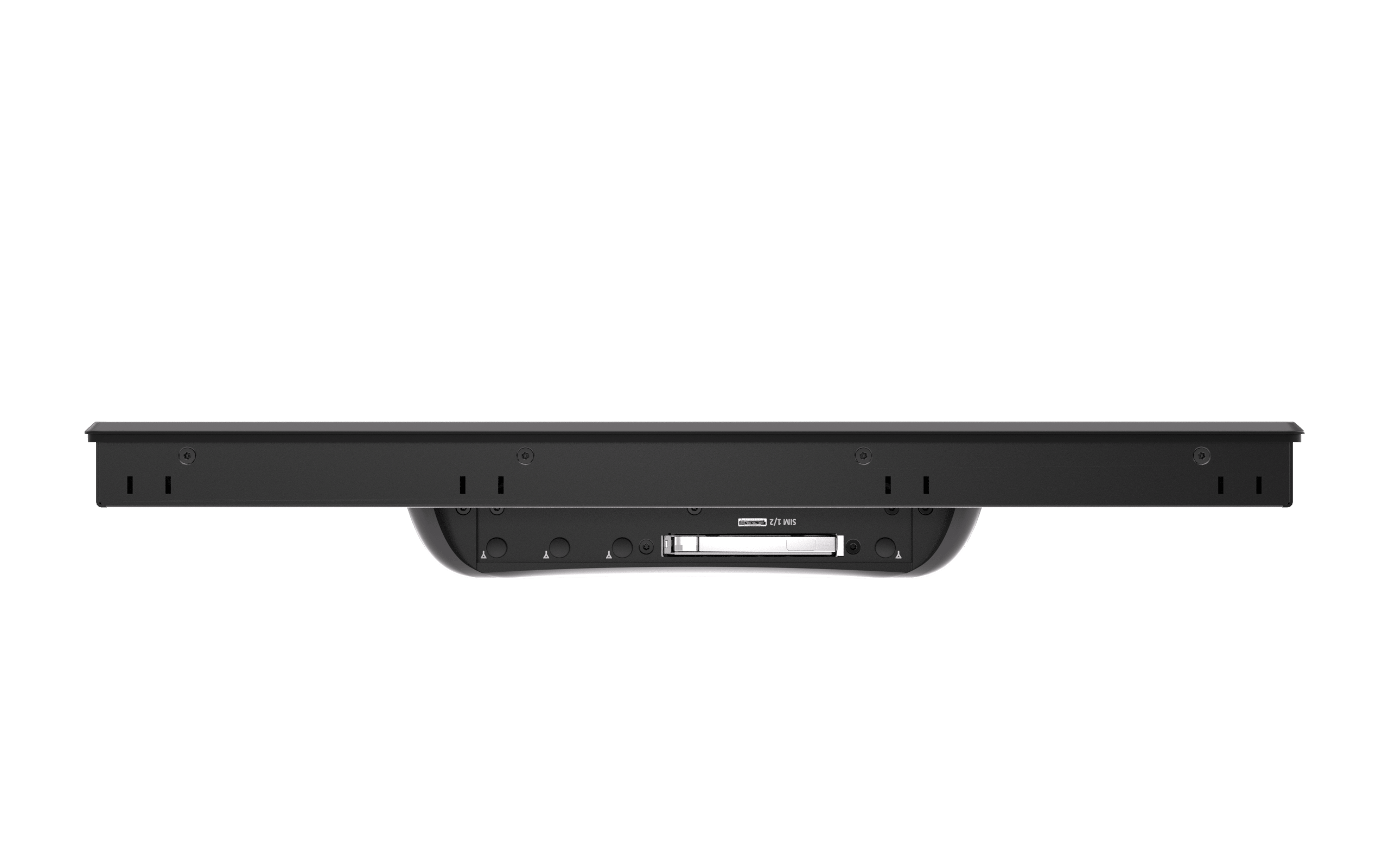

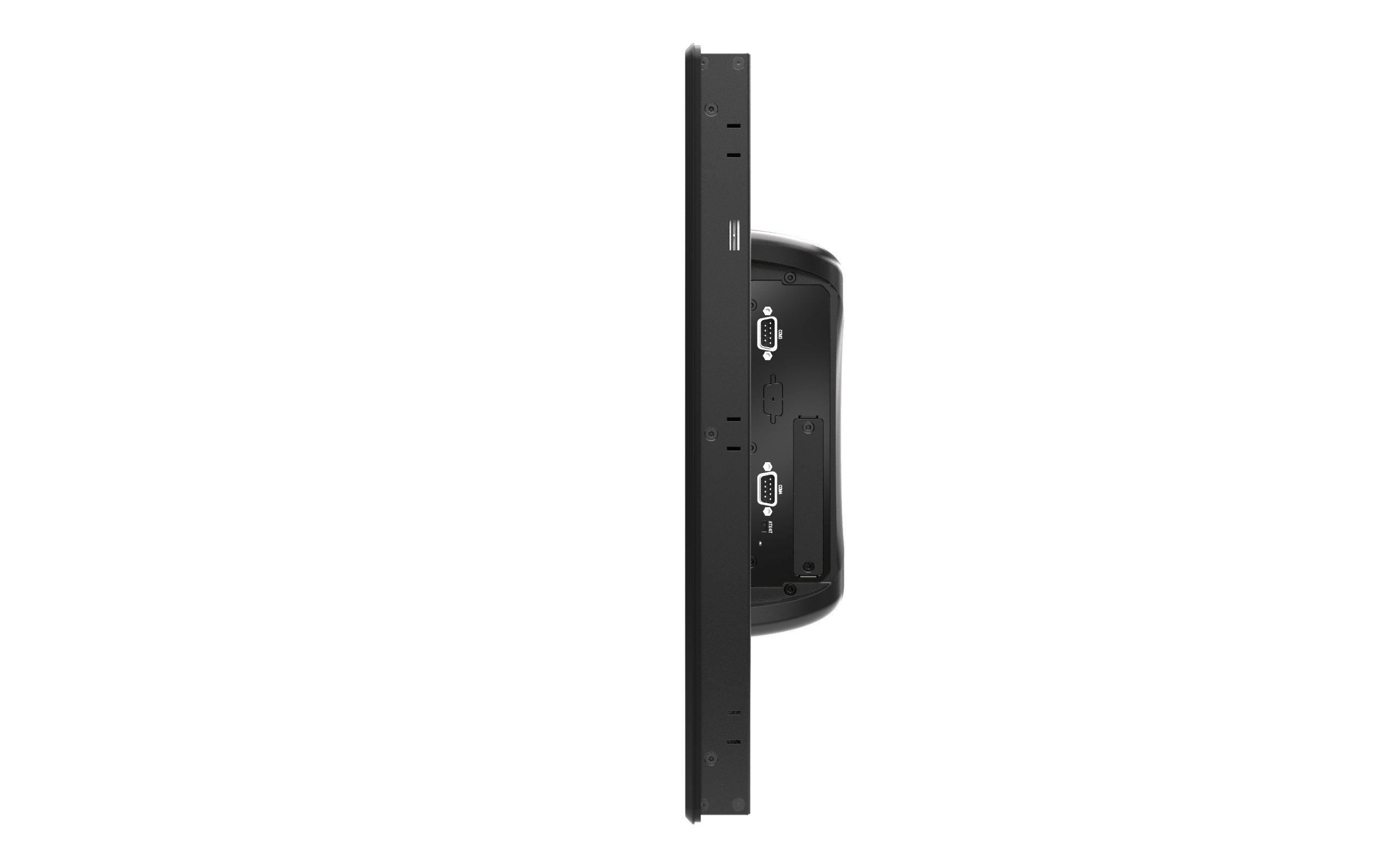

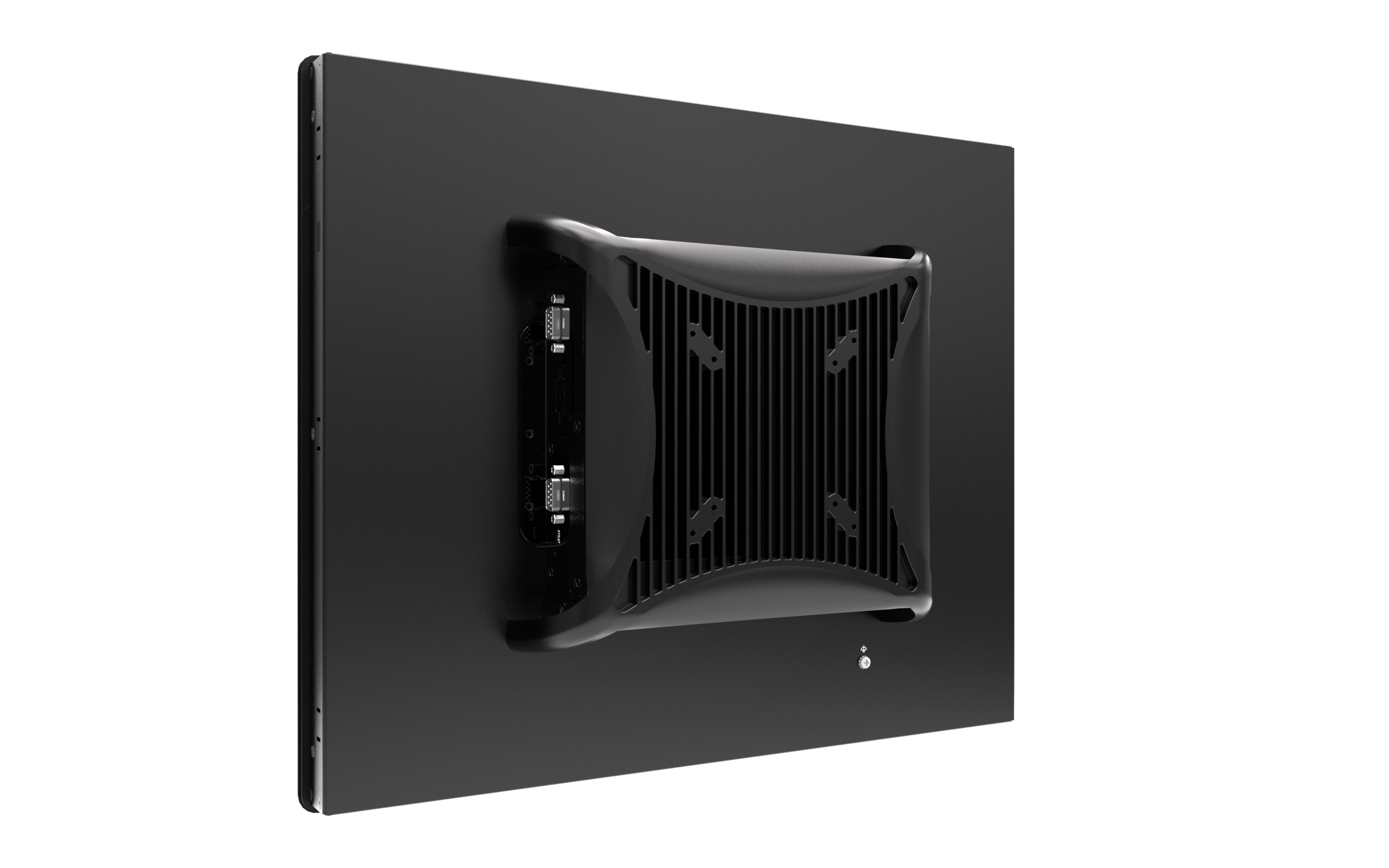

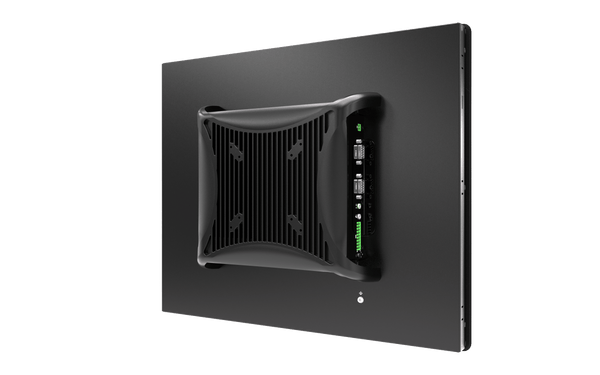

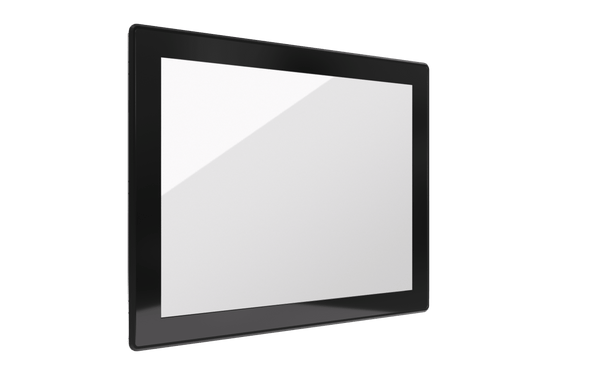

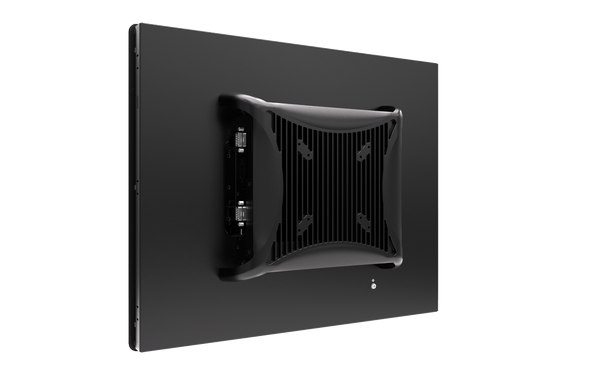

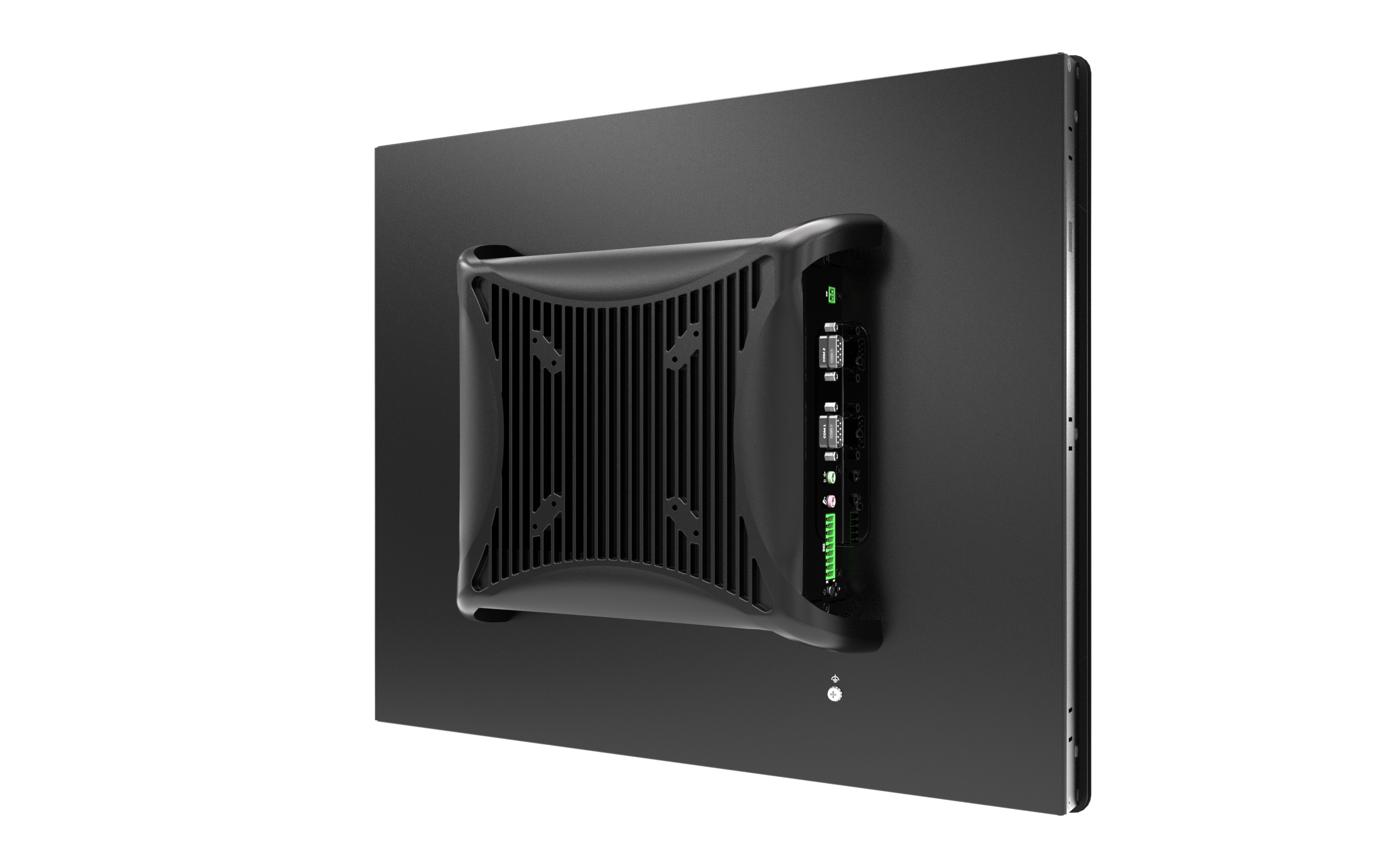

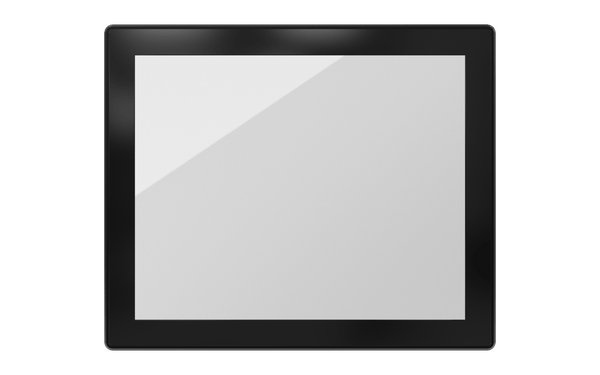

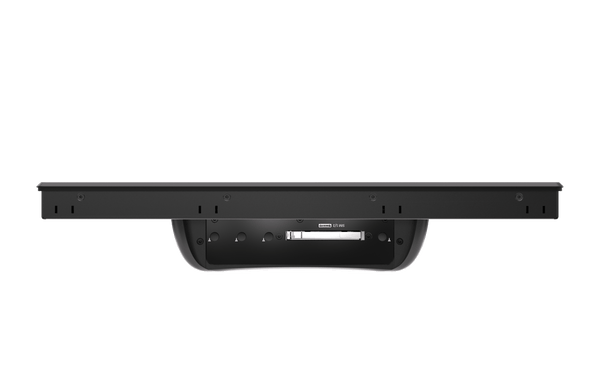

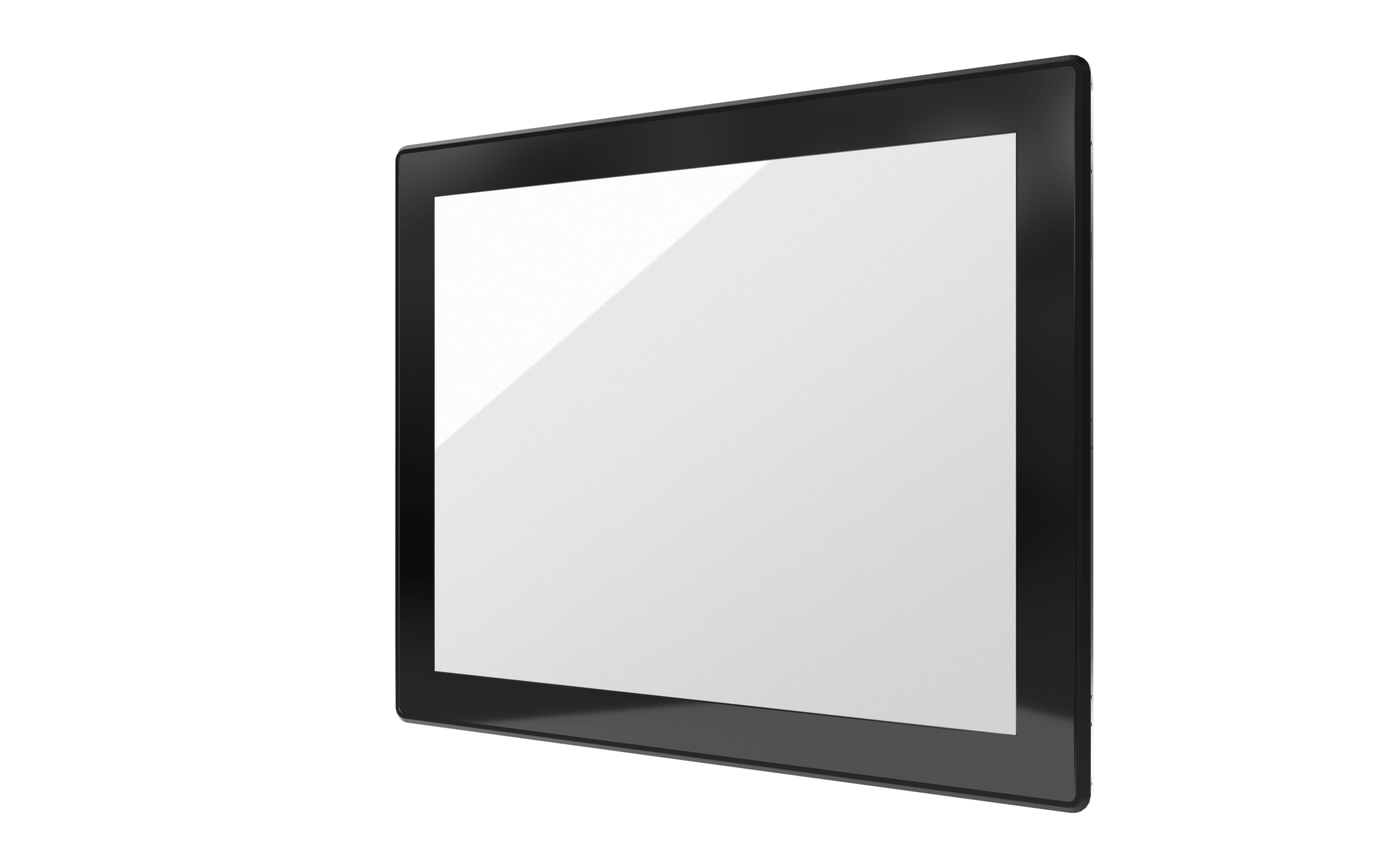

VIO-319-PC100-ASL 19" SXGA IP65 Industrial Touchscreen Computer with Intel Atom® Processor, 1x DP, 3x USB, 2x LAN, 4x COM

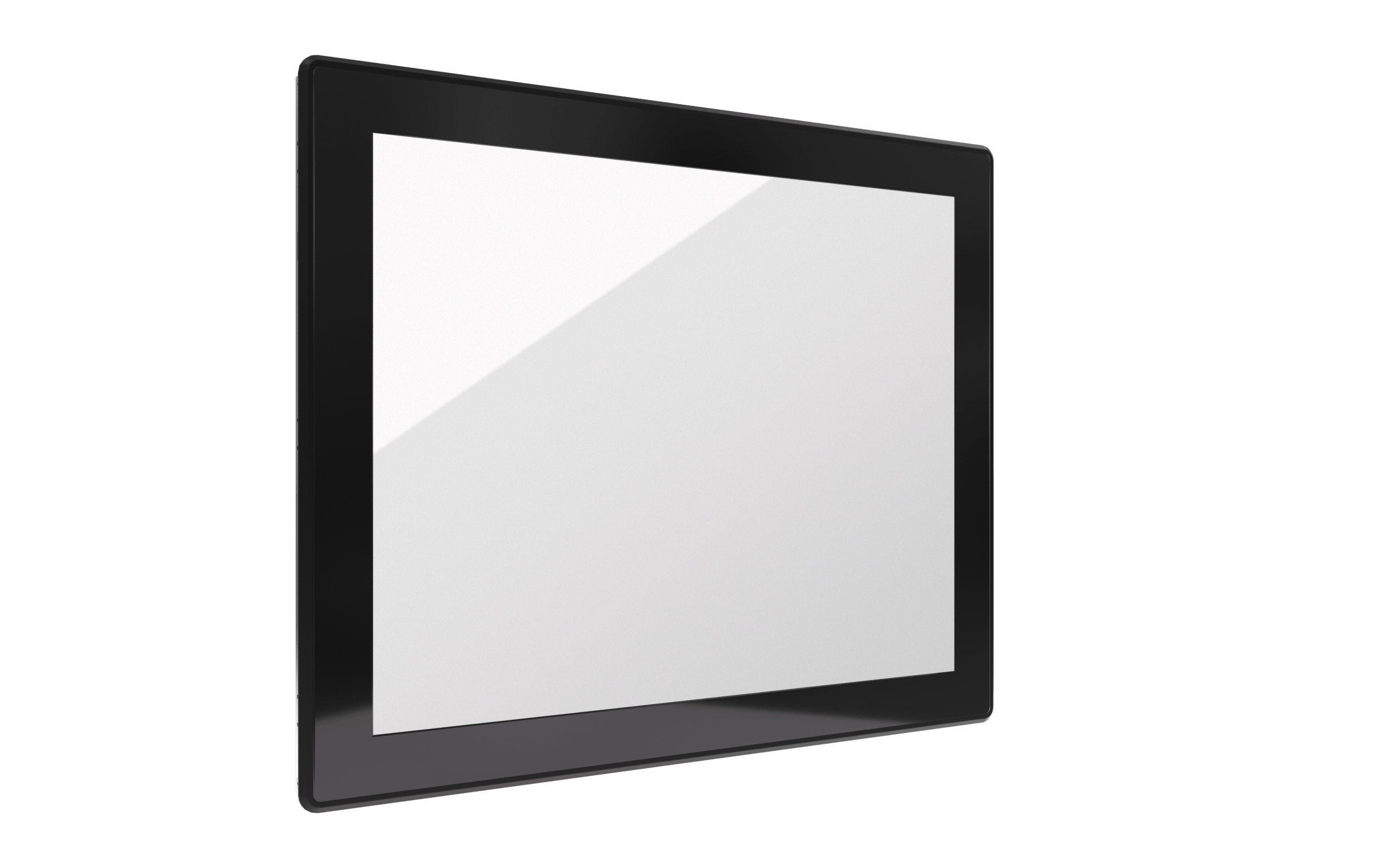

- 19" TFT SXGA 4:3 LCD with projected capacitive touch / projected capacitive touch
- Intel Atom® x7433RE / x7835RE Processor
- 1x DDR5 4800 MT/s SODIMM. max up to 16GB
- 1x 2.5” Hot-Swappable SATA SSD
- 2x RJ45 LAN, 1x DisplayPort, 1x HDMI
- 2x USB 3.2 Gen 2, 1x USB 3.2 Gen 1, 1x USB-C 3.2 Gen 1
- 8x DI + 8x DO, 4x RS-232/422/485
- 9 to 36VDC wide range power input
- 0°C to 50°C operating temperature
- IP65 compliant front panel
Model:
VIO-319-PC100-ASL
Certifications:
Specifications
| Display | |
|---|---|
| IP Rating | IP65 |
| LCD Size | 19" (4:3) |
| Max. Resolution | 1280 x 1024 (SXGA) |
| Brightness (cd/m²) | 400 / 1000 (Optional) |
| Contrast Ratio | 1000:1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.294(H) x 0.294(V) |
| Viewing Angle | 170/160 |
| Backlight Lifetime | 50,000 hrs (LED Backlight) |
| Touch | |
| Touch Type | Projective Capacitive Resistive 5-Wire (optional) |
| Surface Hardness | 7H / IK07 |
| System | |
| Processor | Intel Atom® x7433RE Processor 6M Cache, up to 3.40 GHz ,4 cores ,9W (Default) Intel Atom® x7835RE Processor 6M Cache, up to 3.60 GHz ,8 cores, 12W |
| System Chipset | SoC Integrated |
| LAN Chipset | GbE1: Intel® i226 IT 2.5GbE (Support Wake-on-LAN and PXE) GbE2: Intel® i226 IT 2.5GbE (Support Wake-on-LAN and PXE) |
| Audio Codec | Realtek ALC888S |
| System Memory | 1x DDR5 4800 MT/s SODIMM. Max. up to 16GB |
| BIOS | AMI 64Mbit SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | dTPM2.0 |
| Storage | |
| SIM Socket | 1x Dual Nano SIM socket |

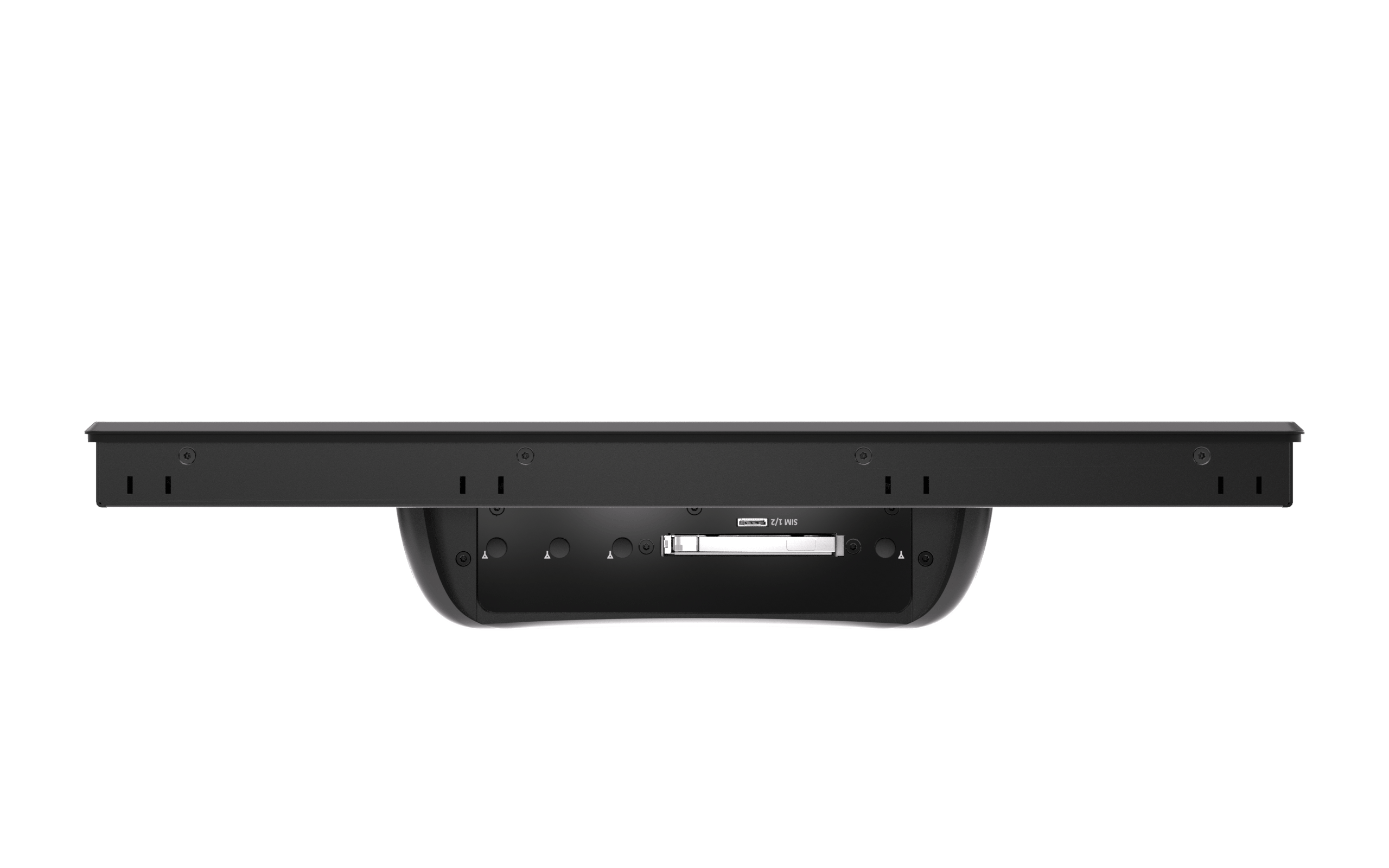

| SSD/HDD | 1x Hotswap 2.5" SATA HDD Bay |
| Expansion | |
| M.2 | 2x M.2 B-Key PCIe x2, USB 3.0 2242/3042/3052 1x M.2 E-Key PCIe x1, USB 2.0 2230 |
| PCIe | 1x PCIe Gen 3 x1 Slot (x4 Connector, Shared with M.2 B-Key #2; 1E Model Only) |

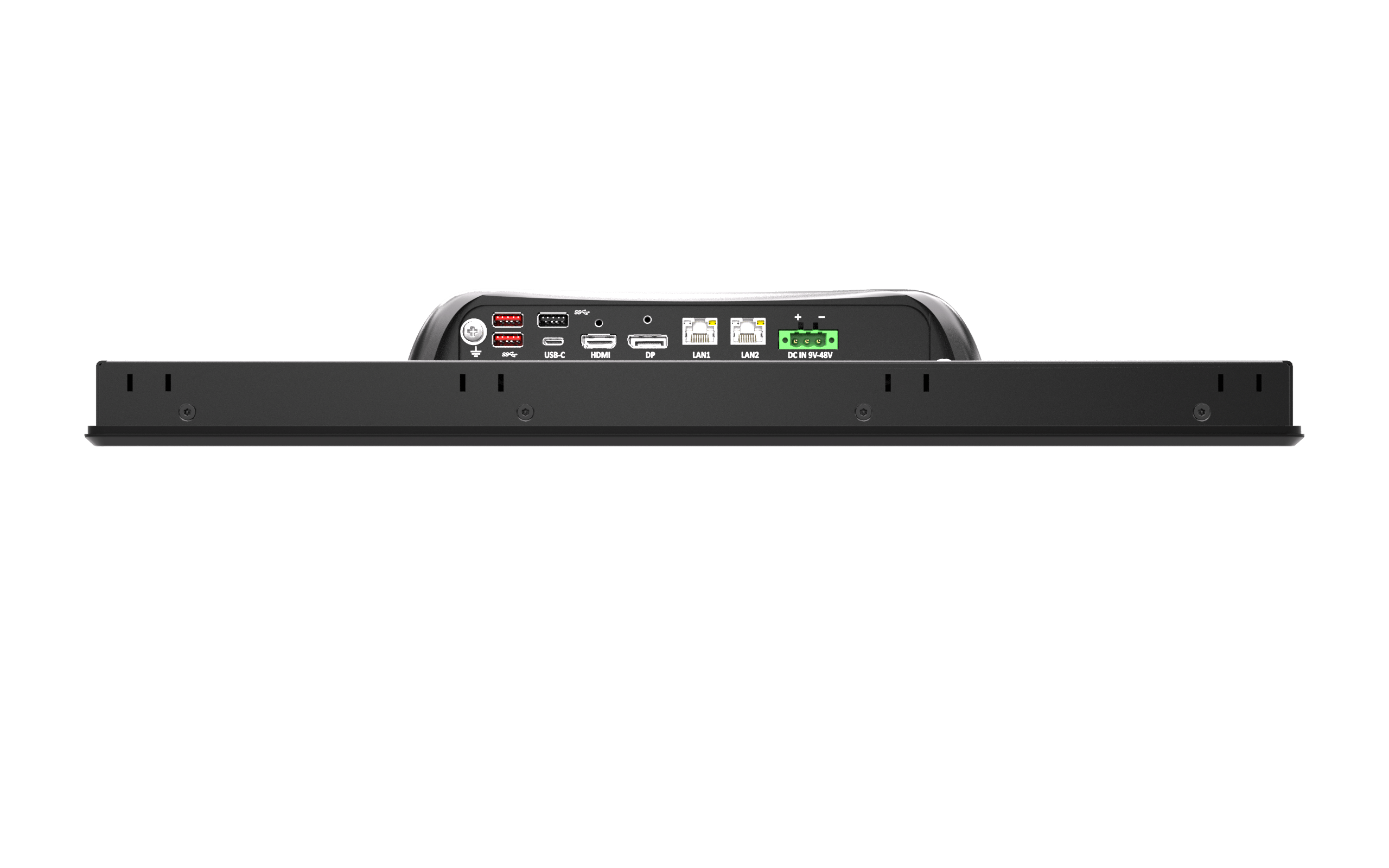

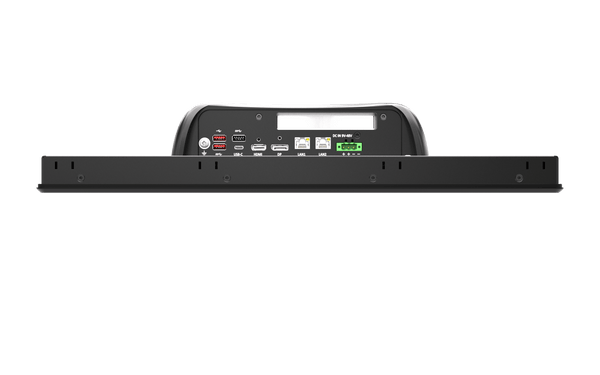

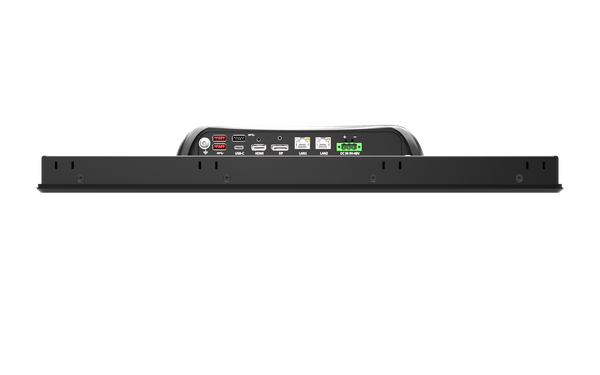

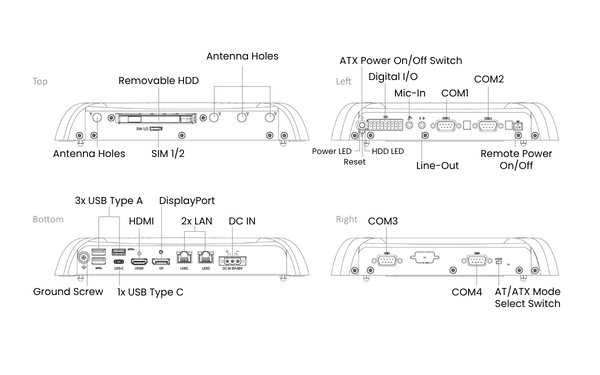

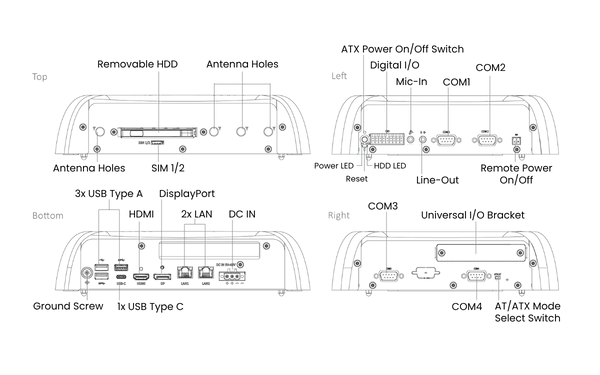

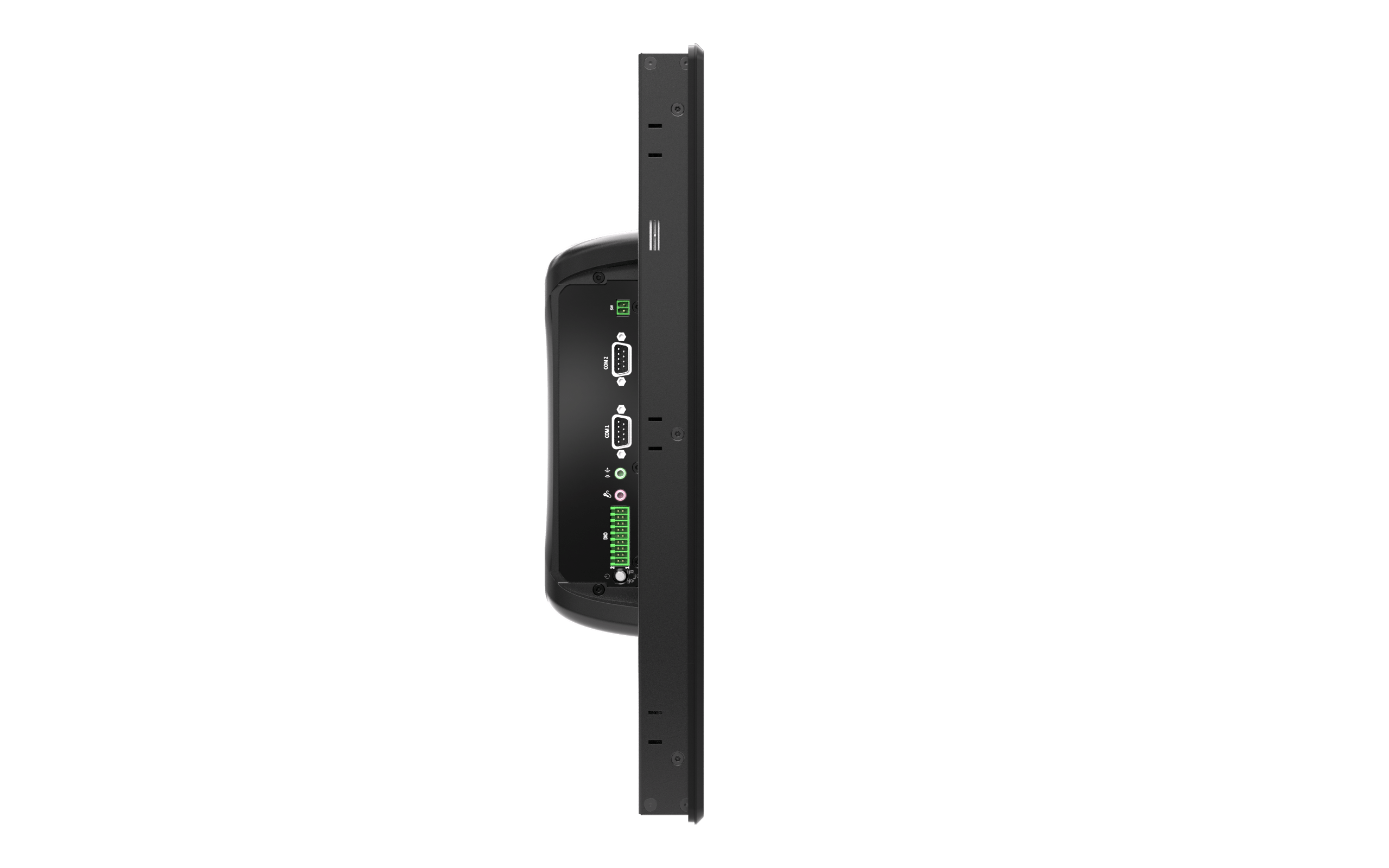

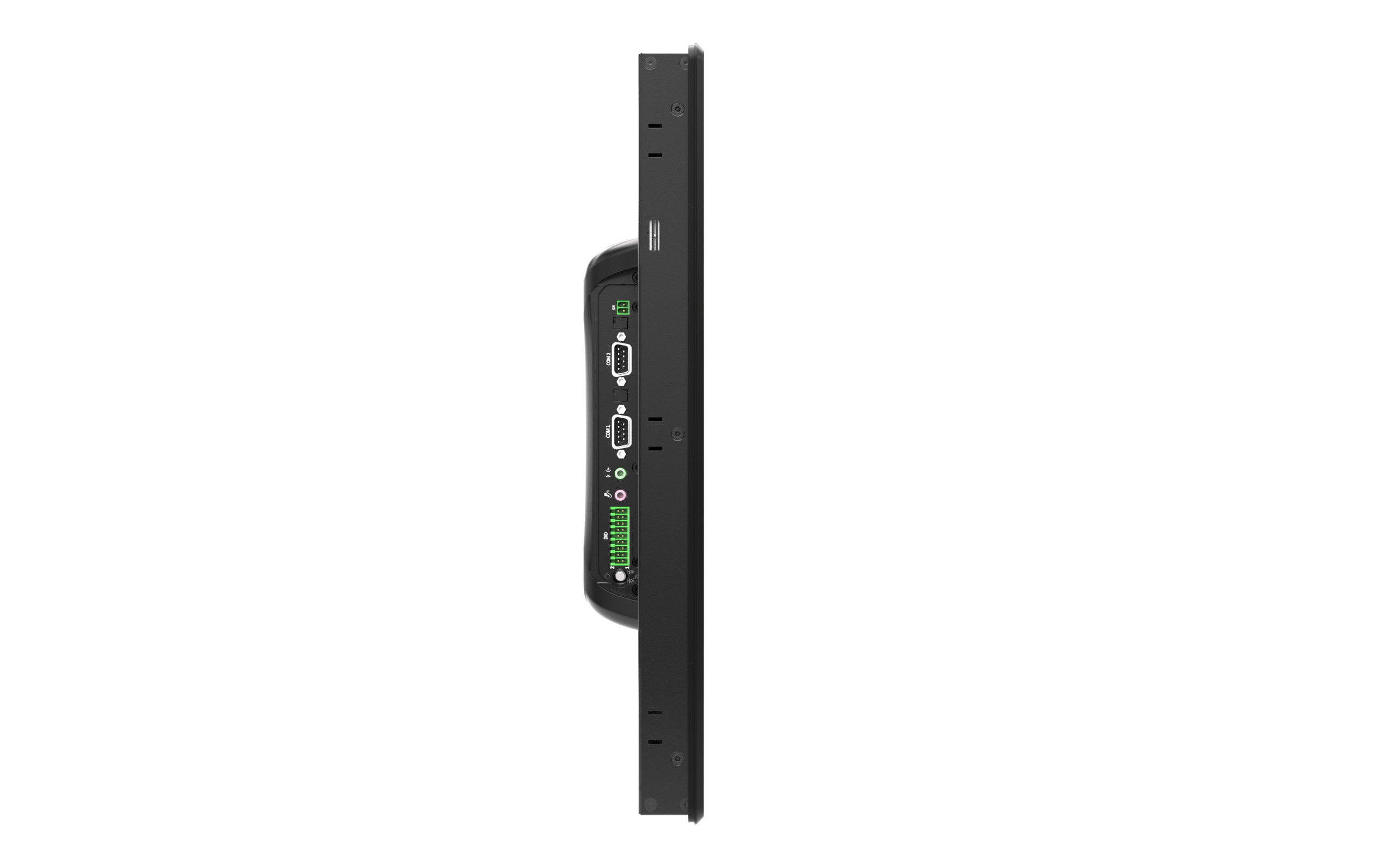

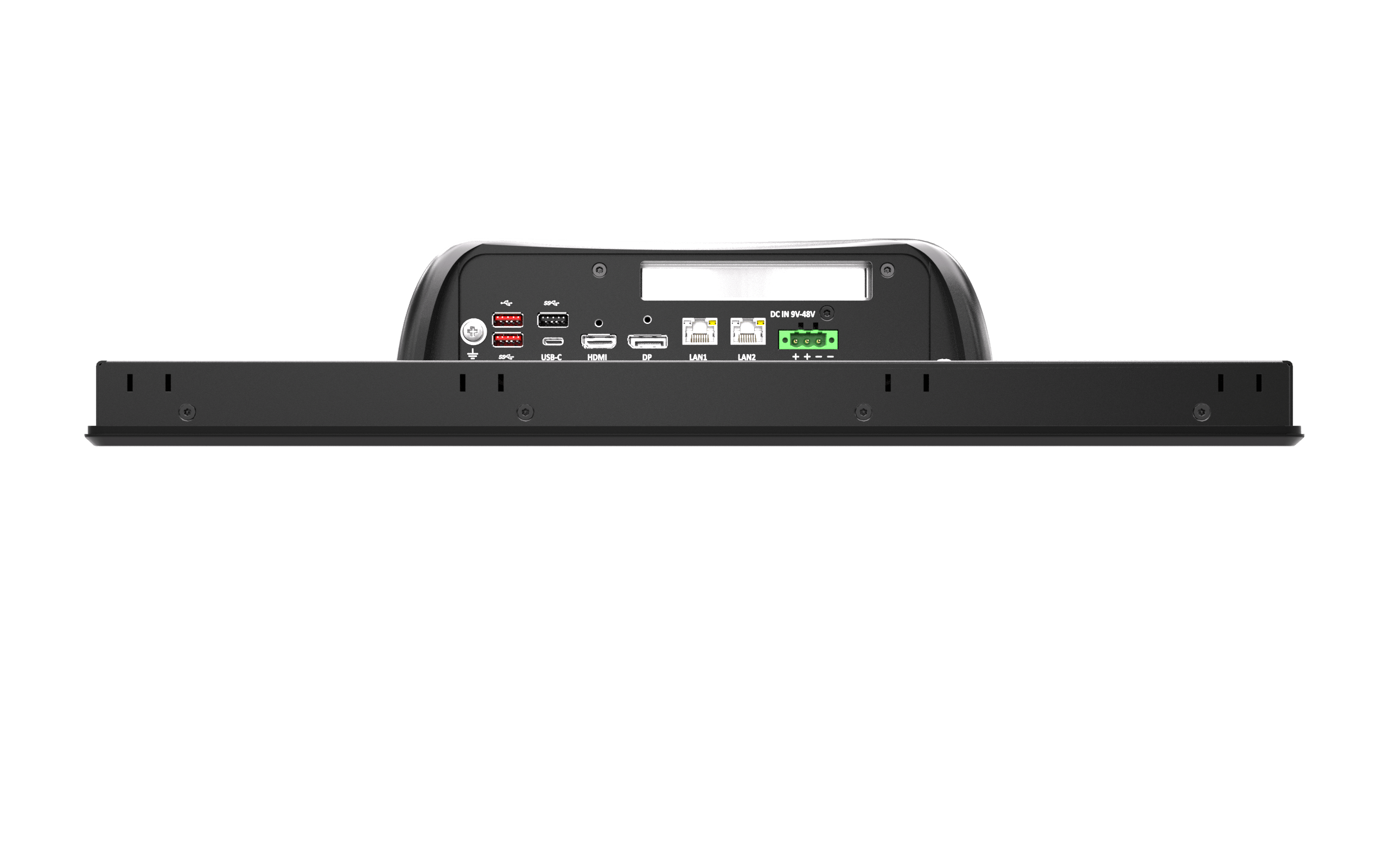

| I/O | |
| Audio | 1x Mic-in, 1x Line-out |
| CAN | 2x CAN 2.0 A/B 2-pin Header (Internal) |

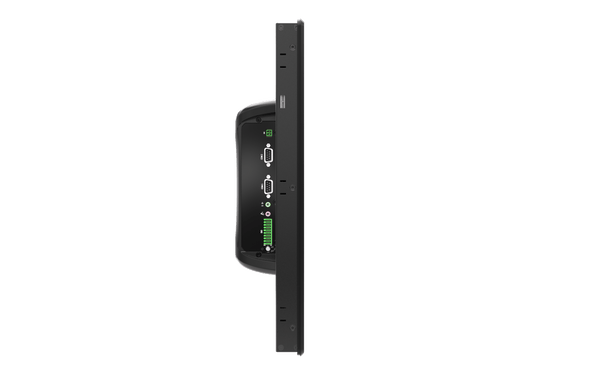

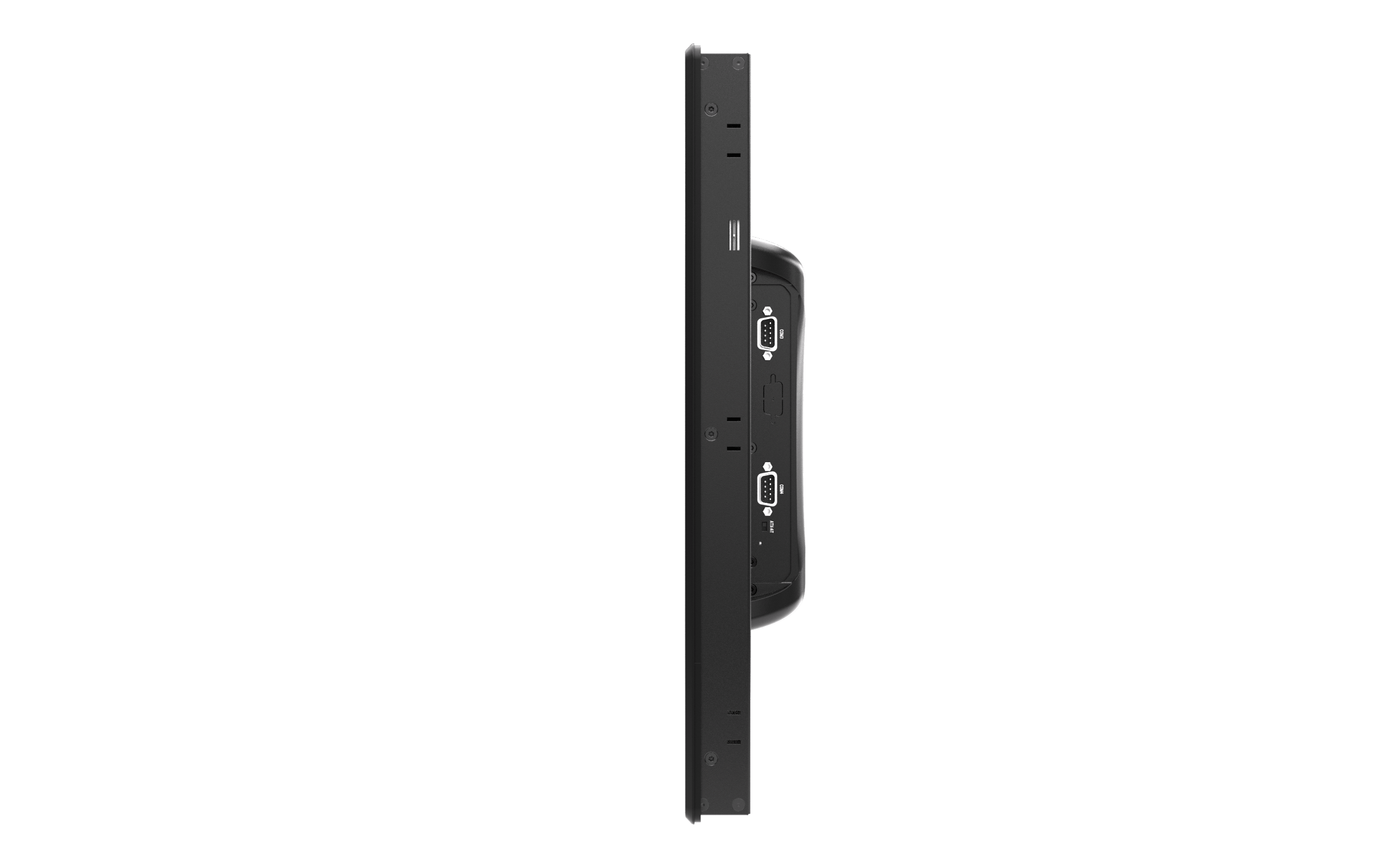

| COM | 4x RS-232/422/485 2x RS-232/422/485 (internal) |
| DIO | 8 in / 8 out (Isolated) |
| LAN | 2x RJ45 |
| USB | 1x USB 3.2 Gen 2 (10 Gbps) 1x USB 3.2 Gen 2 (Type C) 1x USB 3.2 Gen 1 (5 Gbps) 1x USB 2.0 |
| DP | 1x DisplayPort (4096 x 2160@60Hz) |
| HDMI | 1x HDMI 1.4b (3840 x 2160@30Hz) |
| Others | 4x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off |
| Others Features | |
| OSD | LCD On/Off, Auto, Menu, Up and Down Multi-language |
| Speaker | 2x 2w 8ohm |
| Operating System | |
| Windows | Windows 10/11 IoT Enterprise LTSC (64-bit) |
| Linux | Ubuntu 22.04 / 24.04 LTS, Linux 5.x / 6.x |
| Power | |
| Power Adapter | Optional AC/DC 12V/5A, 60W |
| Power Mode | AT, ATX |
| Power Supply Voltage | 9~36 VDC |
| Power Connector | 3-Pin Terminal Blcok |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection Surge Protection (DC mode) |
| Environment | |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -20 °C to 70°C |
| Relative Humidity | 10%~95% (non-condensing) |
| IP Level | IP 65 Compliant Front Panel |
| Certification | UL 62368-1 Ed. 3,, CE, FCC Class B |
| Vibration | With SSD: 3 Grms, 5 - 500 Hz, 0.5 hr/axis With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis |
| Shock | 20G, half sine, 11ms |
| Physical | |

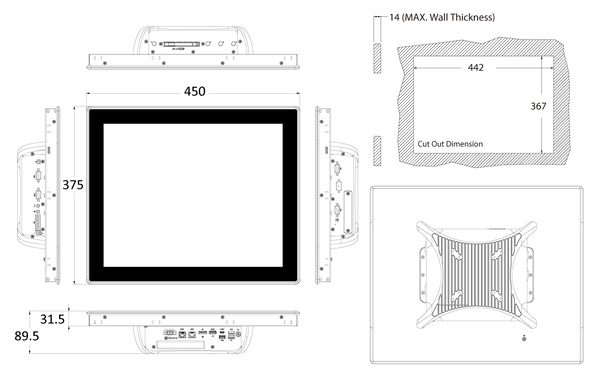

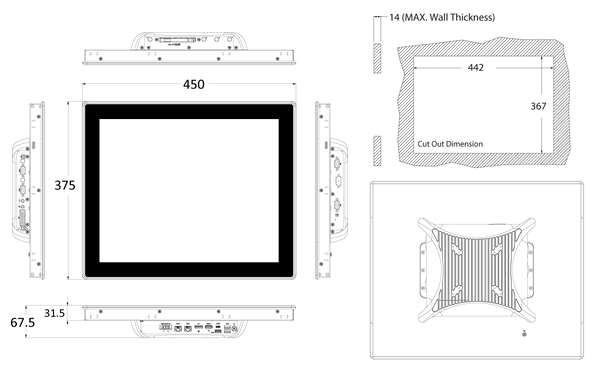

| Dimensions | VIO-319-PC100-ASL: 450 (W) x 375 (D) x 67.5 (H) mm VIO-319-PC100-ASL-1E: 450 (W) x 375 (D) x 89.5 (H) mm |
| Construction | Extruded Aluminum with Heavy Duty Metal |

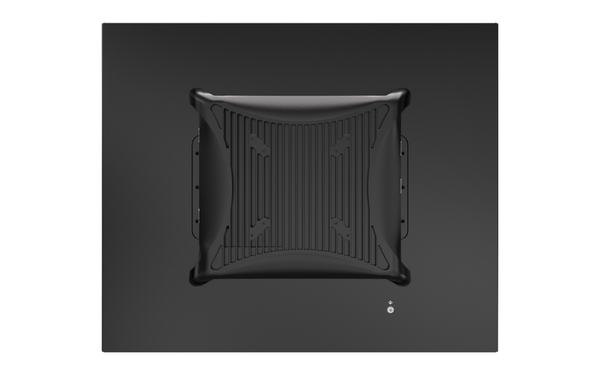

| Mounting | VESA Mounting Holes 75 x 75mm, 100 x 100mm |
