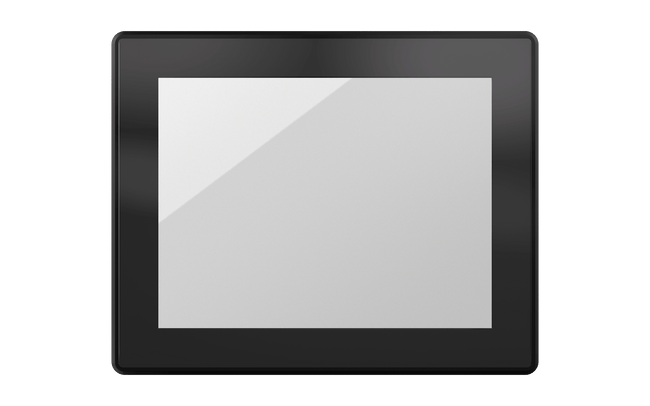

VIO-312-PC600-MTL 12.1" XGA IP65 Industrial Touchscreen Computer with Intel® Core™ Ultra Series Processor, 1x DP, 3x USB, 2x LAN, 4x COM
VIO-315-PC600-MTL 15" XGA IP65 Industrial Touchscreen Computer with Intel® Core™ Ultra Series Processor, 1x DP, 3x USB, 2x LAN, 4x COM
VIO-317-PC600-MTL 17" SXGA IP65 Industrial Touchscreen Computer with Intel® Core™ Ultra Series Processor, 1x DP, 3x USB, 2x LAN, 4x COM
VIO-319-PC600-MTL 19" SXGA IP65 Industrial Touchscreen Computer with Intel® Core™ Ultra Series Processor, 1x DP, 3x USB, 2x LAN, 4x COM

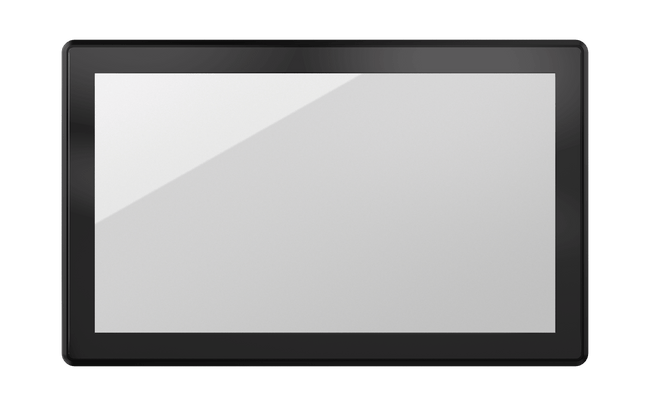

VIO-W315-PC600-MTL 15.6" Full HD IP65 Industrial Touchscreen Computer with Intel® Core™ Ultra Series Processor, 1x DP, 3x USB, 2x LAN, 4x COM

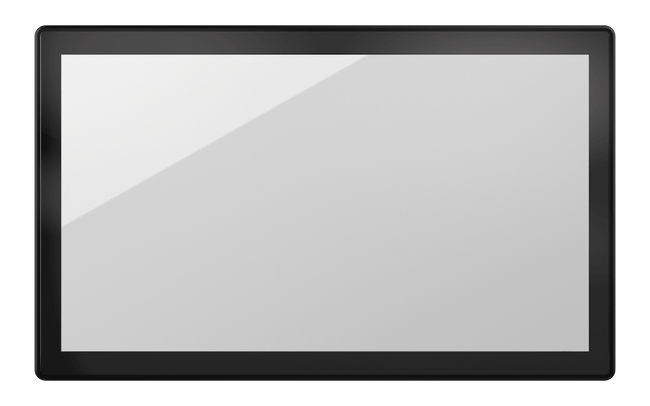

VIO-W321-PC600-MTL 21.5" Full HD IP65 Industrial Touchscreen Computer with Intel® Core™ Ultra Series Processor, 1x DP, 3x USB, 2x LAN, 4x COM
VIO-W324-PC600-MTL 23.8" Full HD IP65 Industrial Touchscreen Computer with Intel® Core™ Ultra Series Processor, 1x DP, 3x USB, 2x LAN, 4x COM

Coming Soon

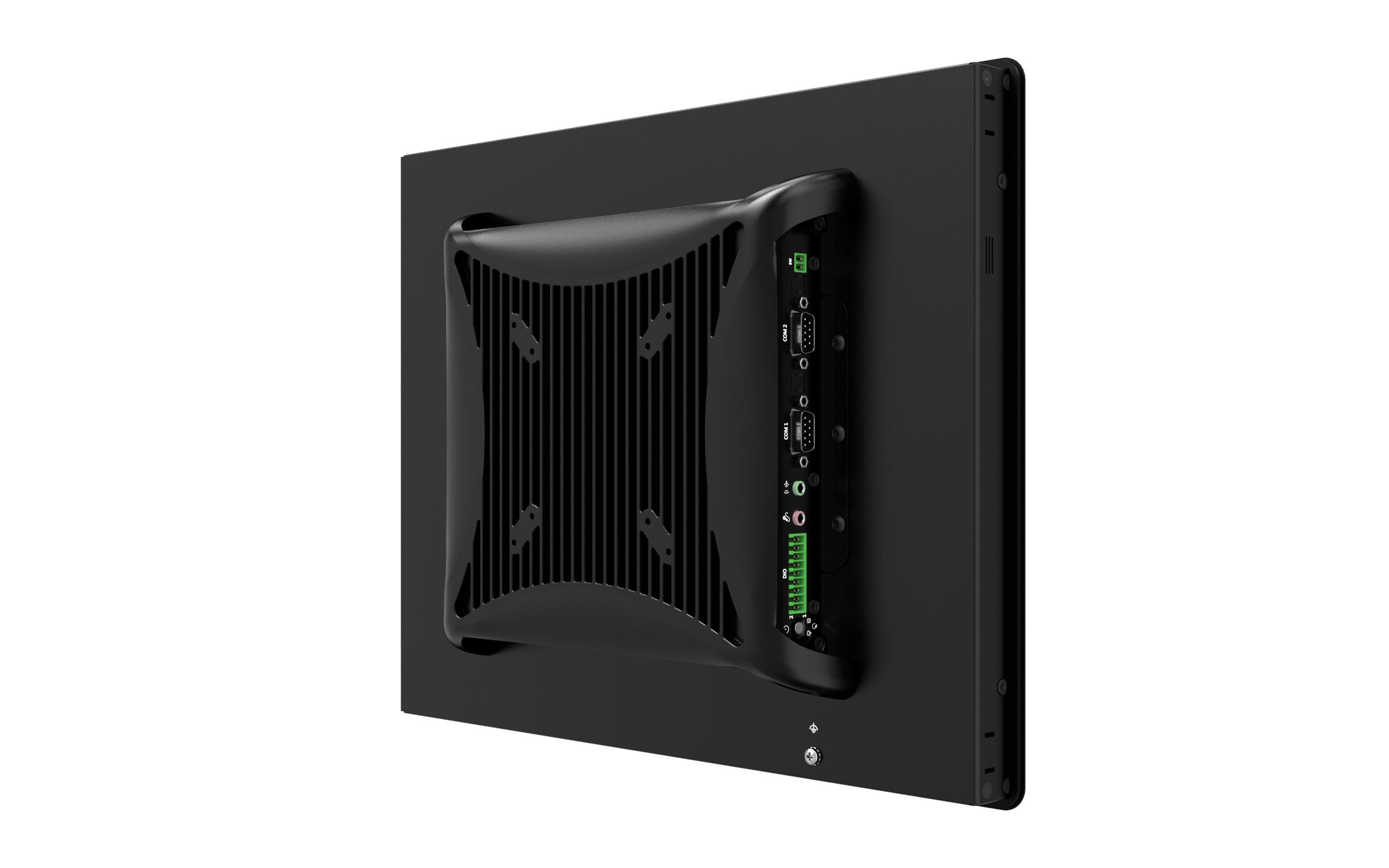

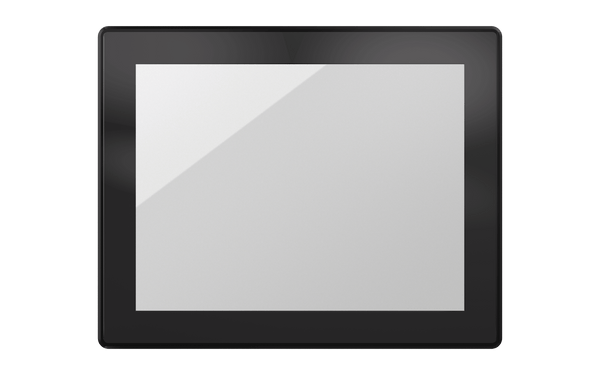

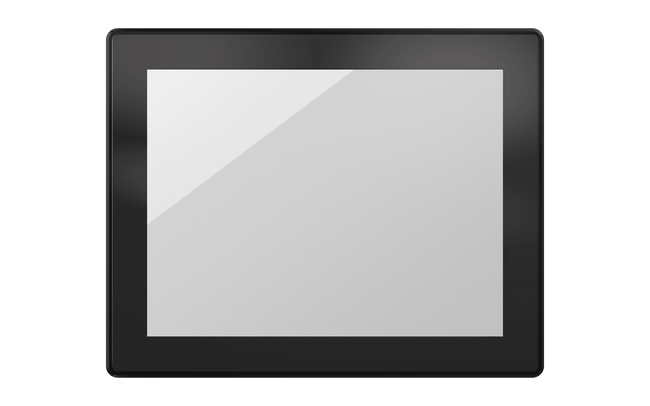

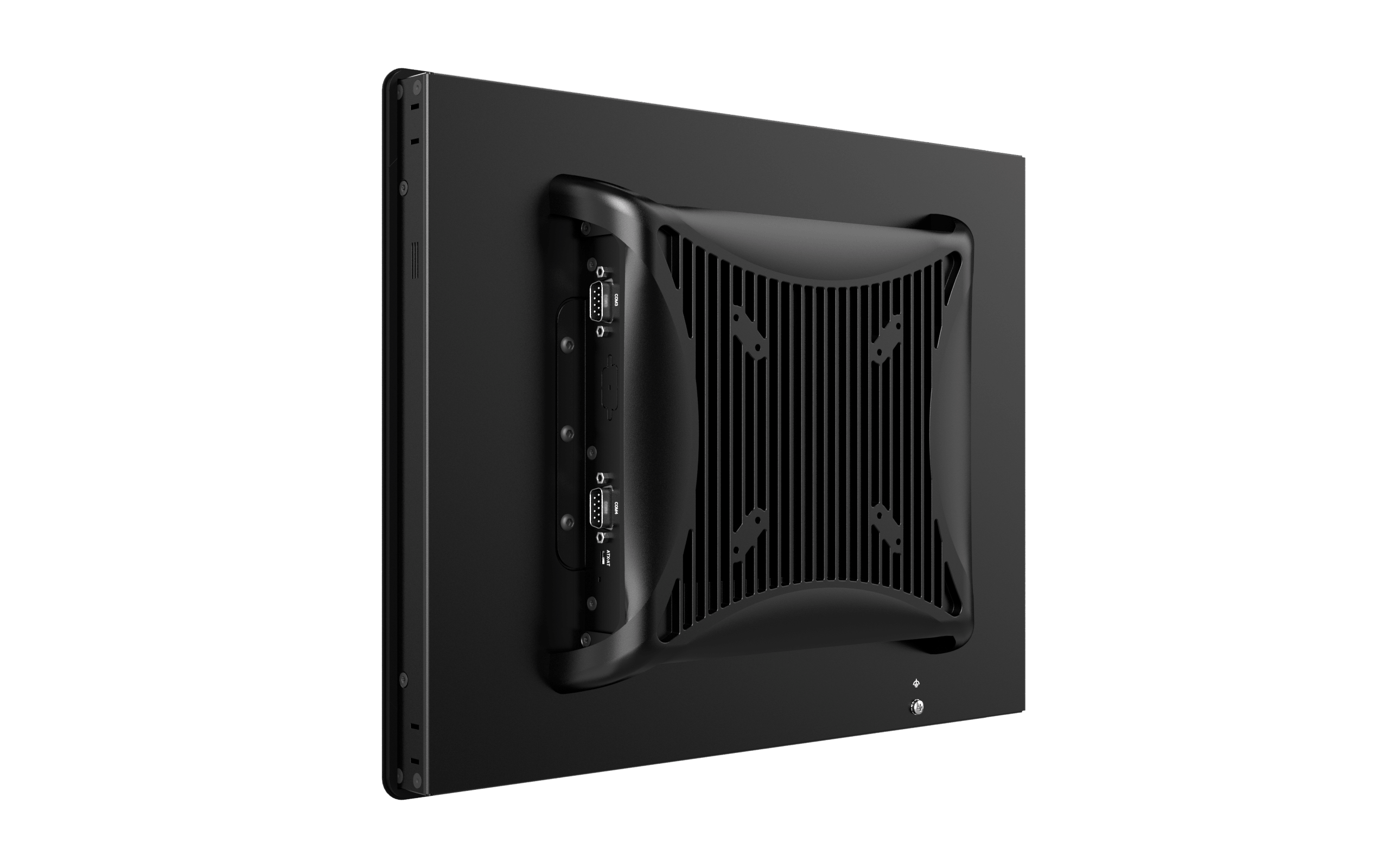

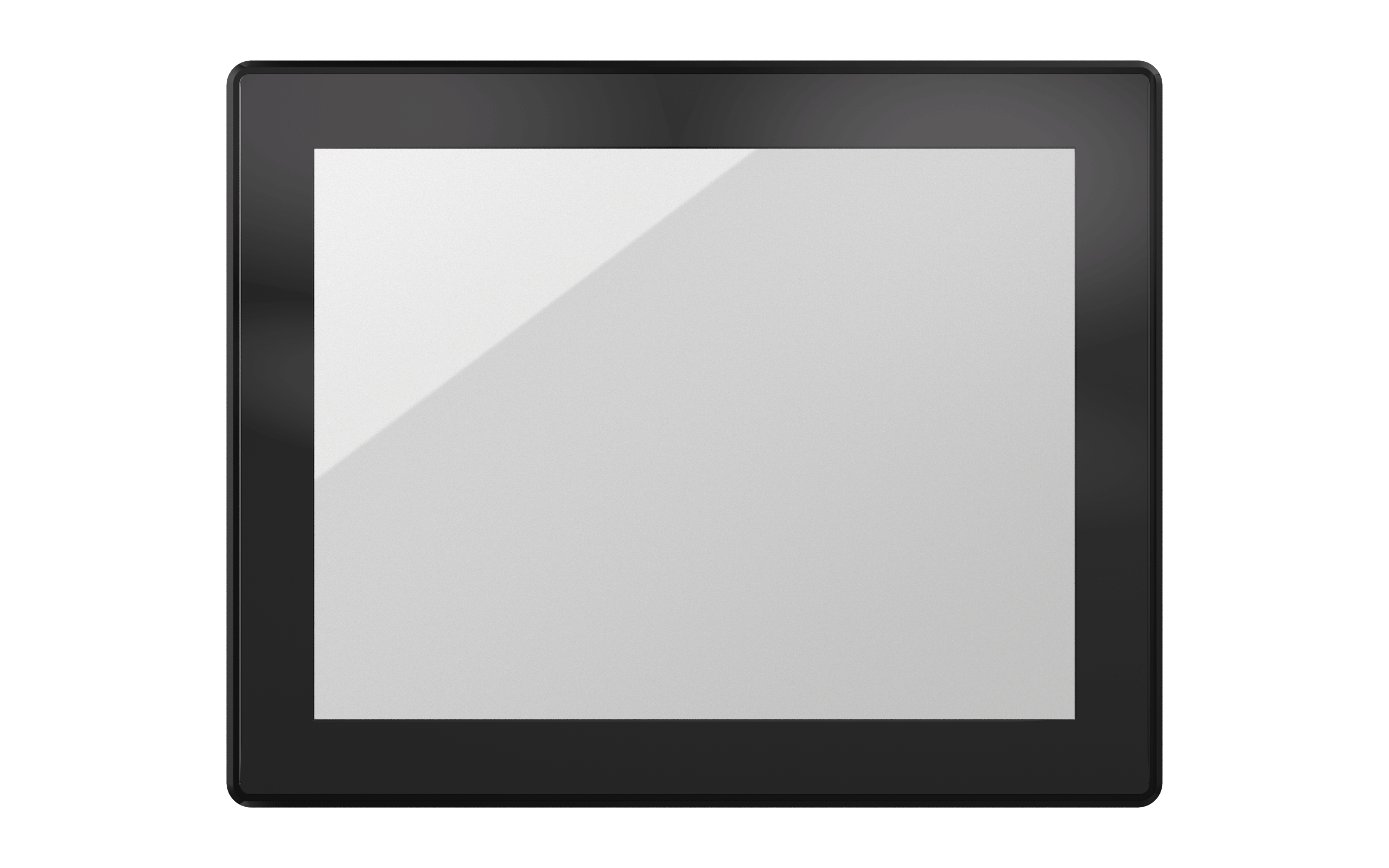

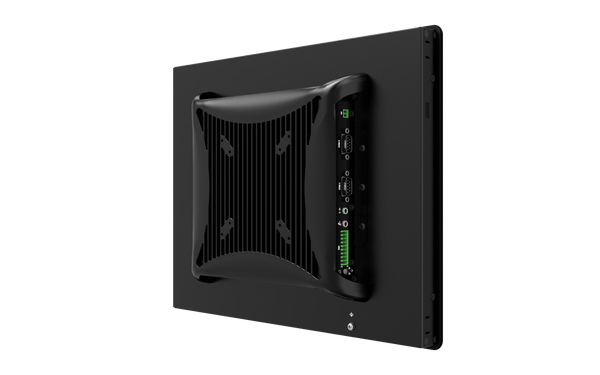

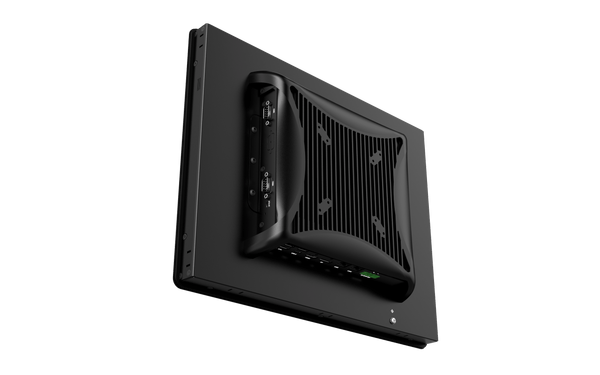

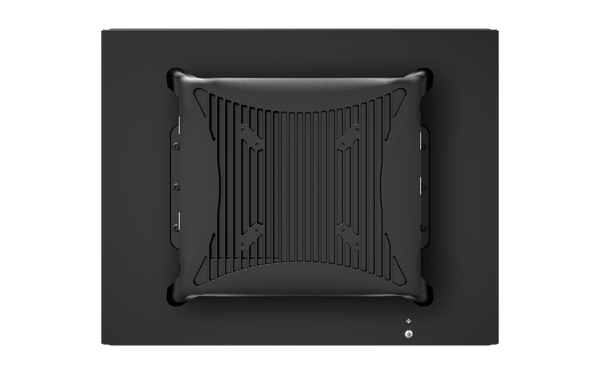

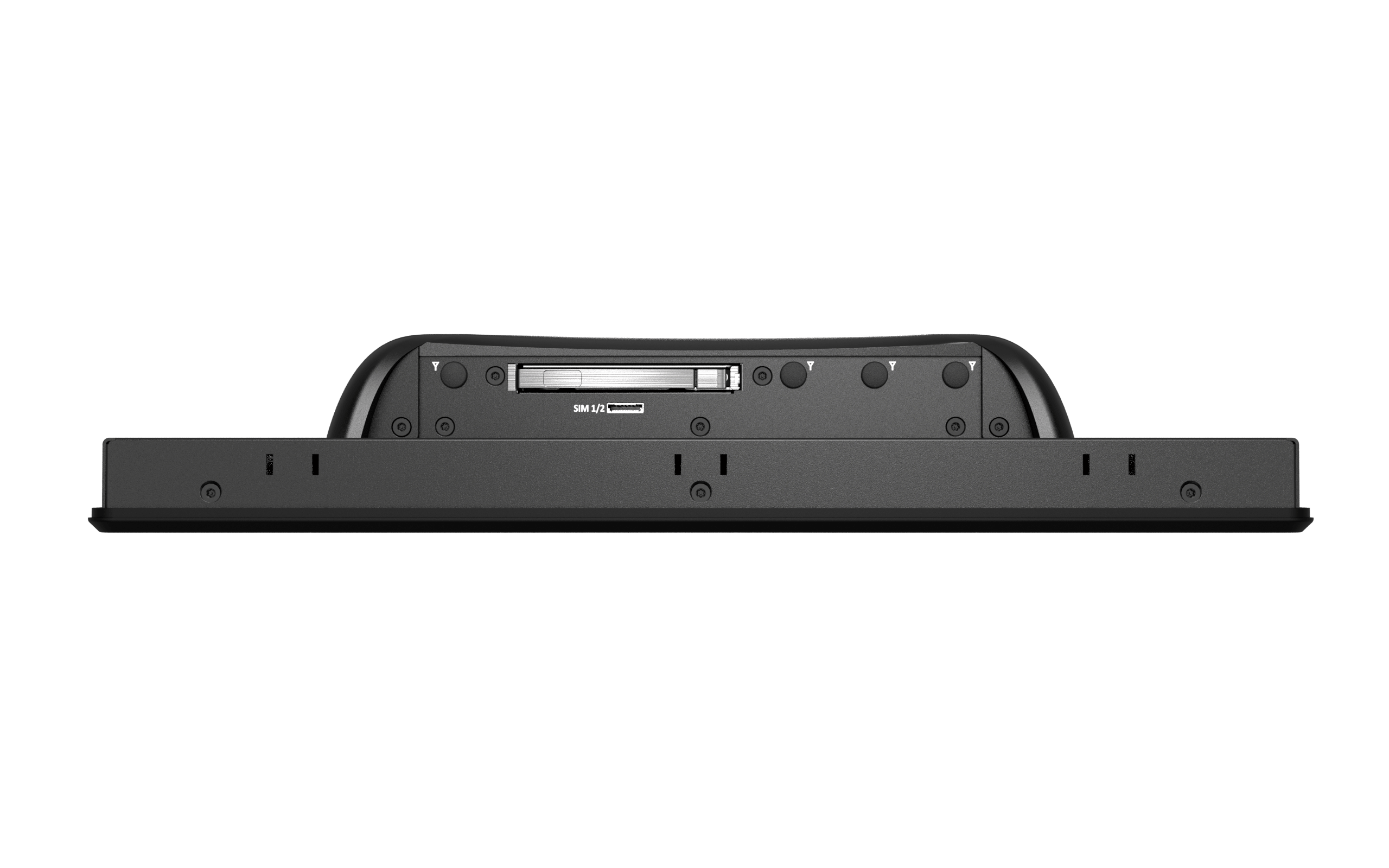

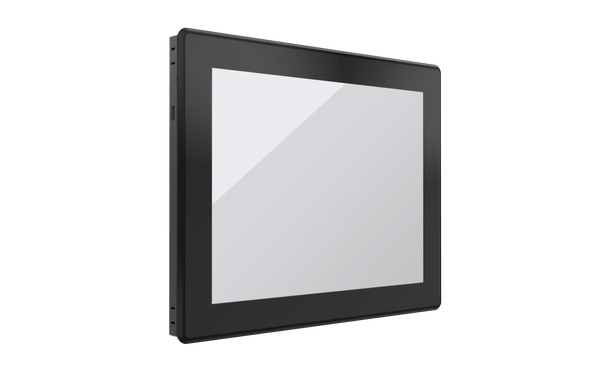

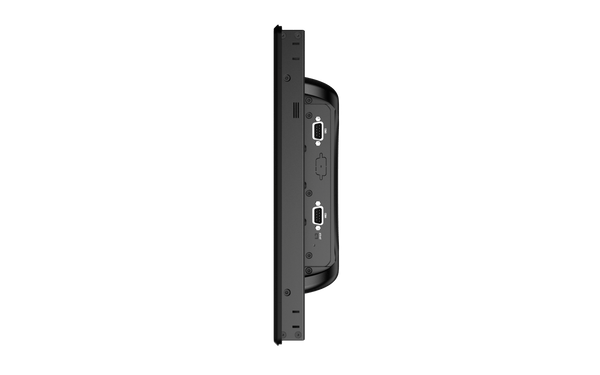

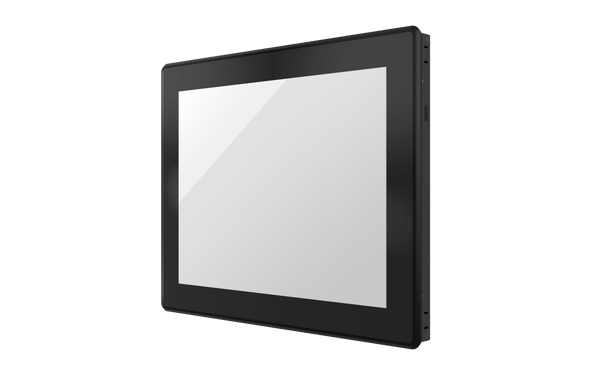

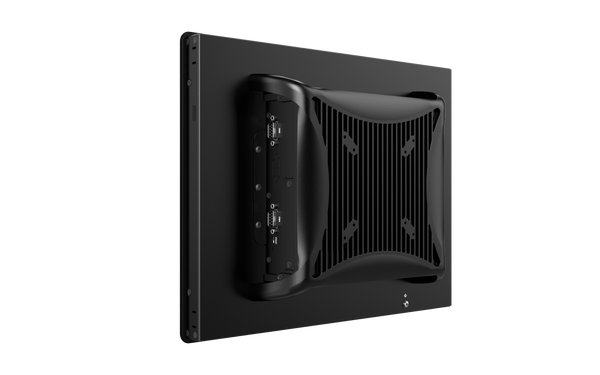

VIO-315-PC600-MTL 15" XGA IP65 Industrial Touchscreen Computer with Intel® Core™ Ultra Series Processor, 1x DP, 3x USB, 2x LAN, 4x COM

  • 15" TFT XGA 4:3 LCD with resistive 5-wire / projected capacitive touch
  • Intel® Core™ Ultra Series Processor Meteor Lake-U
  • 1x DDR5 5600 MT/s SODIMM. max up to 48GB
  • 1x 2.5” Hot-Swappable SATA SSD, 1x M.2 M-Key NVMe
  • 2x RJ45 LAN, 1x DisplayPort, 1x HDMI
  • 2x USB 3.2, 1x USB-C 3.2 Gen 2, 1x USB 2.0
  • 8x DI + 8x DO, 4x RS-232/422/485
  • 9 to 48VDC wide range power input
  • 0°C to 50°C operating temperature
  • IP65 compliant front panel

Certifications:

Intel Partner

Fanless & Cable-less

PCAP/Resistive Touch

Modular Design

Wide Temperature

Shock And Vibration Resistance

TPM 2.0 Security Module

Powered by Intel® Core™ Ultra Processors

The PC600-MTL delivers high-performance computing with Intel® Core™ Ultra 5/7 processors and DDR5 memory support.

Processor 125U 155U
Cores 12 12
Base TDP 15 W 15 W
CPU Max Turbo Frequency 4.3 GHz 4.8 GHz
Graphics Max Dynamic Frequency 1.85 GHz 1.95 GHz

Flexible Storage Options

The PC600-MTL provides versatile storage options for high-speed data access and easy maintenance.

  • 1x M.2 M-Key NVMe SSD for high-speed storage
  • 1x Hot-Swappable 2.5" SATA HDD/SSD for easy maintenance and replacement

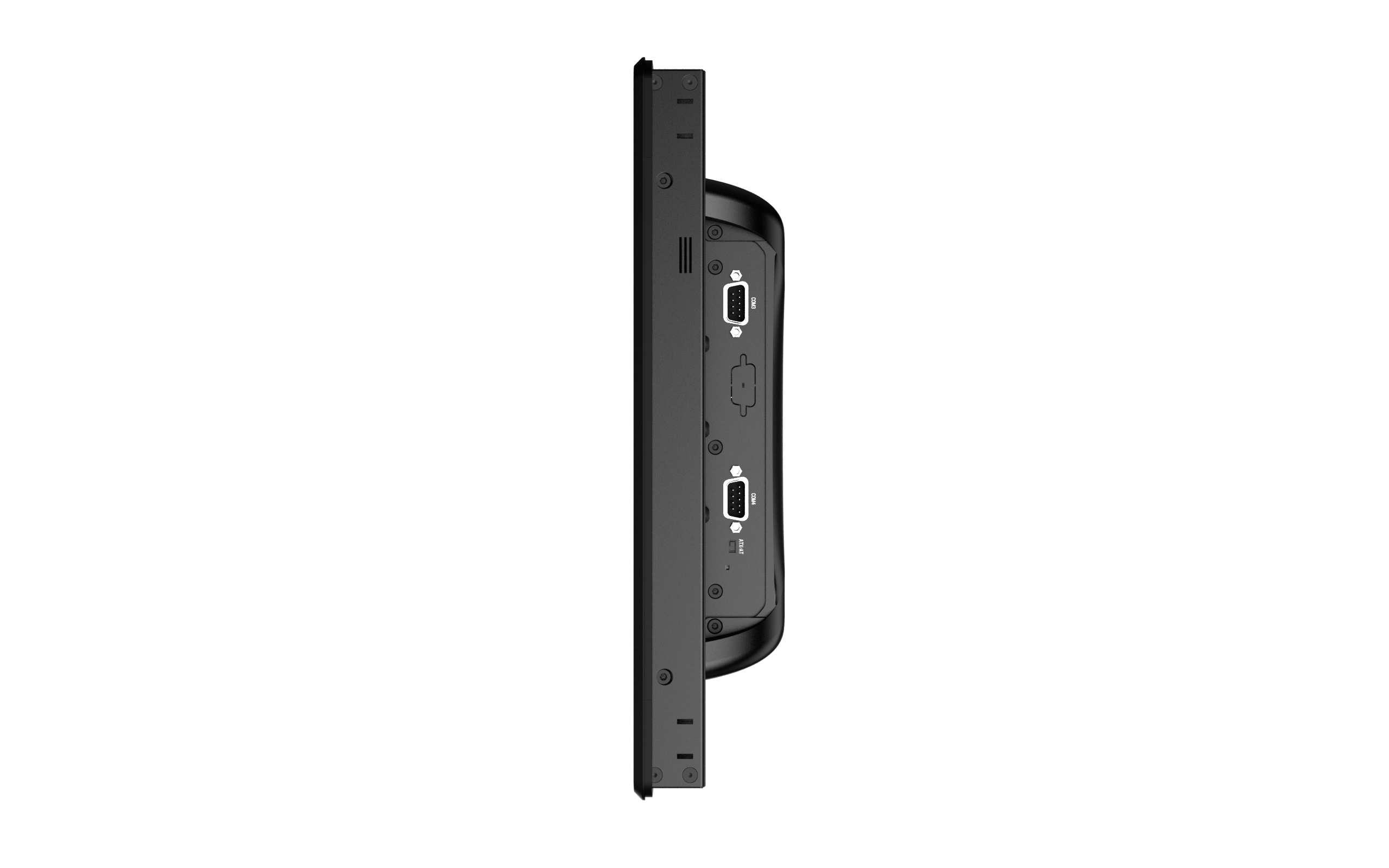

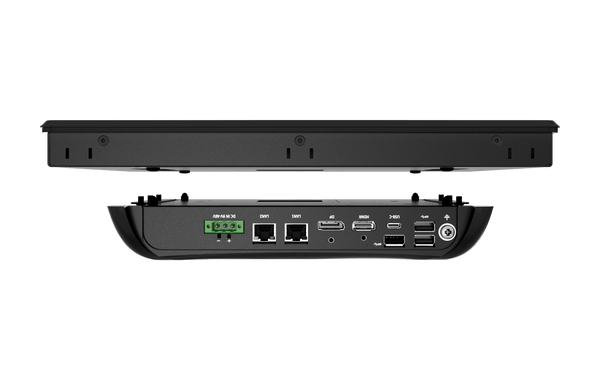

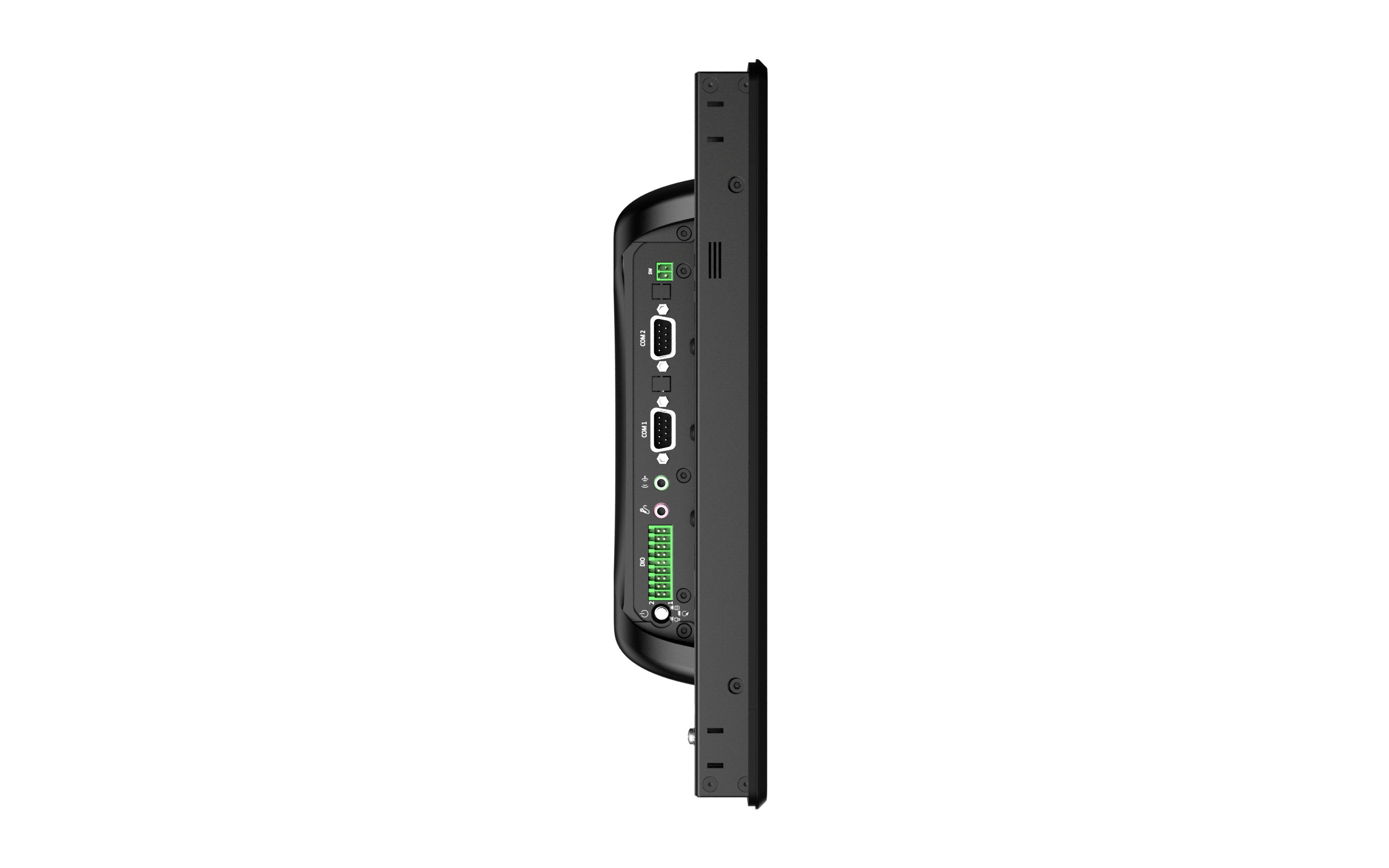

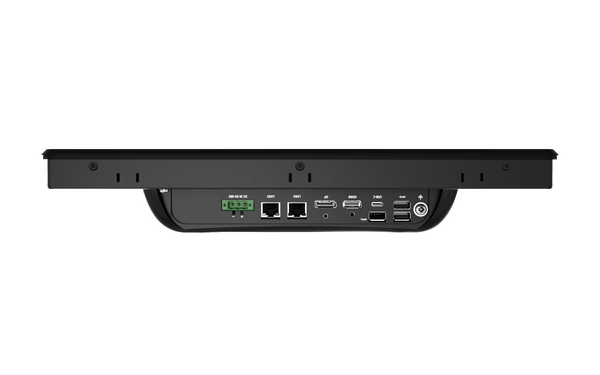

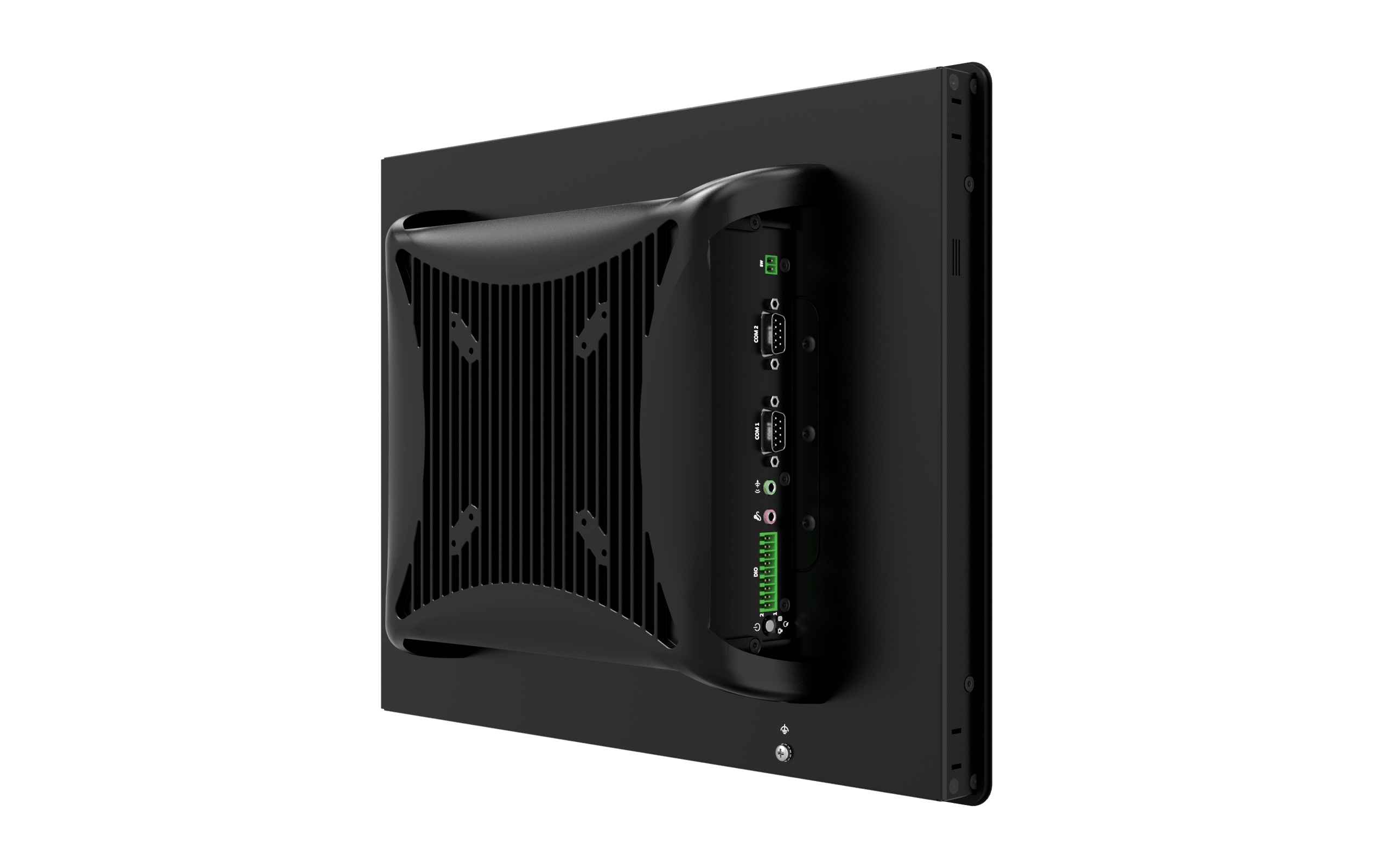

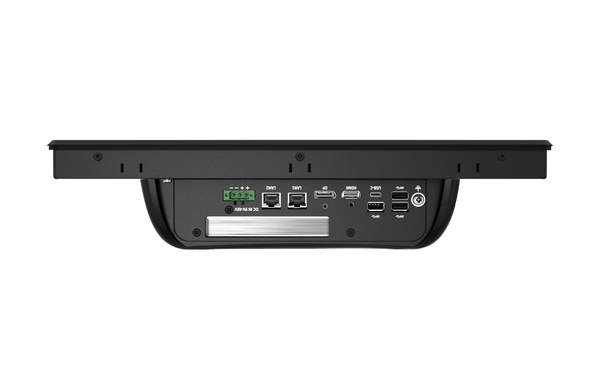

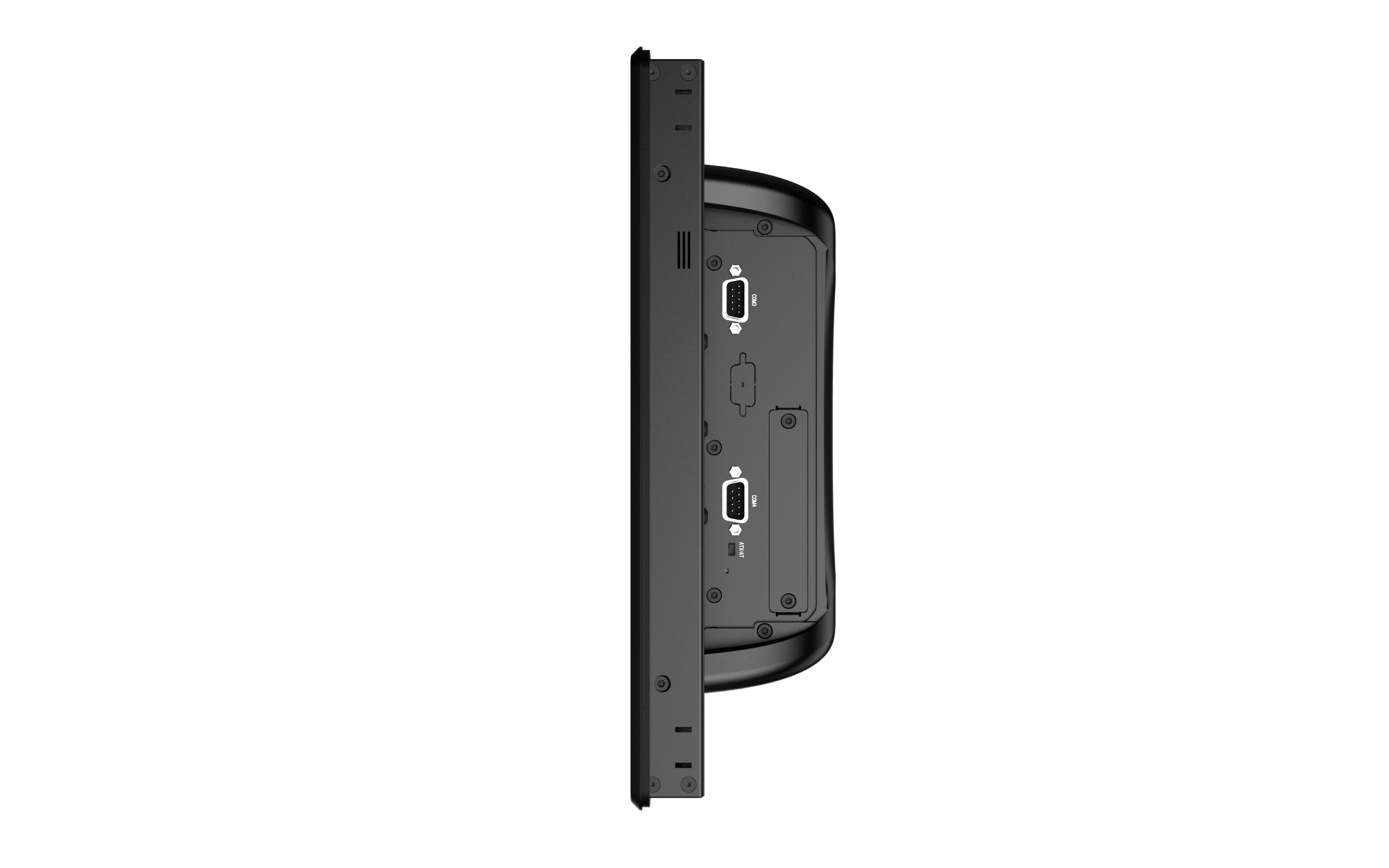

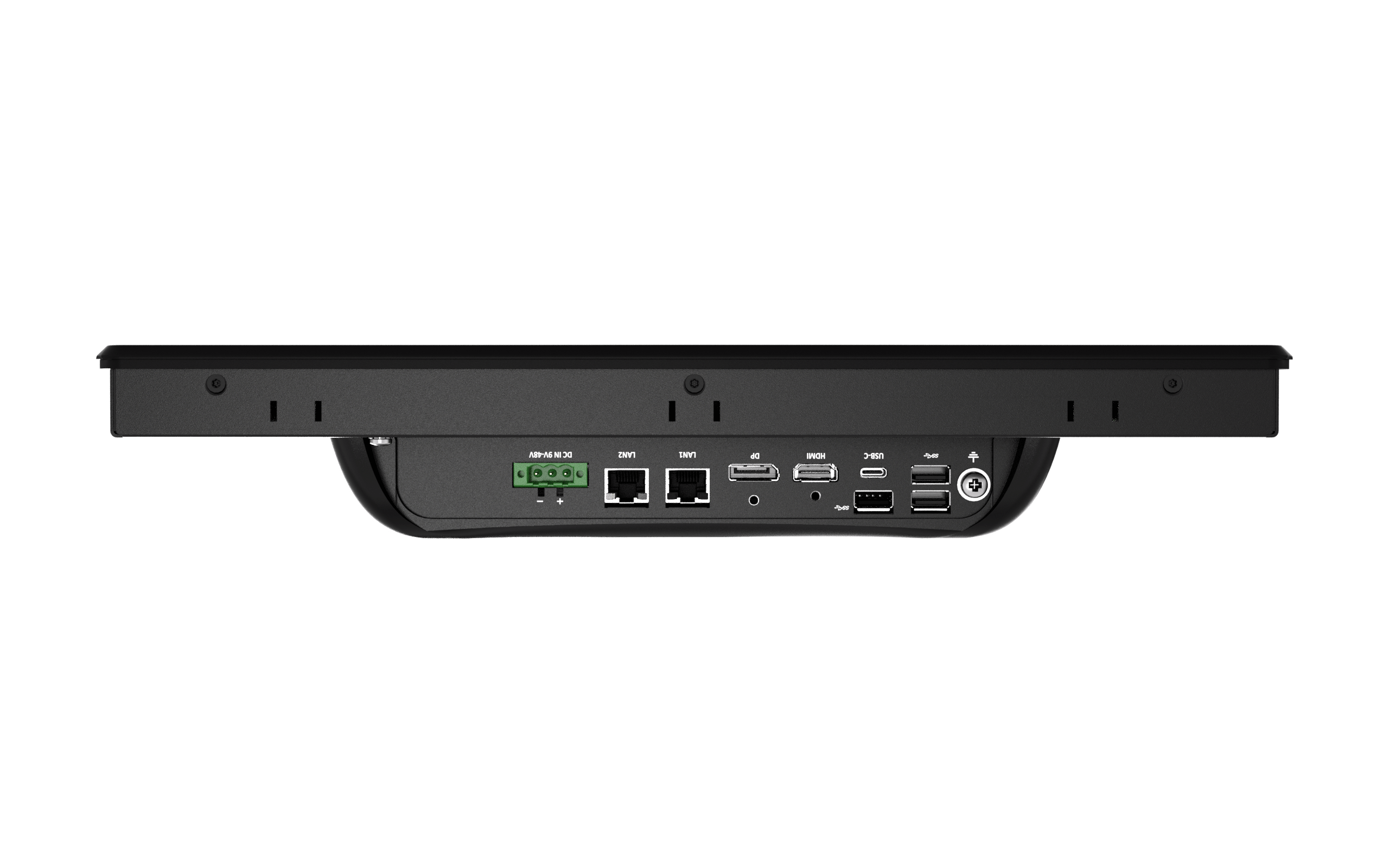

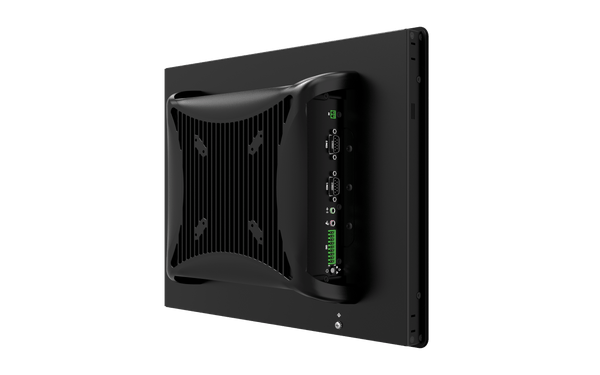

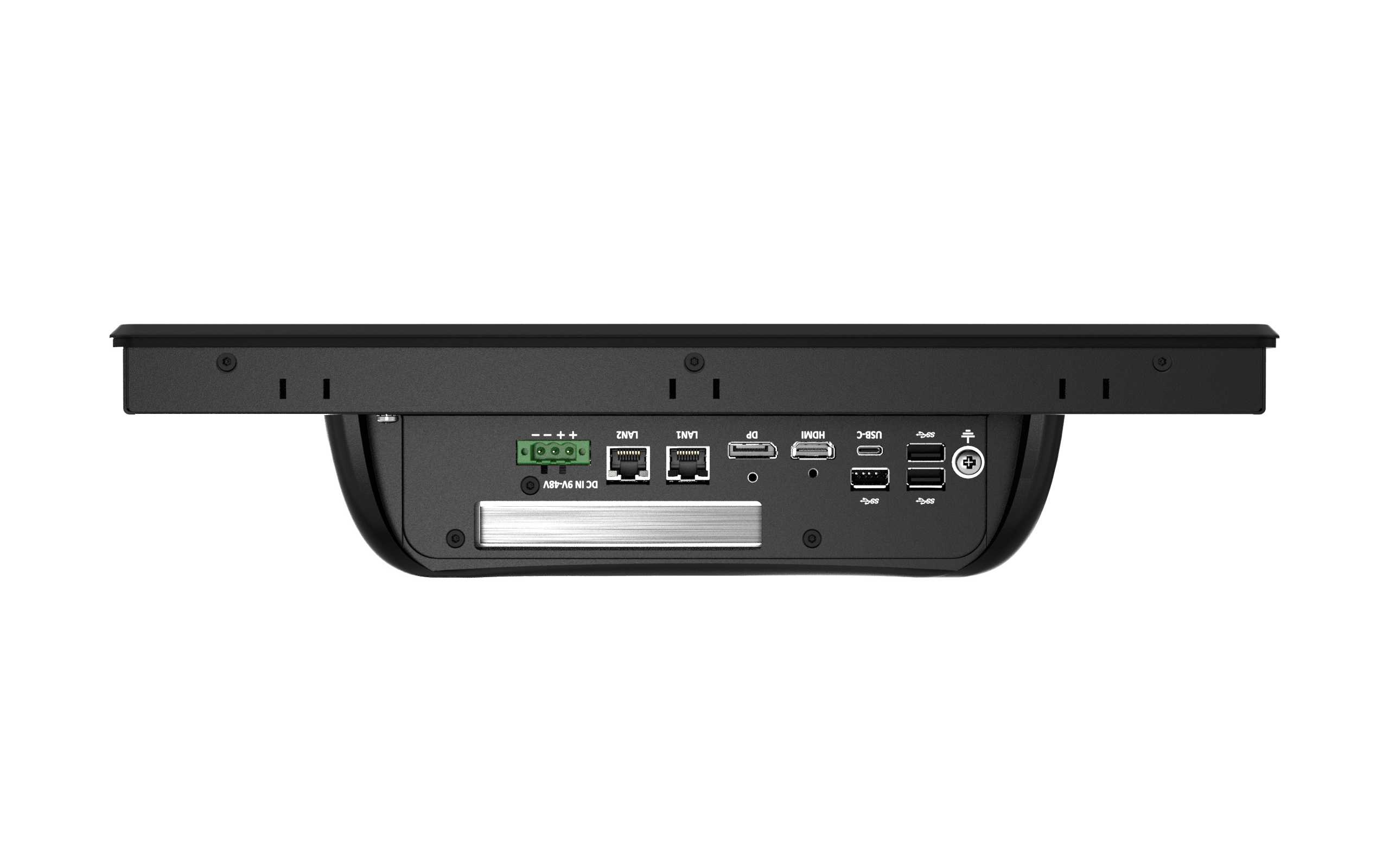

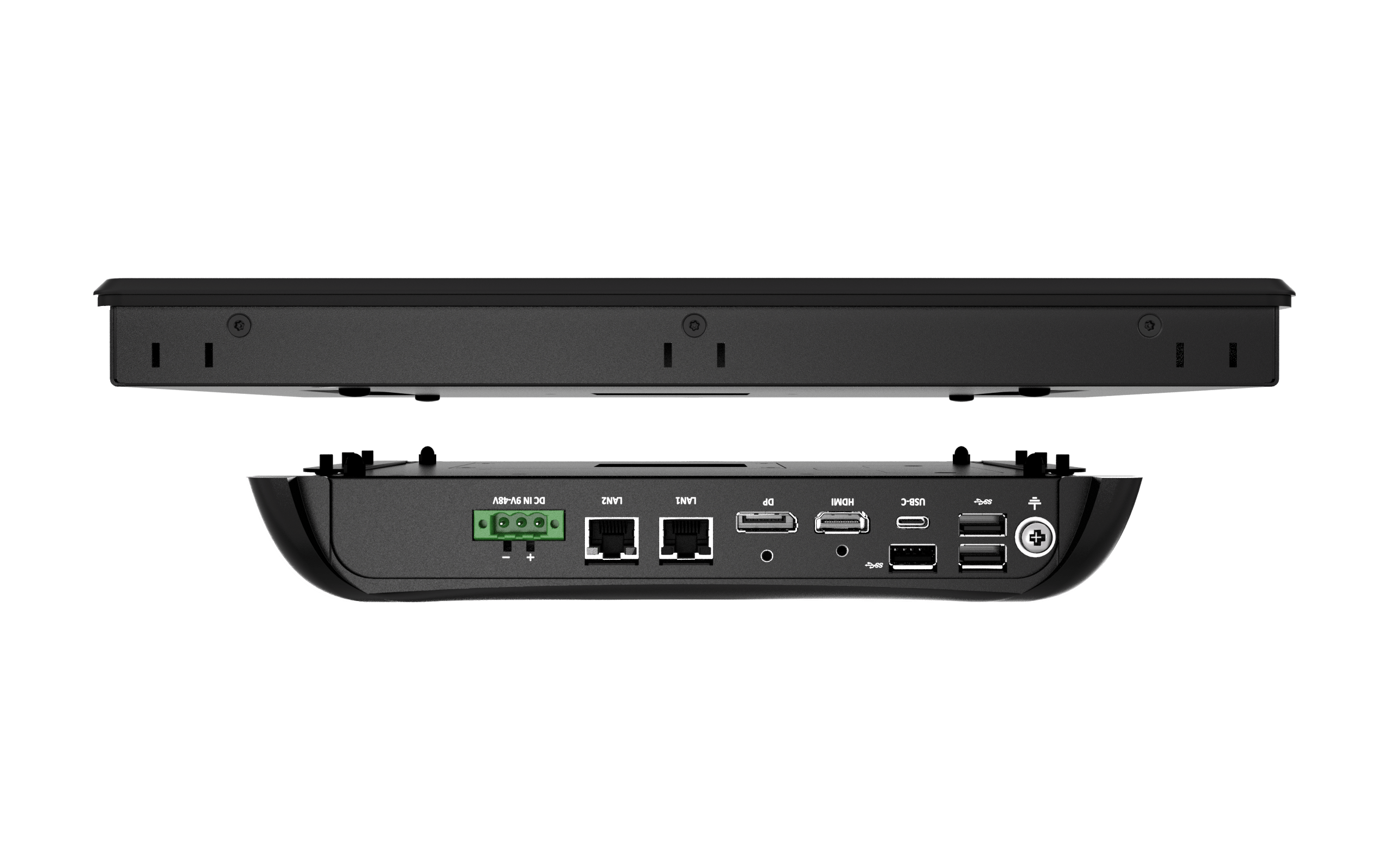

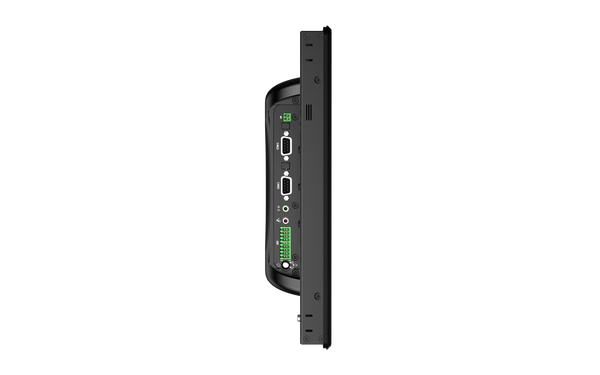

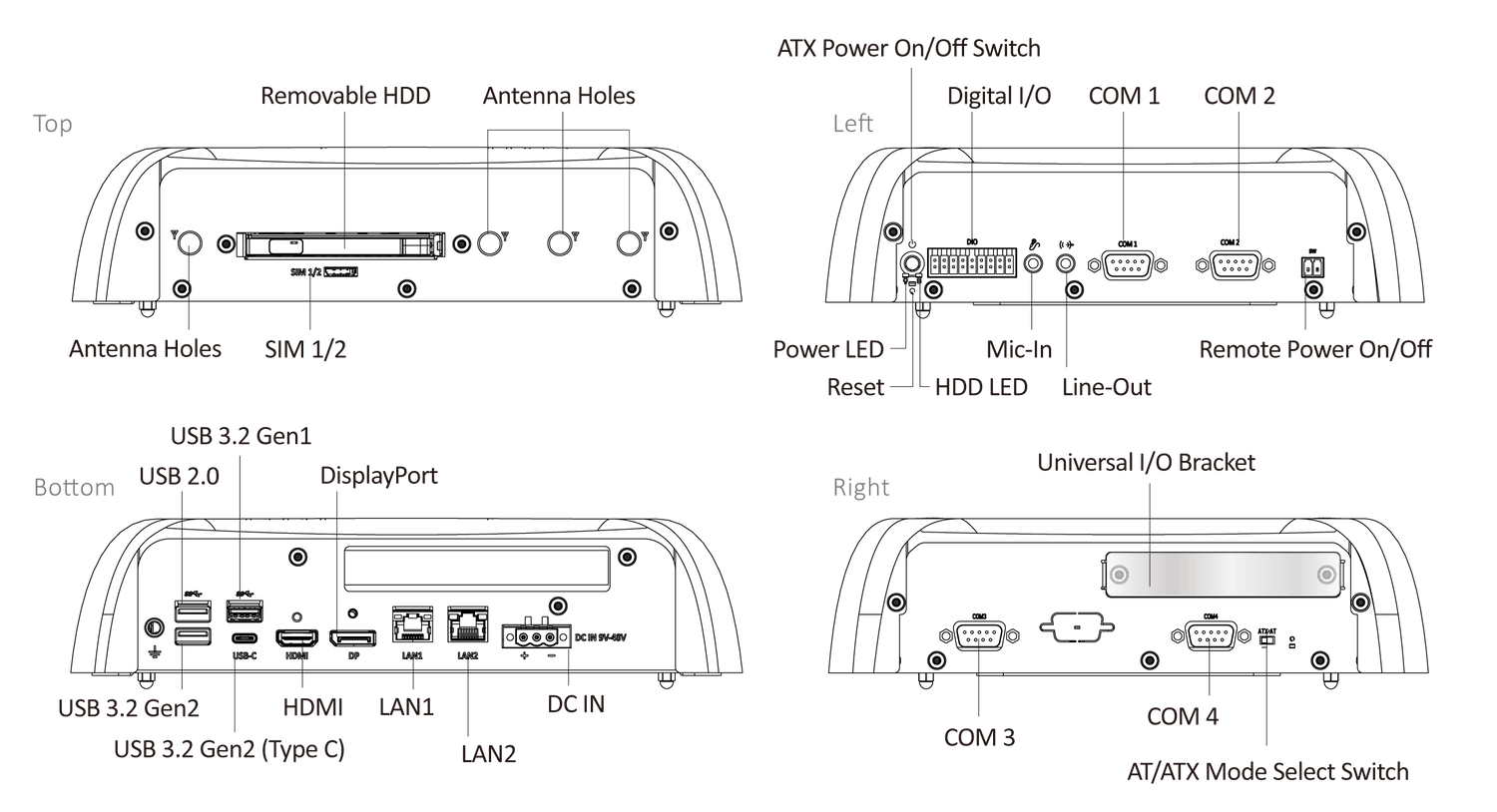

Comprehensive I/O Connectivity

The PC600-MTL enables seamless integration with industrial devices and equipment through a wide range of built-in ports.

VIO-300-PC600-MTL

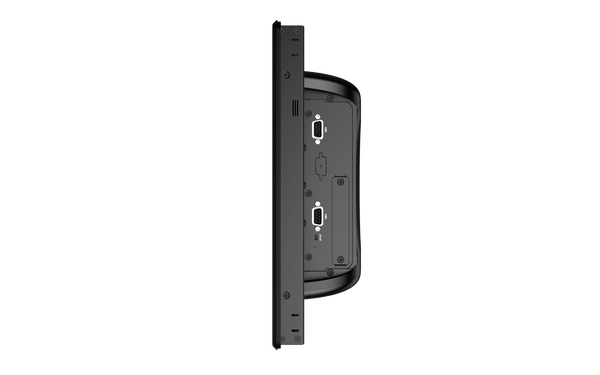

VIO-300-PC600-MTL-1E

Universal I/O Expansion

The PC600-MTL offers additional flexibility through a universal I/O bracket to accommodate different industrial connectivity requirements.

Versatile Wireless Connectivity

The PC600-MTL supports flexible wireless communication for industrial networking and remote deployments.

  • Wi-Fi and Bluetooth
  • 4G LTE and 5G cellular connectivity

M.2 Expansion

  • 1x M.2 M-Key Slot for high-speed NVMe SSD storage
  • 2x M.2 B-Key Slots for additional connectivity options
  • 1x M.2 E-Key Slot for Wi-Fi and Bluetooth connectivity

Optional Remote Management

The PC600-MTL supports optional remote management for improved system control and recovery.

  • Manage devices remotely, reducing onsite visits.
  • Access and recover systems even when the main OS is down.
  • Troubleshoot issues remotely to minimize downtime.
  • Improve maintenance efficiency across distributed deployments.

Modular Panel PC Design

The VIO Series offers a flexible modular design, allowing users to choose a standalone industrial display or pair it with a computing module to meet different application needs.

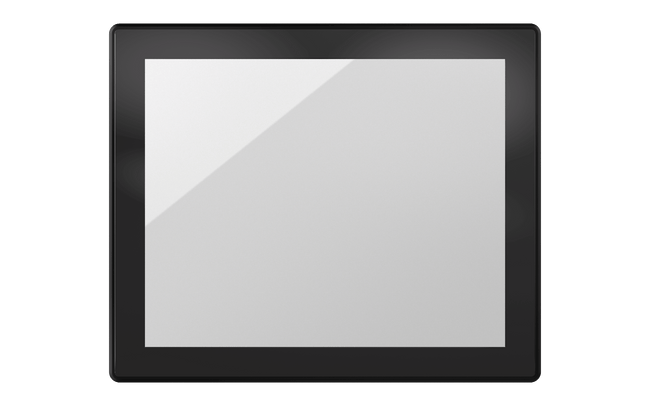

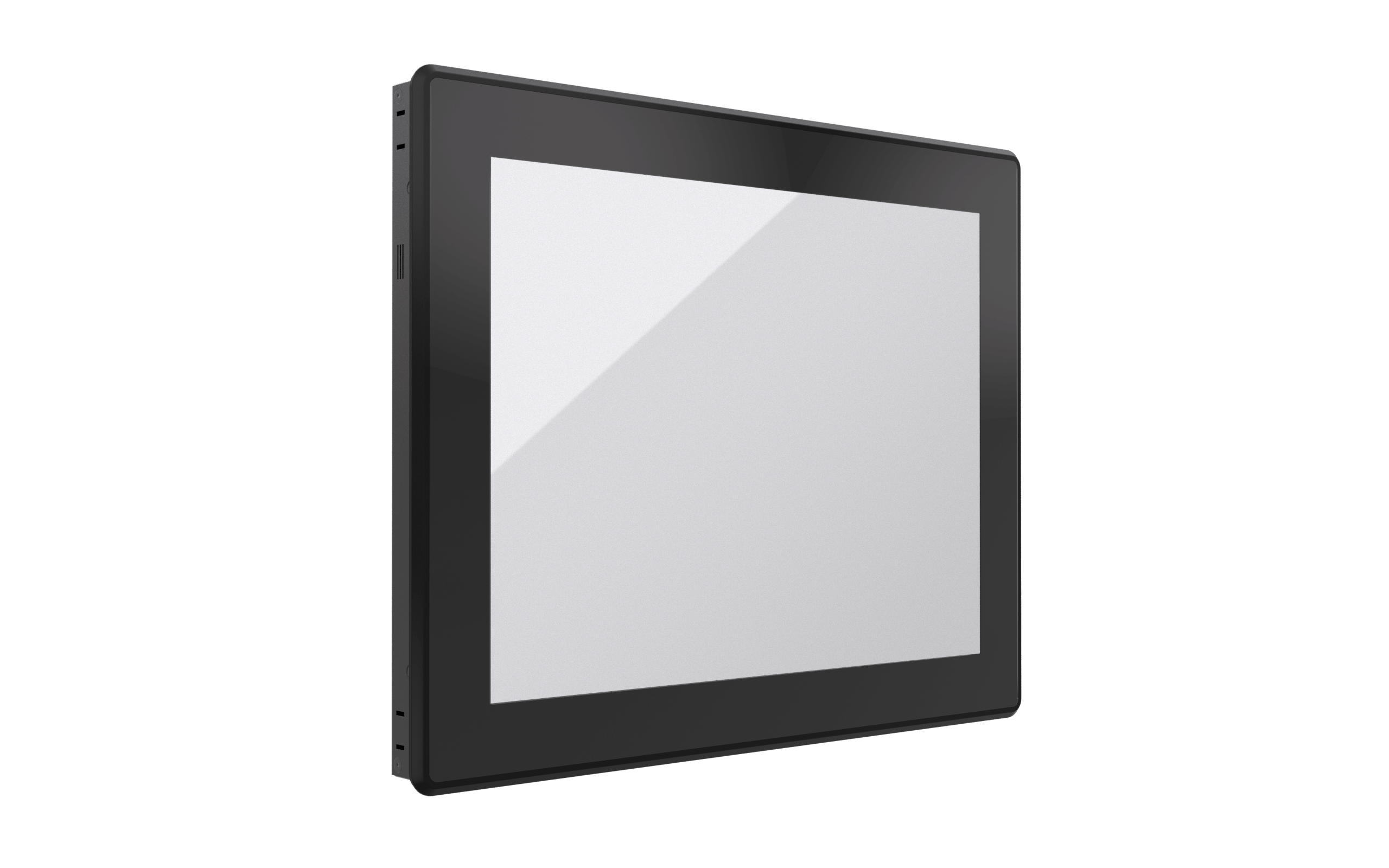

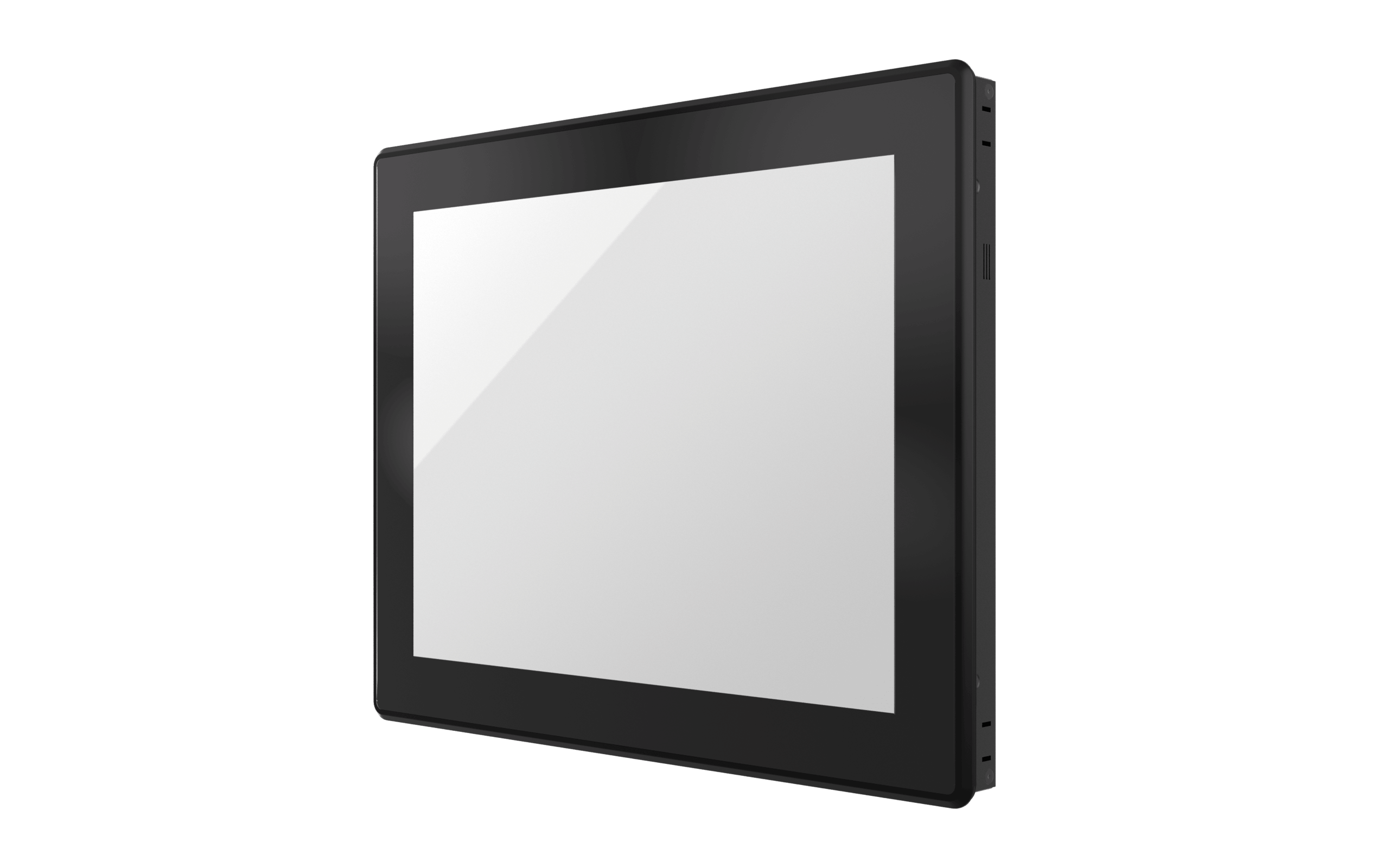

Industrial Touchscreen Displays

The VIO-300 Series offers durable, high-visibility displays for demanding industrial environments.

  • Front IP65 Protection
  • High-Brightness Options Exceeding 1,000 Nits
  • Projected Capacitive (PCAP) / Resistive Touch
  • Anti-Glare (AG) / Anti-Fingerprint (AF) Coating
*Barebone Pricing Only; Sales team to review component configuration and price

Interested In
VIO-315-PC600-MTL?

Contact us

Specifications

Display
IP Rating IP65
LCD Size 15" (4:3)
Max. Resolution 1024 x 768 (XGA)
Brightness (cd/m²) 400 / 1000 (optional)
Contrast Ratio 1000:1
LCD Color 16.7M
Pixel Pitch (mm) 0.297(H) x 0.297(V)
Viewing Angle 170/160
Backlight Lifetime 50,000 hrs (LED Backlight)
Touch
Touch Type Projective Capacitive
Resistive 5-Wire (optional)
Surface Hardness 7H / IK07
System
Processor Intel® Core™ Ultra 5 Processor 125U 12M Cache, up to 4.30 GHz
Intel® Core™ Ultra 7 Processor 155U 12M Cache, up to 4.80 GHz
System Chipset SoC Integrated
LAN Chipset GbE1: Intel® i226 IT (Support Wake-on-LAN and PXE)
GbE2: Intel® i226 IT (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S
System Memory 1x DDR5 5600 MT/s SODIMM. Max. up to 48GB
BIOS AMI 64Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 sec. System Reset
TPM TPM 2.0

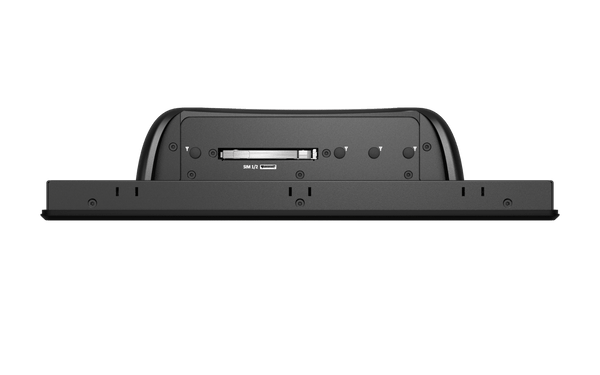

Storage
SIM Socket 1x Dual Nano SIM socket
SSD/HDD 1x Hotswap 2.5" SATA HDD Bay,
1x M.2 M-Key 2280 NVMe
Expansion
M.2 2x M.2 B-Key PCIe x2, USB 3.0 2242/3042/3052
1x M.2 E-Key PCIe x1, USB 2.0 2230
PCIe 1x PCIe x4 Slot (Gen 3, 4-Lane; 1E Model Only)
I/O
Audio 1x Mic-in, 1x Line-out
CAN 2x CAN 2.0 A/B 2-pin Header (Internal)
COM 4x RS-232/422/485
2x RS-232/422/485 (internal)
DIO 8 in / 8 out (Isolated)
LAN 2x RJ45
USB 1x USB 3.2 Gen2 (Type-C)
1x USB 3.2 Gen2 (10 Gbps)
1x USB 3.2 Gen1 (5 Gbps)
1x USB 2.0
DP 1x DisplayPort 1.2 (4096 x 2160@60Hz)
HDMI 1x HDMI 2.0b (4096 x 2160@60Hz)
LVDS 1x Dual Channel 24 bit LVDS
Others 4x WiFi Antenna Holes
1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off
Others Features
OSD LCD On/Off, Auto, Menu, Up and Down Multi-language
Speaker 2x 2w 8ohm
Operating System
Windows Windows 10, Windows 11
Linux Ubuntu 22.04
Power
Power Adapter Optional AC/DC 20V/7.5A, 150W
Power Mode AT, ATX
Power Supply Voltage 9~48 VDC
Power Connector 3-Pin Terminal Blcok
Power Protection OVP (Over Voltage Protection)
OCP (Over Current Protection)
Reverse Protection
Environment
Operating Temperature 0 °C to 50 °C
Storage Temperature -20 °C to 70°C
Relative Humidity 10%~95% (non-condensing)
IP Level IP 65 Compliant Front Panel
Certification CE, FCC Class A
Vibration With SSD: 3 Grms, 5 - 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock 20G, half sine, 11ms
Physical
Dimensions VIO-315-PC600-MTL: 377 (W) x 301 (D) x 65 (H) mm
VIO-315-PC600-MTL-1E: 377 (W) x 301 (D) x 87 (H) mm
Construction Extruded Aluminum with Heavy Duty Metal
Mounting VESA Mounting Holes 75 x 75mm, 100 x 100mm

Mechanical Layout

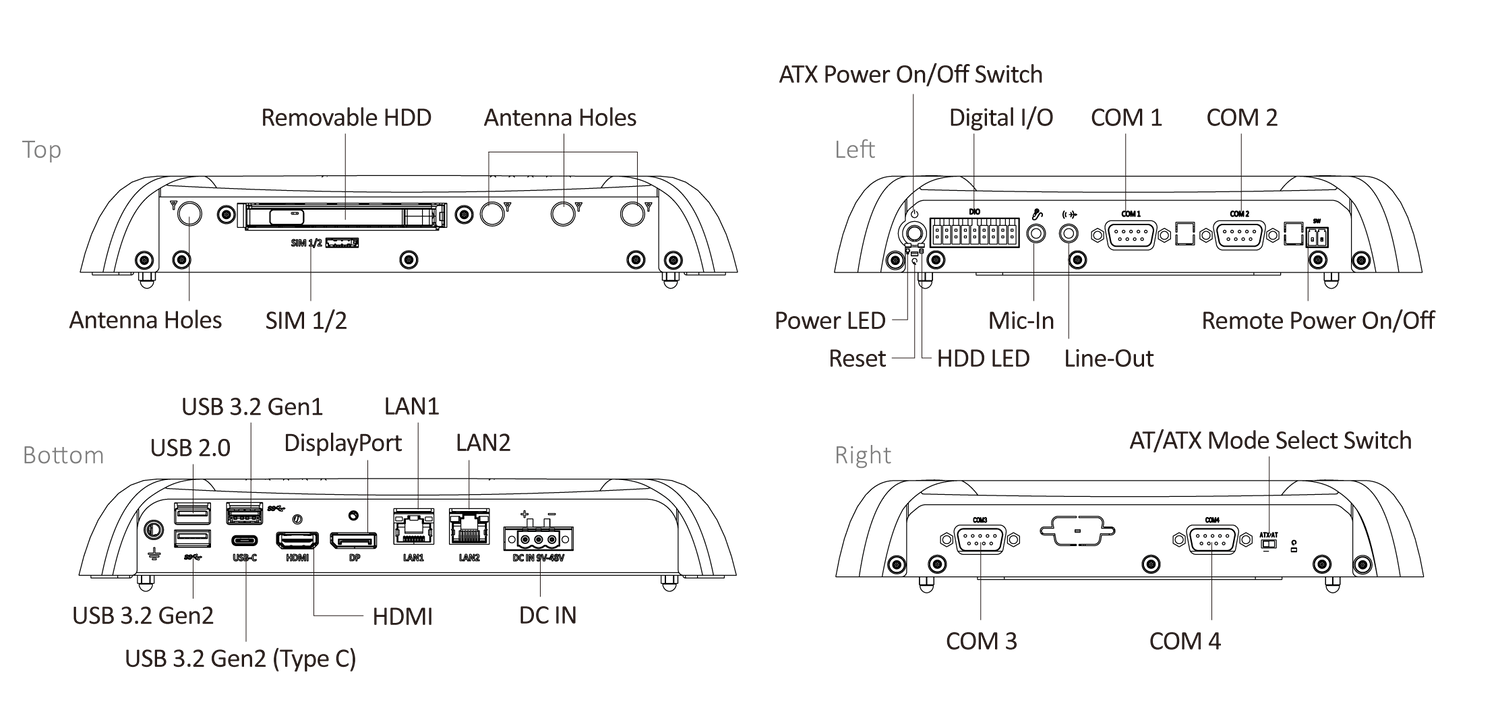

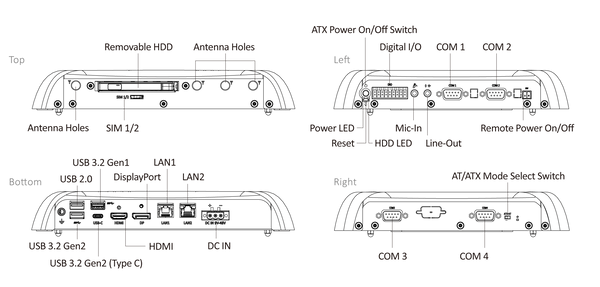

VIO-315-PC600-MTL

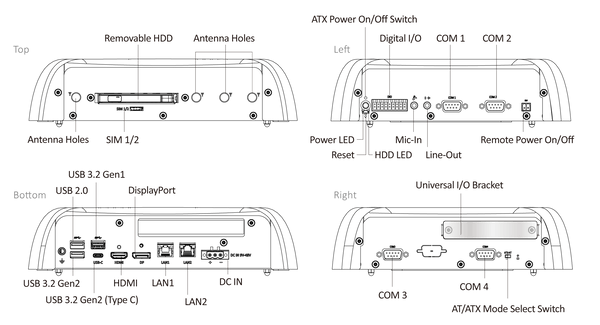

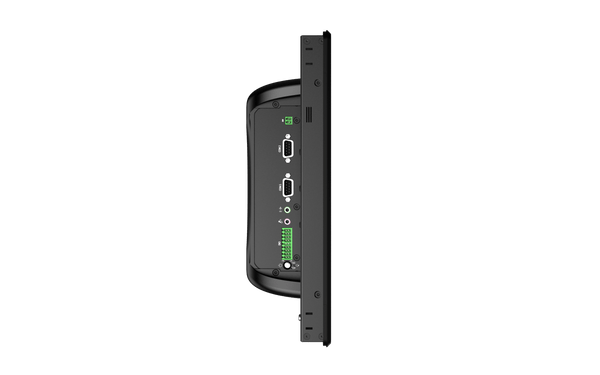

VIO-315-PC600-MTL-1E

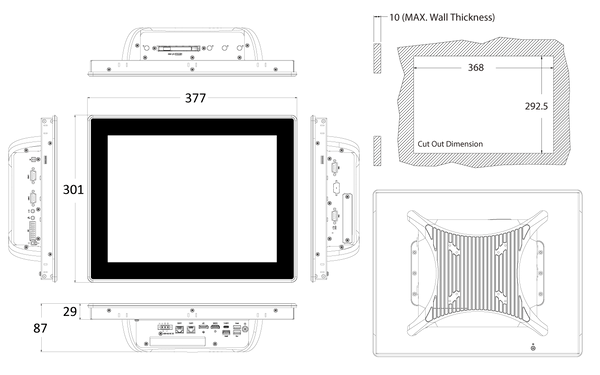

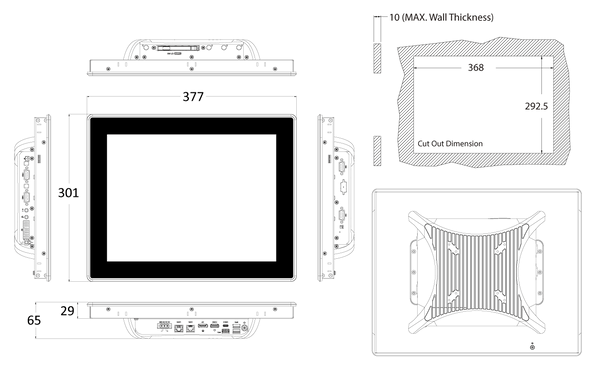

Dimensions

Unit:mm

VIO-315-PC600-MTL

VIO-315-PC600-MTL-1E
