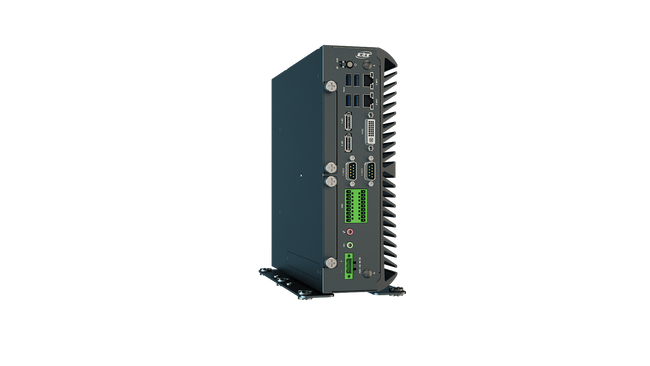

VCO-6000-KBL Machine Vision Computer with 6th/7th Gen Intel® Core™ Processors
VCO-6000-KBL-1 Machine Vision Computer with 6th/7th Gen Intel® Core™ Processors, 1x Expansion Slot

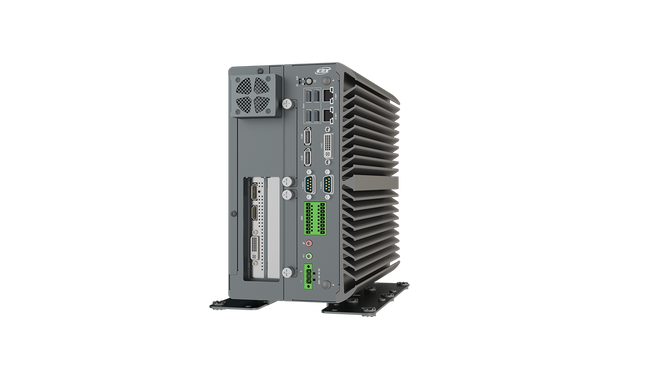

VCO-6000-KBL-1050TI Industrial GPU Computer with 6th/7th Gen Intel® Core™ Processor And Q170 PCH, GTX 1050 TI Integrated

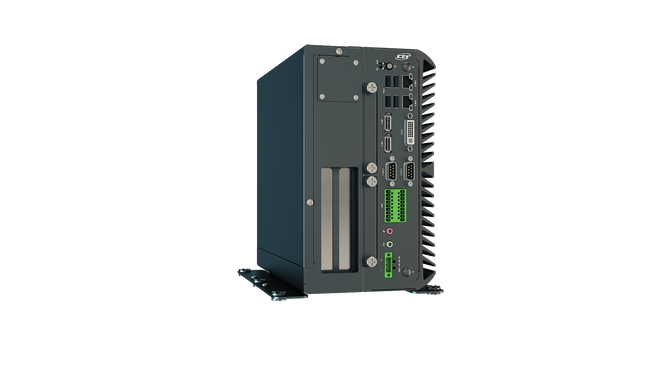

VCO-6000-KBL-2 Machine Vision Computer with 6th/7th Gen Intel® Core™ Processors, 2x Expansion Slots
VCO-6000-KBL-2-2PWR Machine Vision Computer with 6th/7th Gen Intel® Core™ Processor, Supports up to RTX 2060 Super GPU

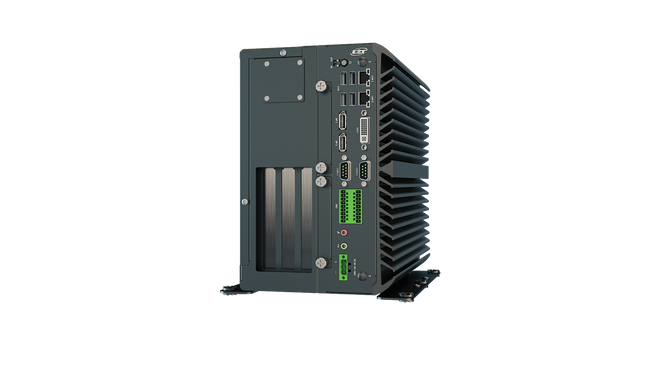

VCO-6000-KBL-3 Machine Vision Computer with 6th/7th Gen Intel® Core™ Processor, 3x Expansion Slots

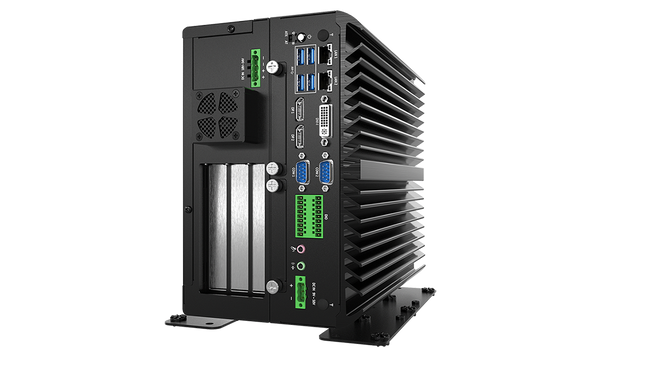

VCO-6000-KBL-3-2PWR Machine Vision Computer with 6th/7th Gen Intel® Core™ Processor and Q170 PCH, Supports up to RTX 2060 Super GPU

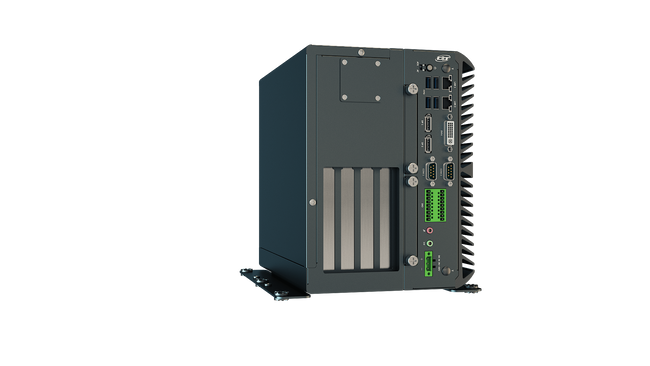

VCO-6000-KBL-4 Machine Vision Computer with 6th/7th Gen Intel® Core™ Processor, 4x Expansion Slots

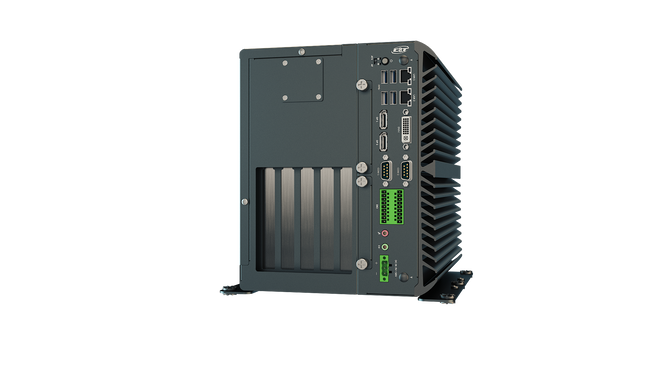

VCO-6000-KBL-5 Machine Vision Computer with 6th/7th Gen Intel® Core™ Processor, 5x Expansion Slots

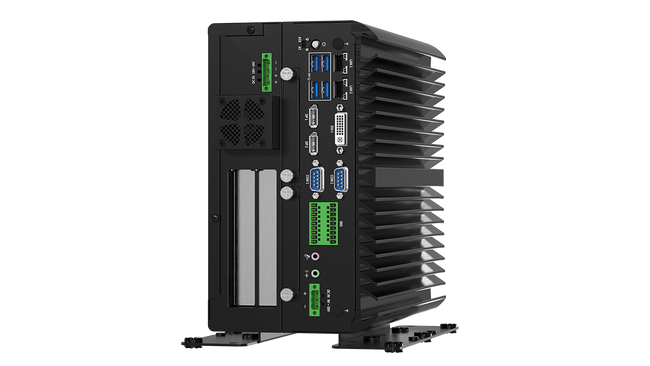

VCO-6000-KBL-2-2PWR Machine Vision Computer with 6th/7th Gen Intel® Core™ Processor, Supports up to RTX 2060 Super GPU

SKU Alias: VCO-6022C-2PWR

  • Support 6th & 7th Gen Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Desktop Processor (LGA 1151)
  • Intel® Q170 chipset
  • 2x DDR4 SODIMM. max up to 32GB
  • Triple independent display supported by 1x DVI-I and 2x DisplayPort
  • 2x Intel® GbE supporting Wake-on-LAN and PXE
  • 2x 2.5" SATA HDD Bay supporting RAID 0, 1, 5, 10; 2x mSATA (shared by 2x Mini PCIe), 1x CFast
  • 3x full-size Mini PCIe for communication or expansion modules
  • 4x RS-232/422/485 (w/ 2x internal), 4x USB 3.0, TPM 1.2
  • 1x PCIe x16 and 1x PCI expansion
  • 8x DI + 8x DO with isolation
  • 9 to 50VDC wide range power input supporting AT/ATX mode
  • -25°C to 70°C extended operating temperature

Certifications:

Intel Partner
AWS Greengrass IoT

This model is built-to-order only with a minimum order quantity

* Estimated Total Only; Sales team to review component configuration and price
Regular price $0.00
Starting At: $0.00

*All specifications are subject to change without notice. Please contact us for exact offers. Products may not be available in all markets.

Specification

System
Processor Support 6th & 7th Gen Intel® Core™ i7 / i5 /i3 / Pentium® / Celeron® Desktop Processor (LGA 1151)
– 7th Gen Intel® Core™ i7-7700T, Quad Core, 8MB cache, up to 3.8 GHz
– 7th Gen Intel® Core™ i5-7500T, Quad Core, 6MB cache, up to 3.3 GHz
– 7th Gen Intel® Core™ i3-7100T, Dual Core, 3MB Cache, 3.4 GHz
– 6th Gen Intel® Core™ i7-6700TE, Quad Core, 8MB cache, up to 3.4 GHz
– 6th Gen Intel® Core™ i5-6500TE, Quad Core, 6MB Cache, up to 3.3 GHz
– 6th Gen Intel® Core™ i3-6100TE, Dual Core, 4MB Cache, 2.7 GHz
– Intel® Pentium® G4400TE, Dual Core, 3MB Cache, 2.4 GHz
– Intel® Celeron® G3900TE, Dual Core, 2MB Cache, 2.3 GHz
System Chipset Intel® Q170 Express Chipset
LAN Chipset

  • GbE1: Intel® I210-AT (Support Wake-on-LAN and PXE)

  • GbE2: Intel® I219LM (Support Wake-on-LAN and PXE)

Audio Codec Realtek ALC888S
System Memory 2 x 240-pin DDR4 SO-DIMM sockets 1866/2133 MT/s, Non-ECC, unbuffered SDRAM Max. 32GB
Graphics Intel® HD Graphics 530 / 630

Nvidia RTX 2060 Super Mini
BIOS AMI 128Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 sec.
System Reset
TPM TPM 1.2
Display
Display Port 2x DP
DVI 1x DVI-I
Multiple Display Triple Display
Storage
CFast 1x CFast
mSATA 2x mSATA (shared by 2x Mini PCIe)
SSD/HDD 2x Hotswap 2.5" SATA HDD Bay

Support RAID 0, 1, 5, 10
Expansion
Mini PCIe 3x Full-size Mini PCIe
PCI 1x PCI
PCIe 1x PCIe x16
I/O
Audio 1x Mic-in, 1x Line-out
COM 2x RS-232/422/485
2x RS-232/422/485 (Internal)
DIO 8 in / 8 out (Isolated)
LAN 2x GbE RJ45
USB 4x USB 3.0
Others 2x WiFi Antenna Holes

1x Power Switch, 1x AT/ATX Switch
Operating System
Windows 6th Gen CPU: Windows 10, Windows 7, WES7

7th Gen CPU: Windows 10
Linux Linux kernel 4.X
Power
Power Adapter Optional AC/DC 24V/9.2A, 220W
Power Mode AT/ATX
Power Supply Voltage System: 9~50VDC

GPU: 24VDC
Power Connector 3-pin Terminal Block
Power Protection Over-Voltage Protection (OVP)
Over-Current Protection (OCP)
Reverse Polarity Protection (RPP)
Environment
Operating Temperature -25°C to 70°C
Storage Temperature -40°C to 85°C
Relative Humidity 10% to 95% (non-condensing)
Certification CE, FCC Class A
Vibration With SSD: 3 Grms, 5 - 500 Hz, 0.5 hr/axis

With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock With SSD: 50G, half sine, 11ms
Physical
Dimensions (W x H x D) 137(W) x 256(D) x 240(H) mm
Construction Extruded aluminum with heavy duty metal
Mounting Options Wall Mount / Book Mount
DIN-Rail Mounting (optional)

Mechanical Layout

Product Dimension

Unit:mm
