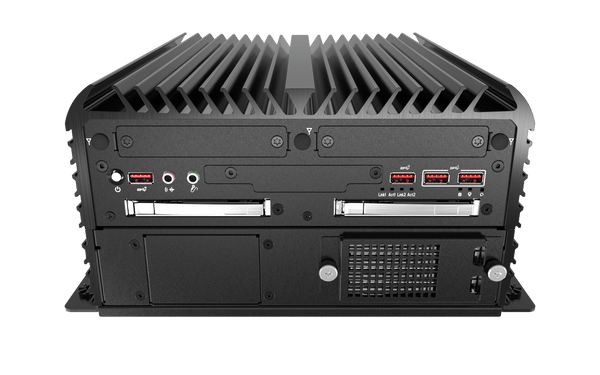

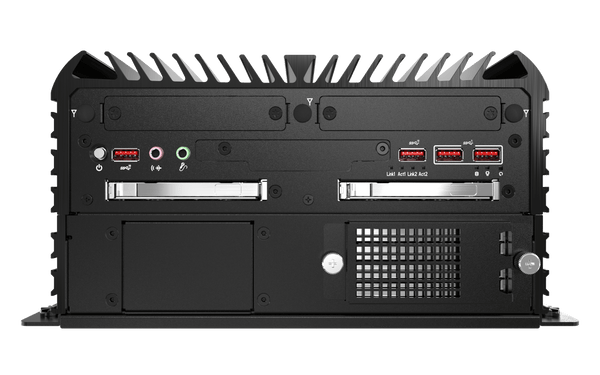

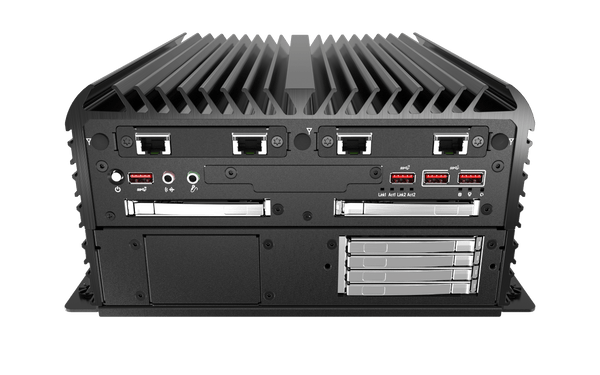

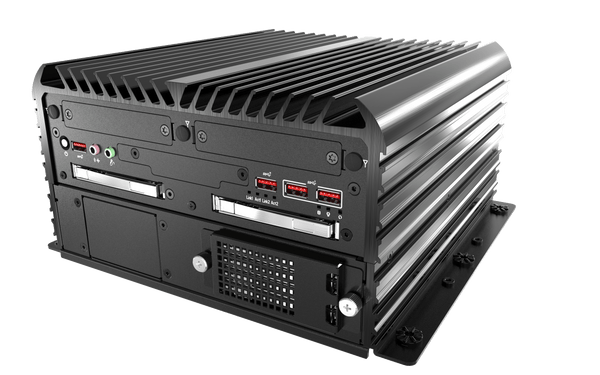

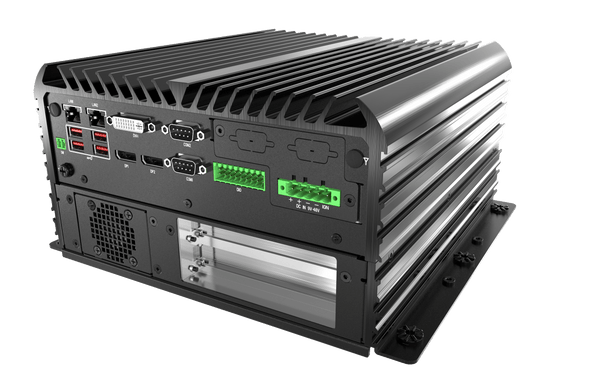

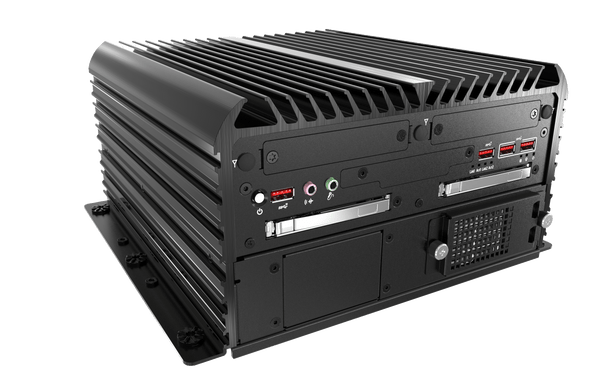

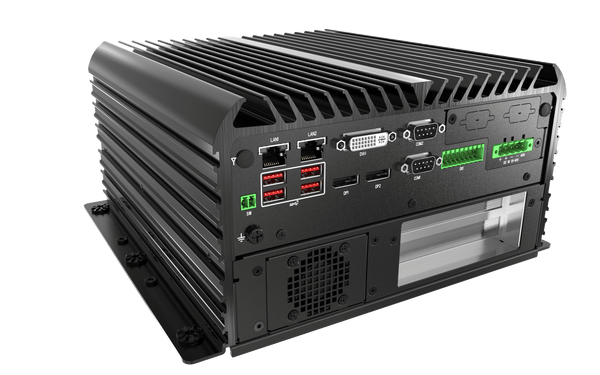

RCO-6000-CML-2-4B7M AI Edge Inference Computer W/ LGA 1200 for Intel 10th Gen CPU & W480E PCH, 2x LAN, 4x 7mm HDD, 1x PCIe x16, 1x PCI

  • LGA 1200 socket for 10th Gen. Intel® CML S Processor (35W TDP)
  • Intel® W480E chipset
  • 2x DDR4 2666/2933MHz SODIMM. Max. up to 64GB
  • Triple Independent Display: 2x DisplayPort, 1x DVI-I
  • 2x Intel® GbE supporting Wake-on-LAN and PXE
  • 2x Full-size Mini PCIe for communication or expansion modules, 2x SIM socket
  • 7x 2.5" SATA HDD Bay (1x Internal) and with RAID 0, 1, 5, 10 support
  • 1x M.2 (E Key, PCIe x1, USB 2.0, 2230)
  • 8x RS-232/422/485 (6x internal), 6x USB 3.2 Gen 2, 3x USB 3.2 Gen 1 (1x internal)
  • 8x DI + 8x DO with isolation
  • 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
  • Wide Operating Temperature -25°C to 70°C (35W CPU)
  • TPM 2.0 Supported
  • Edge AI Ready with Hailo-8™ (26 TOPS / 2.5W)
  • UL Listed

Certifications:

Intel Partner
AWS Greengrass IoT


Intel® Xeon® W Processor

10th Intel® Core™ Processor

7x 2.5" SATA HDD Bay

1x PCIe x16 (8-lane),
1x PCI Expansion

Modular EdgeBoost Node

RCO-6000-CML AI Edge Inference Computer support modular add-on nodes for powerful inferencing capabilities and high-performance NVMe storage. Users can select specific nodes that provide high-speed NVMe storage, high-density SATA storage, and even GPU acceleration for machine learning and AI workloads.

Modular Daughterboards for I/O Flexibility

Additional LAN and USB ports are also supported with flexible add-on modules that enables high-speed connections with low-latency data transmission for advanced industrial applications.

4x Port GbE in RJ45 Connectors

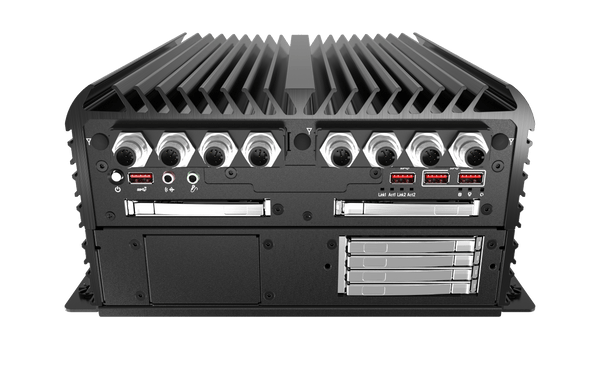

4x Port GbE in /M12 Connectors

2x Port 10GbE RJ45 Connector

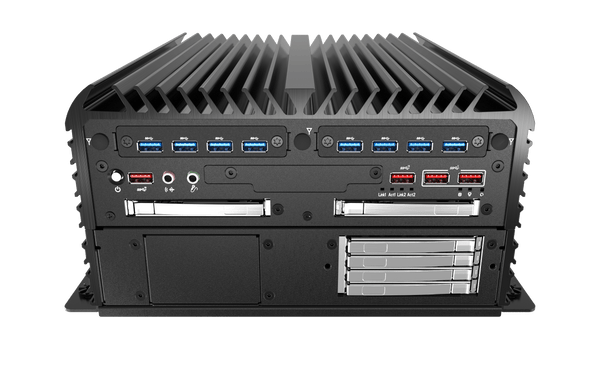

4x Port USB 3.2 Gen 1



High-Capacity SATA

Base system includes 2x 2.5" Hotwap 7mm SATA SSDs, and 1x internal 2.5" 9mm SATA SSD

Add-on EdgeboostNode option:
• 2 Bay 15mm SATA SSD
• 4 Bay 7mm SATA SDD

Wireless Connectivity from the Rugged Edge

  • Wi-Fi 6
  • Bluetooth 5.0
  • Embedded Dual-SIM 4G/LTE cellular
  • Modular Dual-SIM 5G cellular

-25° to 70°C Wide Operating Temperature

2x SIM Sockets, Wifi, Bluetooth

MIL-STD-810G 50G Shock, 5 GRMS Vibration

Data Security TPM 2.0 Supported

Highspeed Exhaust Fan

Power Ignition Management

Intelligent transportation deployments can harness the power of advanced computing and automation safely through power ignition management feature. The rugged edge computer safely powers down after engine shutoff following a predetermined interval. The feature ensures applications close properly and data is neither lost nor corrupted.

Certified by UL Solutions

For additional re-assurance in product quality and safety, this edge computer has earned the UL Certified Mark for ultimate reliability when operating in extreme industrial deployments.
• UL Listed (I.T.E E357184)



Why Premio?
Built Rugged. Built Ready.

  • • 30+ years of extensive design expertise for industrial computing solutions in x86 compute power, storage, rich I/O, and high-speed connectivity
  • • Global turnkey manufacturing and support infrastructure in the USA
  • • Regulatory testing and compliance for rugged industrial computers
  • • Long Product Life Cycles to ensure reliability

* Barebone Pricing Only; Sales team to review component configuration and price
Regular price $1,639.00
*Starting At: $1,639.00

Specification

System
Processor Support 10th Gen Intel® CML S Processor (LGA 1200, 35W TDP)
- Intel® Xeon® W-1290TE, 10 Cores, 20MB Cache, up to 4.5 GHz
- Intel® Core™ i9-10900TE, 10 Cores, 20MB Cache, up to 4.5 GHz
- Intel® Core™ i7-10700TE, 8 Cores, 16MB cache, up to 4.4 GHz
- Intel® Core™ i5-10500TE, 6 Core, 12MB Cache, 3.7 GHz
- Intel® Core™ i3-10100TE, 4 Cores, 9MB Cache, up to 3.6 GHz
System Chipset Intel® W480E Chipset
LAN Chipset GbE1: Intel I219 (Support Wake-on-LAN and PXE)
GbE2: Intel I210 (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S
System Memory 2x 260-Pin DDR4 2666 /2933MHz SODIMM.
Max. up to 64GB (ECC and Non-ECC)
Graphics Intel® UHD Graphics 630
BIOS AMI 256Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 sec. System Reset
AI Accelerator Supports 4x Hailo-8™ modules
TPM TPM 2.0
Display
Display Port 2x DisplayPort, support resolution 4096 x 2304, DP++
DVI 1x DVI-I, support resolution 1920 x 1200
Multiple Display Triple Display
VGA Yes (by optional split cable)
Storage
SIM Socket 2x External SIM socket (Mini PCIE attached)
SSD/HDD 1x Internal 2.5" SATA/SSD HDD Bay (support H=9mm)
6x 7mm Hot-swappable 2.5" SATA HDD/SSD Bay
Support RAID 0, 1, 5, 10
Expansion
M.2 1x M.2 (E Key, PCIe x1, USB 2.0, 2230)
Mini PCIe 2x Full-size Mini PCIe
PCIe 1x PCIe x16
PCI 1x PCI
Expansion Modules Occupied One Universal I/O Slot:
• 4-port GbE module with Intel® I350 Chipset, RJ-45 or M12 connector (PoE optional)
• 2-Port RJ45 10GbE with Intel X710 Chipset
• 4-Port USB with Renesas uPD720201K8 host controller (share PCIe Gen2 x1 bandwidth)
• 1x M.2 for 5G (B Key, PCIe x1, USB 3.0, 3042/3052), Including 2x SIM socket, 1x SIM switch (1x Universal Slot Only)
Card Dimension 235 (L) x 112 (H) mm

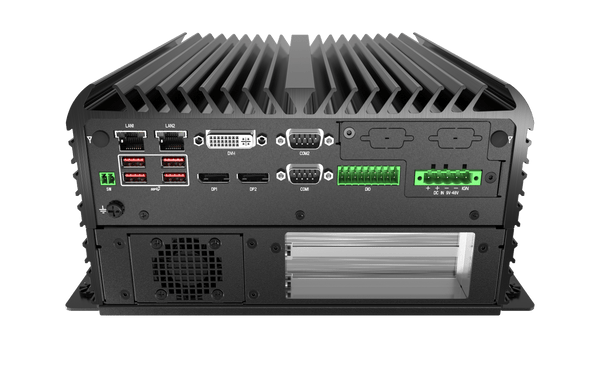

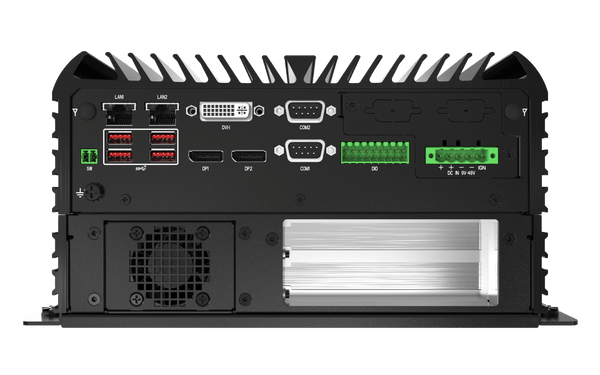

I/O
Audio 1x Mic-in, 1x Line-out
CAN 2x CAN 2.0 A/B 2-pin Internal header
COM 2x RS-232/422/485 ; 6x RS-232/422/485 (internal)
DIO 8 in / 8 out (Isolated)
LAN 2x RJ45
Universal I/O Bracket 2x Universal I/O Bracket (By mini PCIe interface)
USB 6x USB 3.2 Gen 2 (10 Gbps)
3x USB 3.2 Gen 1 (5 Gbps, 1x Internal)
2x USB 2.0 header (internal)
Others 5x WiFi Antenna Holes
1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off
1x PC/Car Mode Switch, 1x Delay Time Switch
1x Removable CMOS Battery
4x 4-Pin Power Connector, 1x 4-PIN FAN Connector
Operating System
Windows Windows 10
Linux Linux kernel
Power
Power Adapter Optional AC/DC 24V/5A, 120W
Optional AC/DC 24V/9.2A, 220W
Power Mode AT, ATX
Power Ignition Sensing Power Ignition Management
Power Supply Voltage 9~48VDC
Power Connector 5-pin Terminal Block
Power Protection OVP (Over Voltage Protection), OCP (Over Current Protection), Reverse Protection
Environment
Operating Temperature -25°C to 70°C (35W CPU)
Storage Temperature -30°C to 85°C
Relative Humidity 10% to 95% (non-condensing)
Certification UL 62368 Ed. 3, CE, FCC Class A
Vibration With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock With SSD: 50G, half sine, 11ms
Physical
Dimension 240 (W) x 261 (D) x 126.8 (H) mm
Weights 5.7~5.85 kg
Construction Extruded Aluminum with Heavy Duty Metal
Mounting Options Wall Mounting

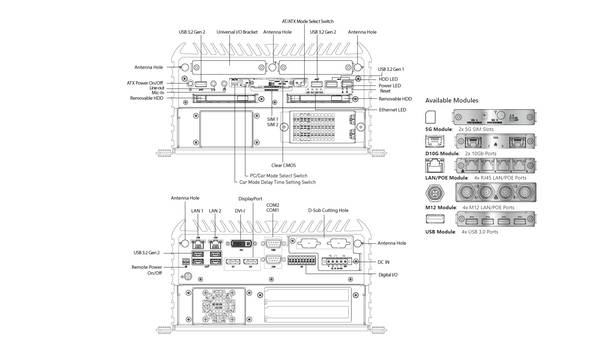

Mechanical Layout

Product Dimension

Unit:mm
