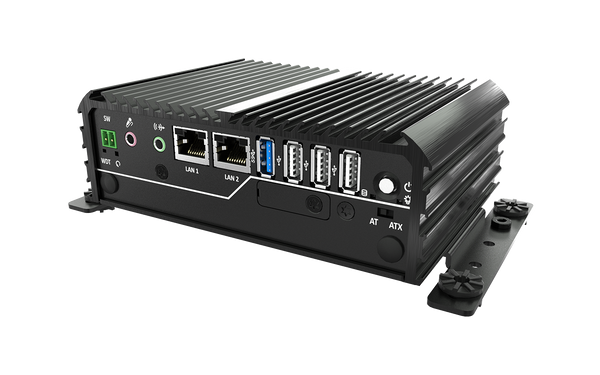

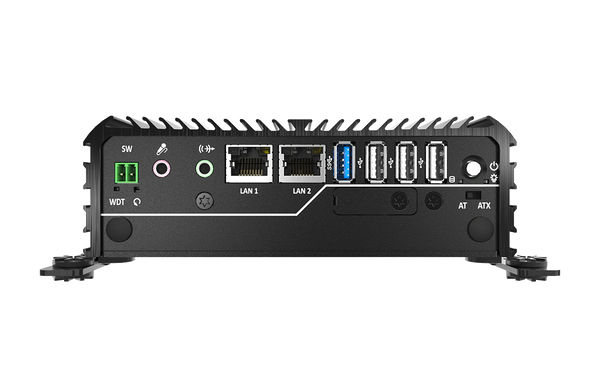

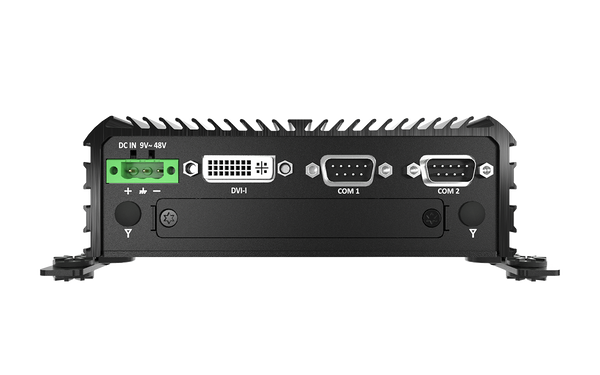

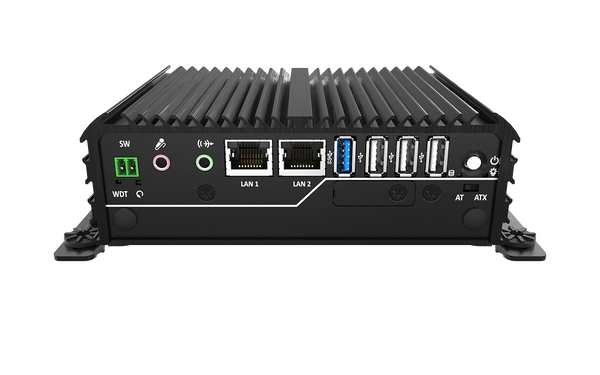

RCO-1000-J1900-10G Small Form Factor Computer with Intel® Celeron® J1900 Processor, Power Ignition

SKU Alias: RCO-1010G

  • Intel® Celeron® J1900 Processor, 2.0GHz
  • 1x 204-pin DDR3L SODIMM. Max up to 8GB
  • Dual independent display supported by 1x DVI-I
  • 2x Intel® GbE supporting Wake-on-LAN and PXE
  • 1x 2.5" SATA HDD bay, 1x mSATA, 2x SIM socket
  • 2x Full-size mini PCIe for communication or expansion modules
  • 2x RS-232/422/485, 1x USB 3.0, 3x USB 2.0
  • 9 to 48VDC wide range power input supporting AT/ATX mode
  • -25°C to 70°C extended operating temperature
See Datasheet

Certifications:

Intel Partner

This model is built-to-order only with a minimum order quantity

* Estimated Total Only; Sales team to review component configuration and price
Starting At: $0.00

*All specifications are subject to change without notice. Please contact us for exact offers. Products may not be available in all markets.

Specification

System
Processor Intel® Celeron® J1900, Quad Core, 2MB Cache, 2.0 GHz
System Chipset SoC integrated
LAN Chipset GbE1 & GbE2: Intel® I210-AT
(Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S
System Memory 1x 204-Pin DDR3L 1066/1333MHz SODIMM.
Max up to 8GB
BIOS AMI 64Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 Sec. System Reset
Display
DVI 1x DVI-I
Multiple Display Dual Display
VGA Yes (by optional split cable)
Storage
mSATA 1x mSATA (shared by 1x Mini PCIe)
SIM Socket 2x External SIM socket
SSD/HDD 1x Internal 2.5" SATA HDD Bay
Expansion
Mini PCIe 2x Full-size Mini PCIe
I/O
Audio 1x Mic-in, 1x Line-out
COM 2x RS-232/422/485
LAN 2x GbE RJ45
Universal I/O Bracket 1x Universal I/O Bracket (For Mini PCIe application)
USB 1x USB 3.0, 3x USB 2.0
Others 4x WiFi Antenna Holes

1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off
Operating System
Windows Windows 10, Windows 8.1, WES8.1,
Windows 7, WES7
Linux Linux kernel 3.X
Power
Power Adapter Optional AC/DC 12V/5A, 60W
Power Management ACPI 5.0a compliant
Power Mode AT/ATX selectable
Power Supply Voltage 9 ~ 48 VDC
Power Connector 3-pin Terminal Block
Power Protection Over-Voltage Protection (OVP)
Over-Current Protection (OCP)
Reverse Polarity Protection (RPP)
Environment
Operating Temperature -25 °C ~ 70 °C (-13 °F ~ 158 °F )
Storage Temperature -40 °C ~ 85 °C
Relative Humidity 10% to 95% (non-condensing)
Vibration 5 Grms, 5 ~ 500 Hz, 0.5 hr/axis (SSD) 1 Grms, 5 ~ 500 Hz, 0.5 hr/axis (HDD)
Shock 50G, half-sine, 11 ms (SSD)
Physical
Dimension 150 (W) x 105 (D) x 49 (H) mm
Weights 0.85 kg
Construction Extruded aluminum with heavy duty metal
Mounting Options Wall/VESA/DIN-Rail mounting kits (optional)

Mechanical Layout

Product Dimension

Unit:mm
