RCO-1000-J1900-10A Industrial Computer with Intel® Celeron® J1900 Processor, DIO, 1x DP

SKU Alias: RCO-1010A

  • Intel® E3845, or J1900 processor onboard
  • 1x SO-DIMM socket, DDR3L-1066/1333, up to 8GB
  • Dual independent display supported by 1x DVI-I
  • 2x COM, 1x USB 3.0, 3x USB 2.0, 2x GbE
  • 2x mini-PCIe (1x mSATA auto-switch)
  • 2x external SIM slots
  • 1x Universal I/O
  • Line-out/Mic-in phone jacks
  • Power switch, remote switch, AT/ATX select
  • Operating temperature: -25 °C ~ 70 °C
  • Vibration: 5 Grms, 5 - 500 Hz, 0.5 hr/axis; Shock: 50G, half sine, 11ms (with SSD)
See Datasheet

Certifications:

Intel Partner

This model is built-to-order only with a minimum order quantity

* Estimated Total Only; Sales team to review component configuration and price
Starting At: $0.00

*All specifications are subject to change without notice. Please contact us for exact offers. Products may not be available in all markets.

Specification

System
Processor Intel® Atom® E3827 (MOQ, Build to Order Only)
Intel® Atom® E3845, Quad Core, 2MB Cache, 1.91 GHz
Intel® Celeron® J1900, Quad Core, 2MB Cache, 2.0 GHz
System Chipset SoC integrated
LAN Chipset GbE1: Intel® I210-AT
(Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S
System Memory 1x 204-Pin DDR3L 1066/1333MHz SODIMM.
Max up to 8GB
BIOS AMI 64Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 Sec. System Reset
Display
Display Port 1x DP
DVI 1x DVI-I
Multiple Display Dual Display
VGA Yes (by optional split cable)
Storage
mSATA 1x mSATA (shared by 1x Mini PCIe)
SIM Socket 2x External SIM socket
SSD/HDD 1x Internal 2.5" SATA HDD Bay
Expansion
Mini PCIe 2x Full-size Mini PCIe

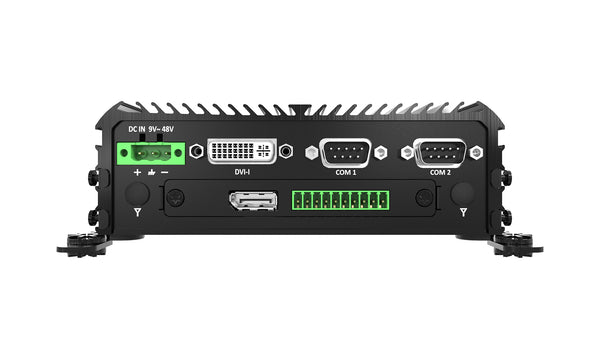

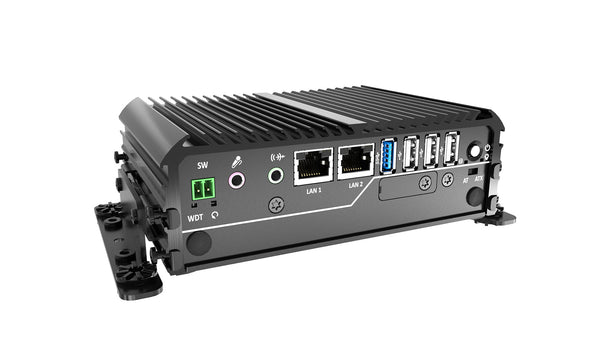

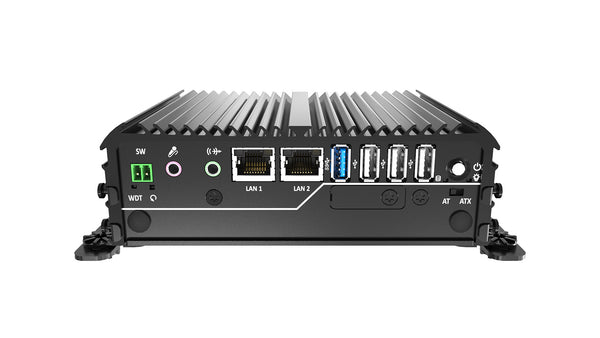

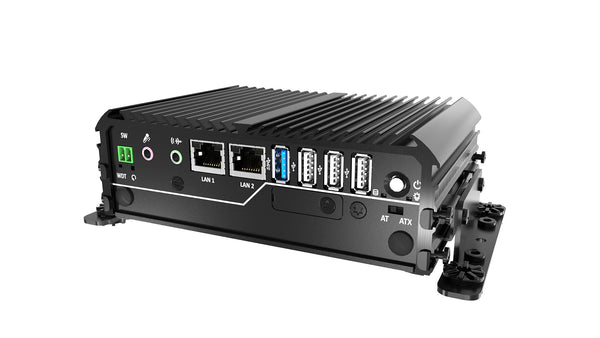

I/O
Audio 1x Mic-in, 1x Line-out
COM 2x RS-232/422/485
DIO 4 in / 4 out (Isolated)
LAN 2x GbE RJ45
USB 1x USB 3.0, 3x USB 2.0
Others 4x WiFi Antenna Holes

1x Power Switch, 1x AT/ATX Switch,
1x Remote Power On/Off
Operating System
Windows Windows 10, Windows 8.1, WES8.1,
Windows 7, WES7
Linux Linux kernel 3.X
Power
Power Adapter Optional AC/DC 12V/5A, 60W
Power Management ACPI 5.0a compliant
Power Mode AT/ATX
Power Supply Voltage 9 ~ 48 VDC
Power Connector 3-pin Terminal Block
Power Protection Over-Voltage Protection (OVP)
Over-Current Protection (OCP)
Reverse Polarity Protection (RPP)
Environment
Operating Temperature -25 °C ~ 70 °C (-13 °F ~ 158 °F )
Storage Temperature -30 °C ~ 85 °C (-22 °F ~ 185 °F )
Relative Humidity 10% to 95% (non-condensing)
Vibration with SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis
with HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock with SSD: 50G, half sine, 11ms
Physical
Dimension 5.91" x 4.13" x 1.93" (150 x 105 x 49 mm)
Weights 0.87kg
Construction Extruded aluminum with heavy duty metal
Mounting Options Wall Mounting

Side / VESA / DIN-Rail Mounting (Optional)

Mechanical Layout

Product Dimension

Unit:mm
