Industrial Touch Panel PCs and Monitors
IP Rated Touchscreen Computers For HMI Integration

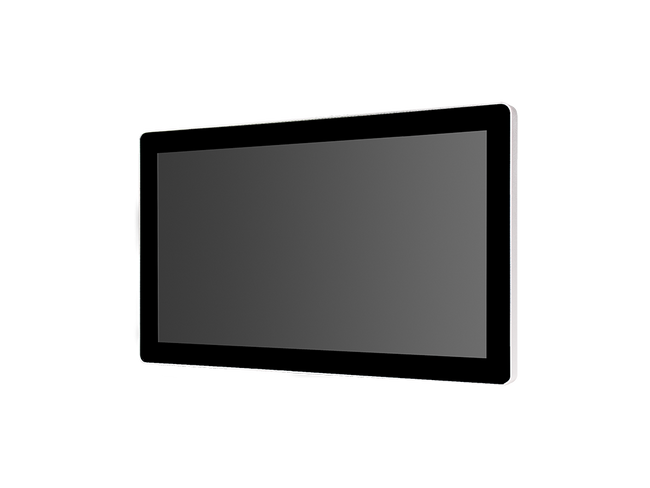

PI-ZB195P25FH04-ARA 19.5" P-CAP Touch Monitor
- 19.5" 1920x 1080 FHD 16:9 LED screen
- Zero-bezel true flat surface
- Slim design
- Easy integration and low maintenance
- Projected Capacitive touch
- Anti-glare cover glass
Model:
PI-ZB195P25FH04-ARA
Certifications:
Specification
| Display | |
|---|---|
| LCD Size | 19.5" (16:9) |
| Max. Resolution | 1920 x 1080 (FHD) |
| Brightness (cd/m²) | 250 |
| Contrast Ratio | 3000:1 |
| LCD Color | 16.7M |
| Viewing Angle | 178/178 |
| Backlight MTBF | 40k hours (to 1/2 brightness) (LED Backlight) |
| Display Active Area | 434.88mm x 238.68mm |
| Response Time | 25ms |
| Touch | |
| Touch Type | Projected Capacitive (PCAP) Touch, Multi-Touch up to 10 points |
| Surface Hardness | 6H |
| Transmission | 85% |
| I/O | |
| Audio | 1x Audio In/Out |
| USB | 1x USB (Type B, Touch Interface) |
| DVI | 1x DVI-I |
| HDMI | 1x HDMI |
| VGA | 1x VGA |
| OSD | Power, Menu, Up, Down, Auto |
| Speaker | Built-In Speakers |
| Power | |
| Power Adapter | 100-240VAC,50-60Hz Input |
| Power Supply Voltage | +12VDC ±5% |
| Environment | |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -20°C - 60°C |
| Relative Humidity | Operating: 20% RH ~ 80% RH (Non Condensing) Storage: 10% RH ~ 90% RH (Non Condensing) |
| Certification | UL-62368, CE, FCC Class-B, ICES-003, VCCI, RCM, UKCA |
| Warranty | 3 Years Warranty (Touch Screen and LCD 1 Year) |
| Physical | |
| Dimension | 490.60 mm x 294.60 mm x 39.60 mm |
| Weights | Net: 5.6Kg Gross: 7.7Kg |
| Construction | Bezel Color: Silver on Edge, Black on Back |
| Mounting Options | VESA Mounting Holes 75 x 75mm, 100 x 100mm |
Resources
| Datasheet |
DS_PI-ZB195P25FH04-ARA_Premio.pdf
|
