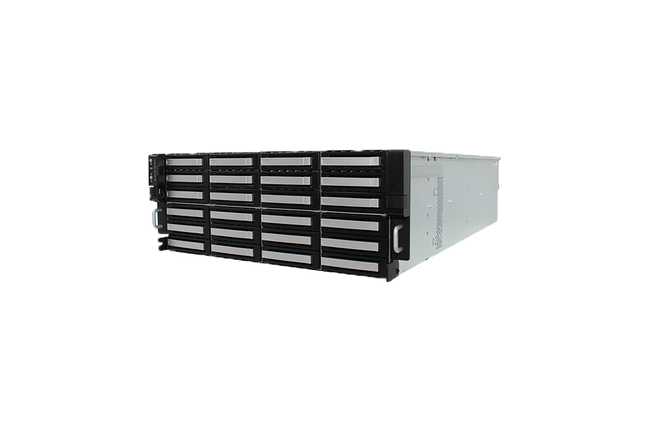

OSS424-D5 4U 24 BAYS 3.5" HDD 12G SAS DUAL XEON SP 800W HRP
OSS316-D5 3U 16 BAYS 3.5" HDD 12G SAS DUAL XEON SP 800W HRP

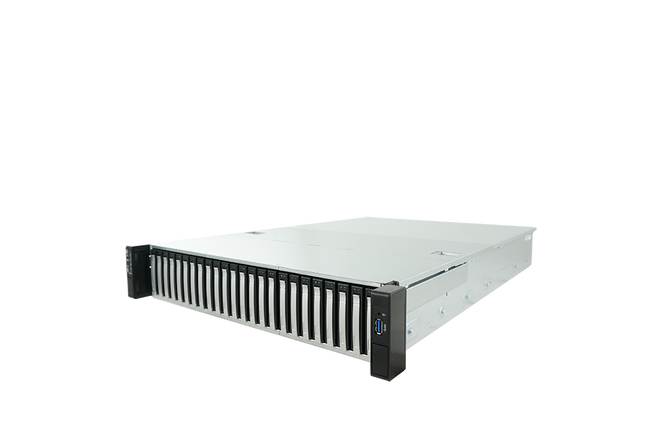

OSS224-D5 2U 24 BAYS 2.5" 12G SAS DUAL XEON SP 800W HRP

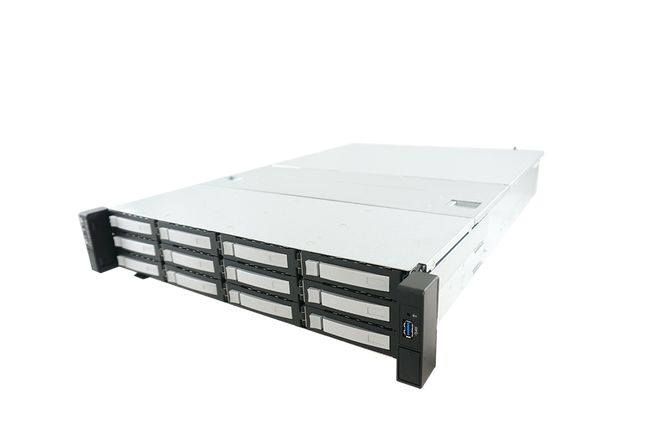

OSS212L-D5 2U 12 BAYS 3.5" HDD 12G SAS DUAL XEON SP LOW PROFILE SLOTS 800W HRP
OSS212F-D5 2U 12 BAYS 3.5" HDD 12G SAS DUAL XEON SP FULL HEIGHT SLOTS 800W HRP

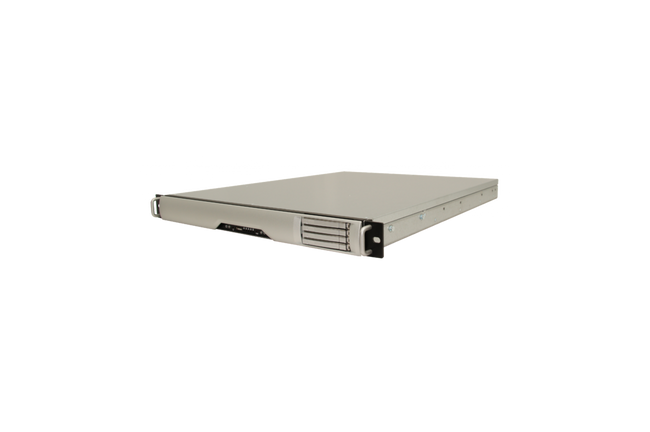

OSS1A4-D5 1U 4 BAYS 7MM SSD 12G SAS/SATA DUAL XEON SP 500W HRP

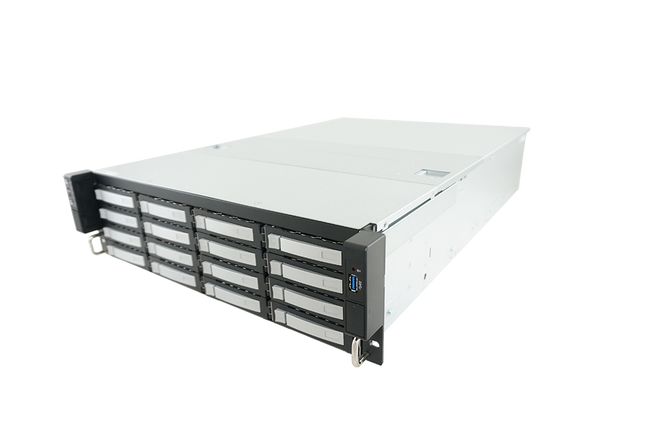

OSS316-D5 3U 16 BAYS 3.5" HDD 12G SAS DUAL XEON SP 800W HRP

Key Features
  • Versatile 3U Storage chassis with optimal cooling for high end server
  • 16x Hot Swap Tray-less 3.5″ HDD 12G SAS or SATA drive bays
  • Optional 2,4, or 6 rear hot -swap 2.5″ SSD 7mm drive bays
  • High efficiency Platinum redundant PSU 800W or 1200W
  • Supports Intel Xeon ATX, SSI CEB, or 13″ EEB motherboards
See Datasheet

Certifications:

Intel Partner

Specification

System
Processor Supports Dual Intel® Xeon® SP (Skylake) up to 205W TDP socket LGA3647
System Chipset Intel® C621 chipset
System Memory Supports 12x DDR4 RDIMM/LRDIMM (3DS) 2133/2400/2666 MT/s
Storage 36 ports 12Gb/s SAS expander with 3 SFF8643 ports
Driver Bays 16x SAS/SATA 12G/6G hot -swap 3.5" drive bays, 2x internal OS 2.5", Optional 2/4/6/8x rear tool-less 2.5" 7mm bay
Cooling 4x 80mm fans
Expansion Supports a total of 7 low profile expansion slots, 4x PCIe3 x16, 3x PCIe3 x8
Environment
Operating Temperature 0°C ~ 35°C
Storage Temperature -20°C ~ 70°C
Relative Humidity 5% ~ 95% relative humidity, non-condensing
HTS Code 8473 30 5100
ECCN 4A994
Compliance CE, FCC Class A, RoHS 6/6 compliant
Physical
Dimension System: 26"x19"x5.25" (DxWxH) Packaging: 36.6“x 24.8"x14.6"(LxWxH)
Weights Gross Weight: 37.5 KG/ 82.5lbs Net 15.9KG/35lbs
