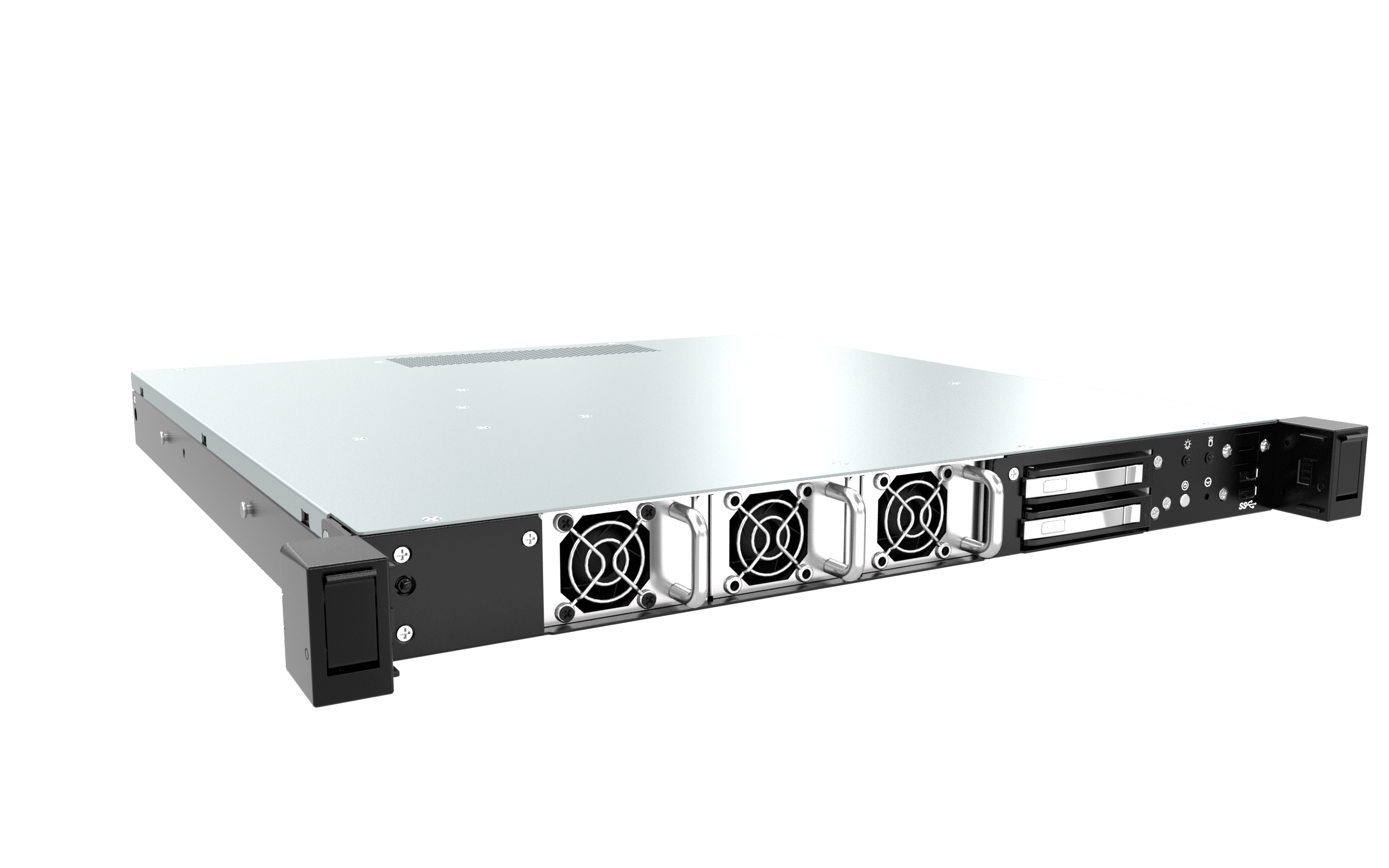

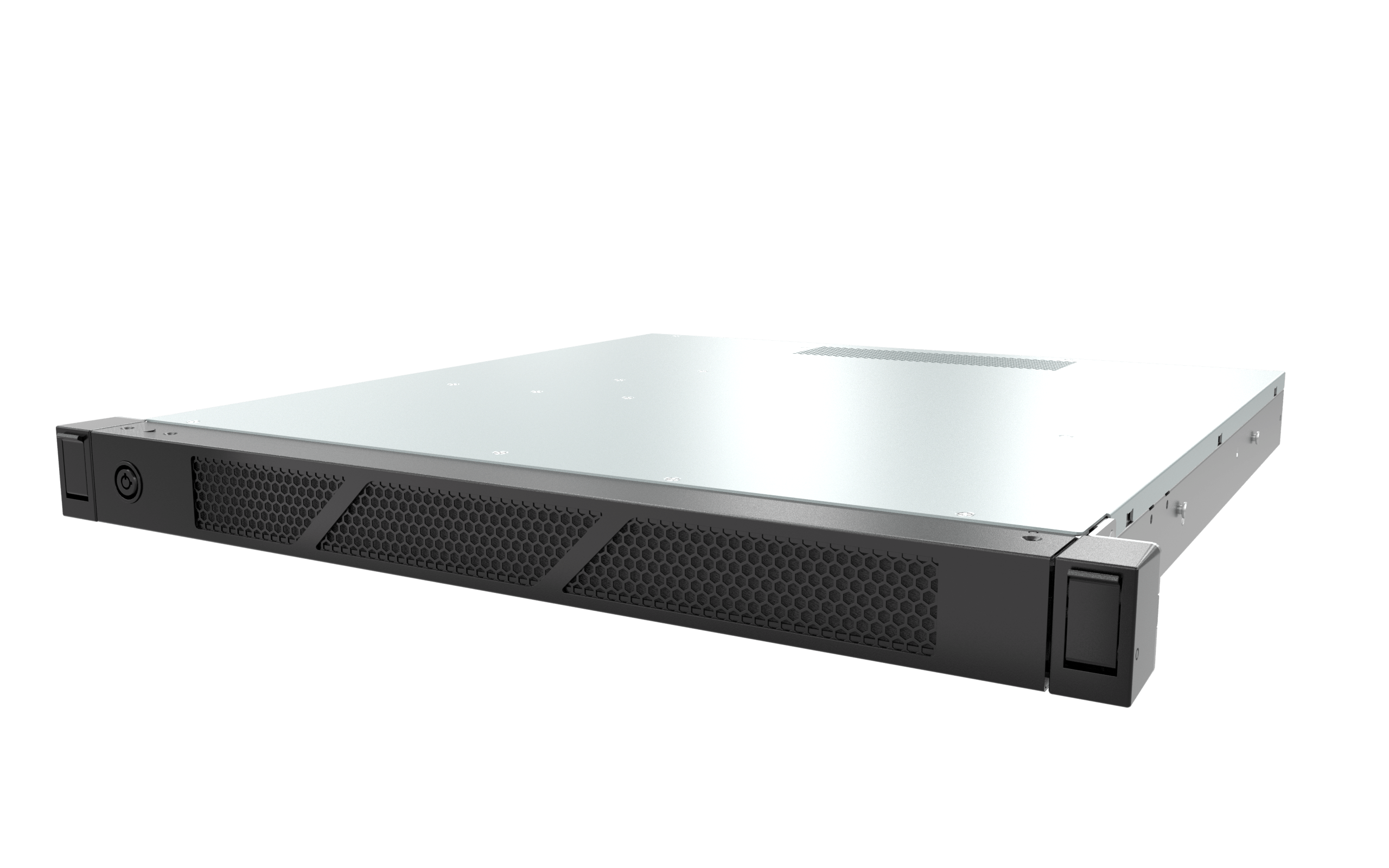

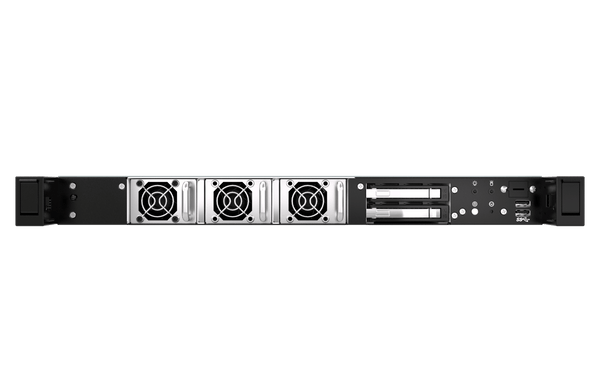

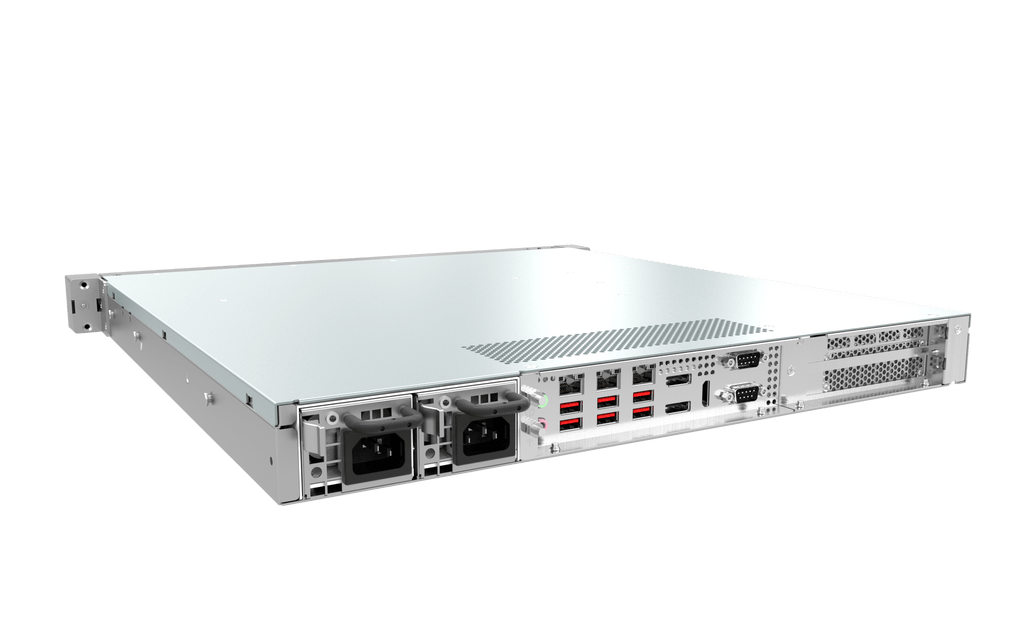

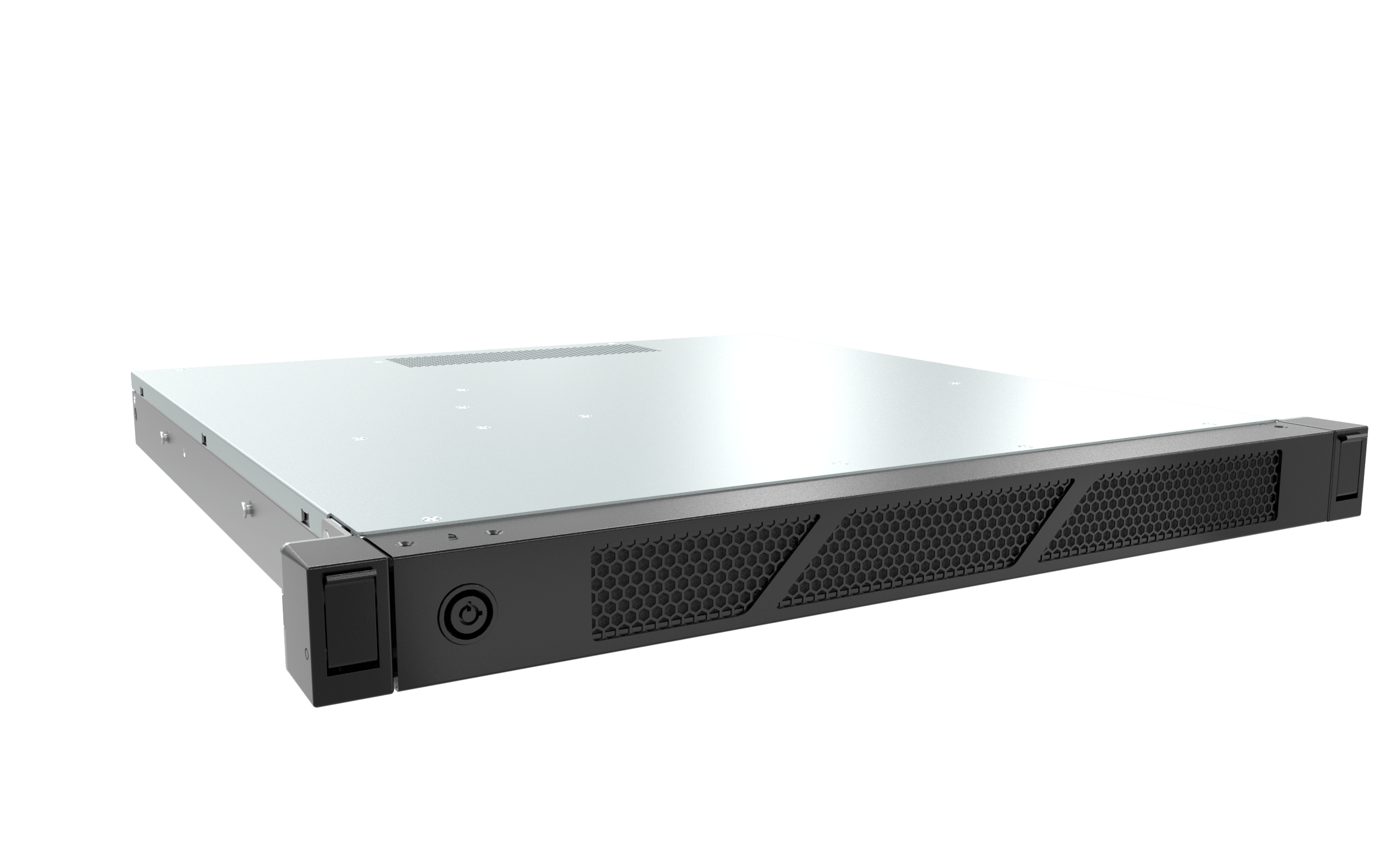

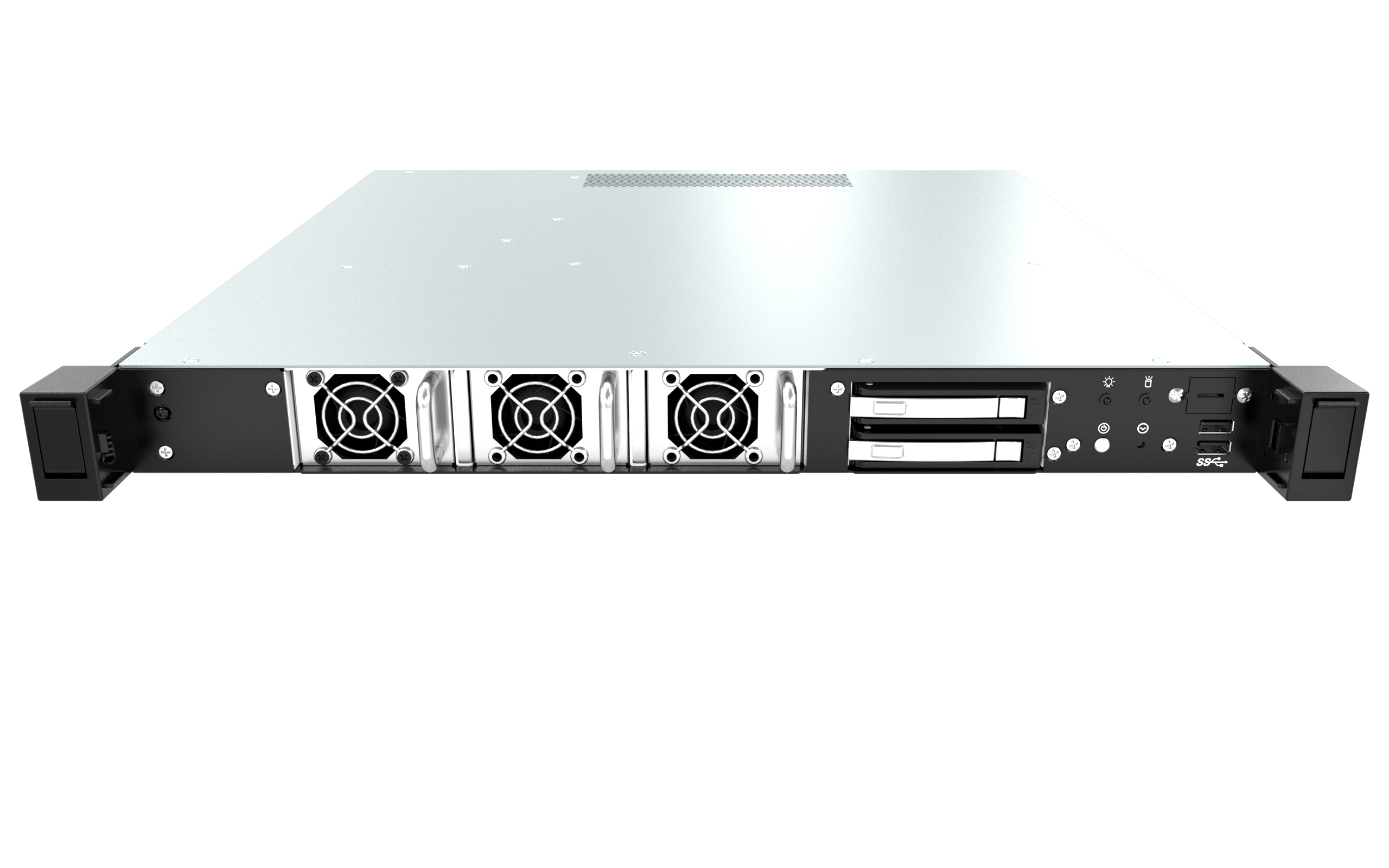

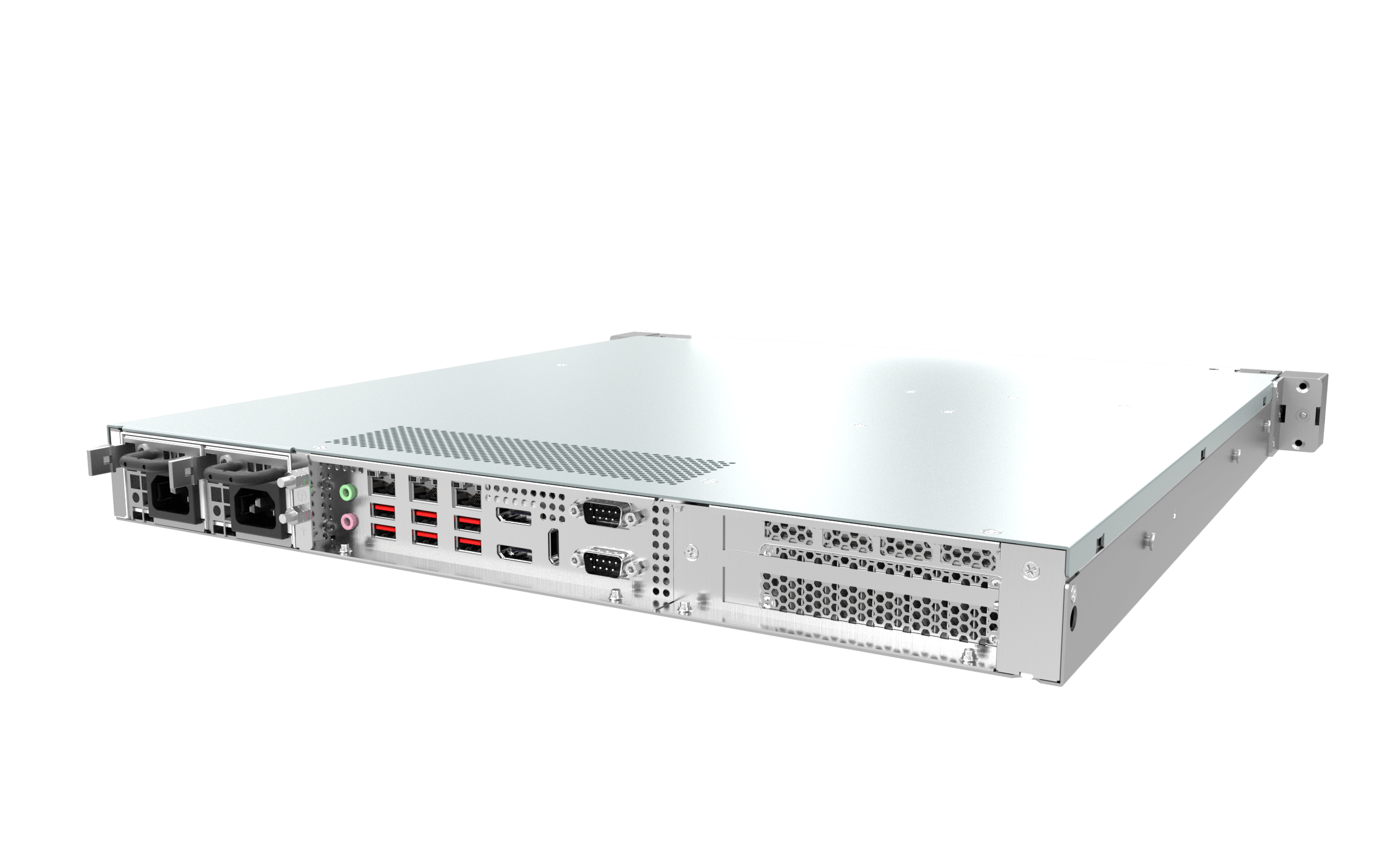

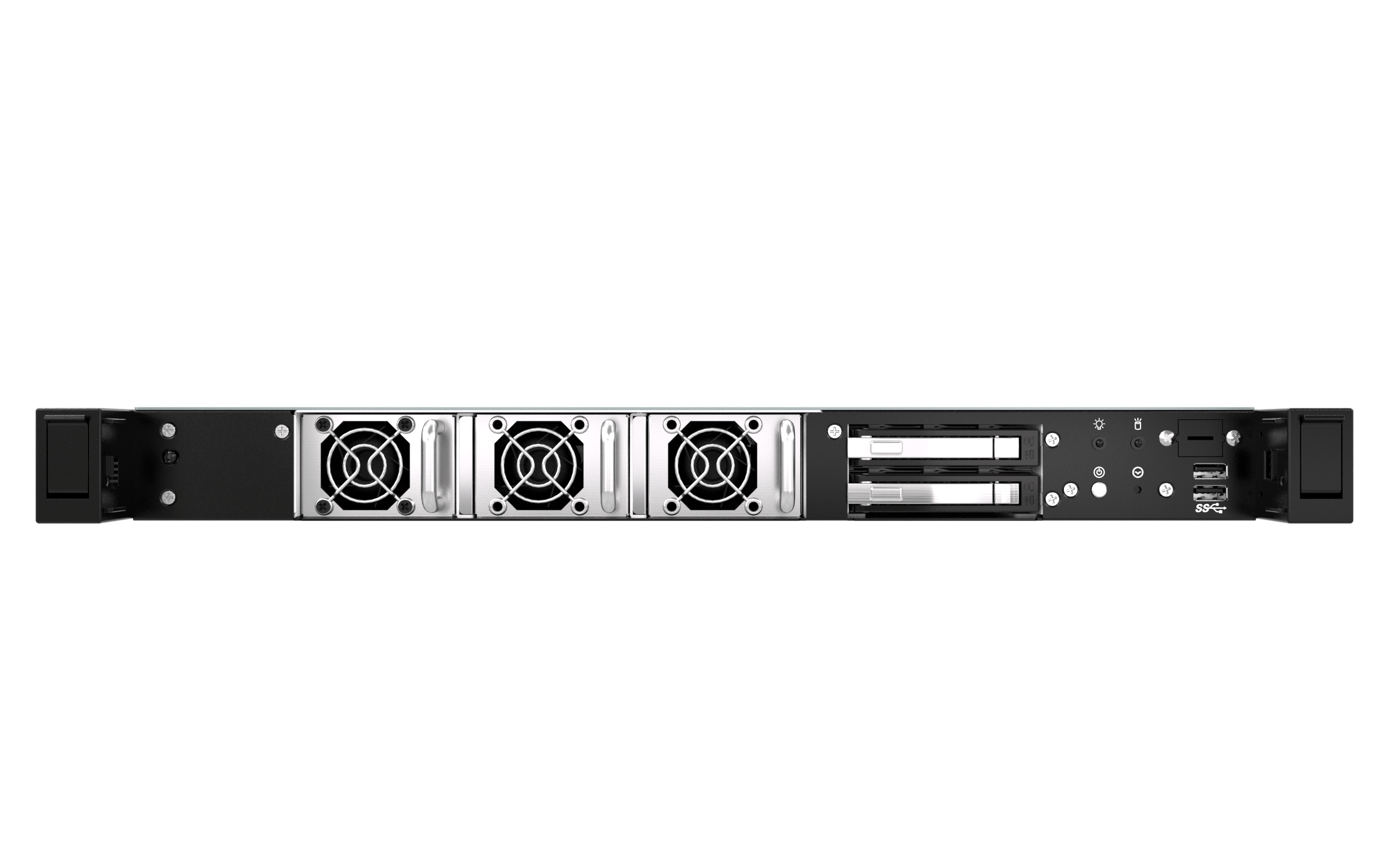

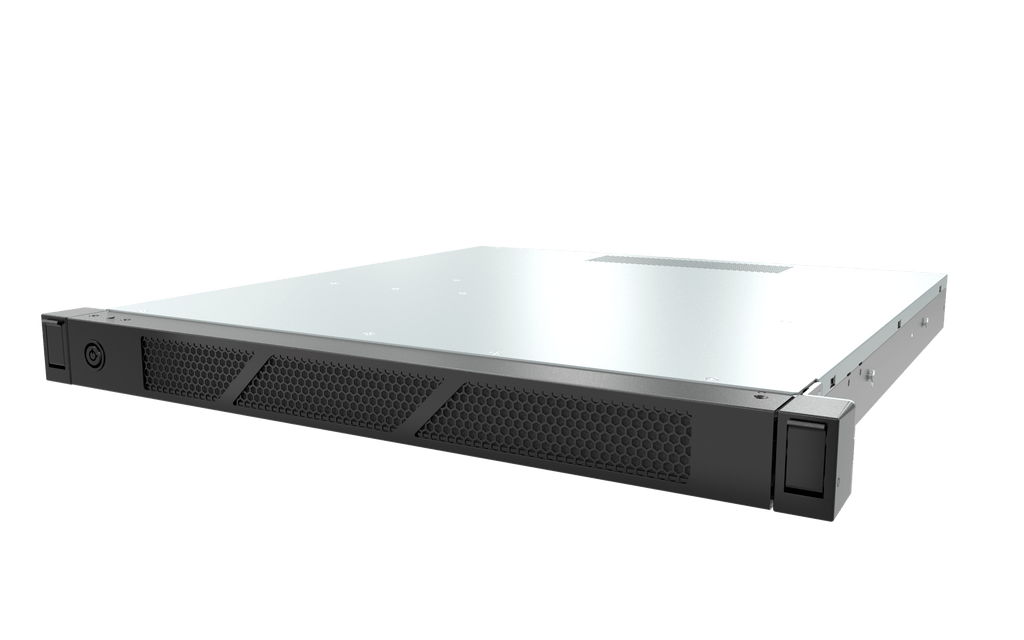

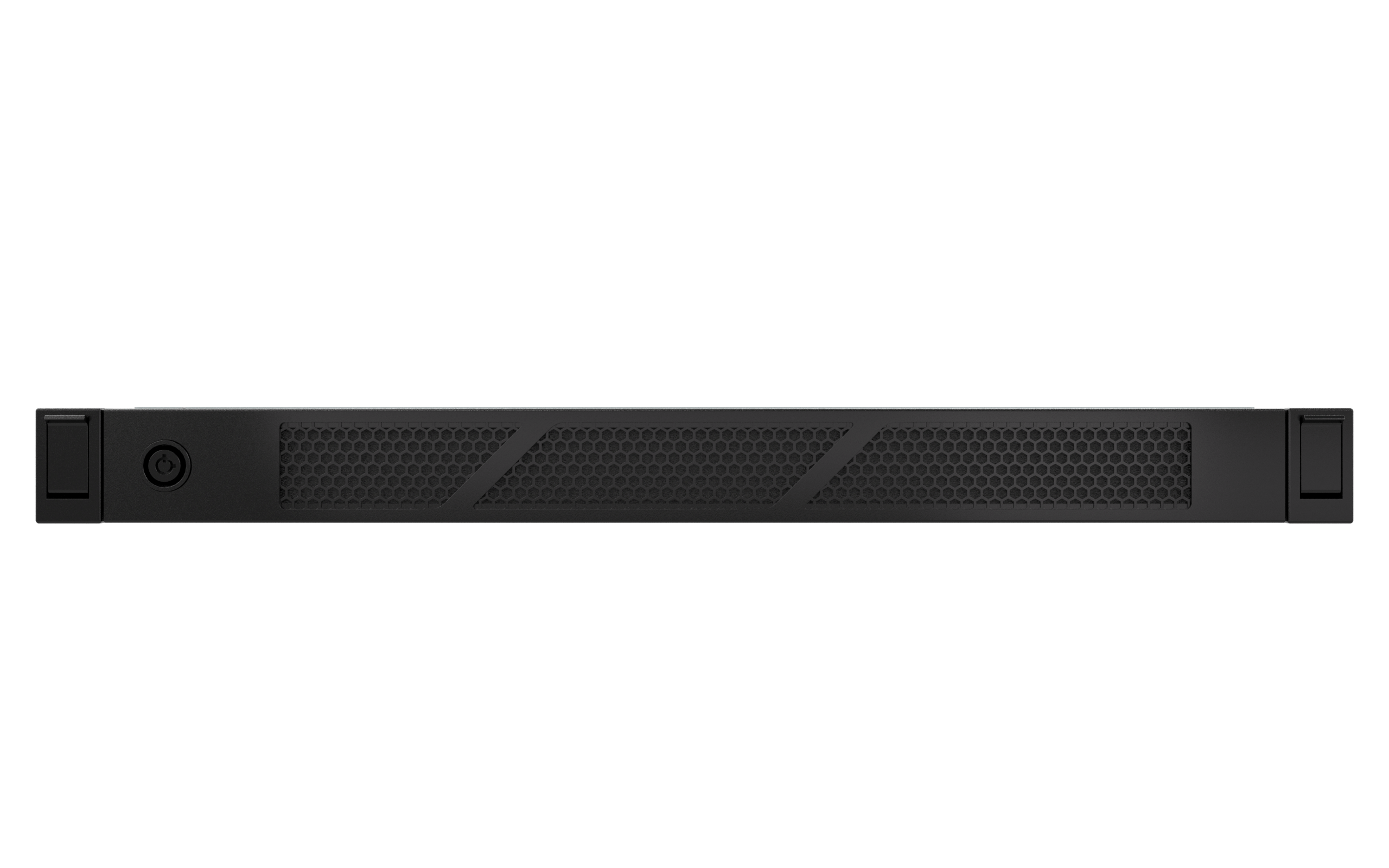

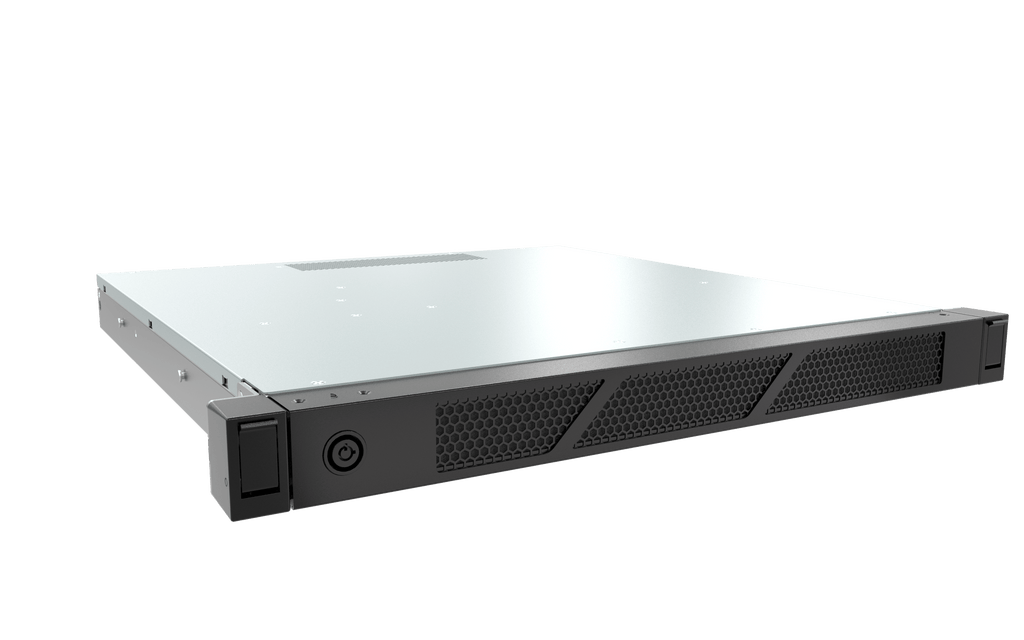

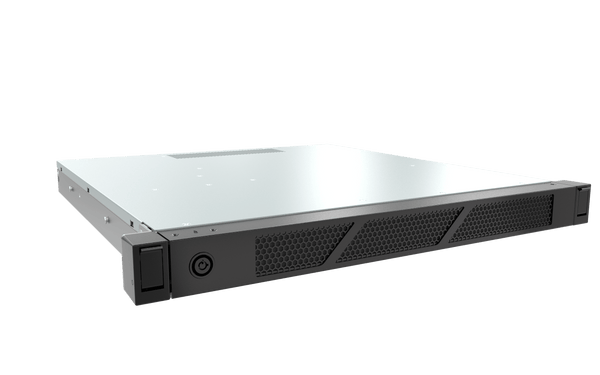

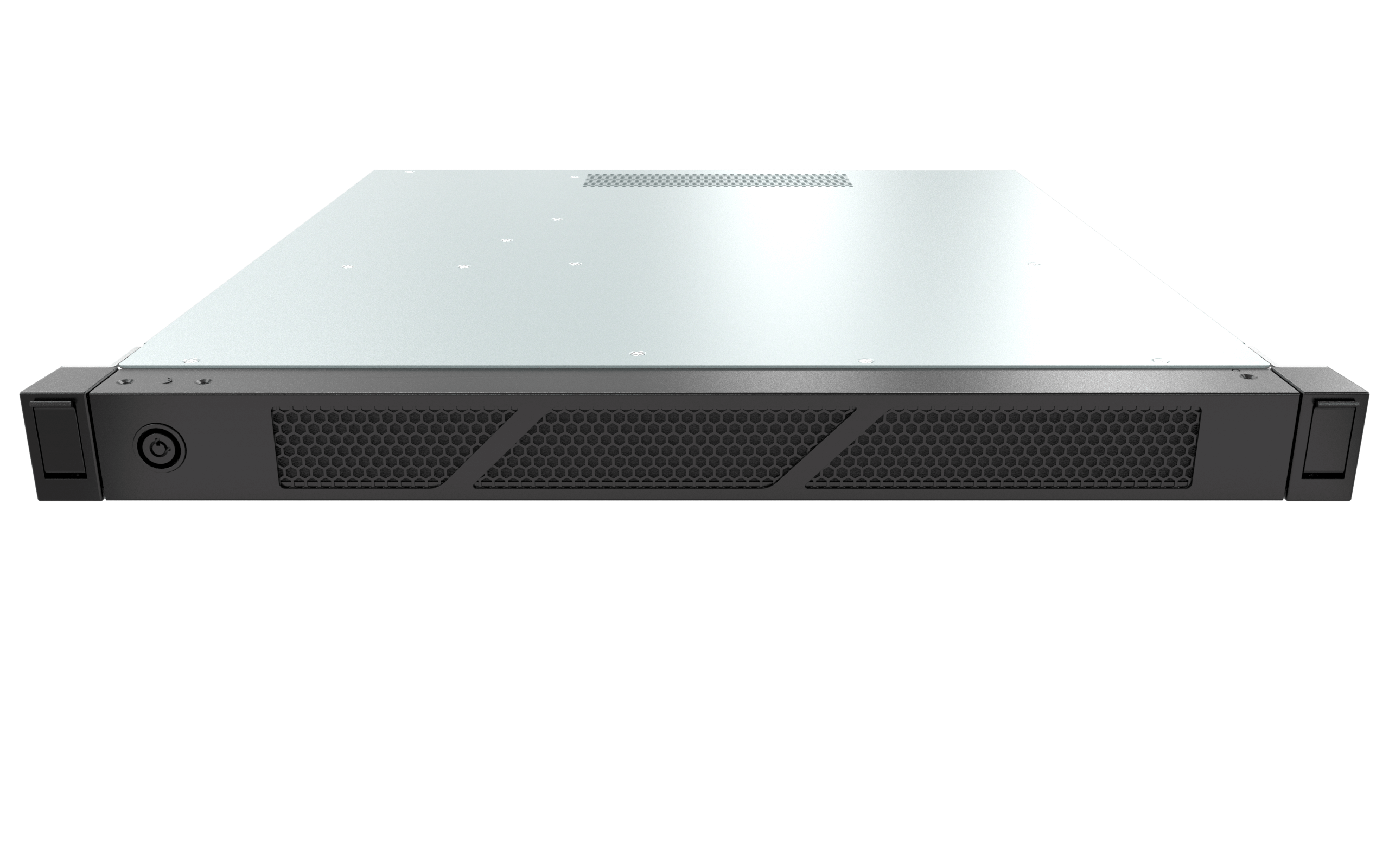

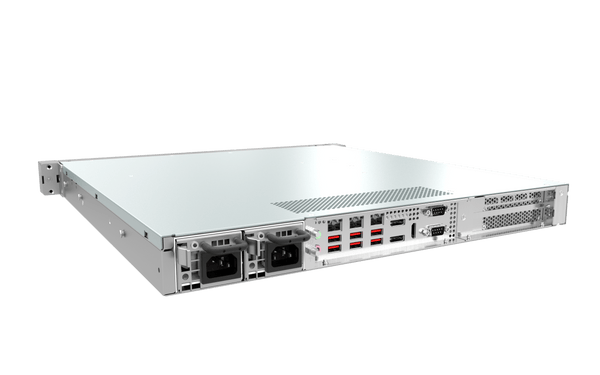

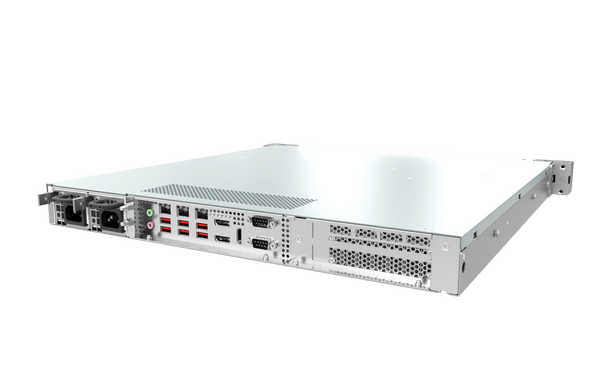

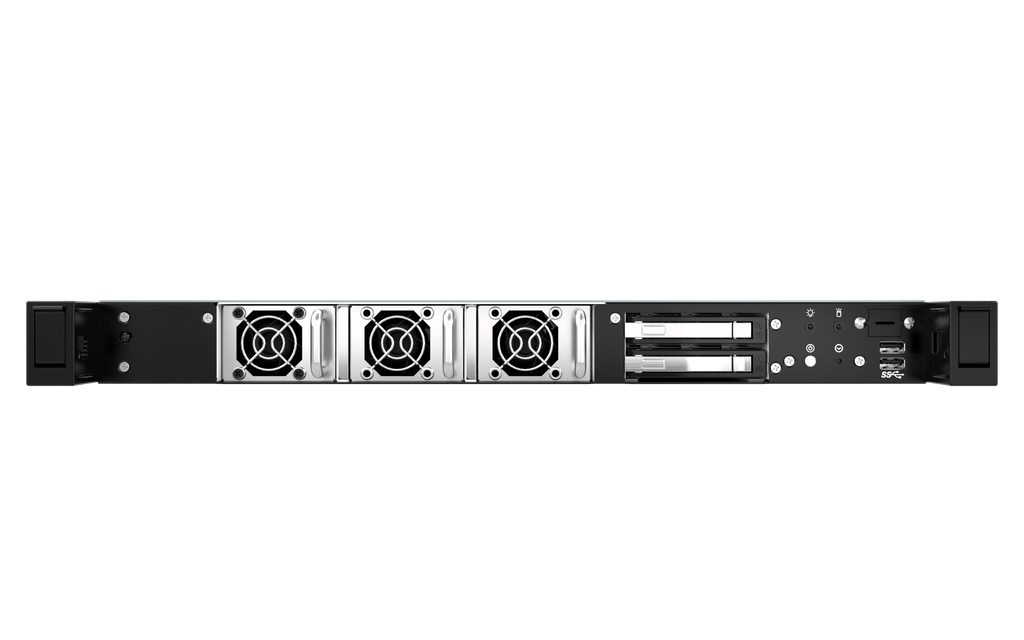

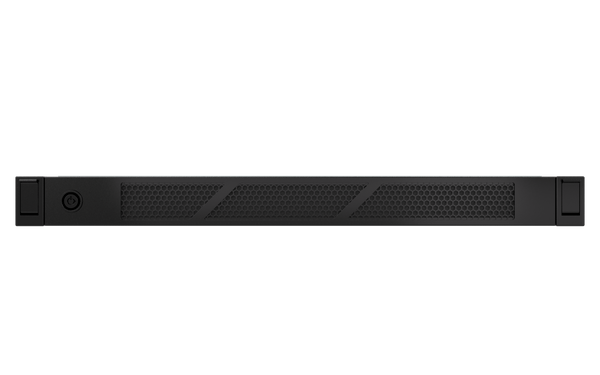

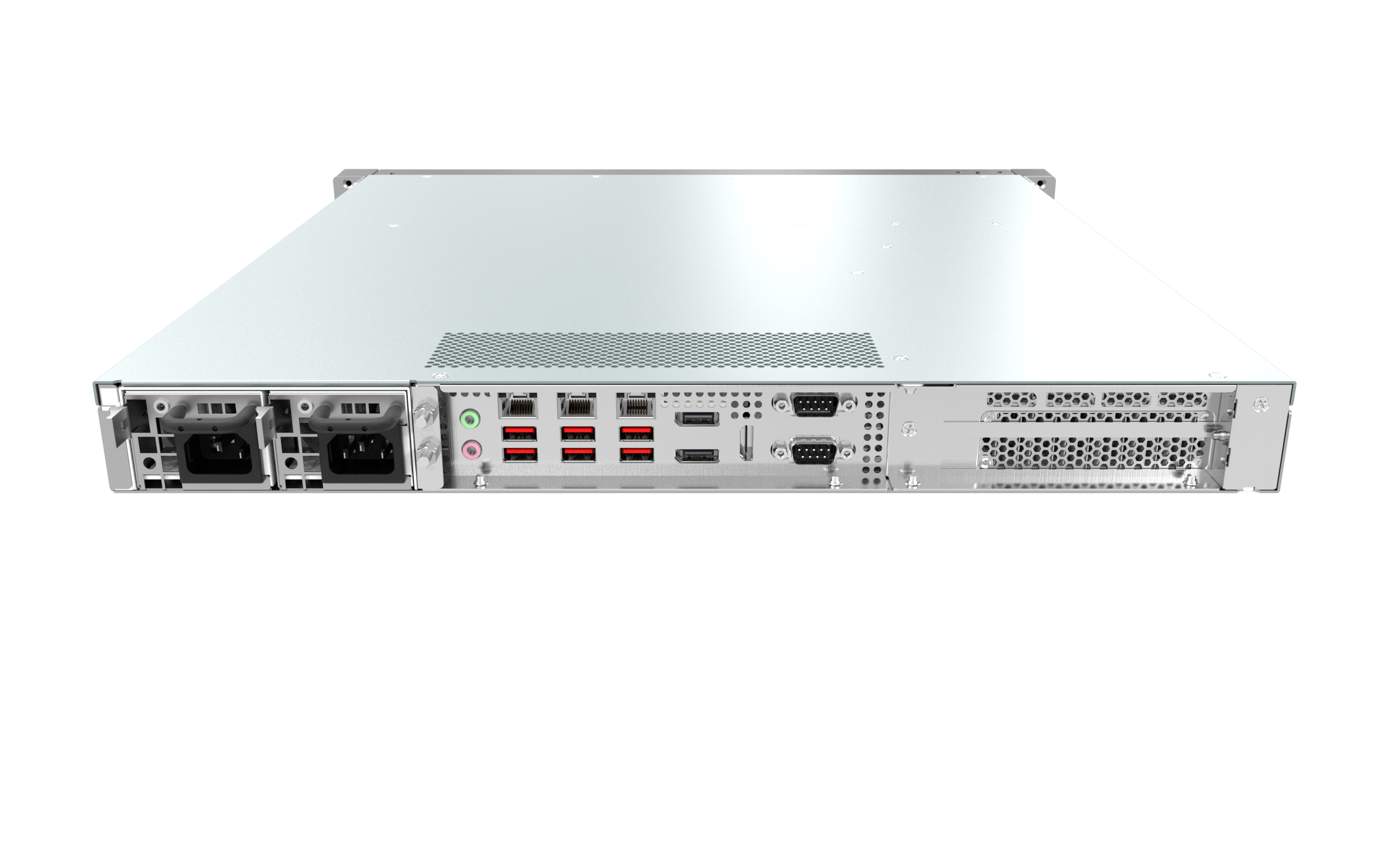

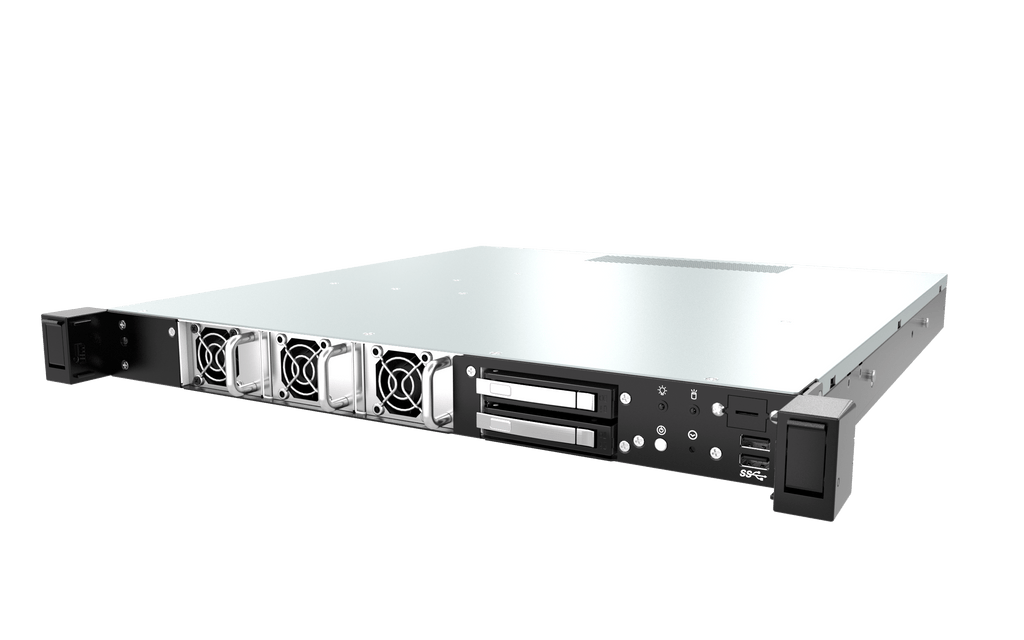

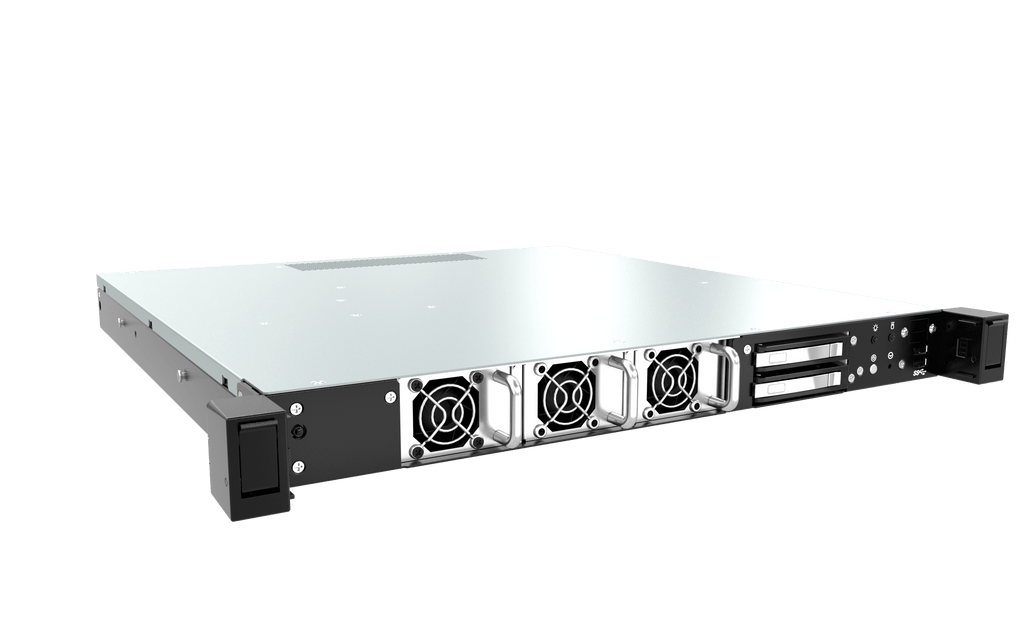

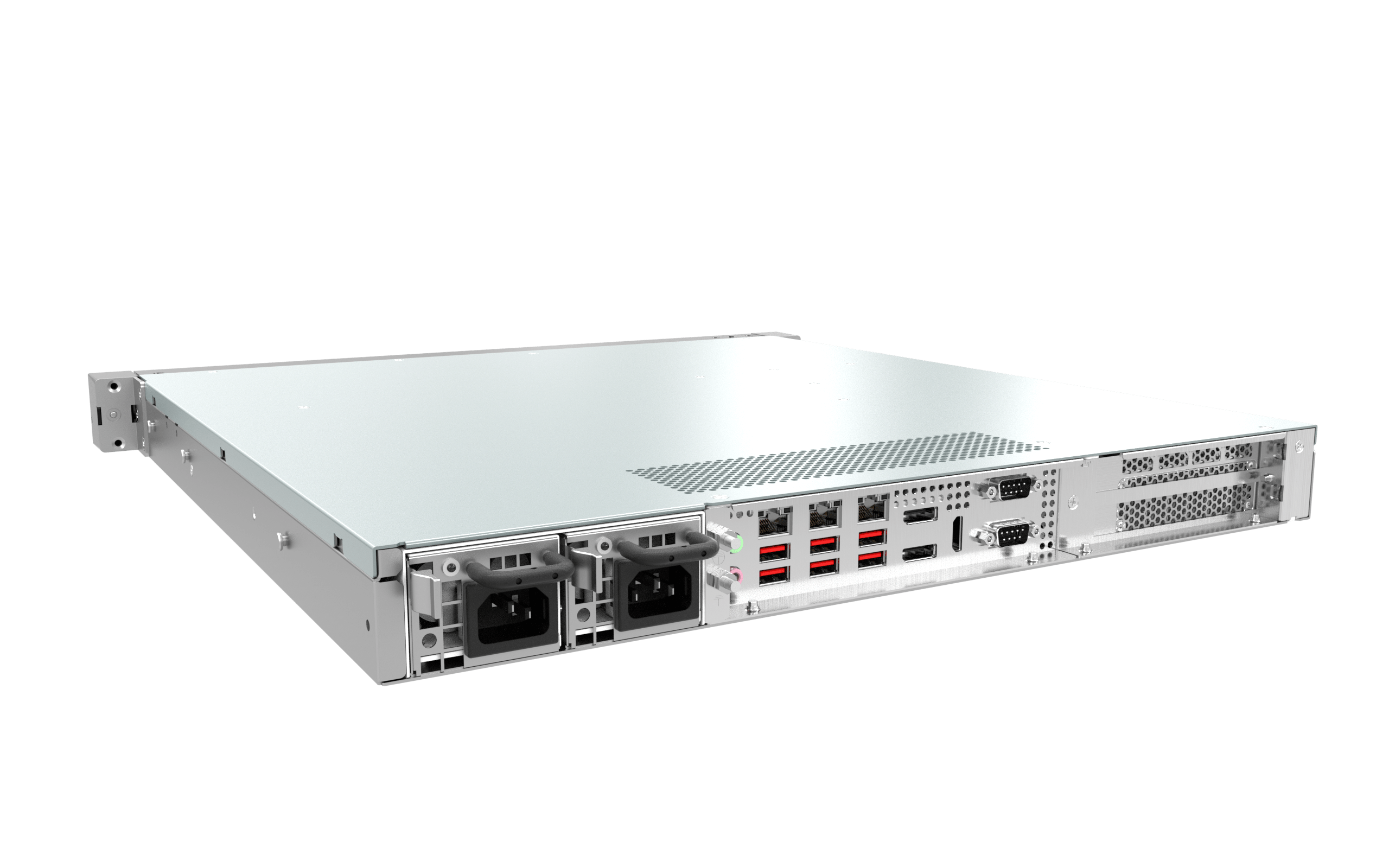

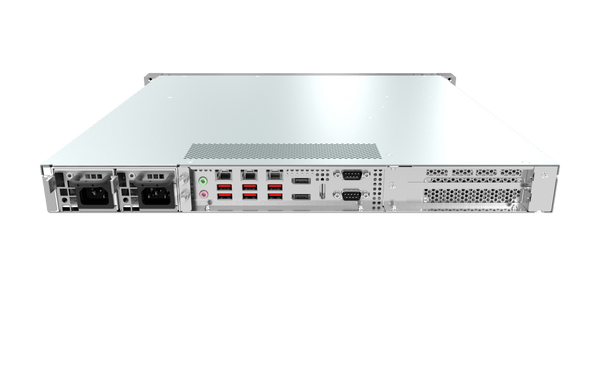

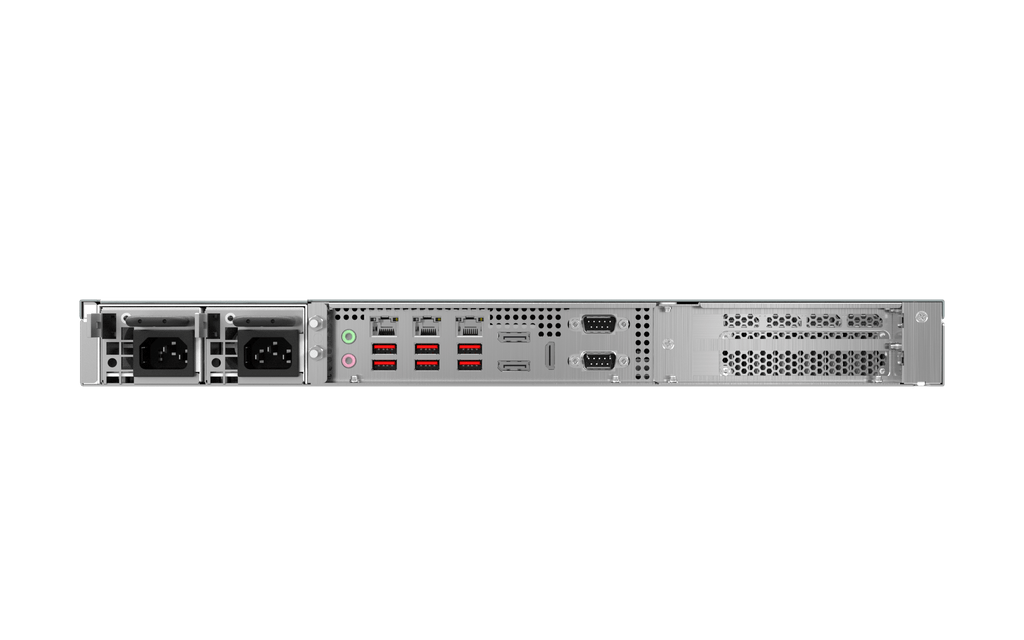

LLM-1U-RPL 1U Edge AI Rackmount Server with 12th/13th Gen Intel® Core® Processor and Q670E Chipset
- Support 12th/13th Gen Intel® Core™ Processors (LGA 1700, 65W Max TDP)
- Intel® Q670E Chipset
- 2x DDR4 3200MT/s SODIMM. Max. up to 64GB
- 3x 2.5GbE (Support Wake-on-LAN and PXE)
- Triple 4K Display: 2x DP++, 1x HDMI
- 1x PCIe x16 (Gen 4) or 2x PCIe x8 (Gen 4) slot
- 1x M.2 M Key, 1x M.2 B Key, 1x M.2 E Key
- 2x 2.5" SATA SSD Drive bays
- 2x RS-232/422/485 COM Ports, 2x RS-232 (Internal)
- 6x USB 3.2 Gen 2 (Rear), Front: 2x USB 3.2 Gen 1 (Front)
- 600W Redundant Power Supply
- Support TPM 2.0
- UL 62368 Ed. 3, FCC, CE
Model:
LLM-1U-RPL
Certifications:
Specification
| System | |
|---|---|
| Processor | Support 12/13th Gen Intel® ADL & RPL Processor (LGA 1700, 65W/35W TDP) - Intel® Core™ i9-13900E/i9-12900E, 65W - Intel® Core™ i9-13900TE/i9-12900TE, 35W - Intel® Core™ i7-13700E/i7-12700E, 65W - Intel® Core™ i7-13700TE/i7-12700TE, 35W - Intel® Core™ i5-13500E/i5-12500E, 65 W - Intel® Core™ i5-13500TE/i5-12500TE, 35W - Intel® Core™ i3-13100E/i3-12100E, 60W - Intel® Core™ i3-13100TE/i3-12100TE, 35W - Intel® Core™ 300T, 35W - Intel® Pentium® G7400E, 46W / G7400TE, 35W - Intel® Celeron® G6900E, 46W / G6900TE, 35W |
| System Chipset | Intel® Q670E PCH |
| LAN Chipset | Intel® I226LM PCIe 2.5GbE LAN Intel® I226V PCIe 2.5GbE LAN Intel® I226V PCIe 2.5GbE LAN |
| Audio Codec | Realtek ALC897 |
| System Memory | 2x DDR4 3200MT/s SODIMM. Max. up to 64 GB (Default: 8GB & Non- ECC supported) |
| BIOS | AMI UEFI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | TPM 2.0 |
| Display | |
| Display Port | 2x Dual Mode DisplayPort 1.4a Max Resolution 4096 x 2304 @60Hz |
| HDMI | 1x HDMI 1.4b Max Resolution 4096 x 2304 @24Hz |
| Multiple Display | 3x Independent Displays |
| Storage | |

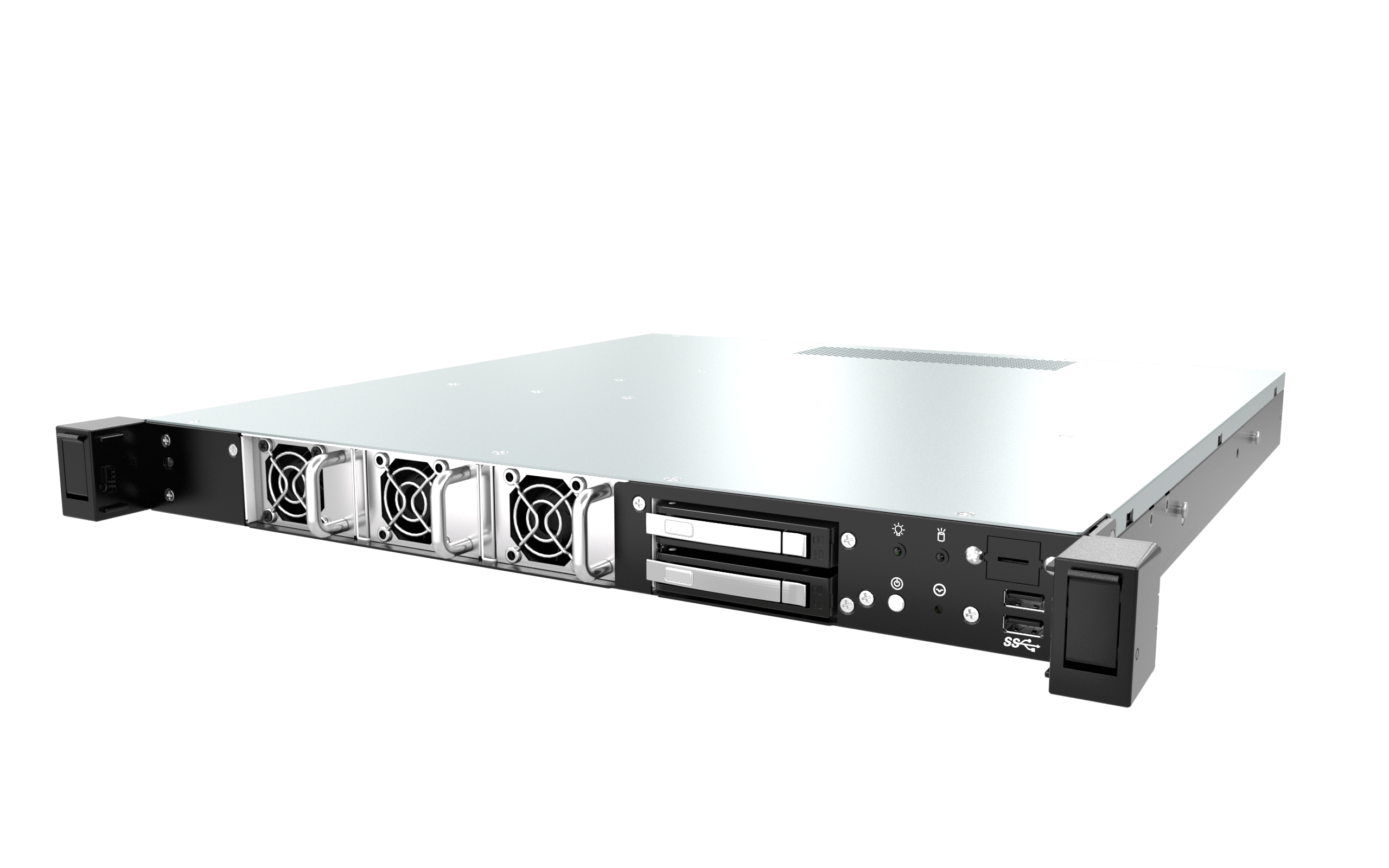

| SSD/HDD | 2x 2.5" Hot-swap SATA SSD Drive Bays (7mm/15mm) |
| Expansion | |
| M.2 B-Key | 1x M.2 B key Type: 3042 • Support PCIe x1 +USB 3.2 Gen 2x1 + USB 2.0 • Support NVMe Storage/AI Module/4G/5G |
| M.2 E-Key | 1x M.2 E-Key Type: 2230 (Support PCIe x1 + USB 2.0; Support CNVi) Devices Supported: Intel® AX210 Wi-Fi 6E & BT-5.1 (vPro Supported) |
| M.2 M-Key | 1x M.2 M-Key Type (2242/2280): • Support PCIe x4 Gen3 NVMe SSD • PCIe x4 Gen3 signal from PCH • Support B+M Key |
| PCIe | 1x PCIe x16 Gen 4 or 2x PCIe x8 Gen 4 1x Default Industrial Fan |

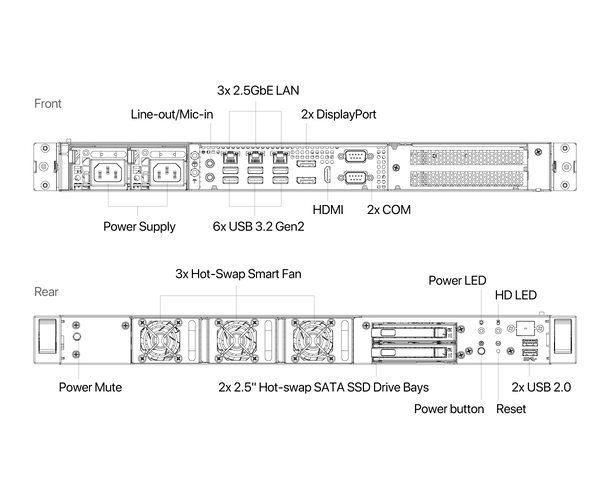

| I/O | |
| Audio | Line-out/Mic-in |

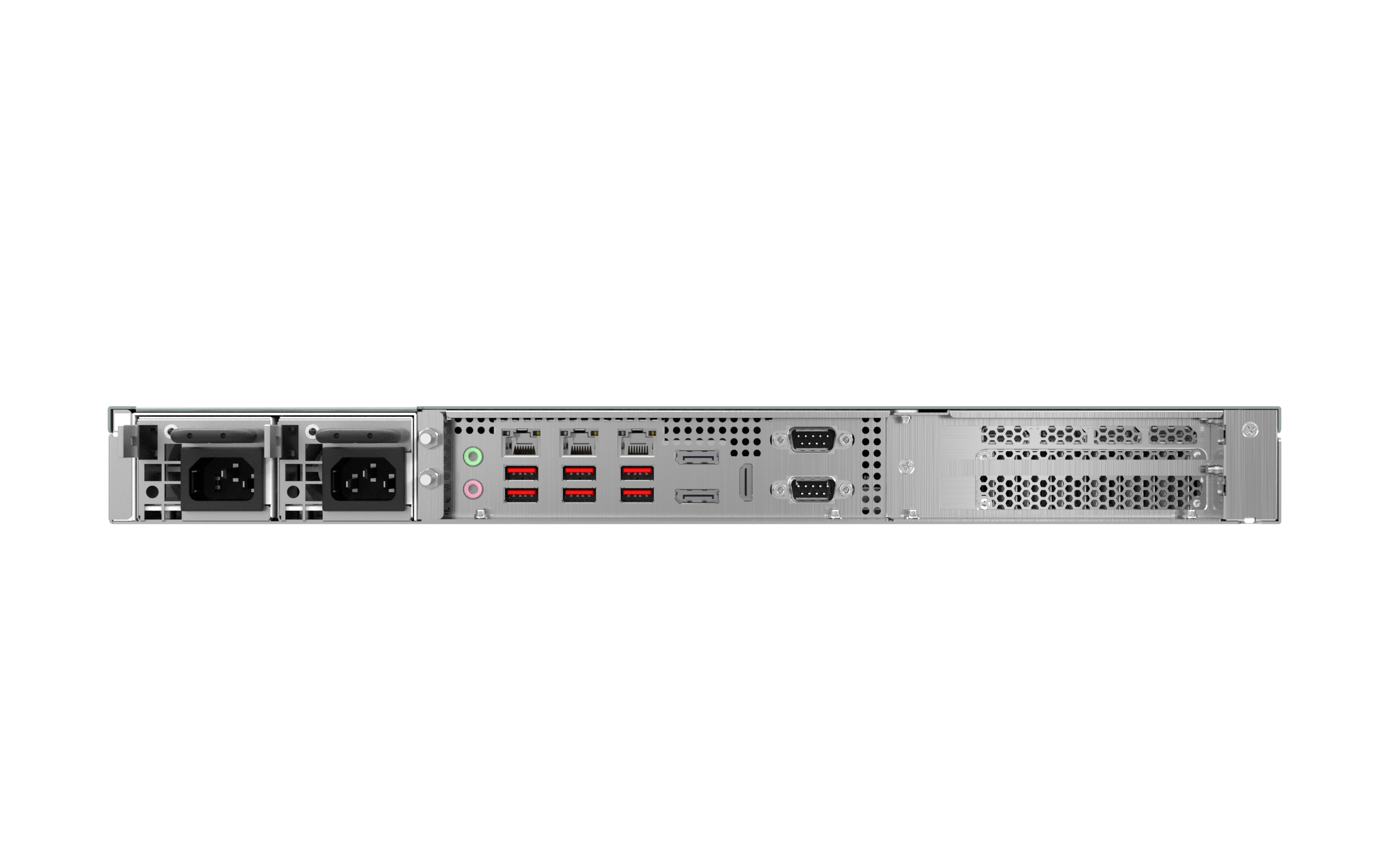

| COM | 2x DB9 COM1: RS232/422/485 COM2: RS232 |
| LAN | 3x RJ45 (2.5GbE) |
| USB | 6x USB 3.2 Gen2 (Read) 2x USB 3.2 Gen 1 Type-A (Front) |
| Others | 1x Power button 1x HD LED 1x Power LED 1x Safety Lock |
| Operating System | |
| Windows | Windows 10/11 |
| Linux | Linux Kernel |
| Power | |
| Power Mode | AT, ATX (Default ATX) |
| Power Ignition Sensing | Adjustable Power Ignition Management |
| Power Supply | 2x 600W (1+1) Redundancy Power Supply AC: 115-230 V DC: 36-72 V |
| Power Connector | IEC 60320 C14 |
| System Cooling | |
| Fan | 1x CPU Fan Cooler 3x Hot-Swap Smart Fan |
| Air Filter | 1x Dust Fan Filter |
| Environment | |
| Operating Temperature | 0°C to 35°C with 0.6 m/s airflow |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Certification | UL 62368 Ed. 3, CE, FCC Class A |
| Vibration | With SSD: 1 Grms (5 - 500 Hz, 0.5 hr/axis) |
| Shock | With SSD: NA-G half-sin 11ms |
| Physical | |
| Form Factor | 1U |

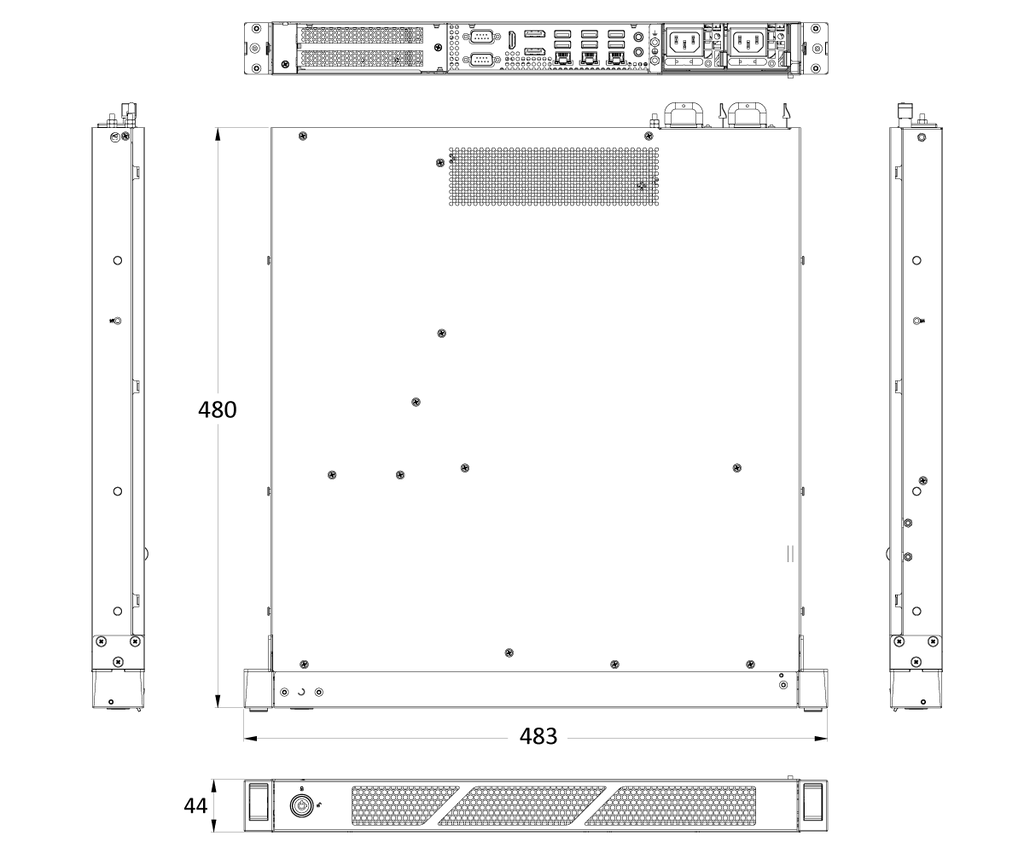

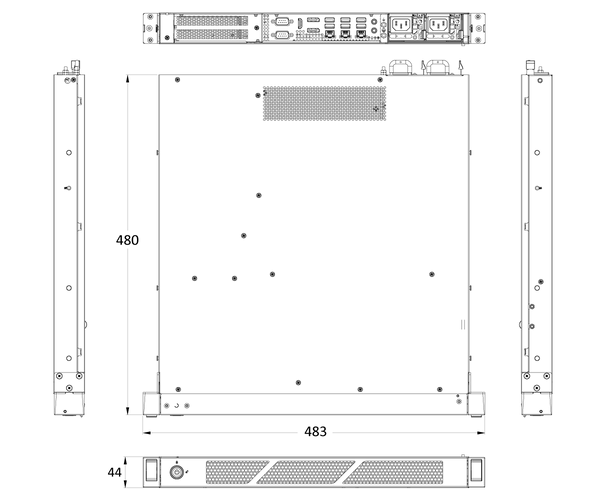

| Dimensions (WxDxH) | 483 (W) x 480 (D) x 44 (H) mm |
| Weights | 4 kg |
| Construction | Heavy Duty Metal |
| Mounting Options | Rackmount |
Resources
| Data Sheet |
DS_LLM-1U-RPL_Premio.pdf
|
