Add to Compare

KCO-3000-RPL Expandable Edge AI Workstation,12/13th/14th Gen Intel® Core® Processor and Q670E PCH, PCIe Gen 5, Dual GPU, USB Type-C

Intel® Q670E PCH
Support 12th/13th Gen Intel® Core™ Processors (LGA 1700, 65W Max TDP)
4x 288-pin DDR4 DIMM. Max. up to 128GB
1x 1GbE, 1x 2.5GbE Ports Support Wake-on-LAN, PXE
4x DP++ Independent Displays
1x PCIe x16 (Gen 5), 2x PCIe x4 (Gen 4, Gen 3), 1x PCIe x16 (Gen 4, 4-lane)
2x M.2 M Key, 1x M.2 E Key
5x RS-232 COM Ports (3x internal), 1x RS-232/422/485 COM Port (internal)
6x USB 3.1 Gen 2, 1x USB 3.2 Gen 2x2 Type C
Support uEFI Secure Boot, TPM 2.0

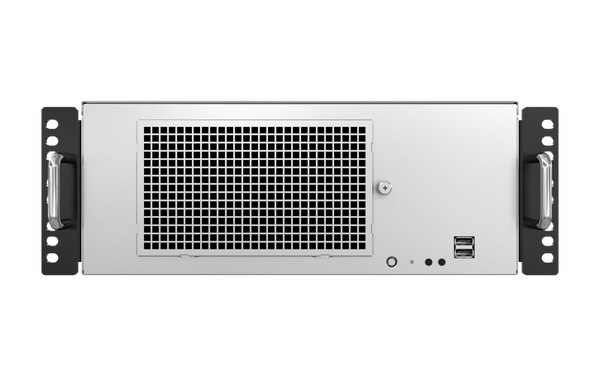

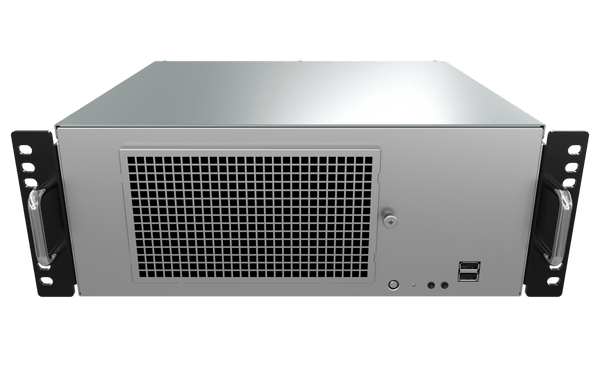

Tool-less Washable Dust Filter
Internal 500W Flex Power Supply
13.15"(W) x 11.78"(D) x 5.23"(H)
UL 62368 Ed. 3, FCC, CE

See datasheet

Model:

KCO-3000-RPL

KCO-3000-CFL

Certifications:

Industrial Grade Design

Active Cooling

PCIe 5 Expansions

GPU Acceleration

Embedded Long-Life Cycle

Intel® Hybrid Multi Core Performance

Powered by Intel® Core™ 65W processors, the platform uses P cores and E cores to balance high performance processing and power efficiency for demanding edge workloads.

GPU-Ready Performance for Edge AI

The KCO-3000 Series supports full-height GPU cards to accelerate AI inference, machine vision, visual inspection, and advanced edge workloads.

Low Latency PCIe Gen 5 Expansion

PCIe Gen 5 expansion delivers high bandwidth and low latency for demanding AI workloads, helping GPUs, accelerators, and add in cards operate with faster data throughput and greater efficiency.

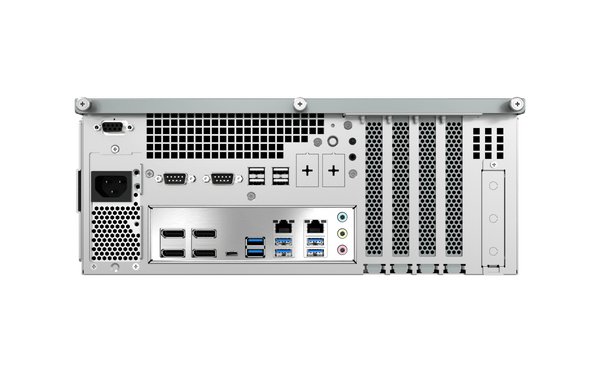

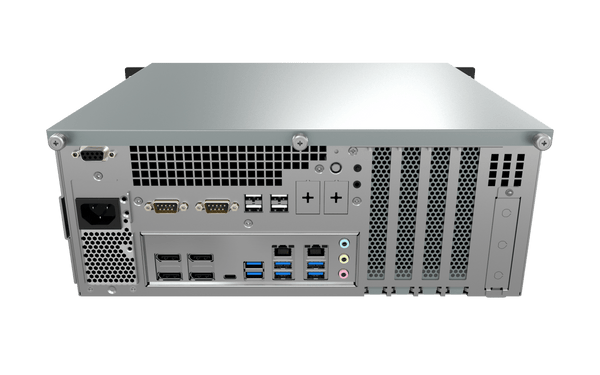

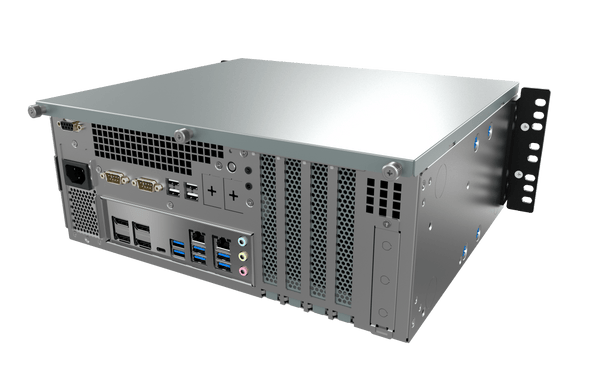

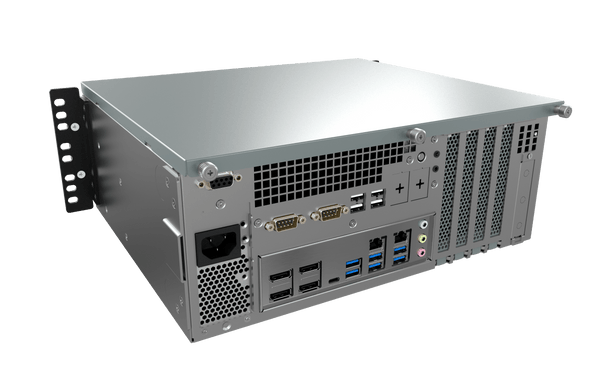

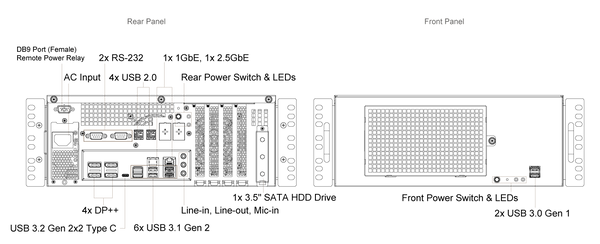

Rich Industrial I/O Connectivity

The KCO Series provides new and legacy connectivity through rich industrial I/O ports, giving system integrators and OEM designers easier access for installation, integration, and maintenance.

Flexible Storage for Edge Data Workloads

The KCO 3000 Series supports M.2 NVMe storage plus flexible SATA options, including 1x 3.5” drive or 2x 2.5” SSD or HDD drives for expanded edge data storage.

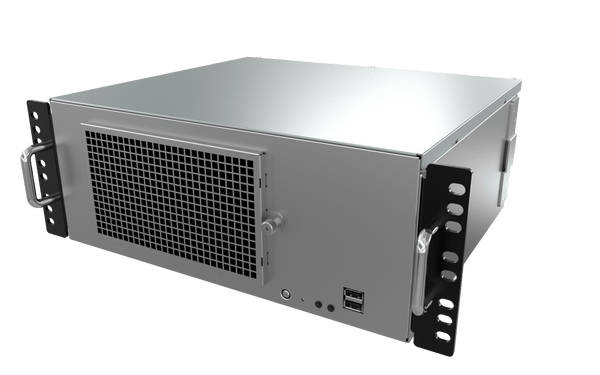

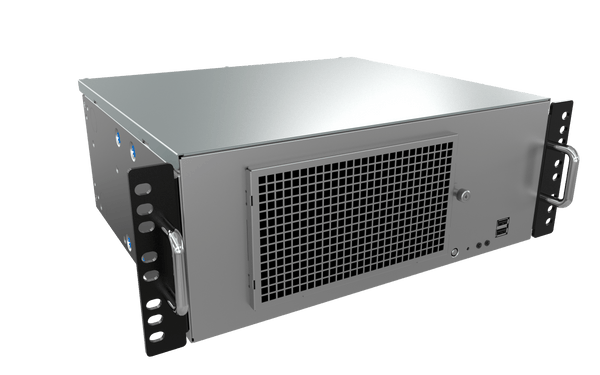

Industrial Rugged Design with Flexible Mounting

The KCO Series combines wall mount flexibility, a heavy duty metal chassis, and a tool less washable dust filter to protect internal components and simplify maintenance.

Higher Power Capacity for GPU Acceleration

The KCO-3000 Series integrates an internal 500W power supply to support higher-performance GPU configurations, helping accelerate demanding edge AI, machine vision, and inference workloads.

*Barebone Pricing Only; Sales team to review component configuration and price

*Starting At: $920.00

Configure Product
See Product Features

Specifications

System
Processor	Support 12th/13th Gen Intel® Core™ i9/i7/i5/i3 Alder lake-S, Raptor Lake-S Processor (LGA 1700, 65W Max TDP) - Intel® Core™ i9-13900E/i9-12900E, up to 24 Cores, 36MB Cache, up to 5.2 GHz, 65W - Intel® Core™ i7-13700E/i7-12700E, up to 16 Cores, 30MB cache, up to 5.10 GHz, 65W - Intel® Core™ i5-13500E/i5-12500E, up to 14 Core, 18MB Cache, up to 4.5 GHz, 65W - Intel® Core™ i3-13100E/i3-12100E, up to 4 Cores, 12MB Cache, up to 4.4 GHz, 65W
System Chipset	Intel® Q670E PCH
LAN Chipset	GbE1: Intel® I219LM (Support Wake-on-LAN and PXE) GbE2: Intel® I225-V (Support Wake-on-LAN and PXE)
Audio Codec	Realtek ALC888S HD Audio Codec, support 5.1 channel
System Memory	4x DDR4 2133/2400/2666MHz DIMM. 128 GB Max
Graphics	Intel® Integrated Iris Xe Graphic (CPU Dependent)
BIOS	AMI uEFI 256MB SPI flash
Watchdog	Software Programmable Supports 1~255 sec. System Reset
iAMT	Intel® AMT 12.0 supported
TPM	TPM 2.0
Display
Display Port	4x DP++
Storage
M.2	1x M.2 M / NVMe PCIe x4 Gen 4 / 2242, 2260, 2280 1x M.2 M / NVMe PCIe x4 Gen 4/ SATA / 2242, 2260, 2280 1x M.2 E / PCIe x1 Gen 3/ USB 2.0 / 2230
SATA	4x SATA III (6Gb/s)
SSD/HDD	1x 3.5" SATA HDD drive or 2x 2.5" SSD/HDD up to 15mm
Expansion
PCIe	1x PCIe x16 Slot (Gen 5) 1x PCIe x16 Slot (Gen 4, 4-Lane) 1x PCIe x4 Slot (Gen 4, Open End) 1x PCIe x4 Slot (Gen 3, Open End)
I/O
Audio	1x Mic-in, 1x Line-in, 1x Line-out
COM	2x RS-232
LAN	2x RJ45
USB	2x USB 3.0 Gen 1 (Front Panel) 6x USB 3.1 Gen 2 (10 Gbps) 1x USB 3.2 Gen 2x2 (20 Gbps) Type C 4x USB 2.0
Internal I/O
Audio	1x Front panel audio
COM	3x RS-232 1x RS-232/422/485 (COM3, internal)
DIO	1x 8-bit DIO (4-in/4-out)
SATA	4 x SATA Gen 3, support RAID 0/1/5/10)
USB	2x USB 3.0 Gen 1 4x USB 2.0
Others	1x SPI header 1x Front panel 1x CPU fan 2x System fan
Operating System
Windows	Windows 10
Linux	Linux Kernel 5.X
Power
Power Management	ACPI 5.0 compliant
Power Mode	100-240V AC @ 50/60Hz
Power Connector	IEC 60320 C14
Environment
Operating Temperature	0 °C to 50 °C
Storage Temperature	-40 °C to 85 °C
Relative Humidity	10% ~ 90% relative humidity, non-condensing
Certification	UL 62368 Ed. 3, FCC, CE
Vibration	1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock	With SSD: 10G, half sine, 11ms
Physical
Form Factor	3U
Dimensions	334(W) x 300(D) x 133(H) mm
Weights	5.6 KG (barebone w/ chassis, mb, and PSU only)
Construction	Heavy Duty Metal
Mounting Options	Rack Mountable (with special brackets)

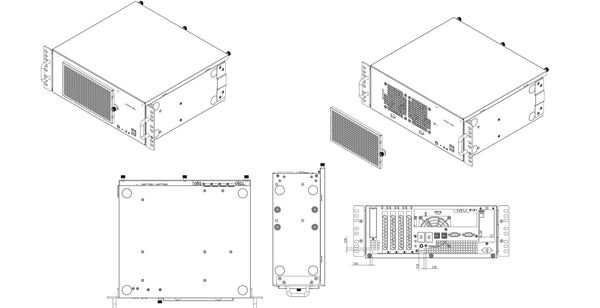

Mechanical Layout

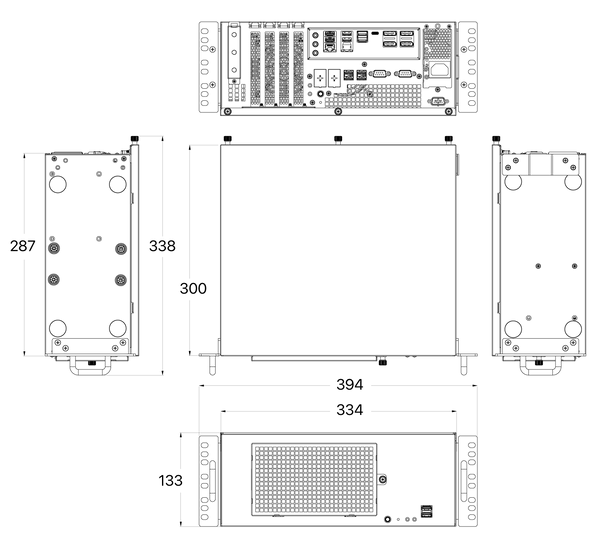

Dimensions

Unit:mm

Resources

AWS IoT Greengrass	Premio-Getting-Started-Guide-for-AWS-IoT-Greengrass-KCO-3000-RPL.pdf
Datasheet	DS_KCO-3000-RPL_Premio.pdf
Product Brief	PB_KCO-RPL.pdf
User's Manual	UM_KCO-2000-3000-RPL.pdf

AI Benchmarks

Intel® Edge Software Device Qualification (ESDQ)

Type

Use Case

Link

Metro AI Suite

Metro AI Suite is an application framework with libraries, tools, and reference implement ations to build AI solutions in the Video Safety and Security, Transportation, and Government Edge markets.
